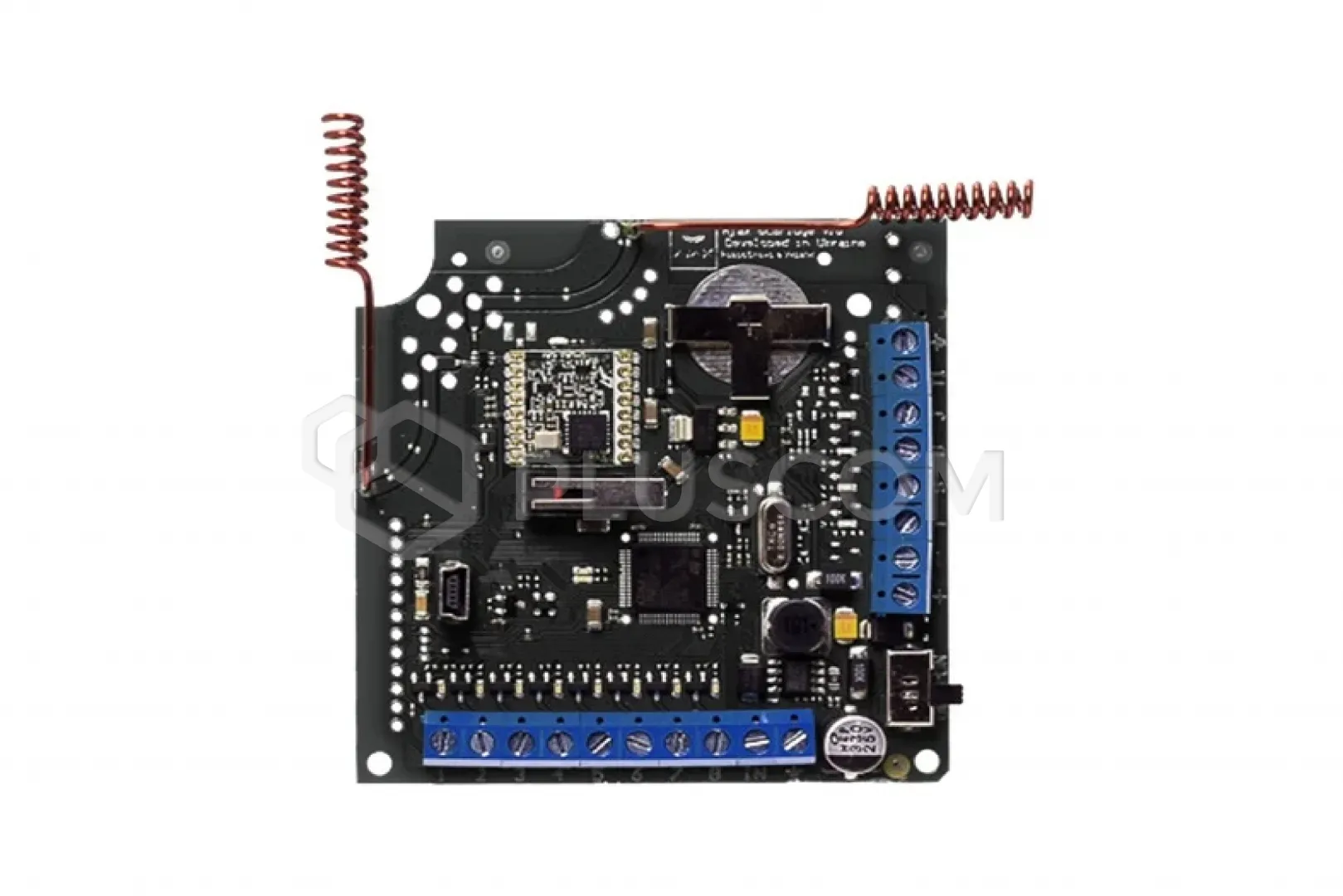

AJAX ocBridge Plus Hybrid Module

100,11 EUR including 23.00% VAT
Product code: #43419
Manufacturer: AJAX
  • Power supply: 8-14V DC
  • Transmission range: 2000m
  • Maximum number of sensors: 99
  • Loops: NO/NC, EOL, 2EOL
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AJAX ocBridge Plus Hybrid Module


Receiver module for connecting Ajax sensors to wired and hybrid alarm systems. The device is integrated with a central unit that manages wired security zones.

FEATURES:

  • Sends an activation signal using potential-free contacts
  • Can operate in pulse or bistable mode
  • Control via a PC configurator

Operation Principle

When the sensor is activated, the device closes or opens the transistor outputs. The wired central unit records the event and triggers an alarm.

Functions

The device allows you to connect the sensor and perform radio communication and detection zone tests using a computer.

Installation and Mounting

The device is installed in the wired central unit's housing, in a sealed enclosure, or in a plastic box.

Technical Specifications:

  • Alarm Output: 8
  • Service Output: 4
  • Maximum Number of Sensors: 99
  • Operating Modes:
    • Pulse
    • Bistable
  • Loops: NO/NC, EOL, 2EOL
  • Operating Frequency: 868.0 - 868.6 MHz
  • Transmission Range: 2000m (in open area)
  • Power Supply: 8-14V DC
  • Dimensions: 92x18x95mm (W/L/H)
