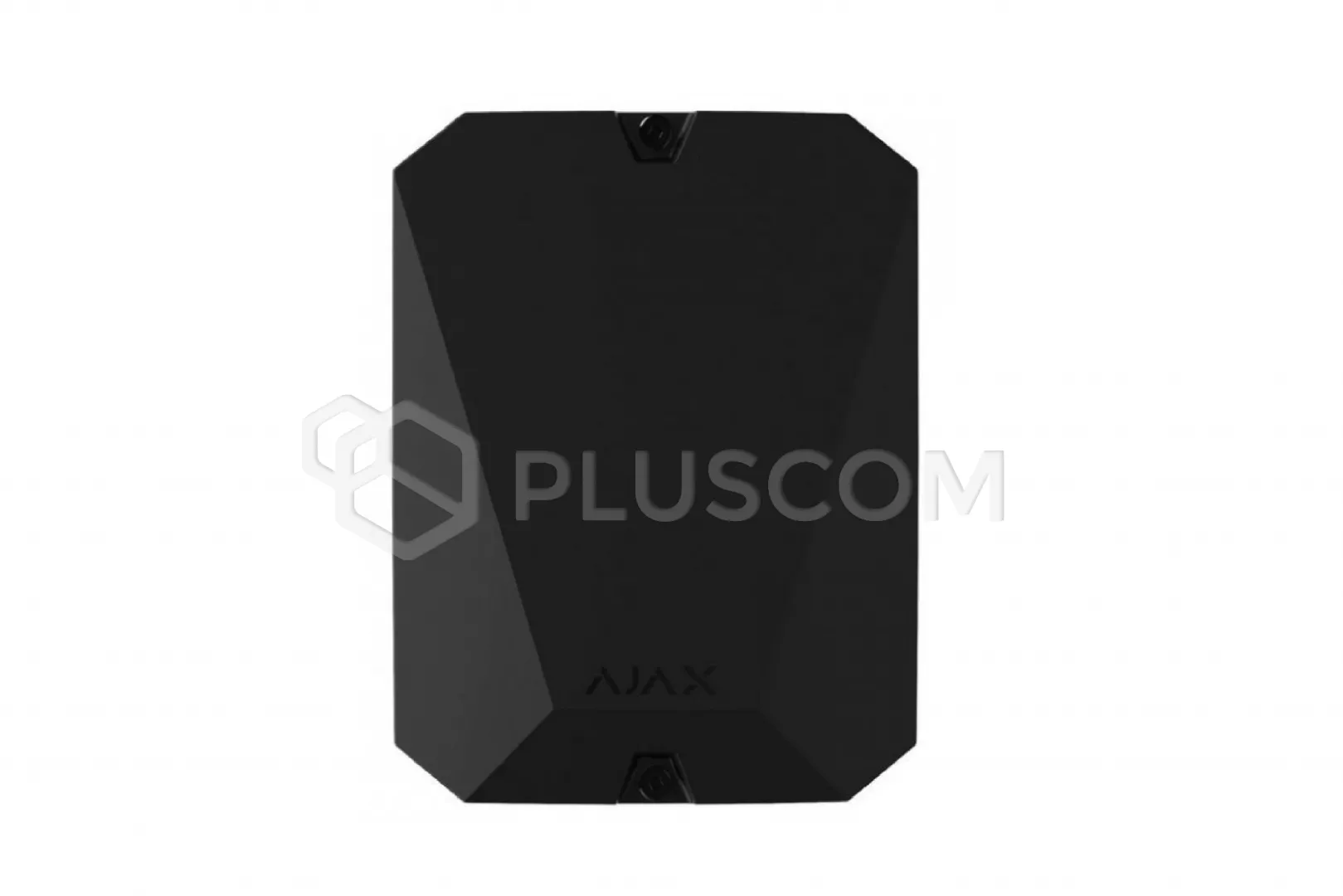

AJAX MultiTransmitter Jeweller Wireless module for connecting external sensors (black)

AJAX MultiTransmitter Jeweller Wireless module for connecting external sensors (black)

The Jeweller MultiTransmitter is an integration module with 18 wired zones for connecting third-party detectors to the Ajax security system.

The module is powered by 110–255 VAC or 12 VDC. It can also power connected detectors with 12 V.

FEATURES:

• Converts third-party sensors into complete Ajax devices
• Simplifies the process of integrating wired security systems with Ajax by automatically combining EOL resistor information.
• Converts signals from wired detectors and sends alarms to the hub via the Jeweller radio protocol.

A second life for your wired alarm.

We understand how difficult it can be to replace your wired alarm.
This is a common situation when the system is still capable of protecting the property, but is already outdated.

Renovating with Ajax doesn't force you to give up your existing equipment, but gives you the opportunity to create a modern, comprehensive system based on wired devices.

More Ajax Features

Perimeter infrared sensors, home gas sensors, thermostats, float switches, and other devices extend Ajax's functionality.

Simply connect them to the hub via MultiTransmitter and manage your alarm system in the AjaxM mobile app.

Technical Specifications:

• Alarm or tamper input: 18
• Output voltage: 12V
• Operating modes:
• • Pulse
  • Bistable
• Battery capacity: 7 Ah
• Operating frequency: 868.0 - 868.6 MHz
• Transmission range: 2000m (in open area)
• Power supply:
• • 110-255V AC
  • 12V DC
• Dimensions: 196x100x238mm (W/L/H)
