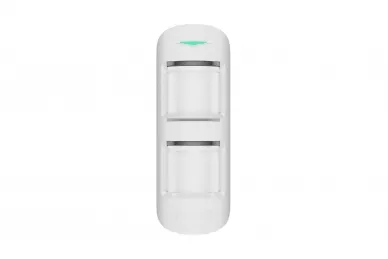

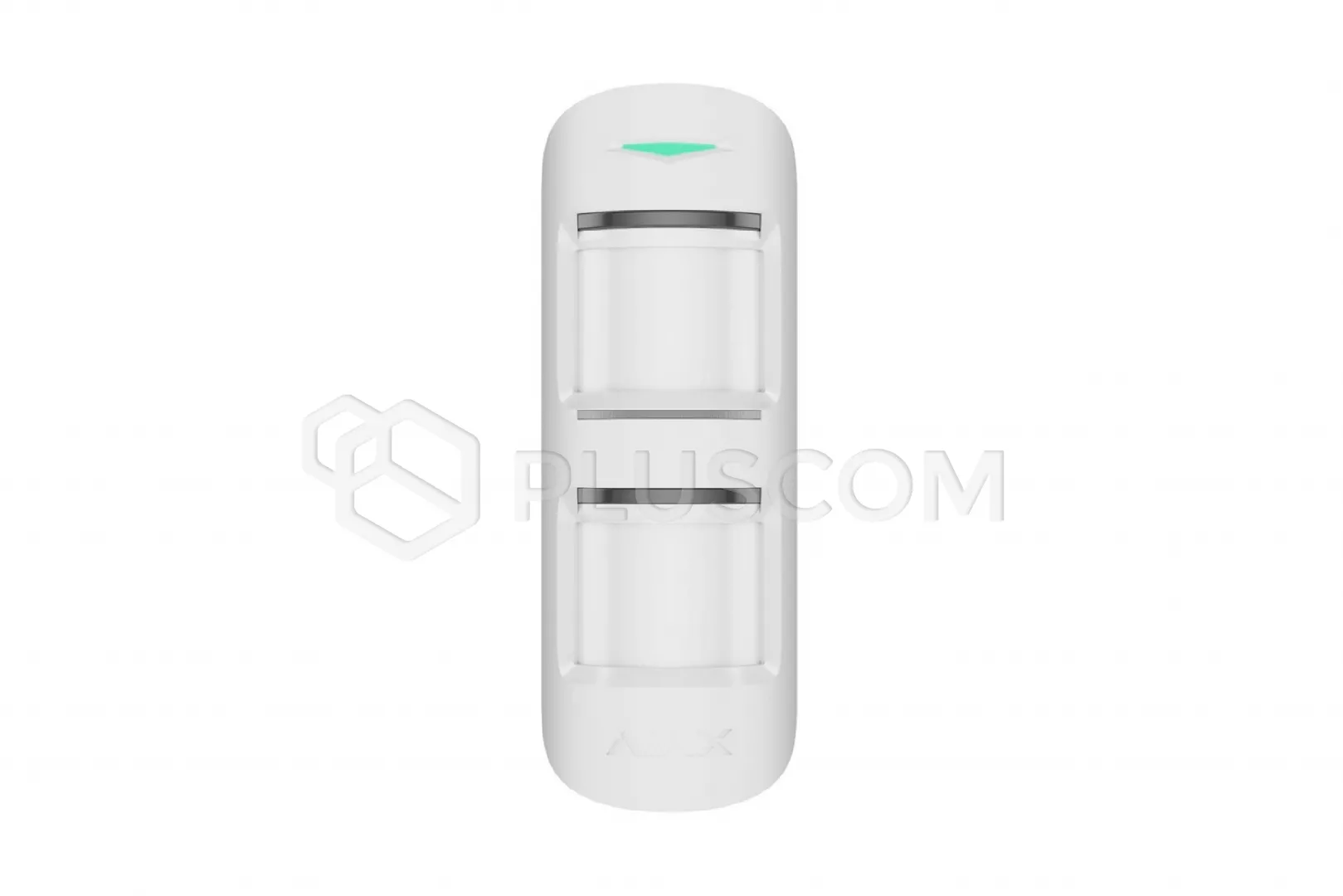

AJAX MotionProtect Outdoor Jeweller Outdoor Wireless Motion Sensor
The MotionProtect Outdoor Jeweller wireless outdoor motion sensor uses
intelligent systems to prevent false alarms. The device operates in low
temperatures and is protected against dust and splashes.
FEATURES:
- Detects motion at a distance of 3-15 meters
- Ignores animals up to 80 cm tall
- Operates without changing batteries for up to 5 years
Ignores all irrelevant events
LISA analyzes the similarity of signals
from two sensors in two stages. If the signals appear similar in the first
stage, the sensor begins comparing their spectral components.
This helps ignore swaying trees in the sensor's detection zone and animals
up to 80 cm tall.
Accurately Detects People
LISA turns MotionProtect Outdoor into a
powerful barrier against intruders. The digital algorithm precisely detects
human movement while ignoring animals, swaying trees and plants, as well as
birds and insects.
Intelligent Anti-Masking System
Outdoor sensors are easy targets.
During the day, when the system is disarmed, intruders can block the field of
view or damage the sensors to break in at night.
To prevent sabotage, we've equipped MotionProtect Outdoor with a dedicated
button and an advanced anti-masking system that can be active 24/7.
The anti-masking system in MotionProtect Outdoor automatically calibrates
itself by analyzing the surroundings when the device is mounted on the
SmartBracket.
If the anti-mask sensors' field of view is obstructed or painted over, the
sensor quickly notifies of tampering and triggers an alarm. Additionally, a
sensitive anti-tamper element activates if an attempt is made to remove the
sensor from the SmartBracket.
Intuitive configuration and installation
To connect MotionProtect
Outdoor to the hub, simply scan the QR code with your smartphone's camera.
Thanks to the SmartBracket, the device can be installed without opening the
housing.
Use the Ajax mobile app to test and configure the sensor. Installing outdoor
sensors is a job for professionals. It requires assessing the area,
understanding potential entry points, and anticipating possible interference.
Technical Specifications:
- Detection Method: PIR
- Anti-masking Function
- Built-in Temperature Sensor
- Operating Frequency: 868.0 - 868.6 MHz
- Transmission Range: 1700m (in open space)
- Detection Range: 3m to 15m
- Viewing Angle: 90° - Horizontal
- Pet Immunity: Up to 80cm Height
- Sensitivity Adjustment: 3 Levels
- Remote System Configuration and Testing
- Ingress Protection Rating: IP55
- Power Supply: 2x 3V CR123A Batteries (Included)
- Battery life: up to 5 years
- Dimensions: 70x65x183mm (W/L/H)
- Security class: Grade 2
