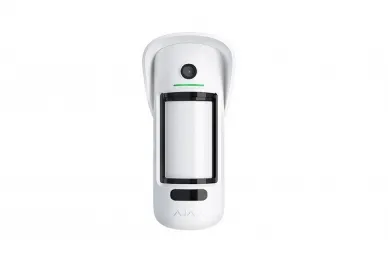

AJAX MotionCam Outdoor (PhOD) Jeweller Outdoor Wireless Motion Sensor
MotionCam Outdoor (PhOD) Jeweller is a wireless infrared motion sensor for
indoor and outdoor use, supporting photo-on-alarm, photo-on-demand, and
photo-on-scene functions.
The sensor detects motion up to 15 meters away, features anti-masking
protection, and ignores animals.
MotionCam Outdoor operates as part of the Ajax alarm system, connecting to the
hub using encrypted Jeweller and Wings wireless protocols.
External Surveillance and Alarm Acknowledgment
MotionCam Outdoor is
equipped with a camera that allows for a quick assessment of the situation
within the protected facility.
The sensor automatically takes a series of photos whenever it detects an
intrusion. The series of photos is combined into an animation showing the
dynamics of the situation. Regardless of the security mode, MotionCam Outdoor
PhOD can take a series of photos upon user request sent from the Ajax mobile
app.
Intelligent False Alarm Filter
MotionCam Outdoor is equipped with two
independent PIR sensors, whose signals are analyzed by a two-stage LISA
algorithm.
When both sensors detect motion, LISA performs correlation and spectral
analysis of the signals, allowing you to instantly distinguish real threats
from interference.
Correlation Analysis
When MotionCam Outdoor detects motion, LISA
analyzes and compares the signal waveforms from the two sensors in real time.
If they are similar, an alarm is triggered.
Spectral Analysis
When both sensors detect motion but correlation
analysis does not reveal sufficient similarity, LISA compares the frequency
components of the signals from both sensors.
You won't miss a thing
Thanks to the combination of superior
optics, a fast processor, and advanced software algorithms, MotionCam Outdoor
captures clear images in any weather, day or night.
Outdoor cameras often need to capture images in challenging lighting
conditions. Direct sunlight, reflective surfaces, or streetlights can blind the
camera, skimping on vital details.
This is unacceptable for a security device. We faced the challenge of obtaining
a clear and sharp image that allows us to confirm a break-in within seconds,
allowing the security agency to respond in a timely manner.
Quality makes the difference
We abandoned plastic optics to create a
waterproof lens made of glass and metal. The wide-angle lens covers the entire
protected area, providing a complete picture of what's happening.
In bright light, an infrared filter is automatically applied, ensuring
distortion-free color reproduction, while two bright infrared LEDs help you
spot intruders even in complete darkness.
HDR
To capture a single photo, the MotionCam Outdoor takes two
successive shots with long and short exposures.
The processor instantly combines both shots, balancing light and dark areas,
and then compresses the resulting image to increase transmission speed.
Thanks to HDR, the sensor uses less intense IR illumination at night, saving
battery life.
Surveillance Area
If in doubt, system users can check what's
happening on-site.
No need to wait for an alarm. Simply open the app, select a sensor, and see the
situation in your yard in seconds.
Less cause for concern
Outdoor motion sensors operate in a complex
environment full of natural sources of false alarms.
MotionCam Outdoor allows system users and monitoring station operators to check
in seconds whether an alarm is real, allowing them to respond appropriately.
Increased Security
Both system users and the emergency patrol need a
clear picture of what's happening in a facility where an alarm has been
triggered.
The sensor will show how many criminals are still nearby and whether they are
armed.
This allows the security patrol to prepare, and users to avoid danger.
Evidence on Your Smartphone
A series of animated photos in the app
allows law enforcement to immediately provide information about burglars'
characteristics.
Thanks to infrared illumination, the sensor detects them even in complete
darkness. This increases the chances of catching criminals red-handed.
Unique Wireless Technologies
The sensor simultaneously uses two radio
protocols: Jeweller for alarm notification and Wings for image transmission.
Jeweller ensures immediate alarm delivery, while Wings delivers the first photo
from the scene in just 9 seconds.
Even with communication disruptions and weak signals. With a communication
range of up to 1,700 meters with the Ajax hub, the sensor can be easily
installed in a location where it will be most effective.
- Two-way communication at a distance of up to 1700 m
- Photo transfer in 9 seconds
- Battery life up to 3 years
Privacy First
MotionCam Outdoor (PhOD) Jeweller is designed to ensure
security without compromising privacy. Photos are protected from prying eyes at
the sensor, system, and app levels.
Effective protection in all weathers
MotionCam Outdoor can operate in
temperatures up to +60°C and withstands temperatures down to -25°C. To protect
the anti-masking system sensors from rain and snow, we designed a special
canopy.
- Effective in high and low temperatures
- IP56 housing protection
- Rain and snow protection included
Technical specifications:
- Detection method: 2x PIR
- Anti-masking function
- Image resolution: 640x352
- Illumination: IR LEDs
- Built-in temperature sensor
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 1700m (in open space)
- Supports radio protocols: Jeweller and Wings
- Detection range: 3 to 15m
- Viewing angle: 90° - horizontal, 80° - vertical
- Camera view angle: 105° - horizontal, 50° - vertical
- Photo alarm verification
- Photo on demand and via another device's alarm
- Pet immunity: up to 80cm
- Recommended installation height: 0.8 ~ 1.3m
- Remote system configuration and testing
- Power supply: 4x 3V CR123A batteries (included)
- Battery life: up to 3 years
- Ingress protection class: IP55
- Dimensions: 108×93×206mm (W/L/H)
- Security class: Grade 2
