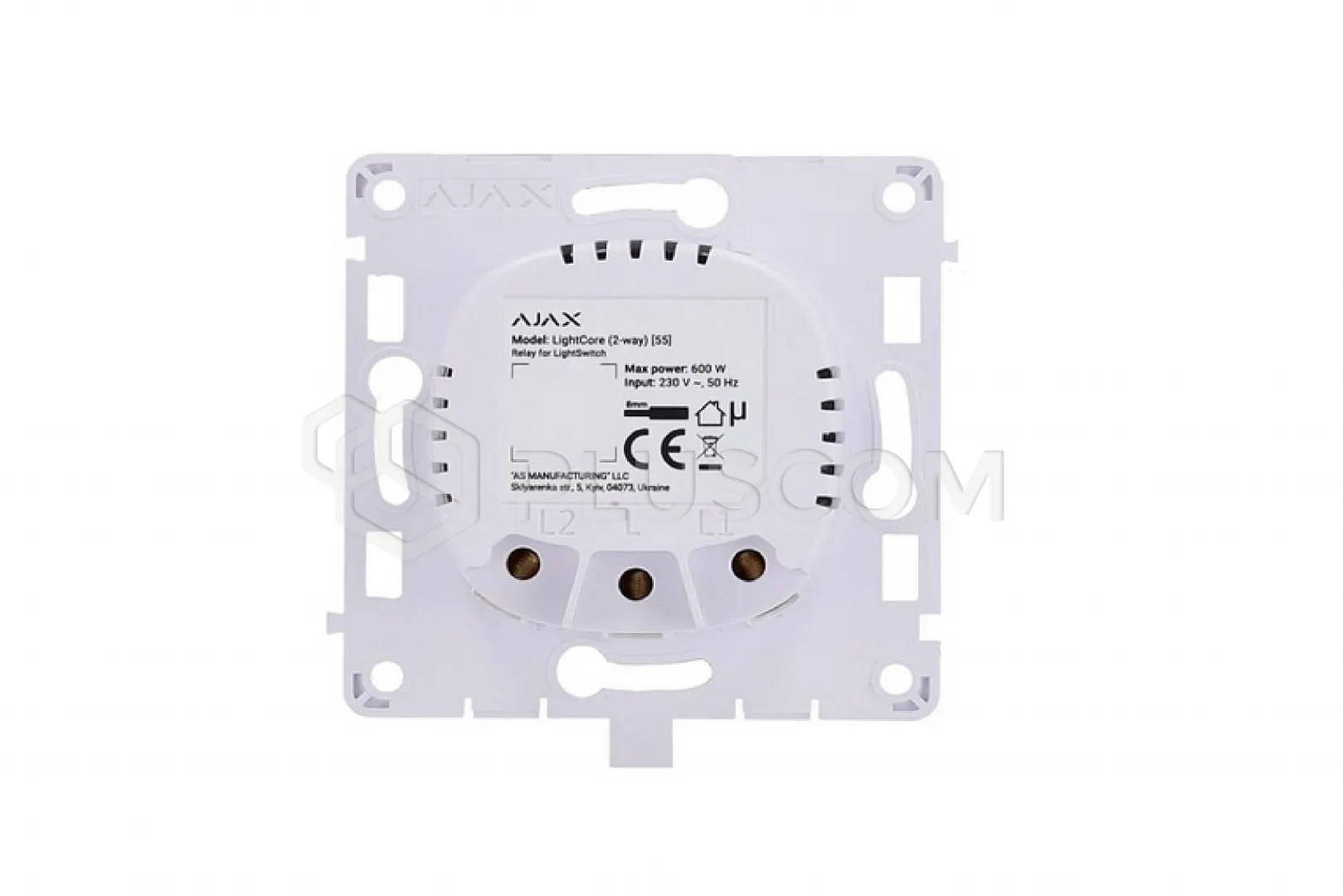

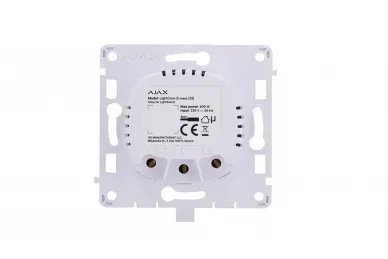

AJAX LightCore (2-way) Relay for 2-way switch
LightCore is a relay for the Ajax LightSwitch system's single-button
(1-gang), two-button (2-gang), or two-way (2-way) switches. The switch can
control devices with a power rating of 5 to 600 W.
LightSwitch is a prefabricated smart switch, with all components purchased
separately.
The components are mechanically connected without the need for tools.
The Ajax product line offers two LightSwitch formats: single (relay + single
button) and combined (multiple relays + bezel + button - central or rounded).
LightSwitch is easy to install: it fits a standard European socket, does not
require a neutral wire, and connects to the security system via QR code
scanning.
App settings allow you to automatically turn on your lights according to a
schedule, when the security system is disarmed, or in response to an alarm.
FEATURES:
- Touch panel with backlight
- Touchless lighting control
- Automatic switch with timer
- Automation scenarios
- Overcurrent and overtemperature protection
- Up to 1100 m communication range with the Ajax hub
- Protection for your curious little ones
- Jeweller radio communication
- Remote control and configuration
- Lighting control via smartphone
- Notifications and event log in the app
- 8 modern colors to choose from
- No need for natural wire
- Compatible with lamps from 5 to 600 W
- 4 frame sizes for combining multiple buttons
Convenience and security at your fingertips
This smart light switch
combines the reliability of professional alarm systems with user-friendly
operation.
The entire panel is touch-sensitive, even with a 15mm proximity to your hand.
LightSwitch works well in the dark thanks to its soft backlight.
The light switch can do more than just turn on light fixtures.
It can also simulate the owner's presence and remotely control curtains or
blinds using automation scenarios.
Designed for any interior
The Ajax LightSwitch impresses with its
simple design and high-quality hardware.
The device will easily fit into both a cozy home interior and a modern,
technology-filled space.
Illuminate the switch on the wall or make it invisible.
The design is universal and will fit into any space at home, in the office, in
a factory, or anywhere else.
Enjoy lighting control
Turn off the lights with minimal effort.
The entire panel is touch-sensitive and responds even when your hand, elbow,
knee, or other body part is within 15 mm of the panel.
This feature is essential if you want to avoid touching the device or if
it's in a public place. At the same time, the touch panel only responds
when needed.
The 1-port/2-port touch switch responds even to gloved hands.
Feel in control of your device with a silent, lag-free click.
Optional backlighting allows you to control the lighting even at night, without
disturbing your sleep.
- Without indication
- With a gloved hand
- Without touching
- In complete darkness
A different world of hardware
LightSwitch is an intelligent lighting
control system that provides advanced electrical protection and reliability
comparable to professional alarm systems.
There's no need to set a neutral wire to connect the switch.
It's controlled via Ajax software and doesn't experience any issues
with crashes or freezes.
Furthermore, the device has an anti-tamper contact that detects disconnection
of the light switch's touch panel.
- No neutral connection required
- Two radio antennas built into the front panel
- The relay is designed for at least 200,000 switching cycles (50 years of
operation)
- Consumes up to 0.2 W (15 times less than a typical smart switch)
- Protection against false reactions caused by power surges
- Overcurrent and overtemperature protection
Unique wireless technologies
For the LightSwitch to utilize its
intelligent capabilities, it must communicate with an Ajax hub.
It does not rely on popular technologies such as Wi-Fi, Z-Wave, ZigBee, or
Bluetooth. Instead, it uses Jeweller's proprietary radio communication
technology, which meets high industry standards and ensures security, range,
and energy efficiency.
Jeweller's functionality remains unaffected by home interference and does
not cause sudden failure or cessation of operation.
LightSwitch has a radio communication range of up to 1100 meters in open space,
which is longer than standard solutions from competing manufacturers.
Automatic power control makes the device energy-efficient by not constantly
using the maximum power of the radio transmitters in the system's devices.
It is also more stable by using less common radio frequencies.
- Up to 1100 meters of radio communication with the hub
- Encrypted two-way radio communication
- Responds to app commands and triggers automation scenarios without
delay
Technical specifications:
- Application:
-
- Single-button (1-gang)
- Double-button (2-gang)
- Staircase (2-way)
- Night illumination
- Anti-tamper, current, and temperature protection
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 1100m (in open space)
- Installation: for Boxes
- Power Supply: 230V AC
- Maximum Power:
-
- LightCore (1-gang) and LightCore (2-way): 600W
- LightCore (2-gang): 300W
- Dimensions: 76.3 x 76.3 x 29.2mm (H/W/D)
