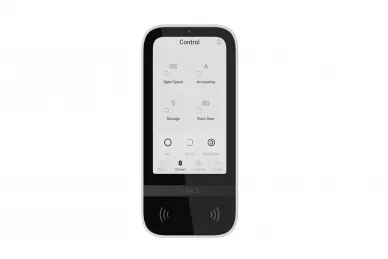

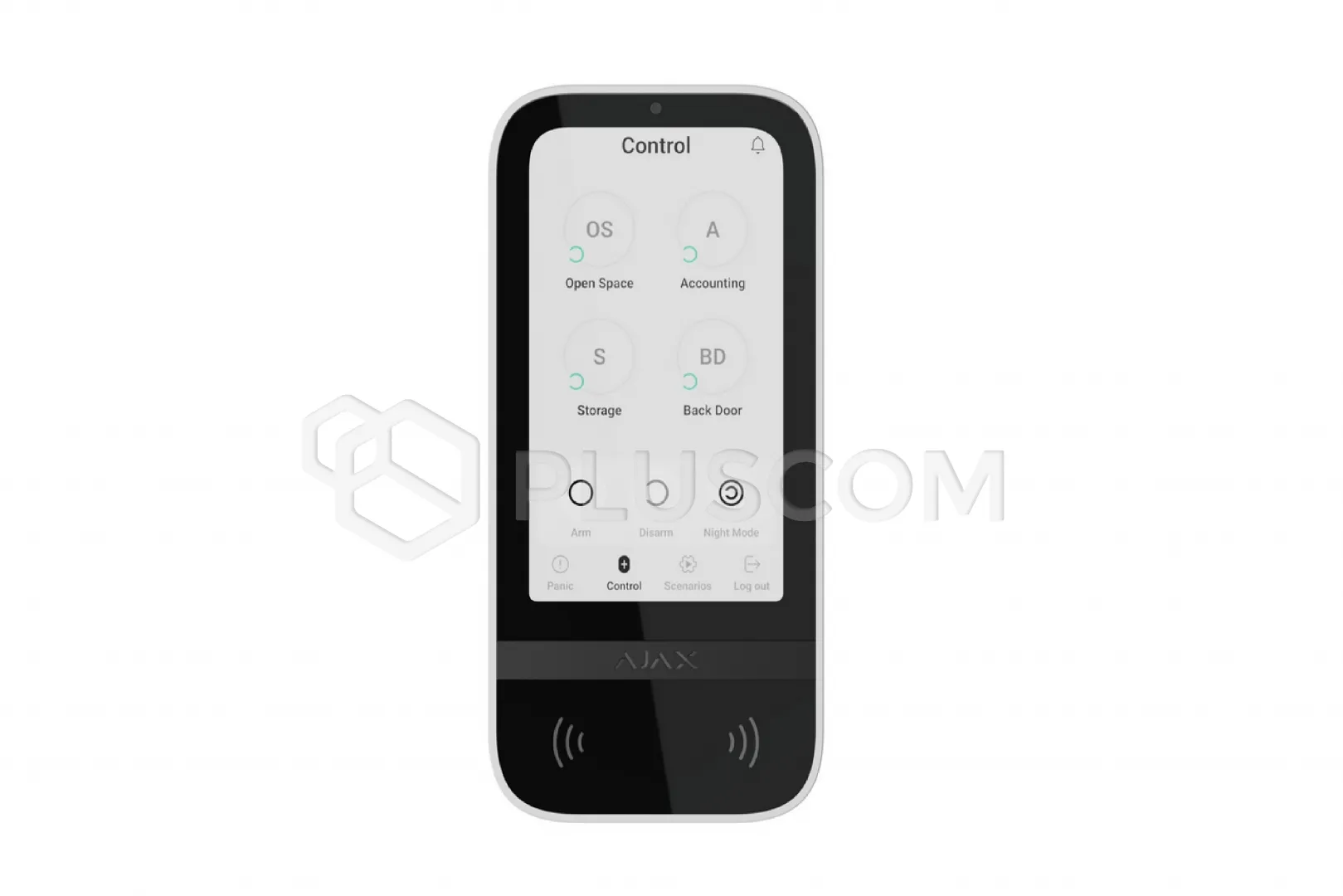

AJAX KeyPad TouchScreen Jeweller Wireless Touchscreen Keyboard (White)
The KeyPad TouchScreen Jeweller is a wireless touchscreen keyboard designed to
manage the Ajax alarm system. Users can authenticate using smartphones, Tag
fobs, Pass cards, and codes. The device is intended for indoor use only.
The KeyPad TouchScreen communicates with the hub via two secure radio
protocols.
The keyboard uses Jeweller to transmit alarms and events and Wings to update
firmware, share group lists, rooms, and other additional information. The
communication range is up to 1,700 meters without obstructions.
FEATURES:
- Smartphone control - thanks to BLE (Bluetooth Low Energy) support
- Communication range with the Ajax hub up to 1700 m
- Two power supply options:
-
- Up to 1.5 years of battery life
- 12 V ⎓ external power supply and
batteries
- Personal access codes and duress codes
- Audio notifications for delays, door openings, and alarms
- Automation control
- Configurable alarm buttons:
-
- Panic alarm
- Fire alarm
- Auxiliary alarm
- Operation via secured cards and key fobs - Pass and Tag access
devices
- Over-the-air software updates
- Jeweller and Wings wireless technologies
- Tamper alarm
Convenient Ajax system control
The TouchScreen KeyPad combines security
and smart home device management.
A clear interface similar to the Ajax app and multiple language options make it
an intuitive solution.
A large display, DESFire and BLE technologies, and code options guarantee
efficient and secure operation.
One device, two purposes
- Security management
- Smart home control
- Instant fault notifications
Simple security management for multiple groups. Users can view arming and
make changes with a single touch, whether securing a single or multiple areas,
activating night mode, or arming the entire facility. It's all simple and
straightforward.
- Easy group management
- Each group's security mode is available on-screen
- Manage night mode and system-wide security mode
Three authentication methods
There are three simple ways to control the
keypad, giving users the flexibility to choose what works best for them.
All events are displayed in the channel, including user activity and
authentication details.
Smartphone
Control the keypad using a smartphone with the Ajax app.
Only those approved by the administrator have access.
Proximity Access Devices
The Pass card and Tag key fob feature genuine
DESFire® chips and share the same functions, but differ in their housing.
You can choose the form that's most convenient for you. One Tag or Pass can
control 13 alarm systems. Access devices are sold separately in batches of
3/10/100.
Access for unregistered users
By simply assigning a personal access
code in the hub settings, office workers, cleaning staff, and other users can
conveniently access the protected area.
- Remote code creation and editing
- Notifications about code addition, deletion, and deactivation
- Association of a unique name with an ID for user identification
- Up to 99 keypad access codes
Complete Emergency Protection
The KeyPad TouchScreen provides a card
with configurable emergency buttons that can notify you of three types of
events.
If a user is forced to disarm the alarm, they can use a duress code. This
simulates disarming and simultaneously sends an alert to the security agency.
A Unique Touchscreen Experience
The high-resolution screen houses all
the necessary controls, providing a visually stunning, high-quality display.
With automatic brightness adjustment and a sleek glass finish, the product
offers high aesthetics and comfort.
- Screen: 5-inch screen with a resolution of 480 × 854 pixels
- Screen Brightness: Bright during the day, glare-free at night
- Screen Protection: Protects the screen from scratches, etc.
Remote Access Rights Management
Change access rights and codes in real
time in Ajax applications.
Compromised codes can be changed remotely in minutes. An on-site visit by an
installer is not required.
- Remote Code Change
- Screen Brightness Change Remote User Access Rights
- Screen Protection Remote Locking with Card, Key Fob, and Smartphone
Stable Power Supply in All Conditions
Wireless installation ensures a
quick setup process and trouble-free operation.
Ajax applications warn of low battery levels, ensuring security is never
compromised.
- Up to 1.5 years of operation on factory-installed batteries
- In-app Low Battery Warning
- Replaceable AA Batteries
External Power Supply + Batteries
To ensure uninterrupted operation of
the device and achieve greater autonomy, connect it to a 12V⎓ power supply
module.
Pre-installed batteries provide a reliable power source.
- Connects to a 12V⎓ power supply module
- Pre-installed batteries provide a backup power source
- 12V⎓ power supply module not included with the KeyPad TouchScreen
Unique wireless technologies
The KeyPad TouchScreen utilizes
proprietary Jeweller and Wings radio protocols for reliable communication.
- Up to 1700 meters of radio communication with the hub
- Encrypted two-way radio communication
- Notifications about signal jamming and connection loss
Technical specifications:
- Display: 5" IPS touchscreen
- Screen resolution: 480×854
- Authentication: smartphone (Bluetooth), proximity card, key fob,
code
- Two-way wireless communication
- Operating frequency: 868.0 - 868.6 MHz
- Remote system configuration and testing
- Transmission range: 1700m (in open space)
- Protocol support Radio: Jeweller and Wings
- Tamper protection (tamper and jamming detection)
- Power supply: 6 x AA batteries (included) or 12V DC
- Battery life: up to 1.5 years
- Operating temperature: -10°C ~ 40°C
- Dimensions: 82×26×172mm (W/L/H)
- Security class: Grade 2
