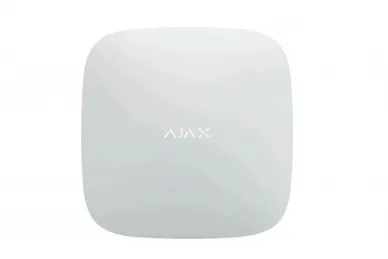

AJAX Hub Plus Jeweller Alarm Control Panel (White)
The second-generation Hub Plus intelligent control panel features four
communication channels, a new, powerful processor, three times more RAM, and
twice the amount of flash memory.
The Hub Plus monitors the operation of all Ajax sensors and immediately alerts
the system owner and the security agency of alarms.
FEATURES:
- Uses Wi-Fi, Ethernet, WCDMA, and GSM to send alarms to the central
monitoring station and the system owner.
- Sends notifications in the event of a power outage and operates for up to
16 hours with a backup battery.
- Checks sensor status every 12 seconds or more frequently.
- Alarm responses.
- Responses after changing the protection mode.
- Scheduled actions.
- Video and audio streaming.
- Snapshot recording.
- Video zoom.
- Supports 50 cameras and a DVR.
- The Ajax system supports RTSP, a standard protocol in the video
surveillance market. It is used in most personal and professional cameras and
DVRs.
Protects large areas
Hub Plus is designed to protect large facilities
with a large number of rooms and people.
A new, powerful processor and increased memory have improved the control
panel's capabilities: the Hub Plus can connect up to 150 sensors and 50
cameras, add 99 users, and create 25 zones for area security management.
Uses all possible alarm transmission methods
Hub Plus is the absolute
leader in terms of the number of communication channels: the control panel is
connected to the internet via Wi-Fi, Ethernet, WCDMA, and GSM.
All these methods combined ensure an exceptionally stable connection and
immediate alarm notifications to the system owner and security agency.
Stability increased by 4 times
Hub Plus is equipped with a GSM module
with two SIM card slots supporting 2G and 3G networks.
Now you can use SIM cards from two different operators without the risk of
losing connectivity.
The control panel instantly switches between 2G and 3G networks. If one SIM
card fails, the other is automatically activated.
Greater reliability
The Hub Plus allows you to duplicate your internet
connection by connecting the control panel to the networks of two independent
providers: the primary provider via Ethernet and the backup provider via Wi-Fi.
If one provider's connection fails, the hub remains connected and continues
to monitor the situation at the facility.
Installation and assembly
The hub is ready to use out of the box,
configured via the mobile app, and the sensors are connected with a single
click.
The device can be easily installed in minutes using the SmartBracket.
Secure Home and Office Automation
Use Ajax scenarios to teach your
alarm system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to the Ajax Cloud
is lost.
Technical Specifications:
- Two-way wireless communication
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 2000m (in open space)
- Maximum number of connected devices: up to 150
- Video monitoring support: up to 50 cameras or DVRs
- Maximum number of users: 99
- Maximum number of rooms: 50
- Zones: 25
- ReX signal amplifier connection: 5
- Smart home scenarios: 64
- Communication: LAN, 2x GSM, WiFi
- Tamper protection (tamper and jamming detection)
- Battery: 2 Ah (up to 16 hours of battery life)
- Power supply: 110 - 240 V
- Protection class: Grade 2
- Dimensions: 163x36x163 mm (W/L/H)
- Warranty: 24 months
