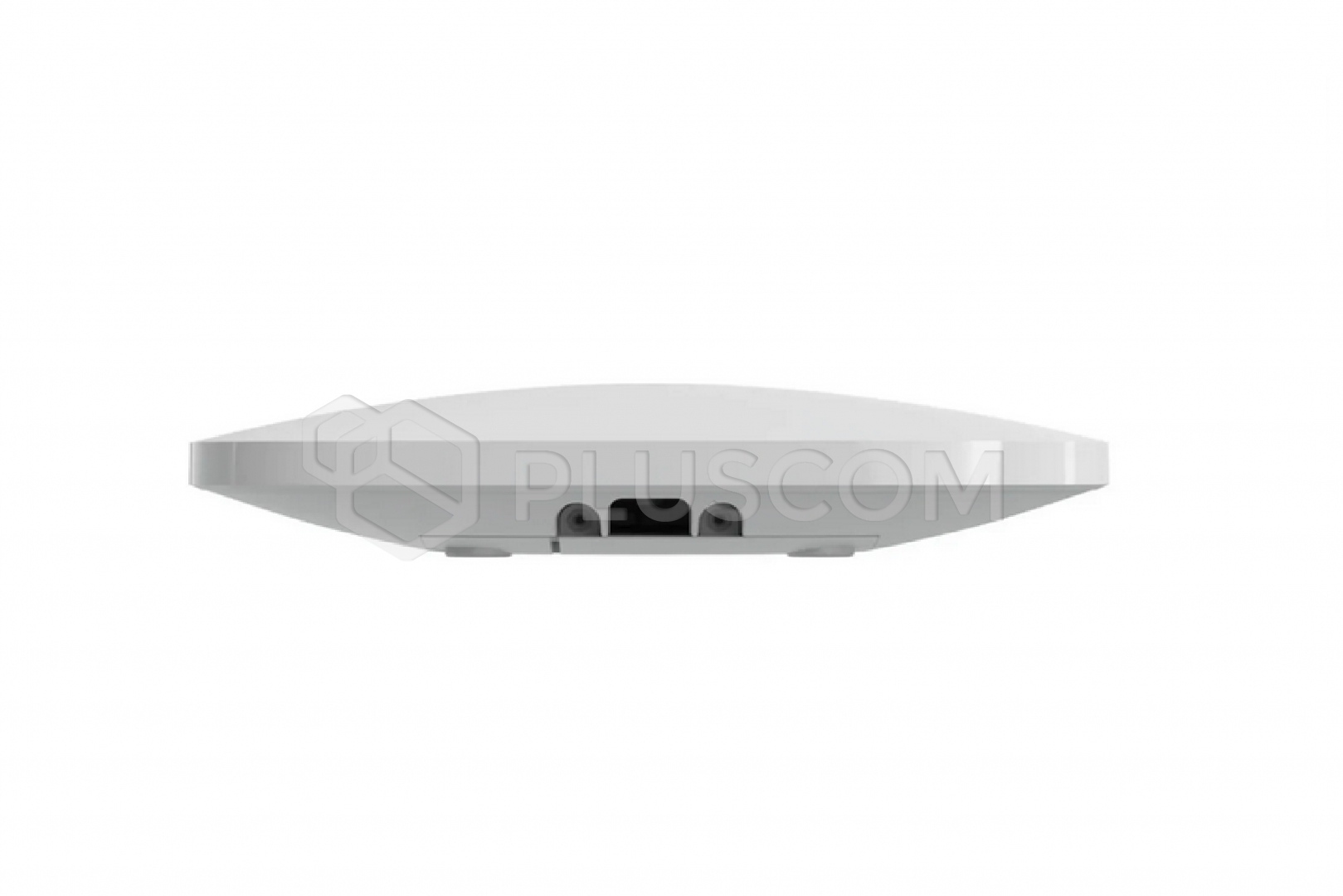

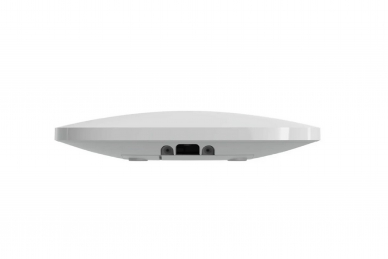

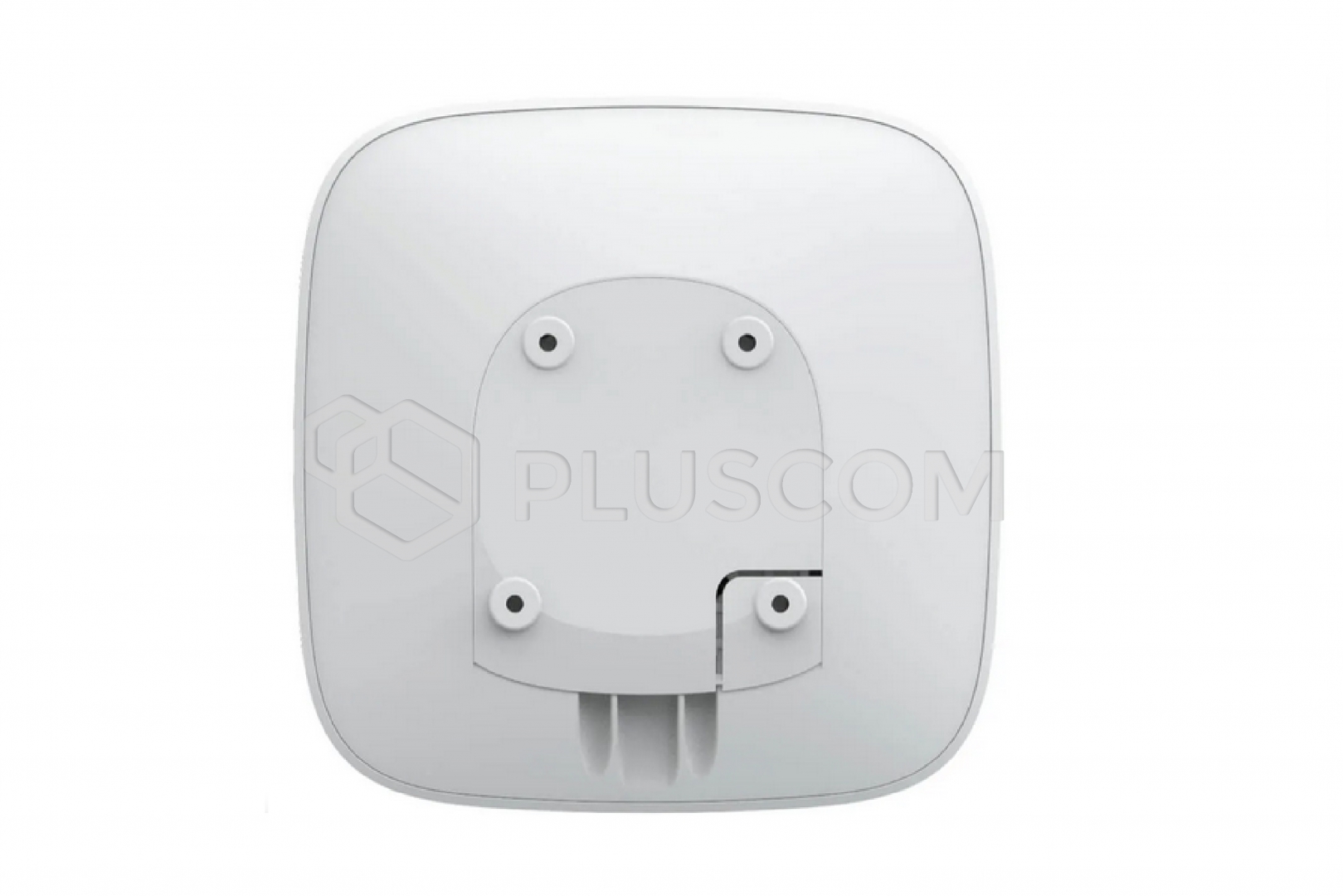

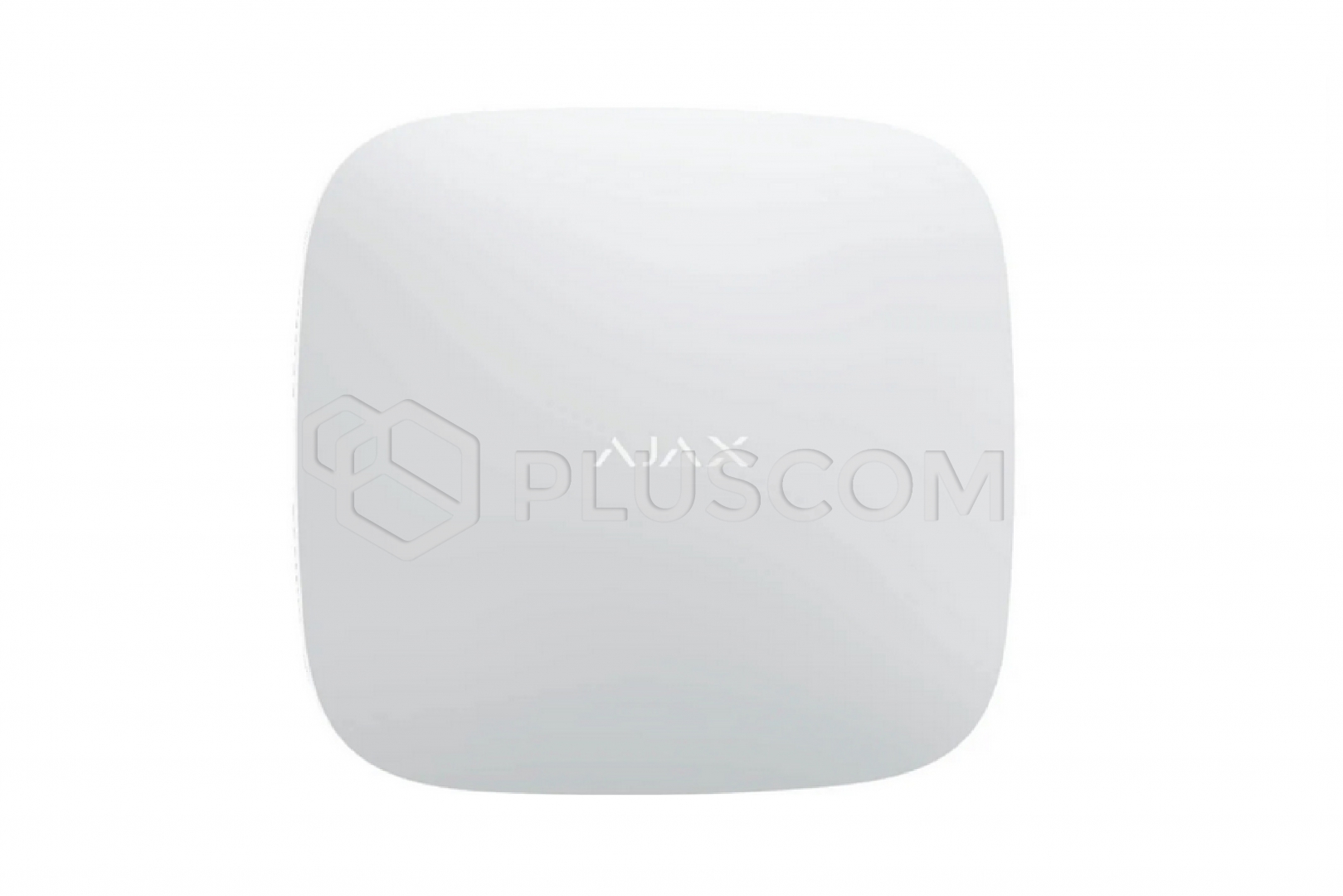

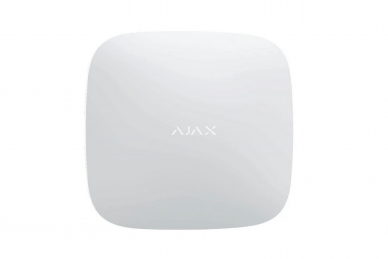

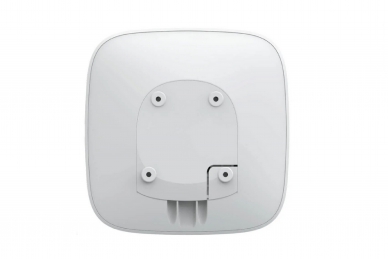

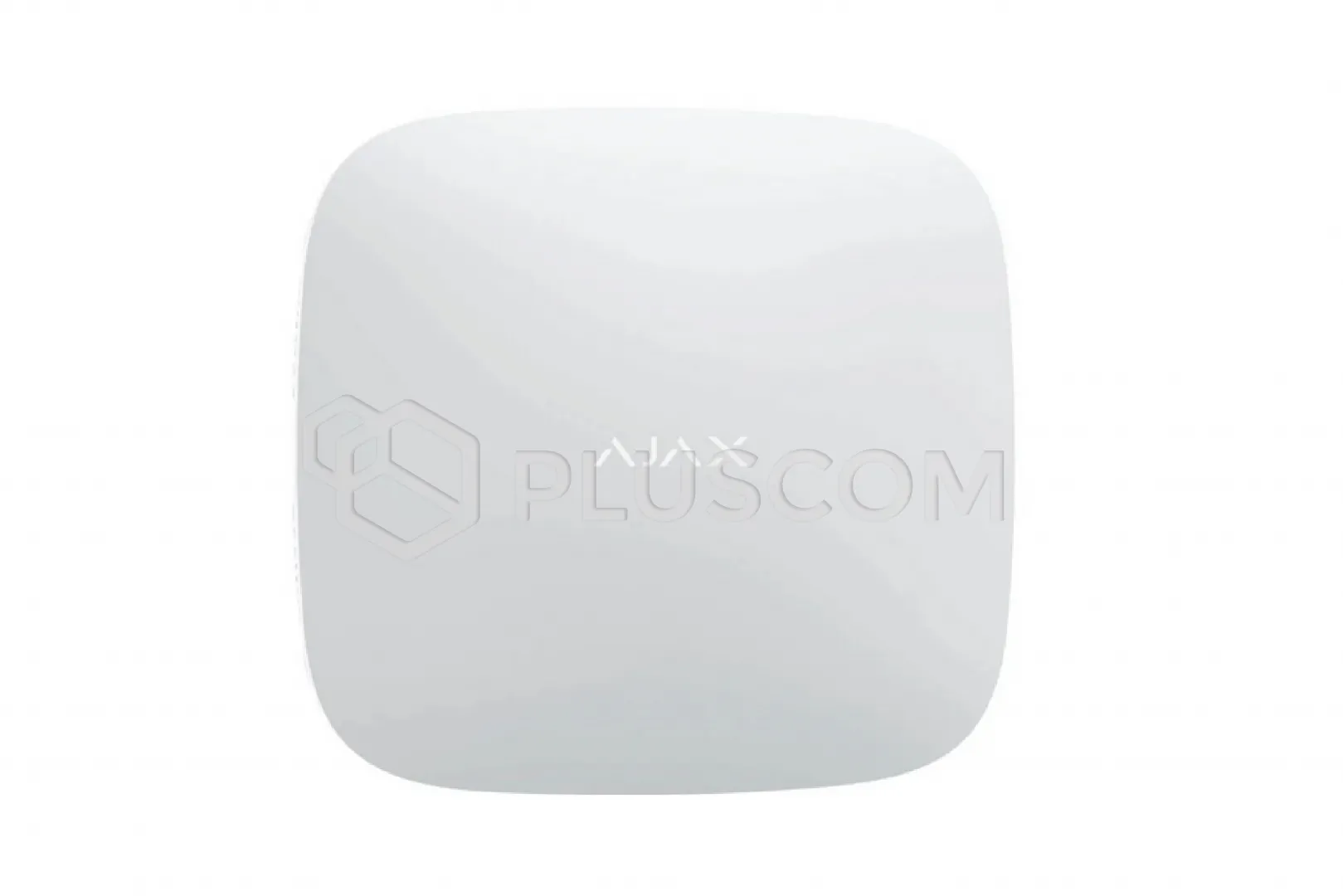

AJAX Hub Jeweller Alarm Control Panel (White)
The Hub Jeweller intelligent control unit is a key element of the Ajax security
system. It monitors the operation of all Ajax sensors and immediately sends an
alarm signal to the owner and the central monitoring station.
FEATURES:
- Uses GSM or Ethernet to send alarms to the security agency and the system
owner.
- Sends notifications in the event of a power outage and operates for up to
15 hours on a backup battery.
- Checks sensor status every 12 seconds or more frequently.
- Alarm responses.
- Responses after changing the security mode.
- Scheduled actions.
- Video and audio streaming.
- Snapshot recording.
- Video zoom.
- Supports 10 cameras and a DVR.
- The Ajax system supports RTSP, a standard protocol in the video
surveillance market - used in most personal and professional cameras and
DVRs.
Operation principle.
Collects Sensor activity information is encrypted,
analyzes the data, and in the event of an alarm, notifies the system owner and
the alarm monitoring station within milliseconds.
Features
Uses Jeweller radio technology to monitor sensor activity and
quickly respond to threats. It switches the entire system to clear frequencies
during jamming. It is protected against viruses at the software level.
Installation and Mounting
The hub is ready to work out of the box,
configured via a mobile app, and sensors are connected with a single click.
The device can be easily installed in minutes using the SmartBracket.
Secure Home and Office Automation
Use Ajax scenarios to teach the alarm
system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to Ajax Cloud is
lost.
Technical Specifications:
- Two-way wireless communication
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 2000m (in open space)
- Maximum number of connected devices: up to 100
- Video monitoring support: up to 10 cameras or DVRs
- Maximum number of users: 50
- Maximum number of rooms: 50
- Zones: 9
- Possibility to connect 1 ReX amplifier
- Smart home scenarios: 5
- Communication: LAN, GSM
- Tamper protection (tamper and jamming detection)
- Battery: 2 Ah (operation time up to 16 hours) (battery operated)
- Power supply: 110 - 240 V
- Protection class: Grade 2
- Dimensions: 163x36x163 mm (W/L/H)
- Warranty: 24 months
