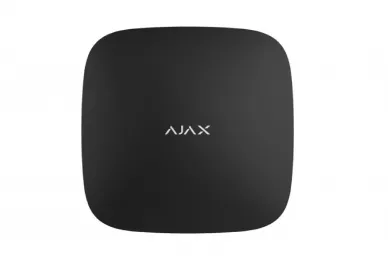

AJAX Hub 2 Plus Jeweller Alarm Control Panel (Black)
The Hub 2 Plus Jeweller intelligent control panel is a key element of the Ajax
security system.
The control panel monitors the operation of all Ajax sensors and immediately
sends an alarm signal to the owner and the central monitoring station.
The Hub 2 Plus is equipped with a communicator with 4 independent channels,
including LTE. This configuration allows the device to connect to two different
internet providers via Ethernet and WiFi, while maintaining emergency access to
two cellular networks.
Switching between channels takes only a few seconds.
FEATURES:
- Transmits images from MotionCam sensors
- Designed for protecting large facilities
- Full system control from a single mobile app
- Forwards alarms to CMS and users via Wi-Fi, Ethernet, LTE, WCDMA, and
GSM
- Alarm responses
- Responses after changing the security mode
- Scheduled actions
- Video and audio streaming
- Snapshot saving
- Video zooming
- Supports 100 cameras and a DVR
- The Ajax system supports RTSP, a standard protocol in the video
surveillance market. It's used in most personal and professional cameras
and DVRs.
Mitigates danger, not your privacy
Hub 2 Plus manages all Ajax devices
in the system to alert users to open doors, broken windows, fire, and flooding.
If someone breaks into your home, Hub 2 Plus immediately transmits photos from
the MotionCam sensor and notifies the security company of the intrusion.
You don't have to live under constant camera surveillance to know
what's happening in your home.
Photographic alarm verification in 9 seconds.
Photographic verification
is the future of security. This technology is an optimal solution for both
private and commercial properties—it's easily accessible and doesn't
intrude on privacy.
Animated series of photos from MotionCam sensors allow users and SMA operators
to assess the situation, but the cameras only activate in response to an alarm,
never on demand.
The Hub 2 Plus can manage up to 200 MotionCam sensors and provide photographic
confirmation of alarms to users and security agencies in just 9 seconds, even
when using SIM cards for communication, all thanks to LTE support.
Always in touch
Business centers, factories, multi-story villas with
buildings – the Hub 2 Plus will protect even the most complex properties.
The new hub controls up to 200 devices. The radio signal range reaches up to
2000 m, and the maximum radio network coverage is up to 35 km².
The Hub 2 Plus can manage up to 25 security groups with 200 users. This allows
security staff to divide the area into zones, organizing employee access to
rooms.
Installation and assembly
The Hub 2 Plus is ready to use right out of
the box. It comes with pre-installed communicators, a power supply module, and
a backup battery. To start configuring the system, simply connect the device to
a power outlet and the internet, insert a SIM card, and scan the QR code using
the app.
With the SmartBracket, you don't need to disassemble the device to install
it.
All alarm system settings are always available in the mobile app. Even when
you're far from the hub, you can connect devices or CCTV cameras, add
users, test the radio signal strength, create security groups and scenarios, or
connect the hub to the security agency's central office.
Secure home and office automation
Use Ajax scenarios to teach the alarm
system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to the Ajax Cloud
is lost.
Jeweller
The Hub 2 Plus central unit communicates with security system
devices via radio frequencies at distances up to 2000m.
The two-way Jeweller radio protocol encrypts all transmitted data.
In the event of interference or jamming, Ajax switches frequencies and notifies
you and the security agency.
Wings
For parallel transmission of visual data from MotionCams, Hub 2
Plus uses the Wings radio protocol. This is a fast protocol based on Jeweller
technology.
Wings has adopted its best features. It also utilizes a dedicated antenna to
increase communication reliability.
Wings guarantees image delivery even if the signal level is unstable.
It uses built-in packet checking and resending algorithms.
Technical Specifications:
- Two-way wireless communication
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 2000m (in open space)
- Photographic alarm verification (MotionCam required)
- Maximum number of connected devices: up to 200
- Video monitoring support: up to 100 cameras or DVRs
- Maximum number of users: 200
- Maximum number of rooms: 50
- Zones: 25
- ReX signal amplifier connection: 5
- Smart home scenarios: 64
- Communication: LAN, WiFi, 2x GSM (LTE)
- Sabotage protection (tamper and jamming detection)
- Battery: 3 Ah (up to 15 hours of battery life)
- Power supply: 110 - 240 V
- Security class: Grade 2
- Dimensions: 163x36x163 mm (W/L/H)
- Warranty: 24 months
