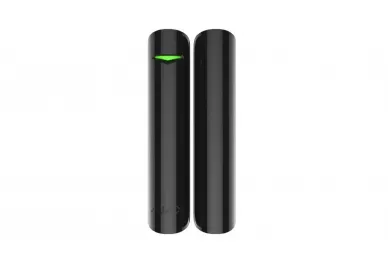

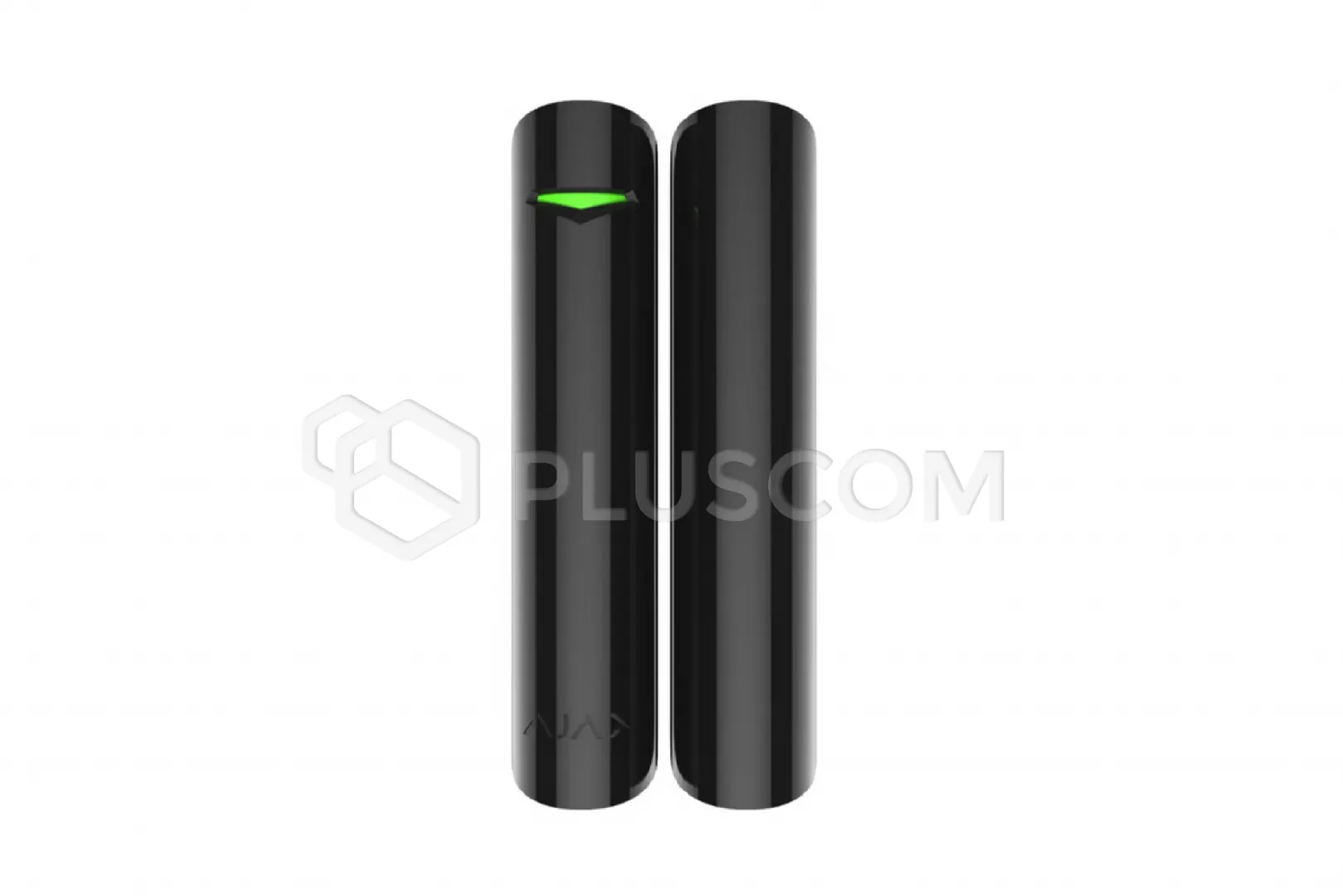

AJAX DoorProtect Plus Jeweller Wireless Magnetic Sensor (Black)

AJAX DoorProtect Plus Jeweller Wireless Magnetic Sensor (Black)

The DoorProtect Plus Jeweller wireless magnetic sensor notifies you of the first signs of a break-in through a door or window. It can even be installed on roof windows, which can be left open when leaving the house.

FEATURES:

• Works without replacing the battery for up to 5 years
• Has an external contact for connecting third-party sensors
• Detects changes in the vertical tilt angle, impacts, and vibrations

Operation Principle

The device detects the opening of a door or window using a high-quality British reed switch that is exposed to a magnetic field.
Can operate in transmitter mode, sending a signal from the wired sensor to the control panel.

Functions

The sensor even protects windows that are opened to ventilate the room.
The accelerometer detects changes in vertical tilt, impact, or vibration and sends an alarm to the system control panel.

Intuitive setup and installation

Ready to work right out of the box: the battery is already installed, so there's no need to remove the housing.

The sensor can be connected to the control panel with a single click in the mobile app. Thanks to the SmartBracket, installation takes just a few minutes.

Technical Specifications:

• Surface-mounted reed switch
• Built-in temperature sensor
• Operating frequency: 868.0 - 868.6 MHz
• Transmission range: 1200m (in open area)
• Detection threshold: 1cm - small magnet, 2cm - large magnet
• Tilt: over 5°
• Tamper protection (tamper and jamming detection)
• Remote system configuration and testing
• Power supply: 1x 3V CR123A battery (included)
• Battery life: up to 5 years
• Dimensions: 20x90mm (L/H)
• Class Security: Grade 2
