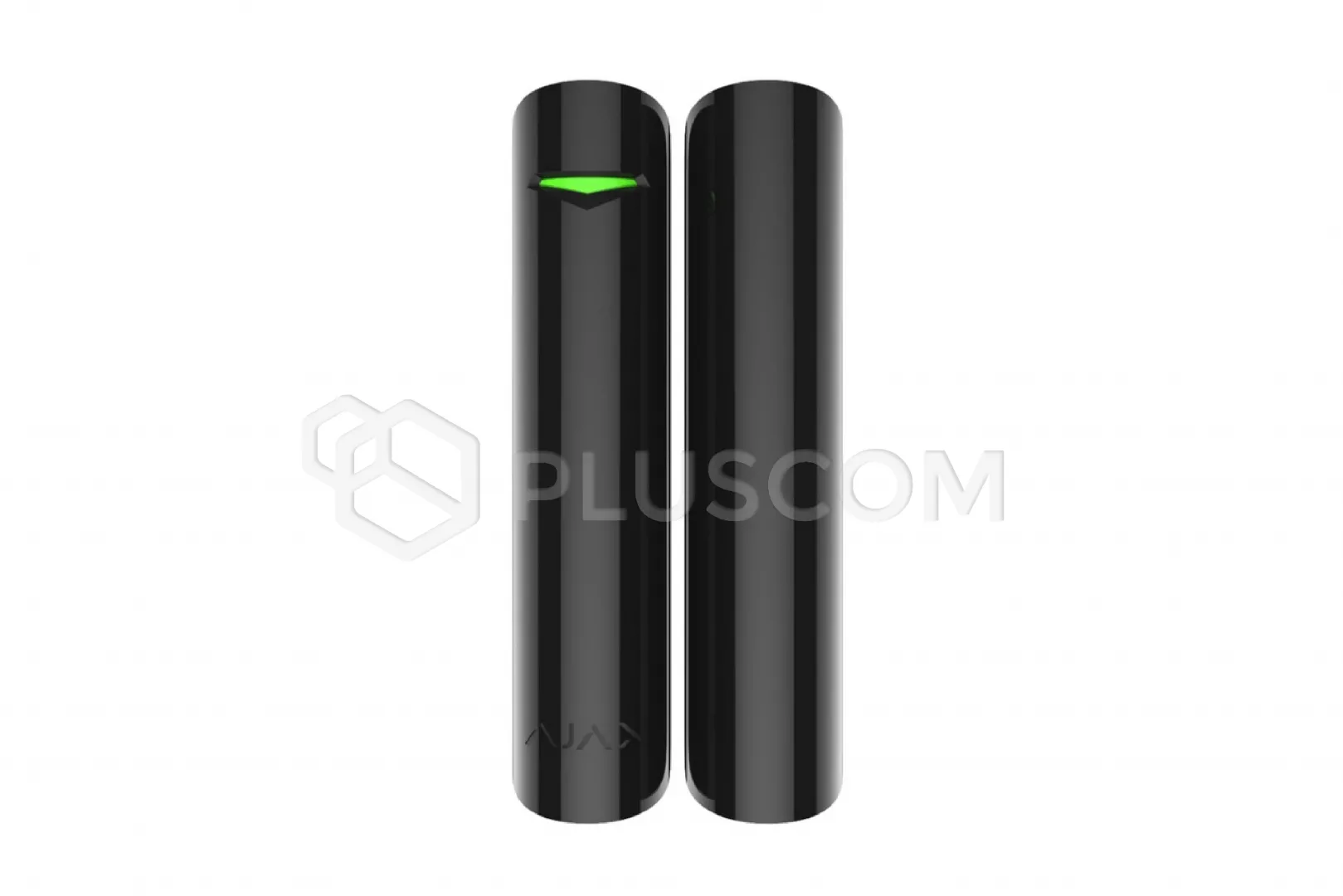

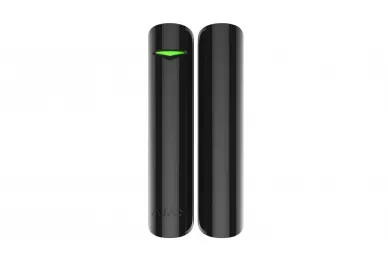

AJAX DoorProtect Jeweller Wireless Magnetic Sensor (Black)

AJAX DoorProtect Jeweller Wireless Magnetic Sensor (Black)

The DoorProtect Jeweller wireless opening sensor notifies you of the first signs of a break-in through doors or windows. It can be installed on all types of doors, including metal ones.

FEATURES:

• Operates without changing batteries for up to 7 years
• Includes external contact for connecting third-party sensors
• Includes magnets of various sizes for installation on narrow door and window frames

Operation Principle

The device detects the opening of a door or window using a high-quality British reed switch, which is exposed to a magnetic field.

It can operate in transmitter mode, sending a signal from the wired sensor to the control panel.

Functions

The device consists of two modules: a sensor and a magnet. The kit includes two magnets: the large magnet mounts up to 2 cm apart, and the small magnet mounts up to 1 cm apart.

Intuitive setup and installation

Ready to work right out of the box: the battery is already installed, so there's no need to remove the housing.

The sensor can be connected to the control panel with a single click in the mobile app. Thanks to the SmartBracket, installation takes just a few minutes.

Technical Specifications:

• Surface-mounted reed switch
• Built-in temperature sensor
• Operating frequency: 868.0 - 868.6 MHz
• Transmission range: 1700m (in open area)
• Detection threshold: 1cm - small magnet, 2cm - large magnet
• Tamper protection (tamper and jamming detection)
• Remote system configuration and testing
• Power supply: 1x 3V CR123A battery (included)
• Battery life: up to 7 years
• Dimensions: 20x90mm (L/H)
• Security class: Grade 2
• Warranty: 24 months
