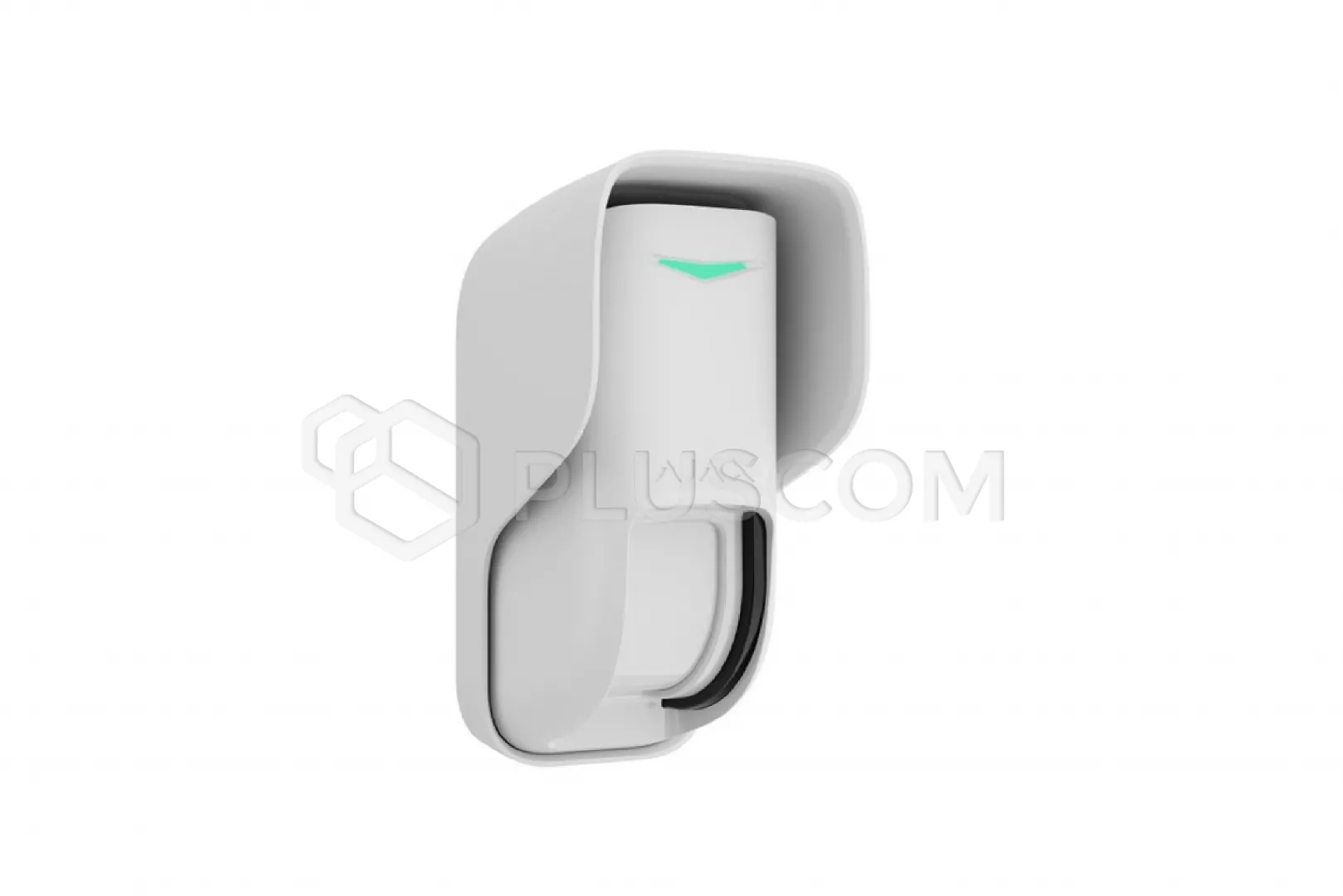

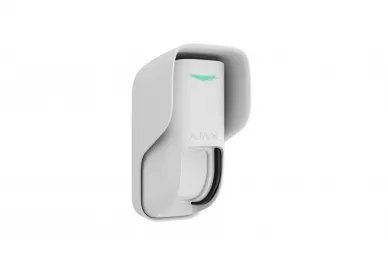

AJAX Curtain Outdoor Jeweller Outdoor Wireless Curtain Motion Sensor
The Curtain Outdoor Jeweller is a motion sensor designed to monitor the
perimeter of a facility with exceptional accuracy and near-zero risk of false
alarms.
Thanks to its unique optical system, the device can observe narrow sectors up
to 12 meters long. Dual motion detection technology, using two PIR sensors and
one K-band microwave sensor, allows for the filtering out of false alarms
caused by thermal interference, animals, or plants.
Adjustable detection range and sensitivity, as well as two operating modes,
make the device ideal for any facility.
Pre-installed batteries ensure stable operation for up to three years.
FEATURES:
- Detects movement at a distance of 8-12 meters
- Animal immunity up to 100 cm tall
- Up to 3 years of operation without changing the battery
- Multiple anti-sabotage systems
Operation principle
The Curtain Outdoor Jeweller is a wireless, curtain
motion sensor. It has two PIR sensors that detect temperatures close to those
of the human body, and a K-band microwave sensor that filters out false alarms
caused by thermal interference, animals, or plants.
The alarm is triggered only when both types of sensors are activated
simultaneously. The SmartDetect algorithm analyzes signals and eliminates
interference, while temperature compensation ensures accuracy even at ambient
temperatures close to human temperature.
The sensor transmits the alarm to the control panel, which activates the siren
and notifies the user and the security company.
Features:
- Wireless range up to 1700 m outdoors
- Two operating modes: standard and with pet immunity up to 100 cm
high
- Communication with the hub using the Jeweller (alarms) and Wings
(updates) protocols
- Management and configuration via iOS, Android, macOS, and Windows apps
with push, SMS, and phone notifications
- Weather-resistant housing (IP55), suitable for outdoor installation
Intelligent anti-masking system
The device detects masking caused by
obstacles up to 5 cm from the lens, depending on the masking method used.
The system notifies users and the alarm monitoring station of any attempts to
disrupt the detector's operation.
Intuitive setup and installation
The Curtain Outdoor Jeweller is ready
to use right out of the box. There are three sensor installation options:
- Using the SmartBracket mounting panel,
- Angle mount,
- Third-party bracket,
You can also protect the masking sensors from rain and snow with a canopy.
Ajax apps make it easy to quickly integrate the device into the system: simply
pair the device with the hub by scanning a QR code.
The sensor can be configured remotely, without the need for on-site visits.
Technical Specifications:
- Detection method: 2x PIR + K
- Anti-masking function
- Built-in temperature sensor
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 1700m (in open space)
- Detection range: 8m to 12m
- Viewing angle: 8° - horizontal, 85° - vertical
- Pet immunity: up to 100cm high
- Sensitivity adjustment: 3 levels
- Remote system configuration and testing
- IP55 protection rating
- Power supply: 2x 3V CR123A batteries (factory installed)
- Battery life: up to 3 years
- Dimensions (W/L/H):
- 60x72x141mm (without sunshade)
- 85x77x155mm (with sunshade)
- Security class: Grade 2
