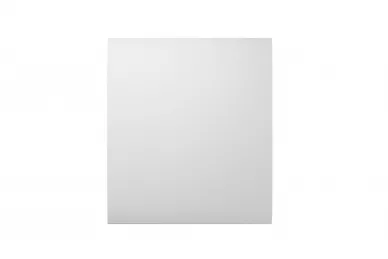

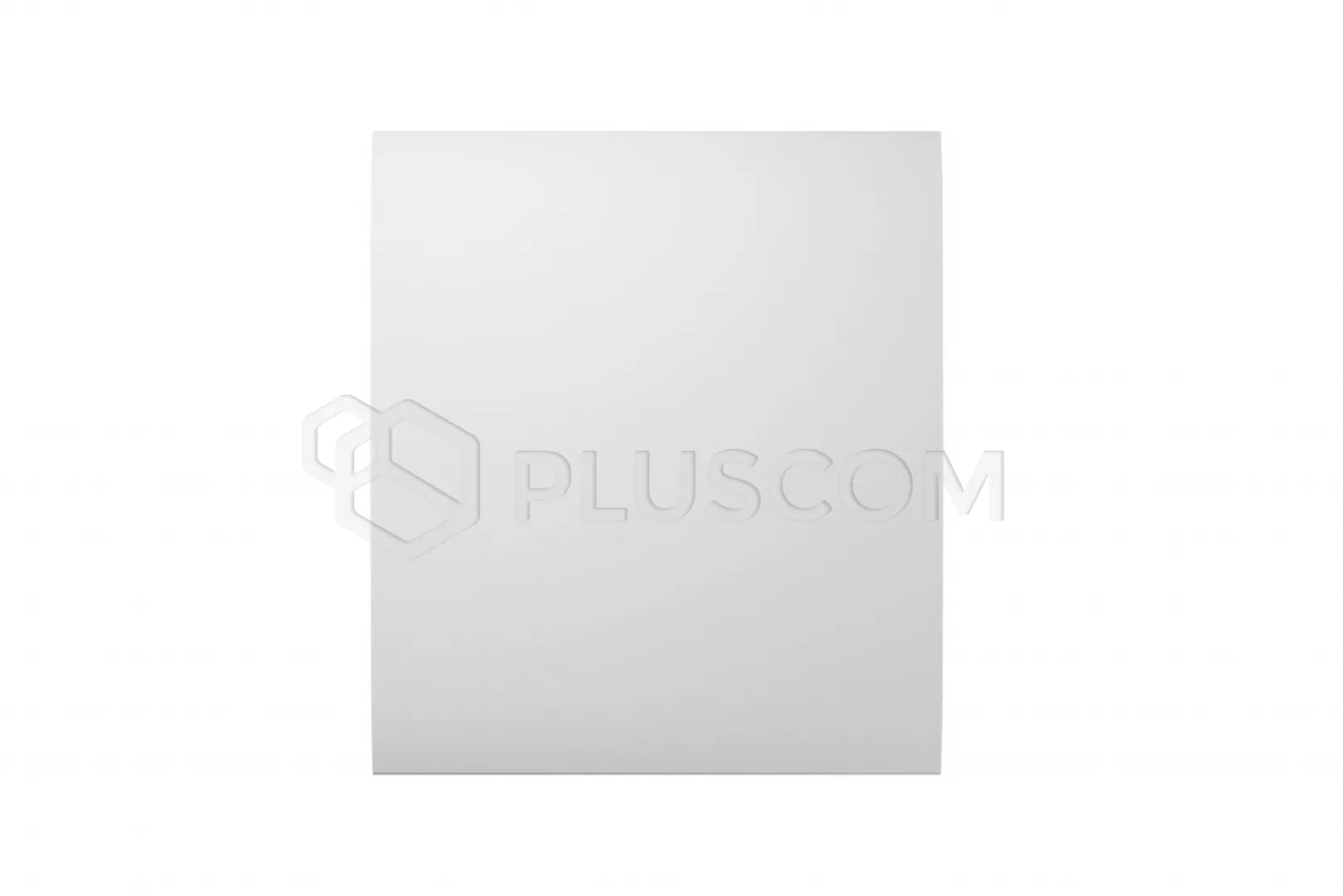

AJAX CenterButton (1-gang/1-way) Center button for 1-gang or 2-way switch
(white)
CenterButton (1-gang/2-way / 2-gang) is a central button for AJAX LightSwitch
combination switches.
The button does not have rounded corners, so it is used in three- and four-gang
frames in the central position. The button is available in two versions:
1-gang/2-way - for single-button and corridor versions, and 2-gang - for
two-button versions.
The central panel is mounted on the frame, which in turn is placed directly on
the LightCore relay.
The button is equipped with a touch sensor and radio antennas.
FEATURES:
- Touch panel with backlight
- Touchless lighting control
- Automatic switch with timer
- Automation scenarios
- Overcurrent and overtemperature protection
- Up to 1100 m communication range with the Ajax hub
- Protection for your curious little ones
- Jeweller radio communication
- Remote control and configuration
- Lighting control via smartphone
- Notifications and event log in the app
- 8 modern colors to choose from
- No need for natural wire
- Compatible with lamps from 5 to 600 W
- 4 frame sizes for connecting multiple switches
Designed for any interior
The Ajax LightSwitch impresses with its
simple design and high-quality hardware. The device will easily fit into both a
cozy home interior and a modern, technology-filled space.
Illuminate the switch on the wall or make it invisible. The universal design
will complement any space in your home, office, factory, or anywhere else.
Enjoy lighting control
Turn off the lights with minimal effort. The
entire panel is touch-sensitive and responds even to the proximity of your
hand, elbow, knee, or other body part at a distance of less than 15 mm.
This feature is essential if you want to avoid touching the device or if
it's located in a public place. At the same time, the touch panel only
responds when needed.
The 1-outlet/2-outlet touch switch responds even to the touch of a gloved hand.
Feel in control of your device with a quiet, lag-free click. The optional
backlight allows you to control your lighting even at night, without disturbing
your comfortable sleep.
- Without indication
- With a gloved hand
- Without touching
- In complete darkness
A different world of hardware
LightSwitch is an intelligent lighting
control system that provides advanced electrical protection and reliability
comparable to professional alarm systems.
There's no need to set a neutral wire to connect the switch. It's
controlled via Ajax software and doesn't experience any issues with crashes
or freezes.
In addition, the device has an anti-tamper contact that detects disconnection
of the light switch's touch panel.
- No neutral connection required
- Two radio antennas built into the front panel
- The relay is designed for at least 200,000 switching cycles (50 years of
operation)
- Consumes up to 0.2 W (15 times less than a typical smart switch)
- Protection against false responses caused by power surges
- Overcurrent and overtemperature protection
Unique Wireless Technologies
For LightSwitch to utilize its intelligent
capabilities, it must communicate with an Ajax hub. It does not rely on popular
technologies such as Wi-Fi, Z-Wave, ZigBee, or Bluetooth.
Instead, it uses proprietary Jeweller radio communication technology, which
meets high industry standards and ensures security, range, and energy
efficiency. Jeweller functionality remains unaffected by home interference and
does not cause sudden failure or cessation of operation.
LightSwitch has a radio communication range of up to 1100 meters in open space,
which is longer than standard solutions from competing manufacturers.
Automatic power control makes the device energy-efficient by not constantly
using the maximum power of the radio transmitters in the system's devices.
It is also more stable by using less common radio frequencies.
- Up to 1100 meters of radio communication with the hub
- Encrypted two-way radio communication
- Respond to app commands and trigger automation scenarios without
delay
Technical specifications:
- Compatibility: LightCore 1-gang / 2-way or 2-gang
- Number of buttons: 1 or 2
- Large touch panel
- Available colors: white or black
- Mounting: on a 3-gang or 4-gang frame
- Weight: approx. 32g
- Dimensions: 82 x 70.53 x 10.26mm (H/W/D)
