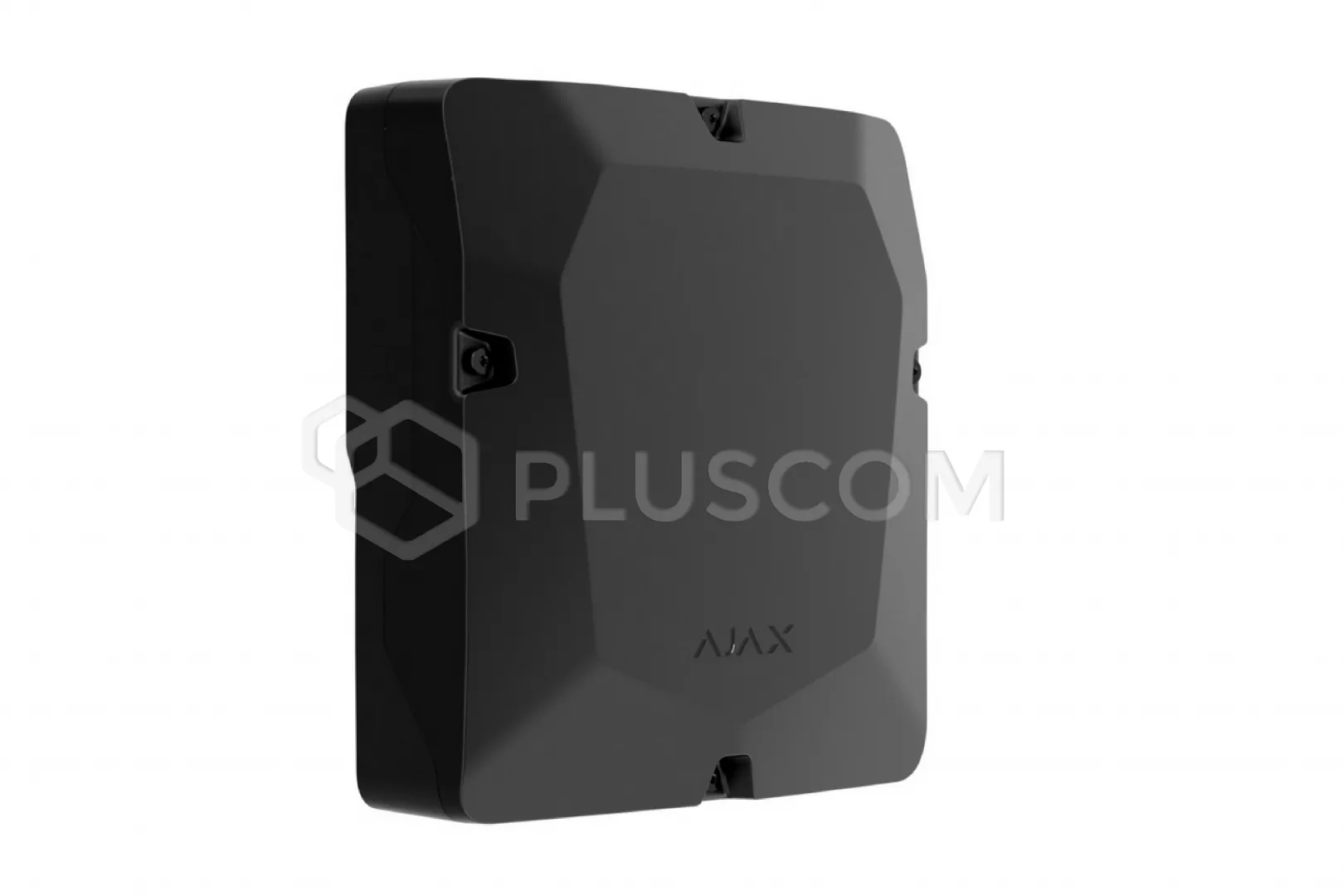

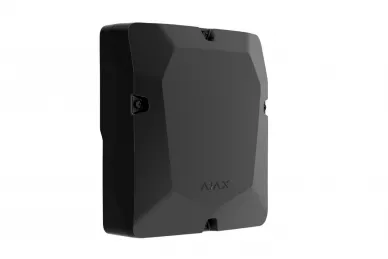

AJAX Case D Case for 8 modules and 2 18Ah batteries (black)
The Case D (430) is a compact enclosure designed for mounting up to eight AJAX
system modules and two 18 Ah batteries. It provides organized cable management
thanks to special perforations and holders, as well as sabotage protection
thanks to a built-in tamper that alerts you to attempted opening or
disassembly.
The enclosure is equipped with a spirit level for precise installation,
enlarged mounting holes, safe drilling zones, and special battery holders.
The AJAX Case D is designed for indoor installation and is available in two
colors, allowing it to aesthetically match any interior.
Case D Housing (430)
AJAX Case D is specifically designed for mounting
up to 8 Ajax system wired modules, including: Superior LineProtect Fiber,
Superior Linesplit Fiber, Superior MultiRelay Fiber, Superior MultiTransmitter
IO (4X4) Fiber, Superior LineSupply 45W Fiber, Superior LineSupply 75W Fiber,
Superior MultiTransmitter Fiber (without housing), and Superior Hub Hybrid 4G
(without housing).
The housing is equipped with an anti-tamper contact that protects the device
against unauthorized opening or disassembly, increasing the security of the
entire system.
Additionally, the housing features special perforations and handles for
convenient and tidy cable management, as well as safe drilling zones, providing
greater flexibility during installation.
Simple and precise installation
The housing has been designed with
maximum installer convenience in mind. A built-in spirit level allows for
precise leveling of the device during installation, eliminating the need for
subsequent adjustments.
Additionally, enlarged mounting holes and special drilling zones provide
flexibility and facilitate the housing's adaptation to various surfaces and
installation conditions. Special holders for two batteries up to 18 Ah are
designed to prevent accidental battery removal, increasing the safety and
reliability of the entire system.
This ensures the entire installation process is quick, efficient, and without
the risk of damaging system components.
Technical Specifications:
- Compatible with modules:
- Superior LineProtect Fiber
- Superior Linesplit Fiber
- Superior MultiRelay Fiber
- Superior MultiTransmitter IO (4X4) Fiber
- Superior LineSupply 45W Fiber
- Superior LineSupply 75W Fiber
- Superior MultiTransmitter Fiber (without housing)
- Superior Hub Hybrid 4G (without housing)
- Dimensions: 400×133×430mm (W/L/H)
- Material: plastic
- Available colors: white or black
