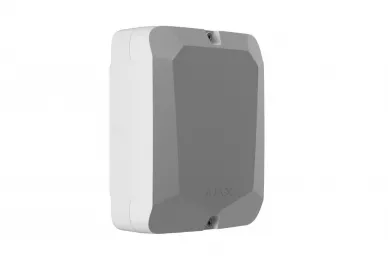

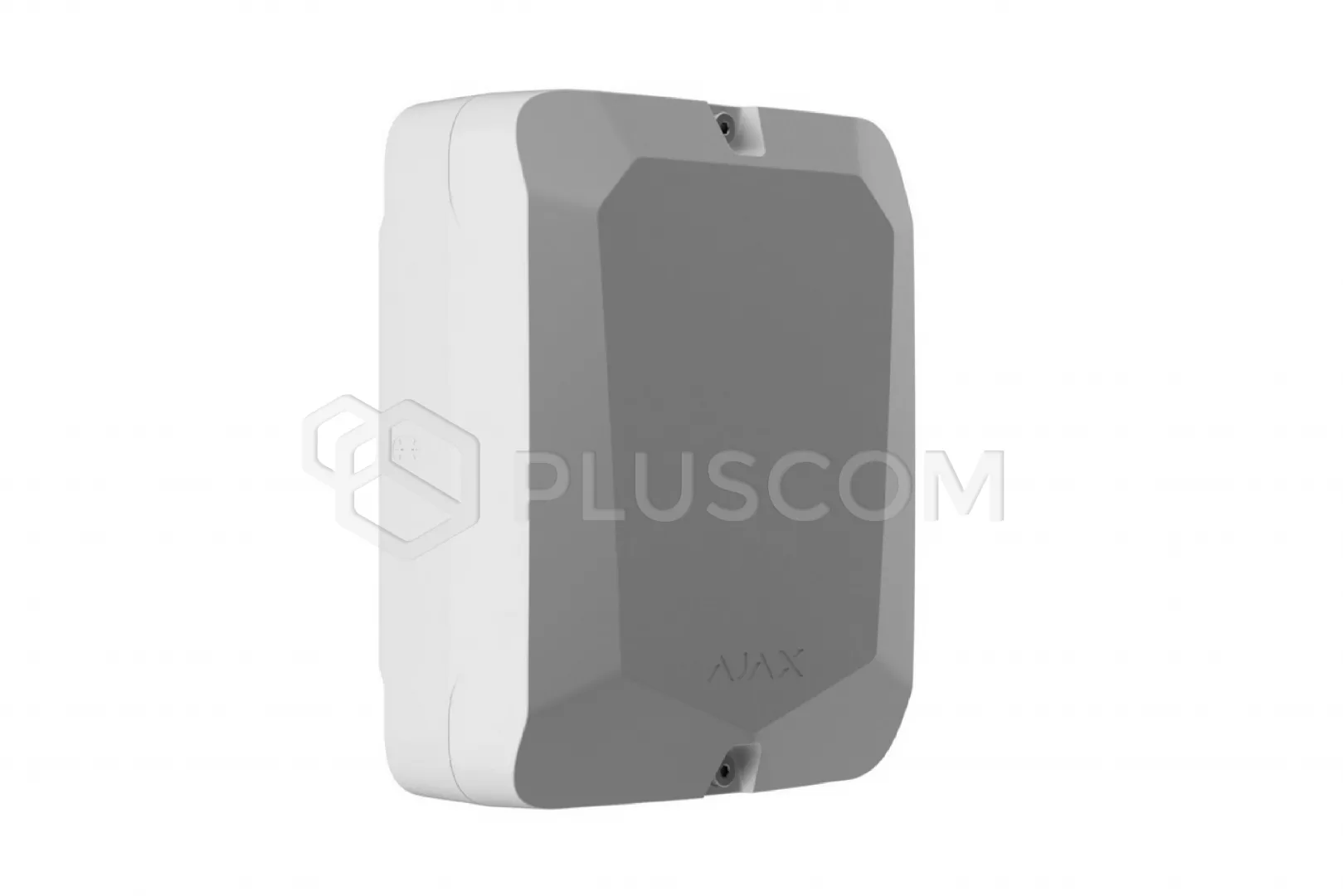

AJAX Case C Housing for module and battery (white)
The Case C (260) enclosure is a compact enclosure designed for mounting one
wired AJAX system module and one 7 Ah battery.
It provides organized cable management thanks to special perforations and
holders, as well as sabotage protection thanks to a built-in tamper that alerts
you to attempted opening or removal. The enclosure is equipped with a spirit
level for precise installation, enlarged mounting holes, and safe drilling
zones.
The AJAX Case C is designed for indoor installation and is available in two
colors, allowing for aesthetic matching to any interior.
Case C (260) Enclosure
The AJAX Case C is specifically designed for
mounting one wired Ajax LineSupply (45W) or LineSupply (75W) system module.
Its compact dimensions and functional design make it ideal for installations
where a single module needs to be protected while maintaining aesthetics and
cable management.
The enclosure features a built-in tamper switch that protects the device
against unauthorized opening or disassembly, increasing the security of the
entire system.
Additionally, the enclosure features special perforations and handles for
convenient and neat cable management, as well as safe drilling zones, providing
greater flexibility during installation.
Simple and precise installation
The enclosure has been designed with
maximum installer convenience in mind.
A built-in spirit level allows for precise leveling of the device during
installation, eliminating the need for later adjustments.
Additionally, enlarged mounting holes and special drilling zones provide
flexibility and facilitate the enclosure's adaptation to various surfaces
and installation conditions.
Special battery holders for batteries up to 7 Ah are designed to prevent
accidental battery removal, increasing the safety and reliability of the entire
system. This ensures the entire installation process is quick, efficient, and
without the risk of damaging system components.
Technical Specifications:
- Compatible with modules:
- Superior LineSupply 45W Fibra
- Superior LineSupply 75W Fibra
- Capacity: 1 module + 1 7Ah battery
- Material: plastic
- Dimensions (W/L/H):
- White: 195×93×260mm
- Black: 210×93×260mm
- Available colors: white or black
