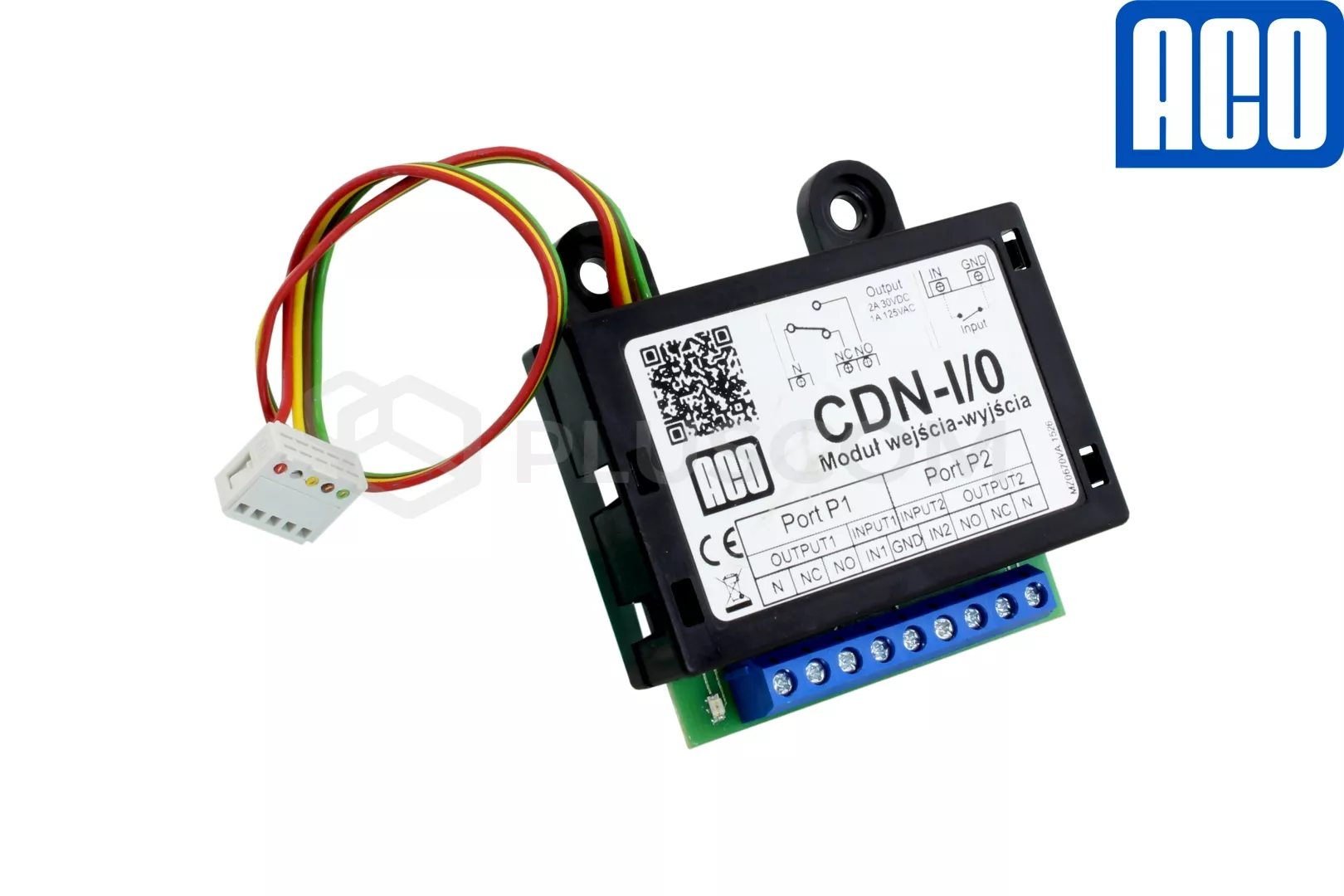

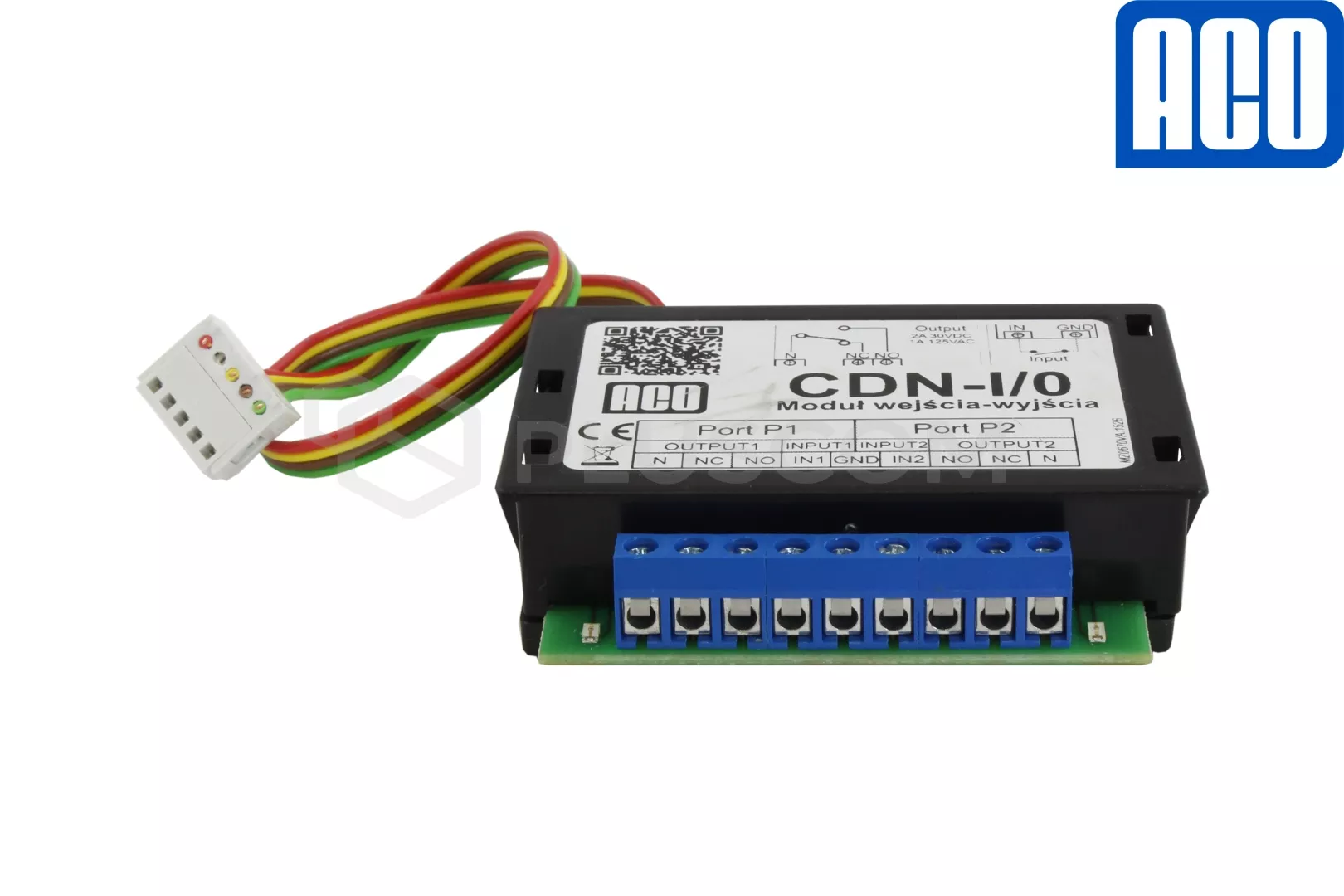

Aco CDN-I/O Relay module of additional inputs and outputs

CDN-I/O Extension module to control home automation and external devices

The module enables control of external devices and home automation for e.g. garage door, barrier, light, blind rollers. It extends the functionality with two switch inputs and two relay NO and NC outputs. It enables connection of two external switch buttons to the outside unit for direct activation of the e-lock or calling to the apartment. In selected compatible models this module can be mounted directly in the frame or back box. It is possible to install the module away from the outside unit by means of ARK-RS module. The module is compatible with all digital system from CDN, INSPIRO and FAMILIO P/PV groups.

TECHNICAL PARAMETERS:

• Power supply: from central/panel: DC 15V
• Standby power consumption: ~0,14W
• Max. amount of phones: 255
• Outputs:

  • screw connectors  ARK

    • 2x NO/NC relay, max. 2A/30V DC
    • 1x connector EXTMOD

• Inputs:

  • screw connectors ARK

    • 2x NO
• Dimensions: 70,5x71x19,5mm
• Housing made of ABS

The module is available in white
