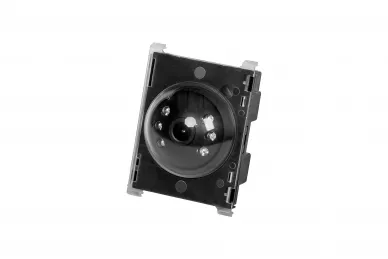

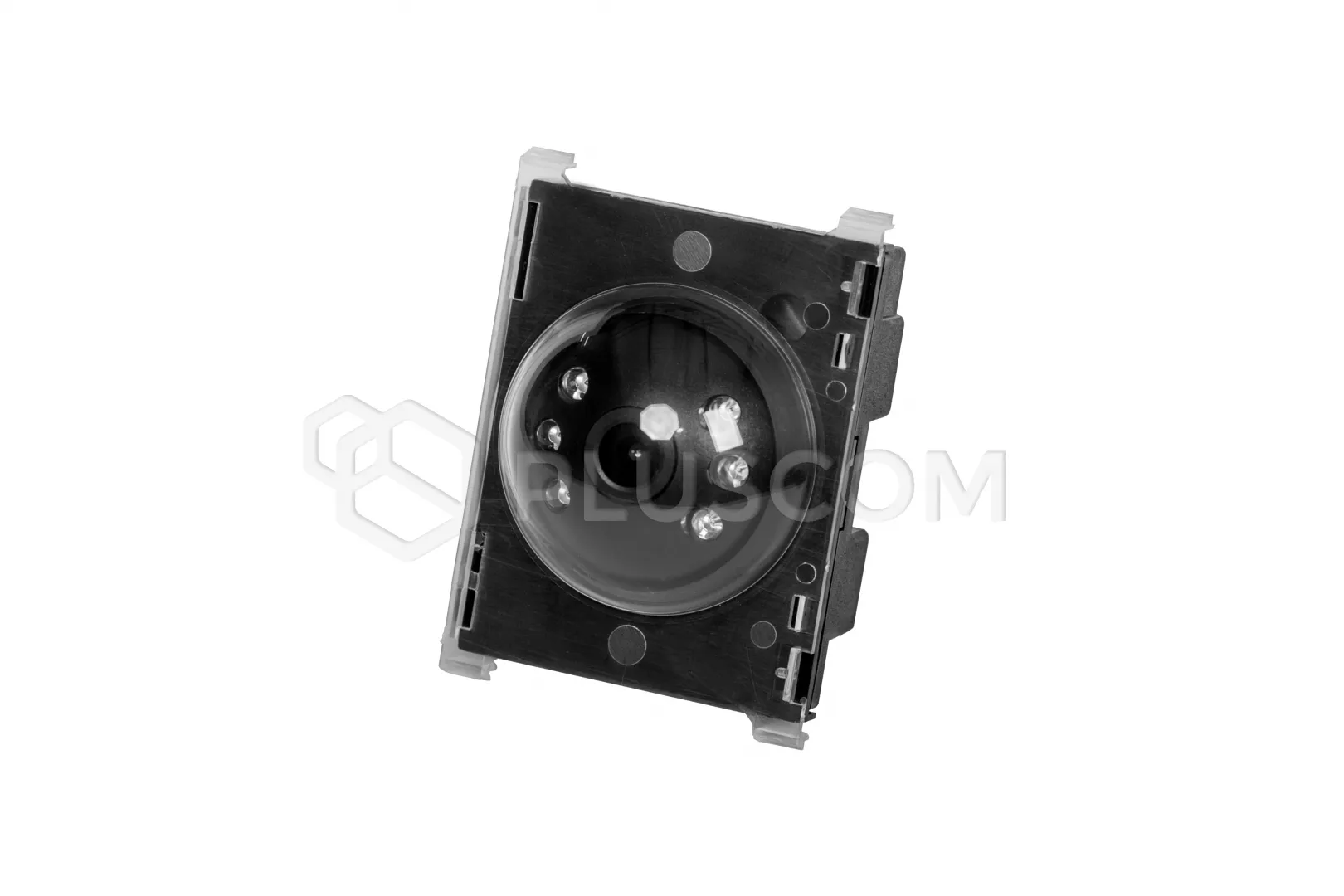

Aco MOD-CAM-COAX Dome camera module

102,45 EUR including 23.00% VAT
Product code: #19850
Manufacturer: ACO
  • Compatible with built-in modules: MOD-SPK-P, MOD-SPK-PRO
  • High resolution color camera (min.600 lines)
  • 2.8mm lens
  • Infrared LED backlight
  • PAL video signal compatible output (75 Ohm)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco CDNVS Video Adder Aco MOD-SPK-P Built-in main unit module Aco CDNVS-60 Video combiner Aco CDNVSp Indirect video adder

MOD-CAM-COAX Dome camera module with PAL coaxial output


The MOD-CAM-COAX module is a color camera with a resolution of 600 lines, for installation in fronts with external call buttons. It has wide-angle objects 2.8mm and is equipped with infrared LEDs that make it possible observation at night. The module also has the option of adjusting the position of the camera in camera observation direction with backlight +/- 20 ° in each side. The camera is heated.

The video signal output is a PAL coaxial signal (75 Ohm).
The module is compatible with built-in modules: MOD-SPK-P, MOD-SPK-PRO and cooperates, among others with: CDNVS-60 or CDNVS or CDNVSp.

TECHNICAL PARAMETERS:
  • power supply: 12V DC ± 5%, 75 mA
  • power consumption in standby mode: ~ 0.9W
  • outputs: ARK screw connections:
    • PAL video signal outputs (75 Ohm)
  • inputs: ARK screw connections:
    • power connection
  • 2.8mm wide angle lens
  • color camera with LED illuminator
  • resolution: min. 600 lines
  • execution: ABS housing
  • dimensions: 82x58x39 mm
  • dome diameter: 50 mm

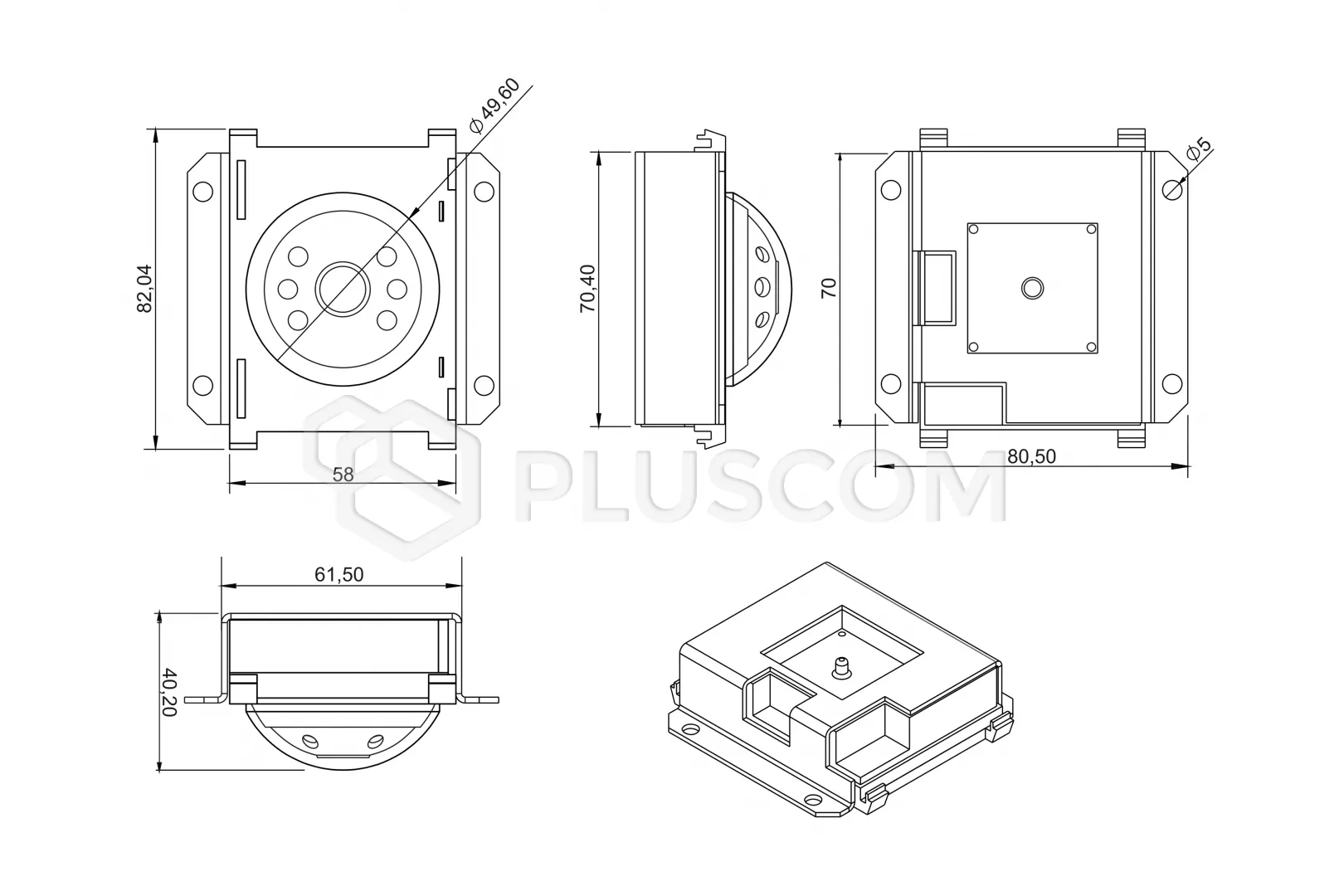

Dimensions:

Dimensions:
