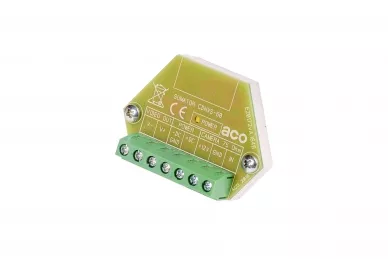

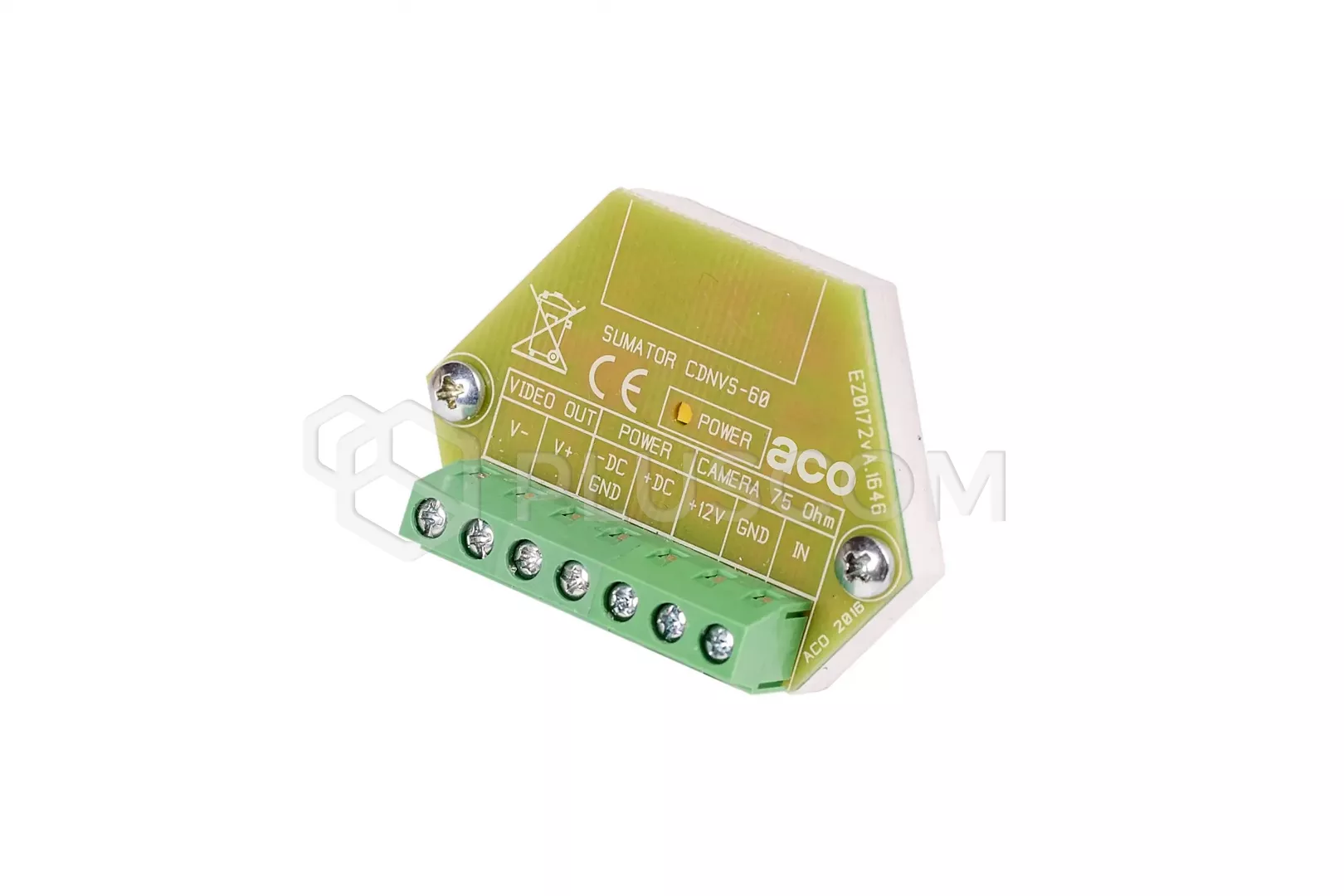

Aco CDNVS-60 Video combiner

68,19 EUR including 23.00% VAT
Product code: #19813
Manufacturer: ACO
  • For an installation box Ø60 mm
  • Instalation: skrętka cat. 5e lub 6
  • Compatible with PAL video signal (75 Ohm)
  • Compatible with CDNP, Inspiro, COMO / Familio-P/PRO
  • Foamed PVC housing (bottom)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco MOD-CAM-COAX Dome camera module

ACO CDNVS-60 Video combiner – to an installation box 60 mm


Video combiner for digital systems. Used when there is a need to connect an external analog camera or other video source to systems without a camera. The module converts the PAL signal into a differential video signal (transmitted via a cat. 5e or 6 twisted pair cable). It can also be used to connect a second camera: in INS-MP7 monitors or to the camera switch module (VIDEO-SW2 MINI-60). Module without housing for mounting in a Ø60 mm installation box. Compatible with digital group devices: CDNP, Inspiro and Familio.

OUTPUTS
ARK screw connections:
  • VIDEO outputs
  • power supply connection (12V, max 200mA)
INPUTS
ARK screw connections:
  • PAL video signal connection (75 Ohm)
  • execution hookup

TECHNICAL DATA
  • power supply: 15VDC / 40mA
  • power consumption in standby mode: ~ 0.6W
  • installation type: digital - twisted cat. 5e or 6
  • execution: casing made of foamed PVC (bottom)
  • dimensions: 35x50x17.5mm

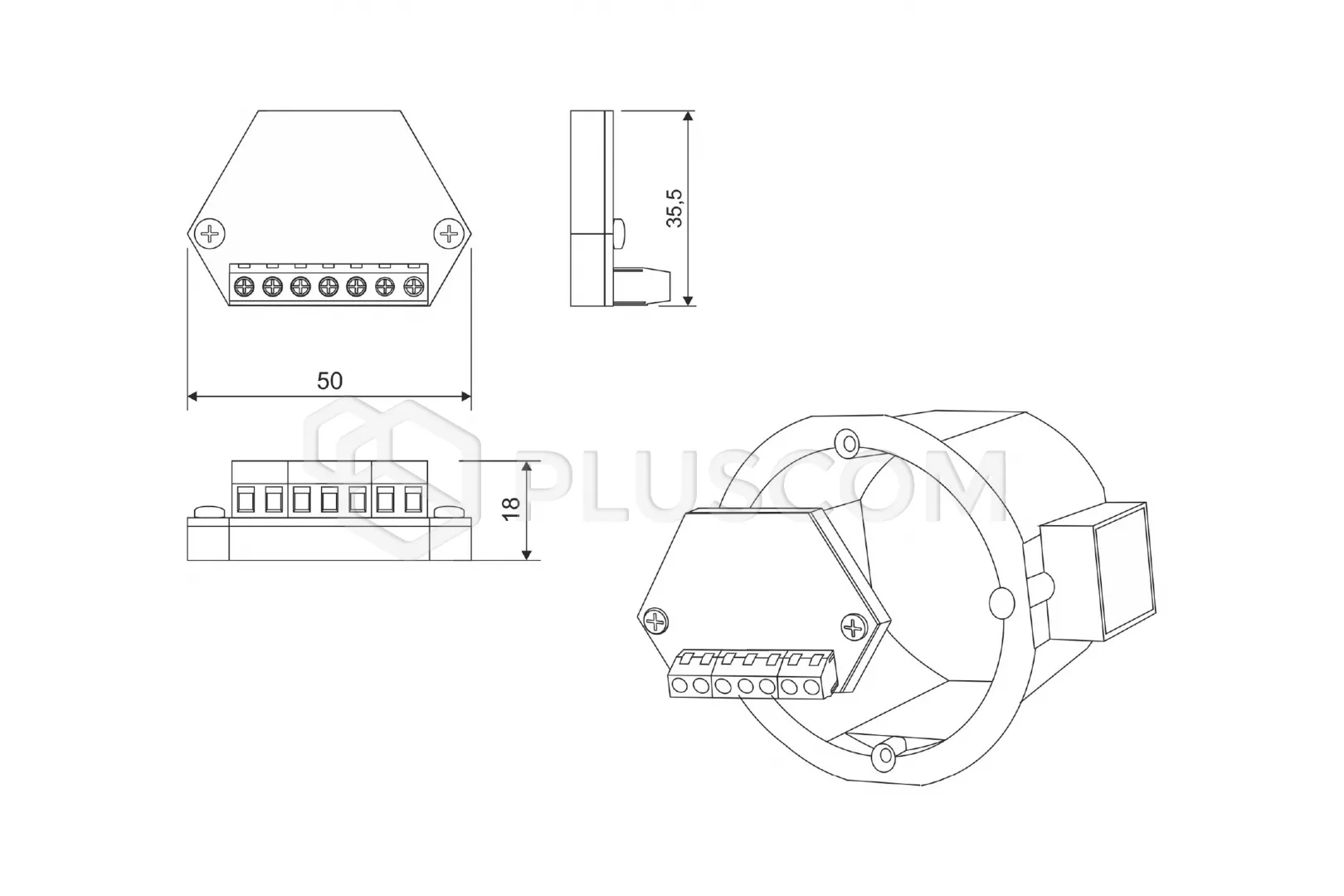

Dimensions:

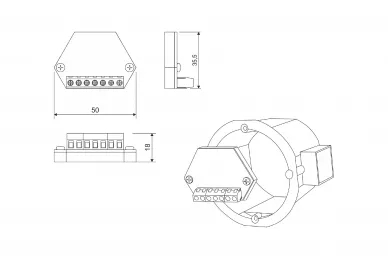

Dimensions:
