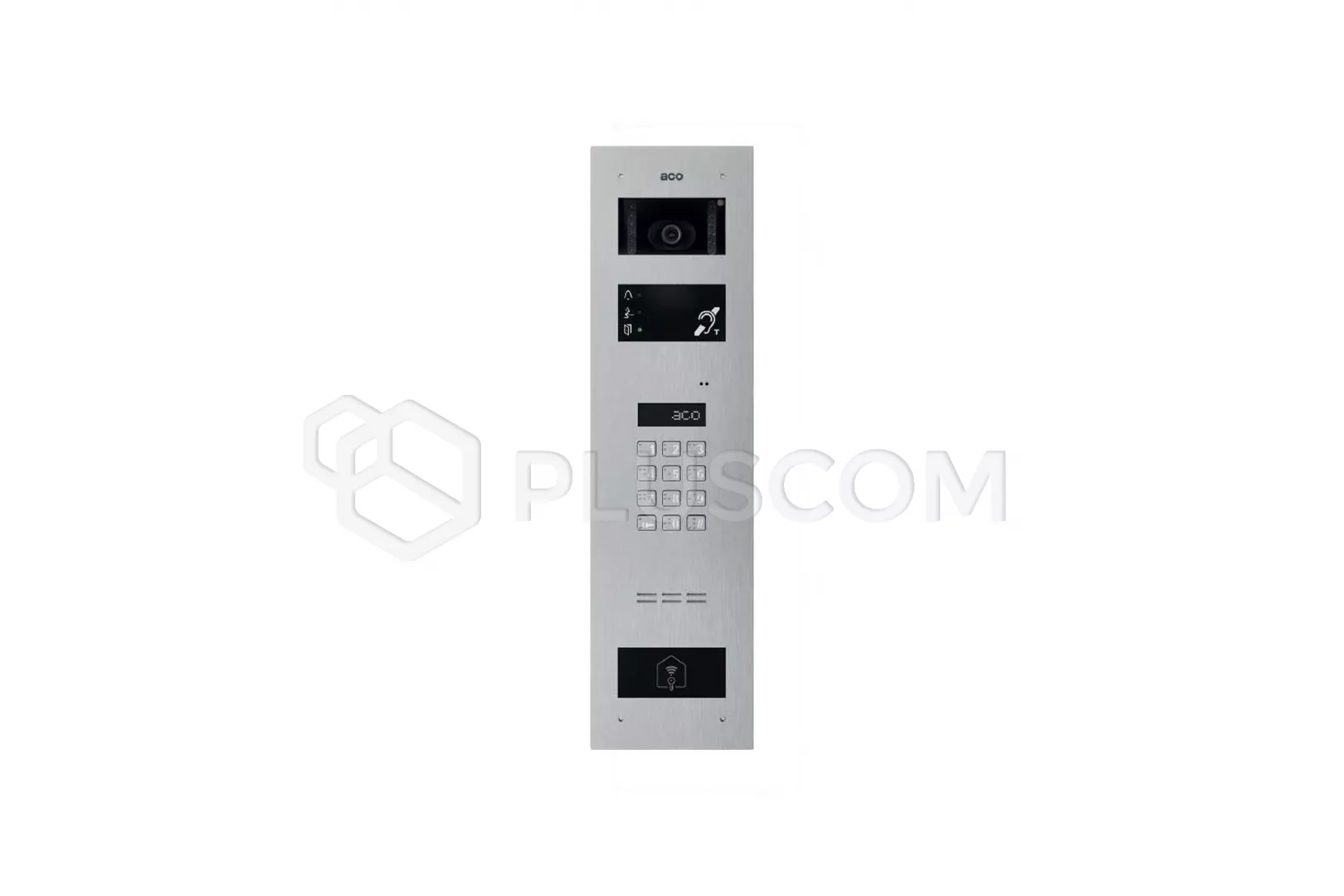

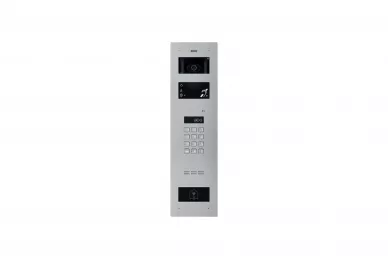

Aco INSPIRO PMR 1+ Inspiro digital panel with combination lock and braille keyboard

793,68 EUR including 23.00% VAT
Product code: #19845
Manufacturer: ACO
  • Max. amount of phones: 1020 apartments
  • Code block
  • Camera: heated, min. 600 lines, lens 2,8mm
  • DM - Module for disabled INS-DM
  • Integrated with the bottom description place RFID reader Unique 125 kHz
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco TR-Aco Proximity key ring - black Aco INS-P-XL NT Surface mounting box Aco CDN-U Signal module with door opening function Aco SW4S-DIN 4 zone switch for INSPIRO + panels

INSPIRO PMR 1+ Inspiro digital panel with combination lock and braille keyboard



A version of the INSPIRO panel created for people with disabilities. A 2mm thick brushed stainless steel panel is resistant for all weather conditions, damage or vandalism.
The device is compatible with all digital devices from the groups: CDN, Inspiro and Familio PV and programming is done using a USB cable, through CPU or computer (without external power supply).

To make it easier for disabled people, the panel has backlights Braille keys, optical signaling and sound and built-in T-loop. No additional necessity answering calls we can remotely or automatically open the door at CDN-U module, we can connect an additional acoustic device in the premises or light signals that someone is calling.

Modules:
  • High resolution color camera
    • 2.8mm wide-angle lens
    • high resolution (600 lines)
    • horizontal angle adjustment +/- 20 °
  • DM - Module for disabled INS-DM:
    • T induction loop
    • speech synthesizer (sound signaling)
    • three LEDs (optical signaling)
  • combination lock
  • Unique 125 kHz (ACC) proximity key fob reader

TECHNICAL SPECIFICATIONS:
  • mounting method: flush-mounted
  • dimensions:
    • panel: 111x412mm
    • flush-mounted box: 92x393x31.52mm
  • installation type: digitalm - cat. 5e or 6
  • line lenght: max 1000m
  • power supply: 15V DC
  • stand-by power consumption: 4W
  • first outputs to be connected:
    • traditional electric door strike (max 1A)
    • reversible door strike (max 0.5A)
    • CDN-PK relay module (max 5A)
  • second relay outputs for connection:
    • home automation (max. 2A,30VDC)
  • input: 1x NO
Download
Declaration 0.06 MB
