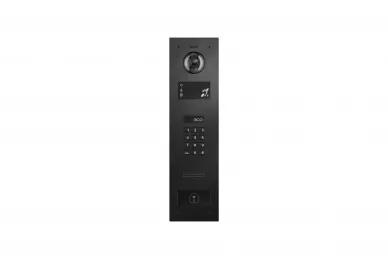

Aco INSPIRO PMR 1+ (G4) AL BK Digital Video Intercom with Code Lock, Module
for People with Disabilities, and Proximity Reader
The INSPIRO PMR 1+ is a very elegant, weather- and vandal-resistant intercom.
The housing and buttons are made of 2mm thick brushed stainless steel. The
modern design and high-quality materials ensure trouble-free operation for many
years.
The device is compatible with all digital devices from the CDN, Inspiro, and
Familio PV groups, and programming is performed via a USB cable, through the
control panel, or a computer.
It is equipped with a heated, high-resolution color dome camera with a 2.8mm
wide-angle lens, a combination lock, a Unique 125 kHz proximity reader, and a
230E electronic, alphabetical tenant list.
This version of the panel includes solutions designed for people with
disabilities, such as a built-in T-loop and visual and audible intercom status
indication.
The T-loop allows a hearing-impaired person to remotely receive voice from the
intercom speaker directly into their hearing aid. This allows hearing aid users
to comfortably use the intercom with clear, crisp, and usable sound, free from
any external interference or distortion.
The T-loop is marked on the intercom with the international symbol, and this
standard is supported by most hearing aids.
The T-loop uses three LEDs to indicate the status: calling the apartment,
answering the call, and opening the door. The audio signal plays three
different voice messages: "Dialing in progress, please wait" (when
calling the property), "The door is open, please enter," or "The
number is not answering, please try again later." The messages are
available in Polish, English, and French, depending on the intercom display
language setting.
FEATURES:
- Amenities for people with disabilities:
-
- Illuminated keypad buttons, optionally compatible with Braille
- Acoustic and visual indication of panel functions
- Automatic or remote (using a button) door opening without the need to
answer the call, and the ability to connect an additional acoustic or
visual call signaling device (CDN-U) to the apartment.
- Built-in camera module:
-
- High-resolution color dome (min. 600 lines) with a 2.8mm wide-angle
lens
- Horizontally adjustable camera viewing direction
- Infrared LED illumination
- Excellent image quality day and night
- Weather- and vandalism-resistant
- Ability to set a 6-digit apartment number
- 4 different code tables
- Available codes:
-
- 1020 tenant codes (4-digit)
- 5 administrator codes (4 or 6-digit)
- 1 installer code (8-digit)
- Programmable entry on the main display (max. 30 characters)
- Adjustable maximum conversation time (40-120 seconds)
- Support for multiple expansion modules to enhance system
functionality
- Support for multi-entry Master/Slave/Multimaster systems
- Optional SW4S-DIN module required for 1020 apartments
- Opening of the electric strike or additional relay output without a
conversation (CDN-I/O)
- Home automation: control of external devices, e.g., gate, barrier,
lighting, roller shutters, via a combination lock or receiver. Even without
an active connection:
- opening the gate - triple key or - control of external devices (CDN-I/O
module) - triple key
- enabling or disabling access to control external devices separately for
each apartment
- possibility of connecting multiple receivers to the same number using
active receivers
- wide range of individual configuration options for each apartment
- intuitive and convenient operation and configuration
- option of group change of call number range
- option of group change of call numbers
- possibility of setting up to 8 numbers for which there is an option to
call without speaking
- auto-opening function for each apartment
- corridor opening function
- porter function
- possibility of entering any max. 6-character text display during porter
forwarding
- Adjustable number of openings per call (1-3)
- Support for various types of electric strikes and electromagnetic
locks
- 8 priority additional numbers with individual call parameter
settings
- Call forwarding for additional numbers
- Built-in induction loop T (marked with the international symbol) for
hearing aid users – the voice from the intercom speaker is transmitted
directly to the hearing aid
- Built-in optical signaling: a red LED indicates the apartment is being
called, a yellow LED indicates the call has been answered, and a green LED
indicates the door is open.
- Built-in audio signaling – a synthesizer that plays the messages:
"Dialing in progress, please wait" (when calling the apartment),
"The door is open, please enter," or "The number is not
answering, please try again later."
- Messages available in Polish, English, and French, depending on the
language setting of the intercom display. Programming from a computer without
external power supply
- Programming from the control panel and a computer via a USB cable
- Free software available in the "Downloads" tab
- Compatible with all digital devices from the following groups: CDNP,
Inspiro, and Familio P/PV
