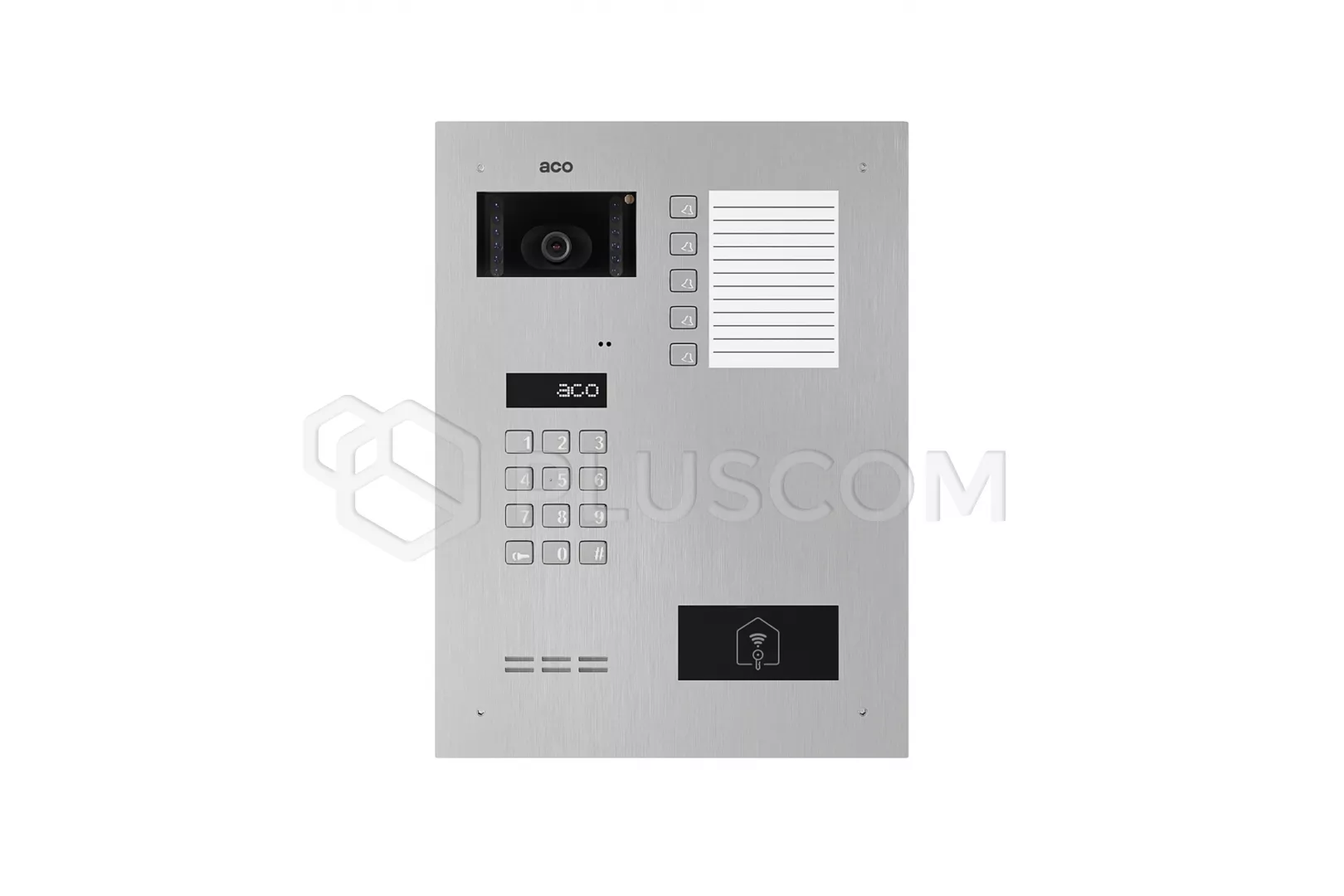

INSPIRO 900S+ Digital video intercom Slave with combination lock and reader
proximity sensor, 10 buttons and a large descriptive list
INSPIRO 900S+ is very elegant and resistant to weather conditions and acts
intercom vandalism. The housing and buttons are made of brushed 2mm thick
stainless steel. Modern design, high quality used materials ensure
failure-free operation for many years.
The device is compatible with all digital devices from the following groups:
CDN, Inspiro and Familio P/PV and programming is done using a USB cable, via
switchboard or computer.
To facilitate operation for disabled people, the panel is illuminated keys with
Braille, optical signaling and sound. Additionally, without having to answer
the call, we can remotely or automatically open the door and using the CDN-U
module, we can connect the an additional acoustic or light device in the
premises, signaling that someone is calling.
INSPIRO 901S+ supports 1020 premises for which a 4-digit code is available
tenant (different for everyone). It is equipped with a combination lock and
reader proximity switch, 5 buttons and a medium descriptive list. It has wide
possibilities individual configuration of settings for each premises and the
service itself is easy and comfortable. The device supports many expansion
modules, which is why system functionality increases.
The video intercom is equipped with a color camera with a wide-angle lens
2.8mm, high resolution (min. 600 lines). The camera has LED backlight, thanks
to which the image will be perfect both during the day and at night. Position
camera is horizontally adjustable.
MOST IMPORTANT FEATURES:
- support for multi-input Slave systems
- possibility to set a 6-digit apartment number
- 4 different code tables
- available codes: 1020 tenant codes (4-digit), 5 administrator (4 or 6
digits), 1 installer (8 digits)
- programmed entry on the main display (max. 30 characters)
- support for up to 6144 proximity elements
- any number of proximity elements assigned to each apartment from the pool
of 6144
- any number of proximity elements for administrator and installer
access
- adjustable max. talk time (40-120 seconds)
- support for many expansion modules increasing the functionality of the
system
- optional SW4S-DIN module required
- to support 1020 premises
- opening the electric strike or additional relay output without talking
(CDN-I/O)
- home automation: controlling external devices, e.g. gate, barrier,
lighting, roller blinds, using a combination lock, key fob, receiver. Also
without an active connection
- opening the gate - triple key or - controlling external devices (CDN-I/O
module) - triple key
- enabling or disabling access to controlling external devices separately
for each apartment
- possibility to connect multiple receivers under the same number using
active receivers
- wide possibilities of individual configuration of settings for each
premises
- intuitive and comfortable operation and configuration
- option to change the range of calling numbers in groups
- option to change calling numbers in groups
- possibility to set up to 8 numbers for which there is an option to call
without a conversation
- auto-opening function for each premises
- hallway opening function
- porter function
- possibility to enter any max. 6-character text on the display during
porter redirection
- adjustable number of openings during a conversation (1-3)
- operating electric strikes and electromagnetic locks various types
- 8 priority additional numbers with individual settings of calling
parameters
- Call forwarding for additional numbers
- programming from a computer without external power supply
- programming from the control panel and computer via USB cable
TECHNICAL PARAMETERS:
- installation method: flush-mounted
- dimensions:
-
- panel: 216x290mm
- can: 197X271x31.5mm
- description field: 59x166mm
- Installation type: digital: Cat twisted pair. 5e or 6
- line length: max 1000m
- power supply: 15V DC / 310mA
- power consumption in standby mode: 1.6W
- first outputs to connect:
-
- 2 x "ELOCK" screw connectors: connection of a traditional
electric strike (max. 1A) or a reversible electric strike (max. 0.5A) or
CDN-PK relay module (max. 5A)
- 2 x screw connectors: audio signal connection: "LINE+" and
"LINE- (GND)"
- 2 x screw connectors: connection of the second relay output (OUTPUT):
"N" and "NO" (max. 2A,30VDC)
- inputs:
-
- 4 x screw connectors: power supply connection: constant
"+DC" and "GND"
- 1 x "INPUT" screw connector: connection of a normally open
button (NO) - activated after shorting to GND of the system. E.g.
external open button
- 1 x screw connection: connection of the audio signal from the
preceding panel (Master Line): "ML+" (Slave only)
- 2 x "EXTMOD" socket for connecting optional modules
- installation type: digital PV system (Cat.5e or 6 twisted pair)
- compatible with all digital devices from the groups: CDN, Inspiro and
Familio P/PV
