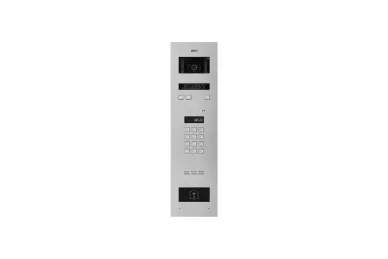

INSPIRO 8+ Digital outside unit with code lock, electronic list and RFID
reader
INSPIRO 8+ is very elegant and resistant to weather conditions and acts
intercom vandalism. The housing and buttons are made of brushed 2mm thick
stainless steel. Modern design, high quality used materials
ensure
trouble-free operation for many years.
The device is compatible with all digital devices from the groups: CDN, Inspiro
and Familio PV and programming is done using a USB cable or computer.
To make it easier for disabled people, the panel has backlights Braille keys
with optical signaling and sounds. In addition, without having to answer the
call we can remotely or automatically open the door and with the help of the
CDN-U module, we can connect in additional acoustic or lighting device
signaling that someone is calling.
The intercom has a built-in electronic and alphabetical list of apartments (27
characters description for each premises).
INSPIRO 8+ serves 1020 premises for which a 4-digit code is available
condominiums (for everyone different). Has wide individual possibilities
configuration settings for each apartment and the service itself is easy and
comfortable. The device supports many extension modules, which increases system
functionality.
The video intercom is equipped with a color camera with a wide-angle lens 2.8mm
and high resolution (min. 600 lines). The camera has LED backlight, thanks why
the picture will be perfect both day and night. Camera position is horizontally
adjustable.
FEATURES:
- operates multi-input Master/Multimaster systems
- Heated LCD display
- possibility to set a 6-digit apartment number
- 4 different code tables
- available codes: 1020 apartment codes (4 digits), 5 administrator codes
(4 or 6 digits), 1 installer code (8 digits)
- programmable entry on the main display (max. 30 characters)
- operates up to 6144 keyfobs
- any number of keyfobs assigned to each apartment (out of 6144 available
keyfobs)
- any number of administrator and installer access keyfobs
- adjustable max. conversation time (40 - 120 seconds)
- connects to different extension modules that extend system
functionality
- opening e-locks or additional relay outputs without a call (CDN-I/O)
- control over external devices like gates, barriers, lights or blind
rollers using a code lock, keyfob or inside unit Functions also available
without an active connection: gate opening - a triple key or external device
control (CDN-I/O module) - triple key
- enabling/disabling access to external equipment control separately for
each apartment
- connects numerous inside units under the same number
- extensive customisation of settings for each apartment
- intuitive and convenient operation and configuration
- option for collective modification of the call number range
- option for collective modification of call numbers
- possibility to set up to 8 numbers with a doorbell without call
option
- auto-opening function for each apartment
- corridor opening
- doorman calling
- possibility to enter any (max. 6-character) text on the display during
doorkeeper call re-routing
- adjustable number of door opening actions during a conversation (1 -
3)
- compatible with different e-lock and magnetic lock types
- 8 additional priority numbers with customisable calling parameter
settings
- device serial number displayed in software
- call re-routing for additional numbers
- call re-routing always active for basic (passive) receivers
(INS-UP720B/M, INS-UP)
- possibility to disable call re-routing for “active” inside units
(INS-UP720MR, UP800,INS-MP7, INS-MPR)
TECHNICAL SPECIFICATIONS:
- mounting method: flush-mounted
- dimensions:
-
- front panel: 111x412mm
- flush mounting back box: 92x393x31.5mm
- installation type- digital: twisted pair cable cat. 5e or 6
- line lenght: max 1000m
- power supply: 15V DC
- stand-by power consumption: 1.47W
- first outputs to connect:
-
- traditional e-lock (max. 1A)
- reverse e-lock (max. 0,5A)
- relay module CDN-PK (max. 5A)
- second output to connect:
-
- home automation (max. 2A,30VDC)
- input: 1x normally open (NO)
The video intercom is also available in the Slave version for
multi-entrance installations
