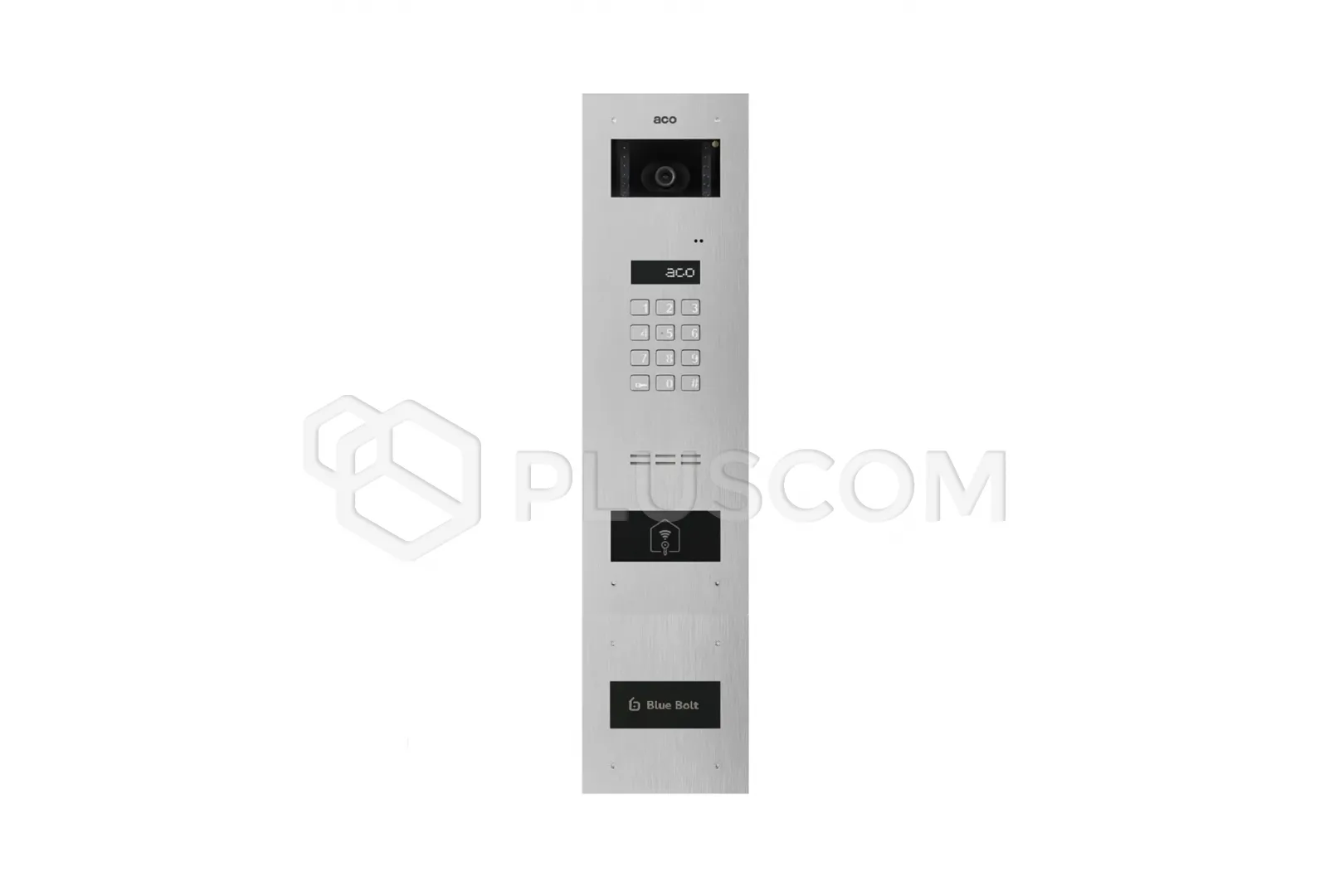

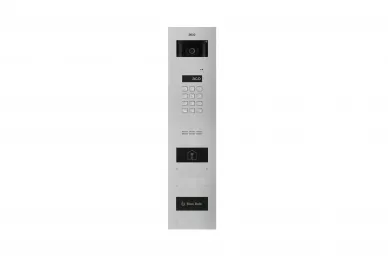

Aco INSPIRO 6+ BOLT (G3) Digital Video Intercom with Code Lock, Unique Proximity
Reader, and Space for a Blue Bolt Reader
The INSPIRO 6+ is a very elegant, weather- and vandal-resistant intercom. The
housing and buttons are made of 2mm-thick brushed stainless steel. The modern
design and high-quality materials ensure trouble-free operation for many years.
The device is compatible with all digital devices from the CDN, Inspiro, and
Familio PV groups, and programming is performed via a USB cable, through the
control panel, or a computer.
It is equipped with a high-resolution color camera with a 2.8mm wide-angle
lens, a combination lock, a Unique 125 kHz proximity reader, and a space for
mounting a Blue Bolt reader (information about the Blue Bolt system:
https://www.blueboltapp.com/).
To facilitate operation for people with disabilities, the panel features
backlit Braille keys and visual and audible signals. Additionally, without
having to answer the call, you can remotely or automatically open the door, and
using the CDN-U module, you can connect an additional acoustic or light device
to the premises to signal that someone is calling.
INSPIRO 6+ supports 1,020 premises, each with a 4-digit tenant code (different
for each). It offers extensive options for individual configuration of settings
for each premises, and operation is simple and convenient. The device supports
multiple expansion modules, increasing the system's functionality.
FEATURES:
- Amenities for people with disabilities:
-
- Illuminated keypad buttons, optionally compatible with Braille
- Acoustic and visual indication of panel functions
- Automatic or remote (using a button) door opening without the need to
answer the call, and the ability to connect an additional acoustic or
visual call signaling device (CDN-U) in the premises.
- Built-in camera module:
-
- High-resolution color camera (min. 600 lines) with a 2.8mm wide-angle
lens.
- Horizontally adjustable viewing direction. Cameras
- Infrared LED illumination
- Excellent image day and night
- Weather and vandal resistant
- Ability to set a 6-digit apartment number
- 4 different code tables
- Available codes:
-
- 1020 apartment numbers (4-digits)
- 5 administrator numbers (4 or 6-digits)
- 1 installer number (8-digits)
- Programmable entry on the main display (max. 30 characters)
- BlueBolt proximity system support
- Supports up to 6144 Unique 125kHz proximity elements including: any
number of proximity devices assigned to each apartment from a pool of 6144,
and any number of proximity devices for administrator and installer
access.
- Adjustable maximum conversation time (40-120 seconds)
- Support for multiple expansion modules to increase system
functionality.
- Support for multi-entry Master/Slave/Multimaster systems. To control 1020
apartments, the optional SW4S-DIN module is required.
- Opening the electric strike and home automation: controlling external
devices, e.g., gate, barrier, lighting, roller shutters, using a combination
lock or receiver.
- Without an active connection:
- Opening the gate - triple key or - controlling external devices
(CDN-I/O module) - triple key.
- Enabling or disabling access to external device control separately
for each apartment.
- Possibility of connecting multiple receivers to the same number using
active receivers.
- Wide range of individual configuration options for each apartment.
- Intuitive and convenient operation and configuration.
- Option to group change the call number range.
- Option to group change the call number range.
- Ability to set up to 8 numbers for which there is an option to dial
without speaking.
- Automatic opening function for each apartment.
- Corridor opening function.
- Porter function.
- Ability to enter any number, max. 6-character text display during porter
forwarding
- Adjustable number of openings per call (1-3)
- Supports various types of electric strikes and electromagnetic locks
- 8 priority additional numbers with individual call parameter
settings
- Call forwarding for additional numbers
- Programming from a computer without an external power supply
- Programming from the control panel and a computer via a USB cable
- Free software available in the "Downloads" tab
- Compatible with all digital devices from the following groups: CDN,
Inspiro, and Familio P/PV
- Outputs:
-
- 2 x "ELOCK" screw terminals: traditional electric strike
connection (max. 1A) or reverse (max. 0.5A) or CDN-PK relay module (max.
5A)
- 2 x screw terminals for audio signal connection: "LINE+"
and "LINE- (GND)"
- 2 x screw terminals for second relay output connection (OUTPUT):
"N" and "NO" (max. 2A, 30VDC) – Master only
- Inputs:
-
- 4 x screw terminals: power supply connection: constant
"+DC" and "GND"
- 1 x screw terminal "INPUT": connection for a normally open
pushbutton (NO) – activated when shorted to system GND. E.g., external
opening button.
- 1 x screw connector: audio signal connection from the preceding panel
(Master Line): "ML+" (Slave only)
- 2 x "EXTMOD" sockets for connecting optional modules.
