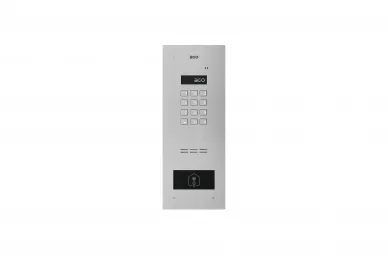

Aco INSPIRO 2+ (G3) Digital Intercom with Code Lock and Proximity
Reader
The INSPIRO 2+ is a very elegant, weather- and vandal-resistant intercom. The
housing and buttons are made of 2mm-thick brushed stainless steel. The modern
design and high-quality materials ensure trouble-free operation for many years.
The device is compatible with all digital devices from the CDN, Inspiro, and
Familio PV groups, and programming is performed via a USB cable, through the
control panel, or a computer.
To facilitate operation for people with disabilities, the panel features
backlit Braille keys and visual and audible signals. Additionally, without
having to answer the call, you can remotely or automatically open the door, and
using the CDN-U module, you can connect an additional acoustic or light device
to the premises to signal that someone is calling.
INSPIRO 2+ supports 1,020 premises, each with a 4-digit tenant code (different
for each). It offers extensive options for individual configuration of settings
for each premises, and operation is simple and convenient. The device supports
multiple expansion modules, increasing the system's functionality.
FEATURES:
- Amenities for people with disabilities:
-
- Illuminated keypad buttons, optionally compatible with Braille
- Acoustic and visual indication of panel functions
- Automatic or remote (using a button) door opening without the need to
answer the call, and the ability to connect an additional acoustic or
visual call signaling device (CDN-U) to the apartment.
- Weather- and vandal-resistant
- Option to set a 6-digit apartment number.
- 4 different code tables.
- Available codes:
-
- 1020 tenant access codes (4-digit)
- 5 administrator access codes (4 or 6-digit)
- 1 installer access code (8-digit)
- Programmable entry on the main display (max. 30 characters)
- Supports up to 6144 proximity devices
- Any number of proximity devices assigned to each apartment from a pool of
6144
- Any number of proximity devices for administrator and installer
access
- Adjustable max. Conversation time (40-120 seconds)
- Support for multiple expansion modules to increase system
functionality
- Support for multi-input Master/Slave/Multimaster systems
- Optional SW4S-DIN module required for 1020 apartments
- Opening the electric strike or additional relay output without a
conversation (CDN-I/O)
- Home automation: Control of external devices, e.g., gate, barrier,
lighting, roller shutters, using a combination lock, key fob, or
receiver
- Also without an active connection:
-
- Opening the gate - triple key or - Control of external devices
(CDN-I/O module) - Triple key
- Enabling or disabling access to external device control for each
apartment individually
- Ability to connect multiple receivers to the same number using active
receivers
- Wide range of individual configuration options for each apartment
- Intuitive and convenient operation and configuration
- Option to group change the call number range
- Option to group change the call number range
- Ability to set up to 8 numbers for which there is an option to call
without speaking
- Automatic opening function for each apartment
- Corridor opening function
- Porter function
- Ability to enter any number, max. 6-character text on the display during
porter forwarding.
- Adjustable number of openings during a call (1-3)
- Supports various types of electric strikes and electromagnetic
locks.
- 8 priority additional numbers with individual call parameter
settings.
- Call forwarding for additional numbers.
- Programming from a computer without external power supply.
- Programming from the control panel and a computer via a USB cable.
- Free software available in the "Downloads" tab.
- Compatible with all digital devices from the following groups: CDN,
Inspiro, and Familio P/PV.
- Outputs:
- style="list-style: none; display: inline">
- 2 x "ELOCK" screw terminals: connection traditional
electric strike (max. 1A) or reversing (max. 0.5A) or CDN-PK relay module
(max. 5A)
- 2 x screw terminals for audio signal connection: "LINE+"
and "LINE- (GND)"
- 2 x screw terminals for second relay output connection (OUTPUT):
"N" and "NO" (max. 2A, 30VDC) – Master only
- Inputs:
-
- 4 x screw terminals: power supply connection: constant
"+DC" and "GND"
- 1 x screw terminal "INPUT": connection for a normally open
(NO) button – activated when shorted to system GND. E.g., external
opening button.
- 1 x screw connector: audio signal connection from the preceding panel
(Master Line): "ML+" (Slave only)
- 2 x "EXTMOD" sockets for connecting optional modules
