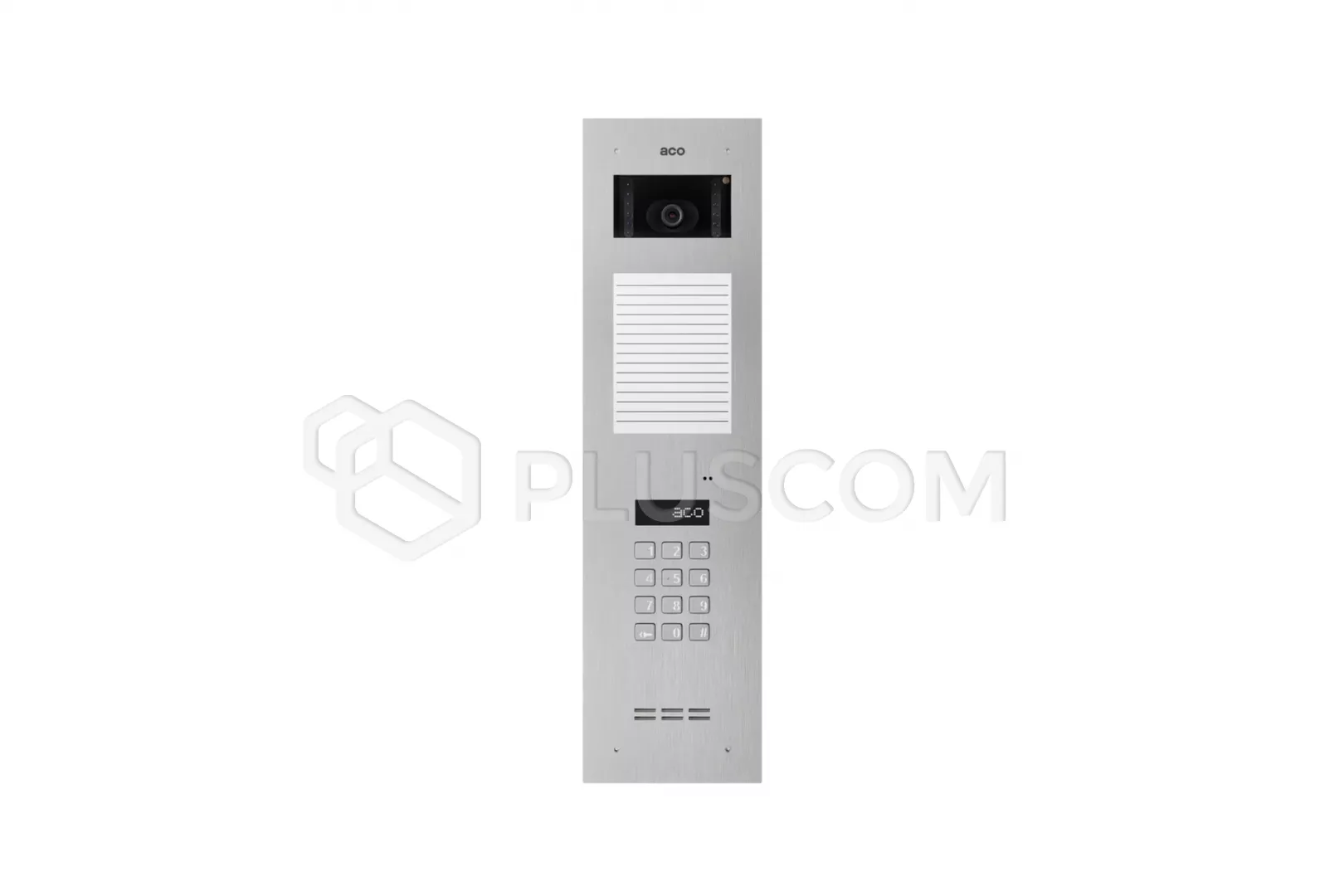

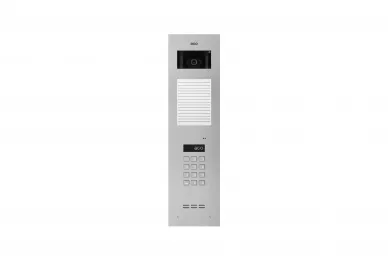

INSPIRO 16S+ Slave digital video intercom with combination lock and medium list
descriptive
INSPIRO 16S+ is very elegant and resistant to weather conditions and acts
intercom vandalism. The housing and buttons are made of brushed
2mm thick stainless steel. Modern design, high quality used
materials ensure
failure-free operation for many years.
The device is compatible with all digital devices from the following groups: CDN,
Inspiro and Familio PV and programming is done using a USB cable, via
switchboard or computer.
To facilitate operation for disabled people, the panel is illuminated
keys with Braille, optical signaling and
sound. Additionally, without having to answer the call, we can remotely or
automatically open the door and using the CDN-U module, we can connect the
an additional acoustic or light device in the premises, signaling that someone
is calling.
INSPIRO 16S+ supports 1020 premises for which a 4-digit code is available
tenant (different for everyone). It is equipped with a medium backlit module
descriptive list. It has wide possibilities of individual configuration of settings for
each premises and the service itself is easy and comfortable. Device supports
many expansion modules, which increases the functionality of the system.
The video intercom is equipped with a color camera with a wide-angle lens
2.8mm, high resolution (min. 600 lines). The camera has LED backlight,
thanks to which the image will be perfect both during the day and at night. Position
camera is horizontally adjustable.
MOST IMPORTANT FEATURES:
- support for multi-input Slave systems
- possibility to connect multiple receivers under the same number
using active receivers
- control of external devices, e.g. entrance gate, barrier,
lighting, blinds
- control of external devices (CDN-I/O module) – triple
key
- opening the gate - triple key
- heated LCD
- possibility to set a 6-digit apartment number
- available codes: 1020 tenant codes (4-digit), 5 administrator codes (4 or
6-digit), 1 installer (8-digit)
- 4 different code tables
- programmed entry on the main display (max. 30 characters)
- possibility to enter any max. 6 character text on the display
during porter redirection
- adjustable max. talk time (40-120 seconds)
- possibility to set up to 8 numbers for which there is an option to call without
conversations
- 8 priority additional numbers with individual parameter settings
calling
- Call forwarding for additional numbers
- adjustable number of openings during a conversation (1-3)
- hallway opening
- porter function
- auto-opening function for each premises
- option of group change of calling numbers and their range
- enable or disable access to control external devices
separately for each premises
- operating electric strikes and electromagnetic locks of various types
- opening the electric strike or additional relay output without
conversations (CDN-I/O)
- programming from a computer without external power supply
TECHNICAL PARAMETERS:
- installation method: flush-mounted
- dimensions:
-
- panel: 111x412mm
- can: 92x393x31.5mm
- description field: 73x99.5mm
- installation type: digital twisted pair cat. 5e or 6
- line length: max 1000m
- power supply: 15V DC
- power consumption in standby mode: 0.7W
- first outputs to connect:
-
- traditional electric strike (max 1A)
- reversible electric strike (max 0.5A)
- relay module: CDN-PK (max 5A)
- second relay outputs to connect:
-
- home automation (max. 2A,30VDC)
- input: 1x normally open (NO)
It is worth remembering that ACO is a Polish manufacturer and designs its products
and produces in Poland. This is important information for the installer because:
in the event of a breakdown or service, he has access to parts, documentation and support
technical. The situation is completely different with products from the Far East.
