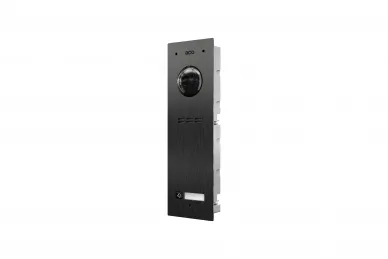

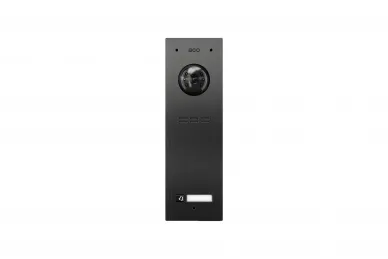

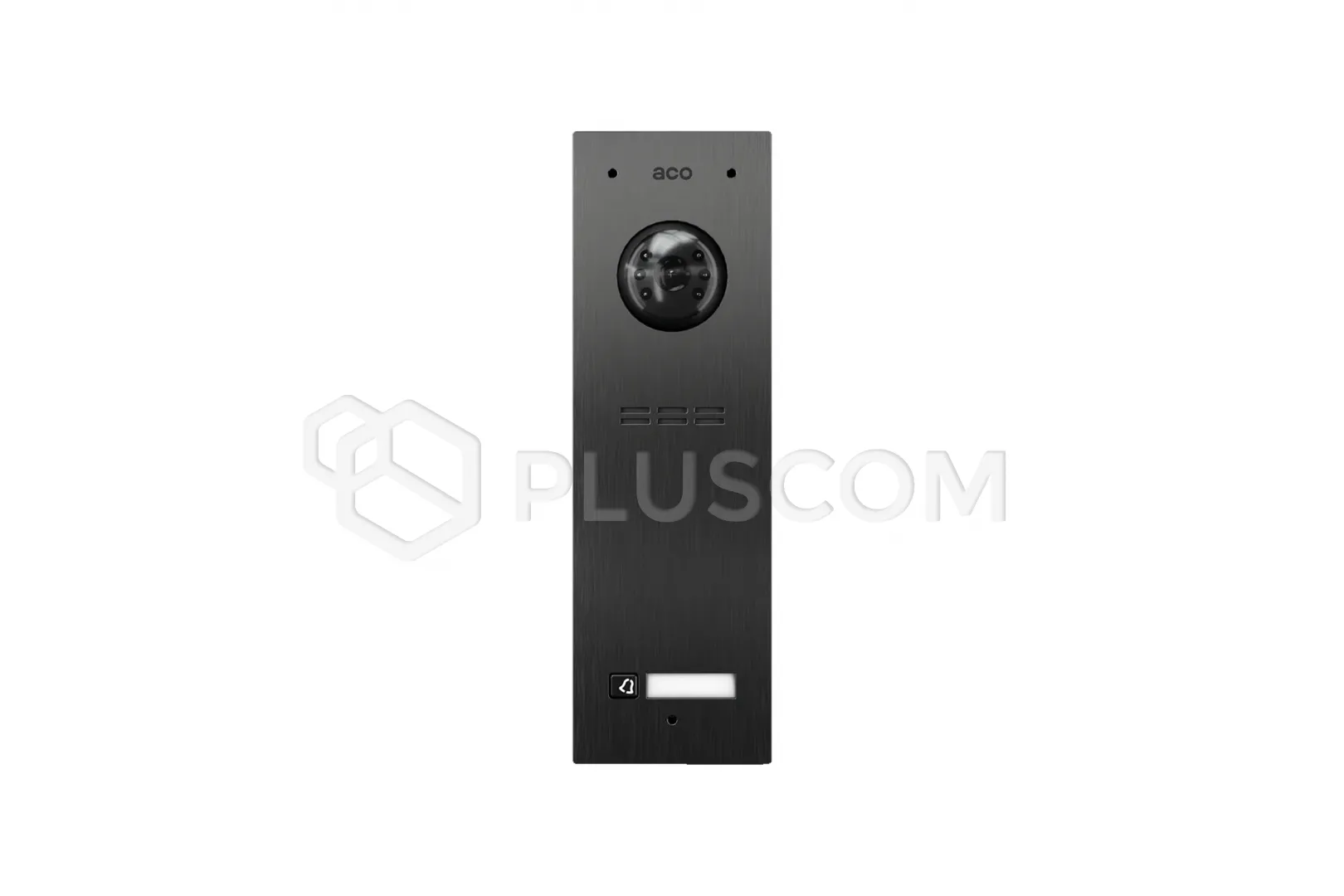

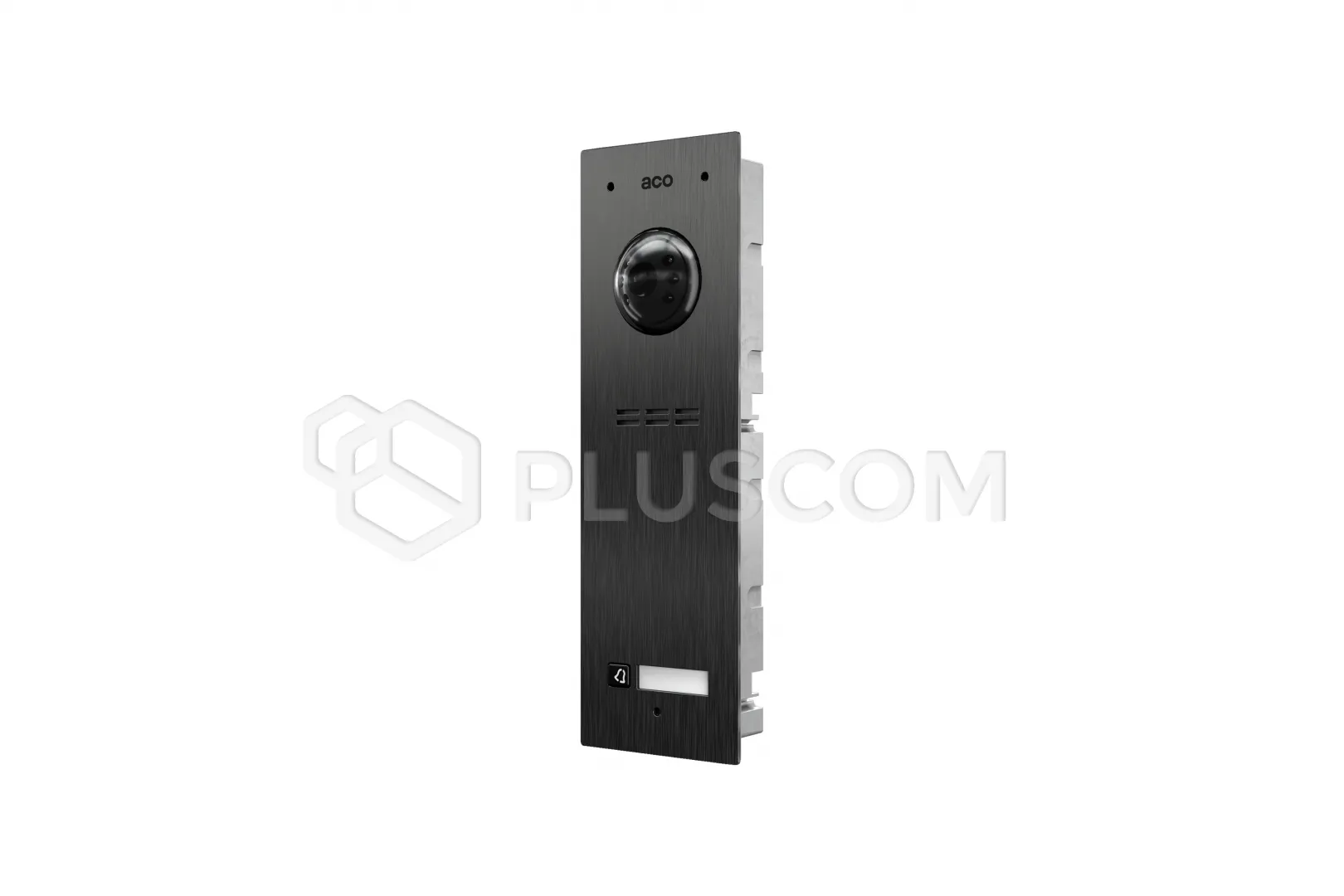

Aco COMO-PRO-V1 AL BK Video Intercom, 1 Button, Key Fob Reader, black version
The video intercom is a component of the ACO COMO PRO digital system, which can
be used in single-family homes.
This is the next generation of the renowned FAMILIO-PRO series. Thanks to its
completely new electronics design, it provides, among other things, greater
reliability, support for longer installations, remote management, and a larger
number of subscribers. The installation is based on UTP twisted-pair cables.
The system allows for the connection of two panels in a single system: 1 x
master and 1 x slave (optional VIDEO-SW2 MINI–60 module required), multiple
receivers calling simultaneously, various types of electric strikes, and an
external opening button.
The ACO panel offers many features for users with disabilities.
Using the PRO-I/O module, connected to the system bus, we can connect an
additional light or sound device that will signal a call. You can also open the
door without answering the call and, thanks to the auto-opening function, open
the door automatically. By connecting the PRO-I/O module, we can manage home
automation devices such as gates, barriers, lighting, or roller shutters.
Operating the panel itself is easy and intuitive, and programming is performed
from the panel and a computer using a CDN-USB cable.
PANEL CONSTRUCTION AND EQUIPMENT:
- The panel is made of stainless steel (2mm thick) and has one metal call
button.
- The design and materials used ensure high resistance to weather
conditions and acts of vandalism.
- Built-in camera with IR illumination.
- Style="list-style: none; display: inline">
- Wide-angle 2.8mm lens.
- High resolution (600 lines).
- Angle adjustment +/- 20° in each direction.
- Integrated proximity key fob reader (Unique 125kHz). Supports up to 10
key fobs per premises (the reader is located behind the lower... description
field)
- white backlit button and description field (easy name replacement)
- control of various types of electric strikes, the electric strike is
connected directly to the panel
TECHNICAL SPECIFICATIONS:
- Mounting: flush-mounted
- dimensions:
-
- panel: 286x90mm

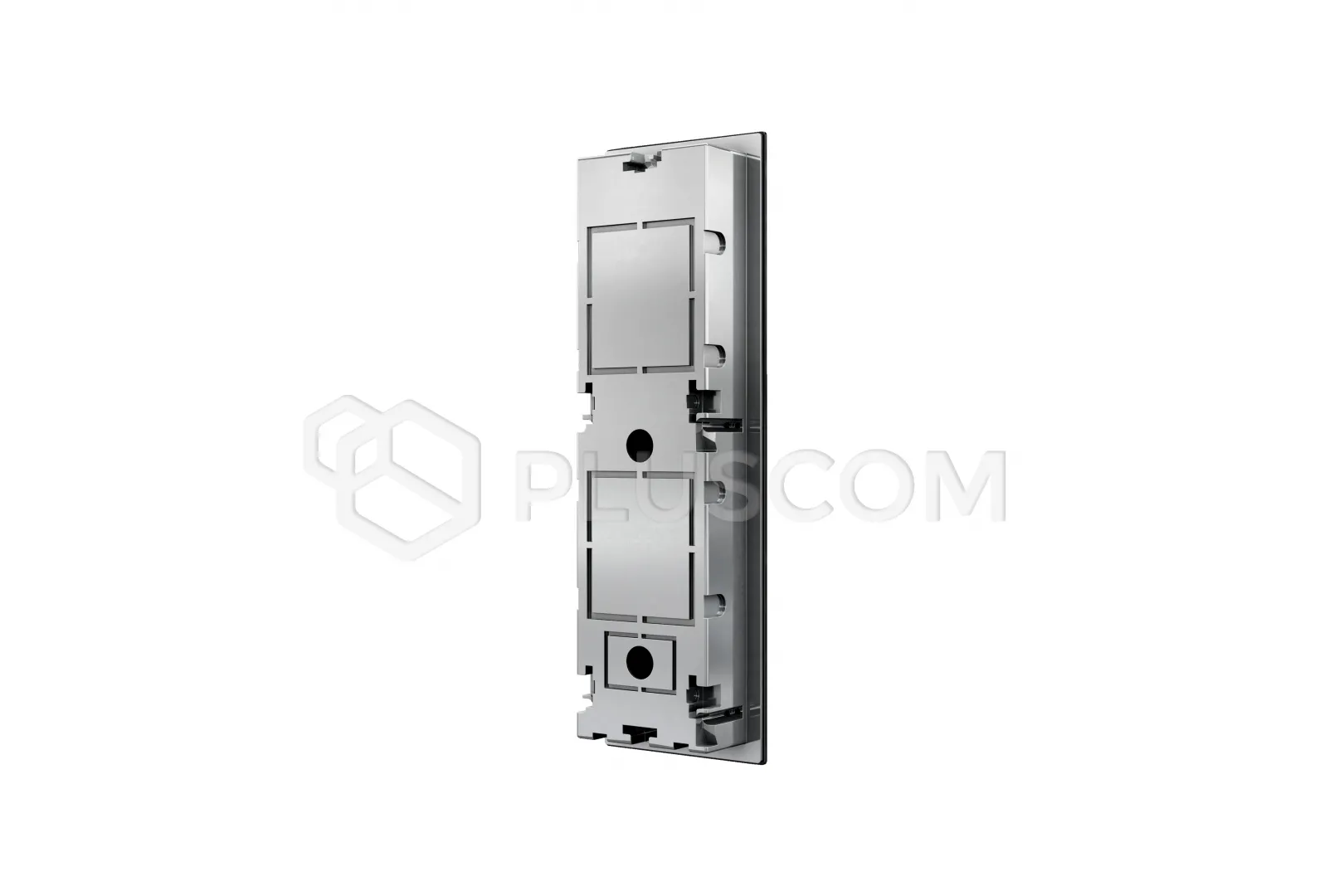

- flush-mounted box: 268x73x32mm
- Installation type: Digital PRO system: cat. 5e or 6
- Line lenght: max 1000m
- Power supply: 15V DC
- Stand-by power consumption: ok 2,5W
- output: for connection:
-
- traditional electric door strike (max. 1.5A)
- reversible door strike (max. 1.5A)
- CDN-PK relay module (max. 5A contact load)
- audio signal connection: "LINE".
- power supply connection: "+DC" and "-DC"
- Video signal: "V+" and "V-"
- PRO system bus connection
- cinput: to be connected:
-
- NO push-button connection
- separate power supply for the door strike output
