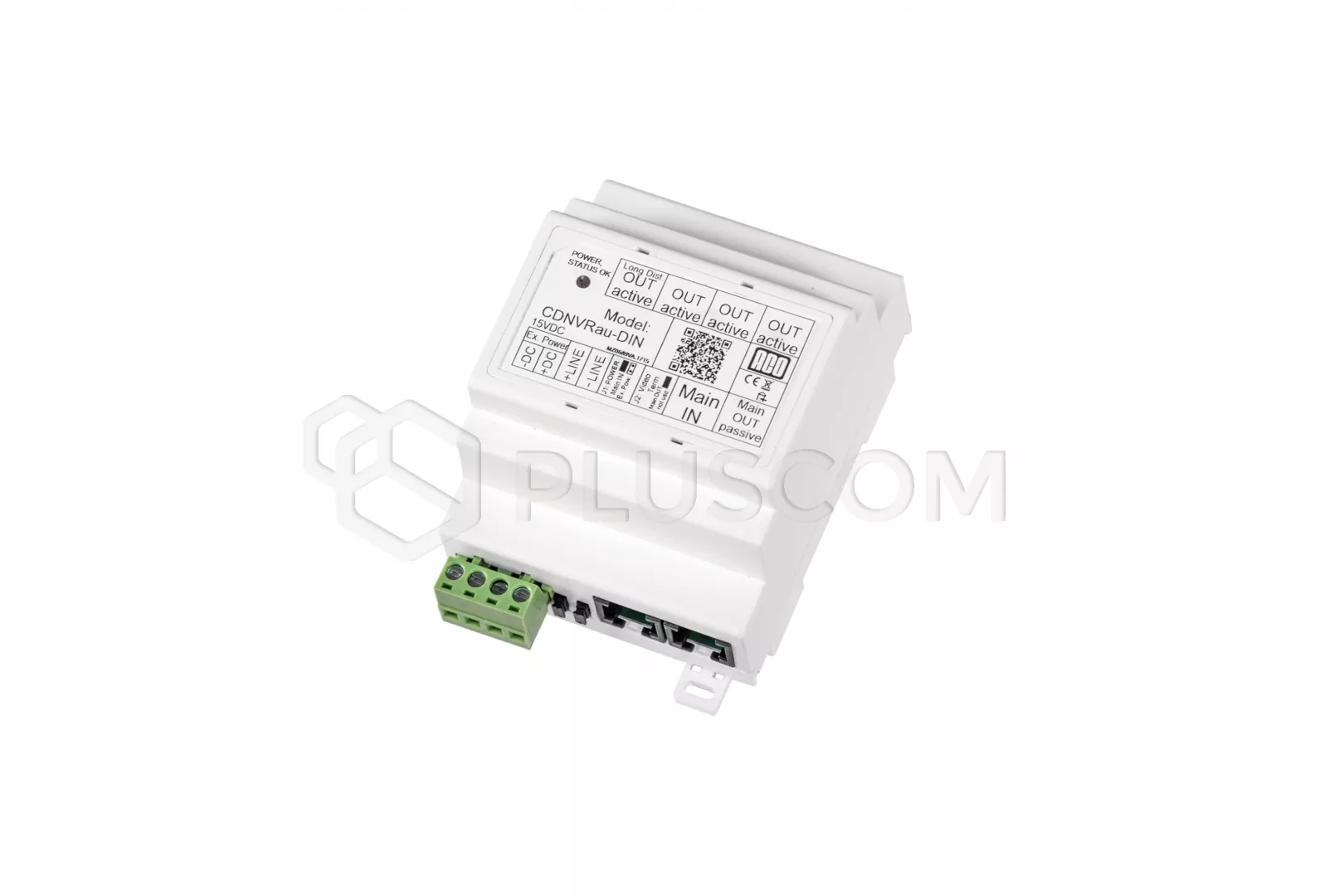

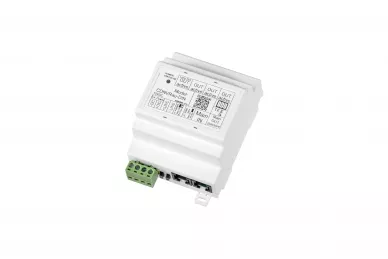

Aco CDNVRau-DIN DIN rail active video splitter

ACO CDNVRau4-60 Splitter active, universal, 4-output, without housing

• connection of up to 5 inside units
• split of the main bus line in to 4 independent outputs
• distance from the inside unit: max 70m (under the condition that the system is properly configured)
• enhancement of distance with additional psu's
• main input from the outside unit or other source in ACO standard
• 4 active outputs (video amplifiers)
• 1 passive output to connect additional splitter or inside unit
• 1 active output with additional signal enhancement (with long bus lines levels down video signal loss)
• compatible with other ACO video systems
• RJ45 connector (system bus line)
• screw terminals (power and audio line)
• works either as straight through splitter or terminal (integrated video terminator enabled with jumper)
• DIN rail mount or surface
• signal LED for power and current working condition

• RJ45 connector (5 x bus line: video, line, power):
• • 4 x active outputs (amplified)
  • 1 x passive output (not amplified)
• Screw terminals:
• • connection of line signal (audio inside units)

• RJ45 connector (bus line: video, line, power):
• • 1 x main input
• Screw terminals:
• • connection of additional power supply

• Power supply: 15VDC / 80mA
• Stand-by power consumption: ~1.2W
• Installation type: twisted pair cable cat. 5e or 6
• Material: housing made of ABS
• Dimensions: 4 DIN modules
