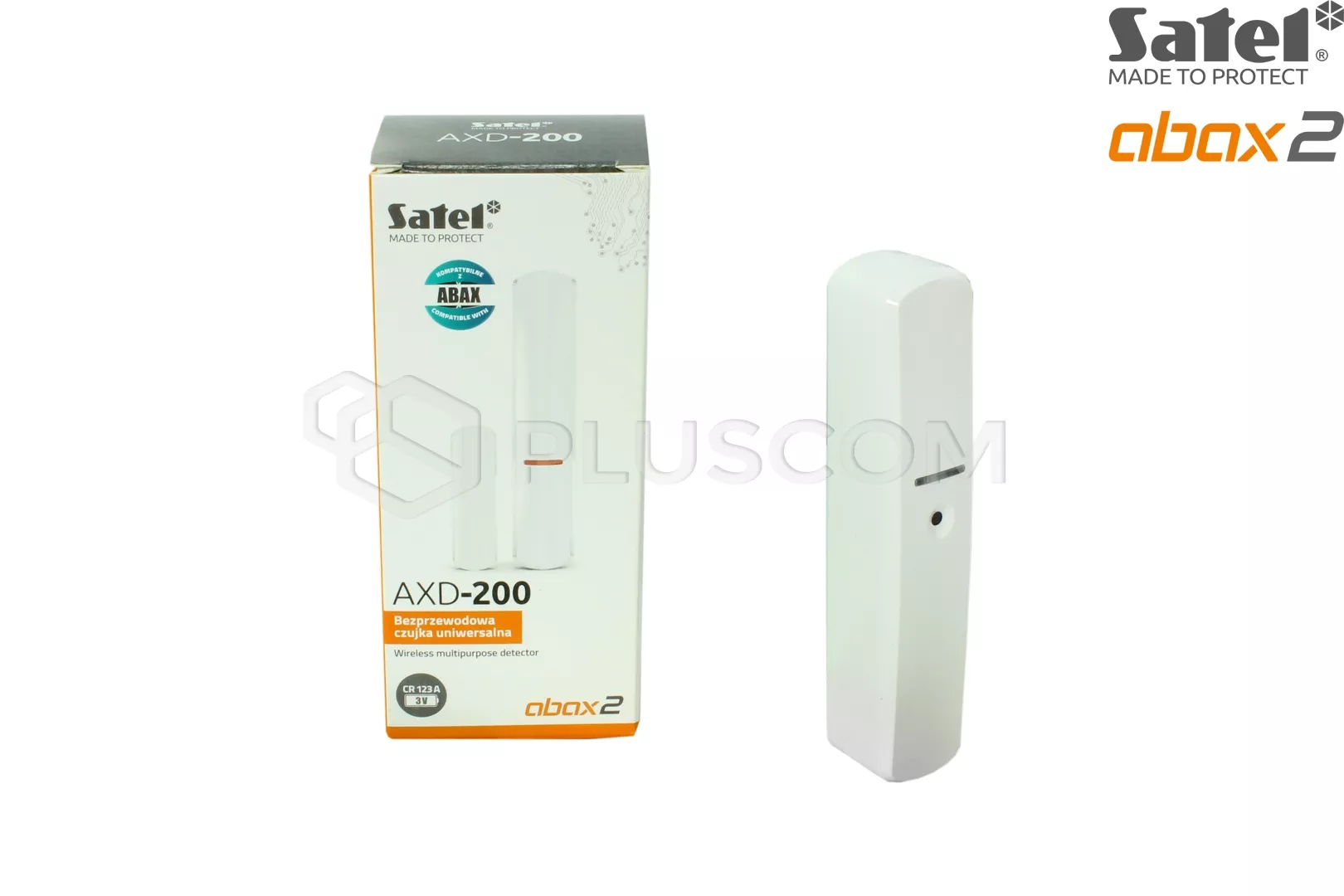

Satel AXD-200 Wireless universal detector ABAX 2 white

Satel AXD-200 Wireless Universal Detector WHITE

Satel AXD-200 Wireless universal detector ABAX 2

• safe - encrypted (AES standard in the case of ABAX 2), two-way radio communication in the 868MHz band
• reliable - communication using 4 channels, automatic selection of the channel with the least interference
• remote update of the detector software (only in the ABAX 2 system)
• remote configuration of the detector
• battery status control (when the voltage drops below 2.75V during each transmission, information about a low battery is sent


• detects opening of doors, windows, etc.
• has an input for connecting a wired NC type detector
• uses one position on the device list


• detects opening of doors, windows, etc.
• has an input for connecting a wired NC type detector
• additional digital channel for operating a wired detector
• needs two positions on the device list or optionally one when only an additional NC input is supported)


• detects opening of doors, windows, etc.
• has an input for connecting a wired NC type detector
• has an input for connecting a wired detector roller shutter
• needs two items on the device list or optionally one when only the additional roller shutter input and NC are supported)


• detection of shocks and vibrations accompanying an attempt to forcefully break door or window
• detects opening of doors, windows, etc.
• requires two items on the device list or optionally one if only the shock sensor is supported)


• detects changes in position / movements of the protected object
• uses one item on the device list


• informs about exceeding the programmed temperature threshold
• two temperature thresholds can be programmed: lower (L) and upper (H)
• requires two items on the list or one if one temperature threshold is programmed.


• informs about water flooding of the supervised room, requires purchase of an additional Satel FPX-1 probe (not supplied with the AXD-200 sensor)
• requires one item on the device list

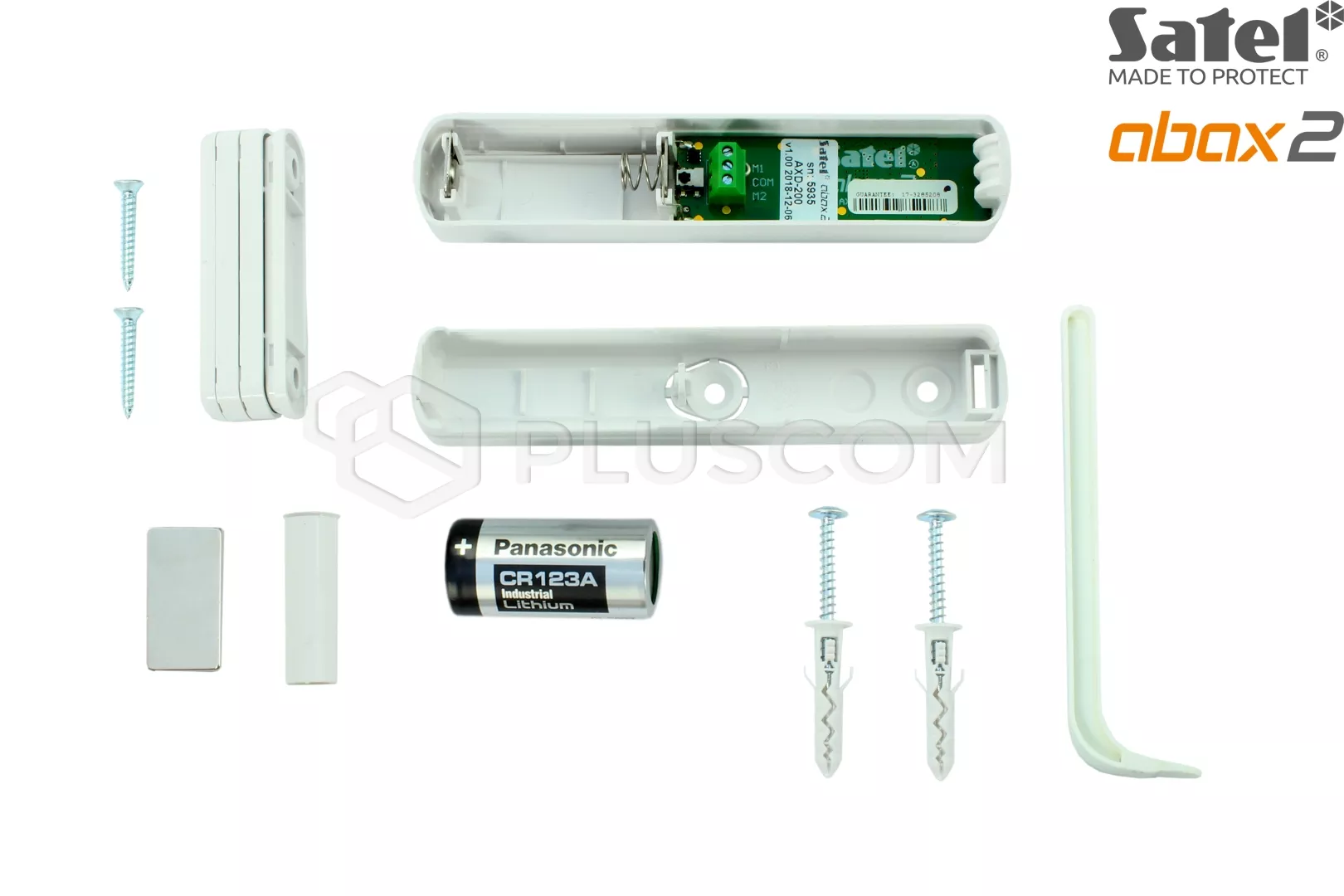

Accesssories:

• operating frequencies: 868 - 868.6MHz
• radio communication range (in open area)
• ABAX 2
• • ACU-220 up to 2000m
  • ACU-280 up to 1200m
• ABAX up to 500m


• battery: CR123A 3V
• battery life: up to 2 years
• standby current consumption: 20 μA
• maximum current consumption: 7 mA


• standards met: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6, EN 50131-5-3
• protection class according to EN50131-2-6 Grade 2
• environmental class according to EN50130-5: II


• operating temperature range: -10°C...+55°C
• maximum humidity: 93 +/- 3%
• housing dimensions: 20x102x23mm
• surface mount magnet housing dimensions 15x52x6mm
• surface mount magnet pad dimensions: 15x52x6mm
• recess mount magnet housing dimensions: ø10x28mm
• weight: 59g


• magnetic sensor gap (max.):
• • surface magnet: 20mm
  • magnet recessed: 18mm

• temperature measurement range: -10°C...+55°C
• temperature measurement accuracy: +/- 1°C
• shock sensor detection range (depending on the type of surface): up to 3m
