Two-way video door entry panel FAM-PRO-2NPACC NT

278,42 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #8722
Manufacturer: ACO
  • max. no. of phones: 2
  • built-in RFID reader
  • surface mounted
  • instalation type: CAT 5 cable
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ACO FAM-PRO-2NPACC NT video door phone with two call buttons for two lodgings

A video door phone is an element of the ACO Familio PRO digital system that can be used with one, two or three family housing. The installation is based on UTP twisted pair. The system allows you to connect one video panel and up to 3 monitors. An intercom function is made available between the monitors and on the monitor the household member at any time will get a preview of the panel installed at the gate.

CONSTRUCTION AND PANEL EQUIPMENT:
  • The panel is made of stainless steel (2mm thick) and metal call buttons
  • the design and materials used ensure high resistance to weather conditions and acts of vandalism
  • built-in camera with IR backlight:
    • wide-angle 2.8mm lens
    • high resolution (600 lines)
    • adjustable angle +/- 20 ° in each direction
  • integrated proximity tag reader (Unique 125kHz) support for up to 10 key fobs for the premises (the reader is located behind the bottom descriptive field)
  • white buttons illuminated and a descriptive field (simple description exchange)
  • control of electric strike of various types, electric strikes is connected directly to the panel
TECHNICAL PARAMETERS:
  • mounting method: surface mounted
  • dimensions:
    • panel: 263,8x67,8mm
    • can: 266x70mm
  • installation type: digital twisted cat. 5e, 6
  • length of the line: max 300m
  • power supply: 15V DC
  • power consumption in standby mode: about 2.5W
  • output: for connection:
    • traditional striker (max 1A)
    • reversible electric strike (max 0.5A)
    • relay module: CDN-PK (max 5A)
  • 1x NO input

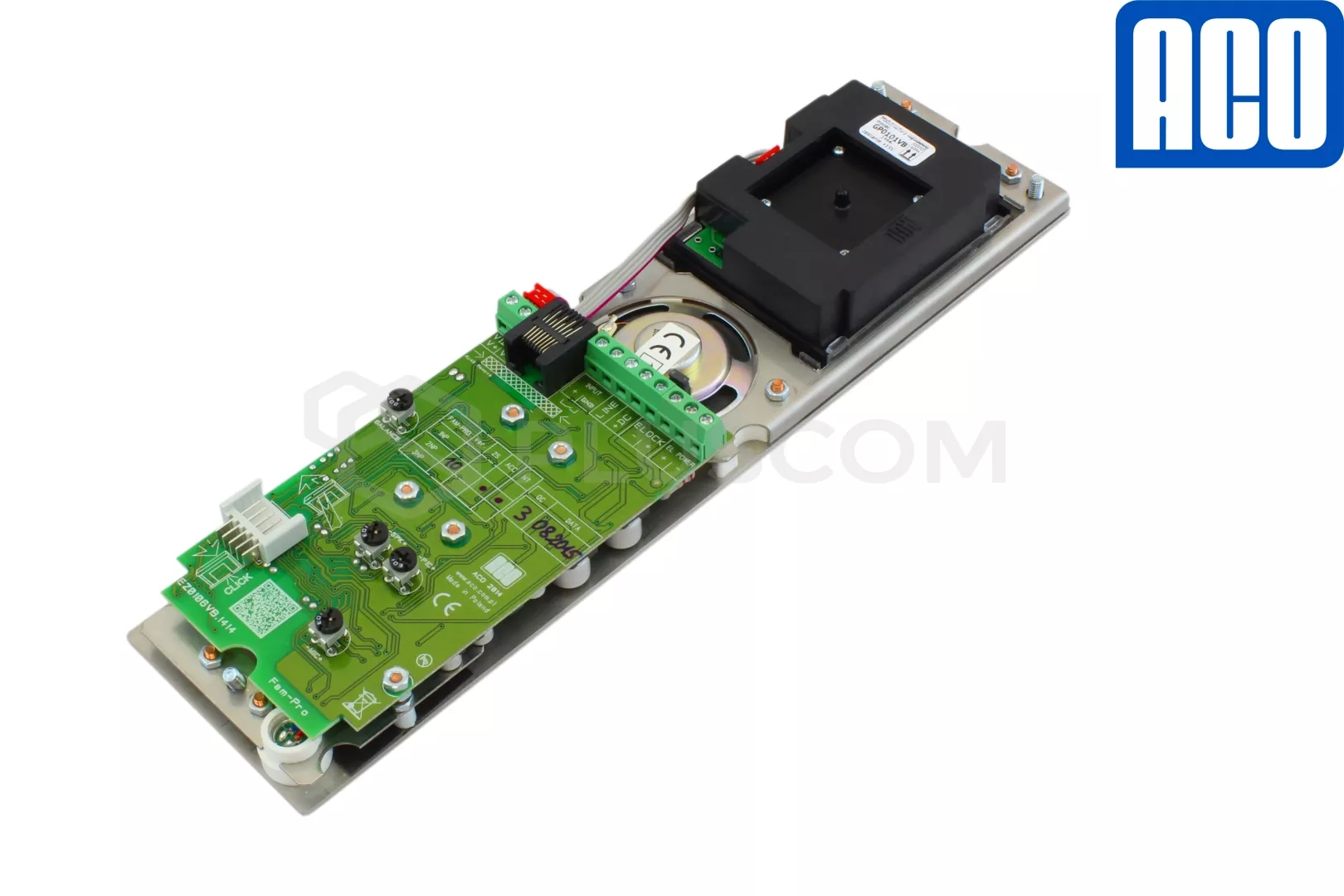

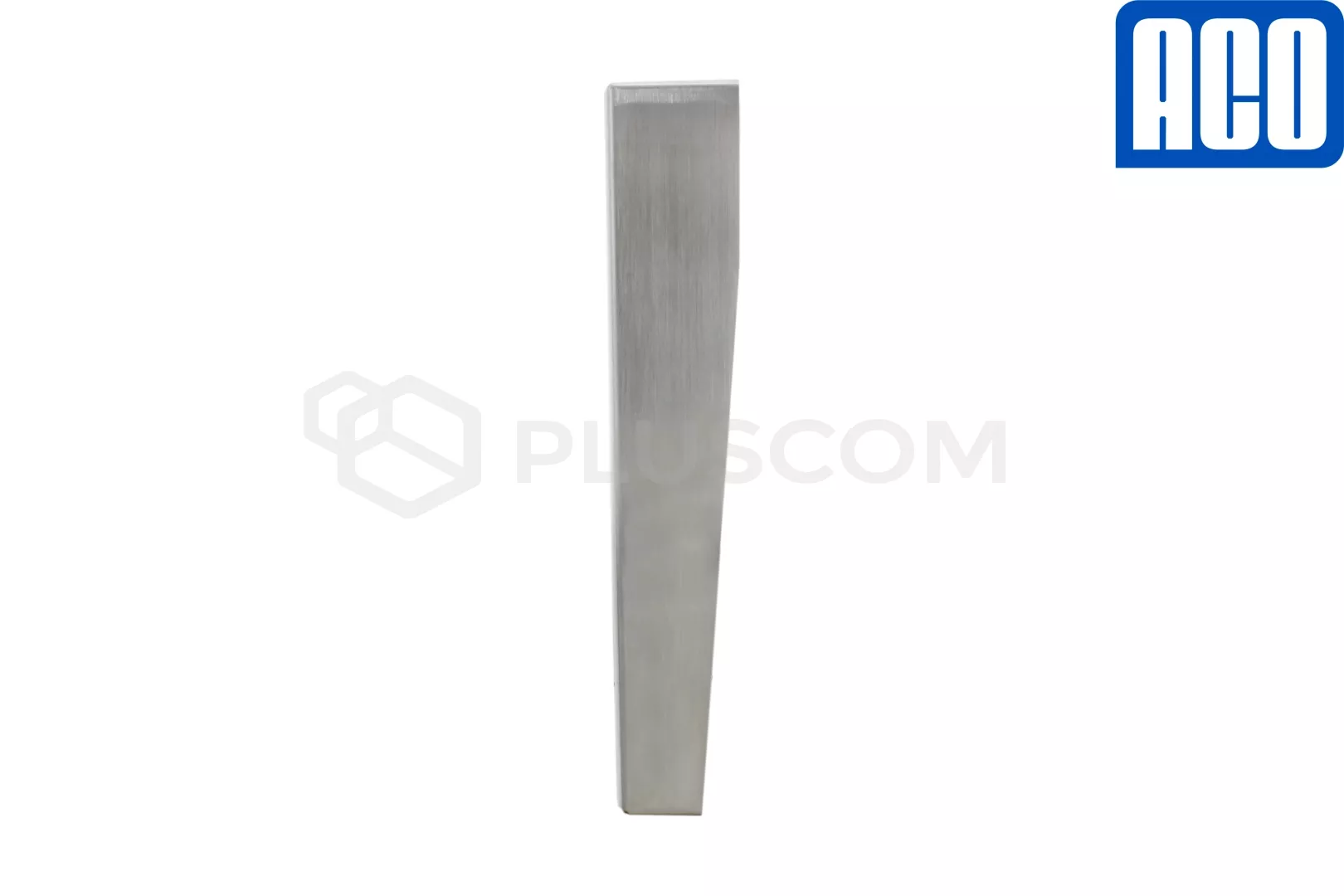

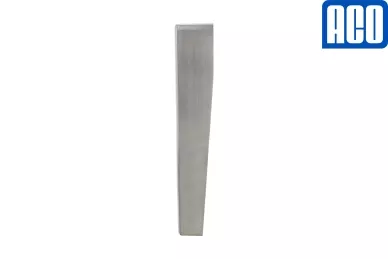

Two - way video door entry panel FAM-PRO-2NPACC NT

Two - way video door entry panel FAM-PRO-2NPACC NT



INSTALLATION
As the main transmission medium, the system uses UTP twisted cat 5e. In the case of small panel distances from the power supply module (max. 10m), the power supplied by the UTP cable can be used to supply the electric door strike. The central element is the power supply module with a video splitter to which we connect the panel and monitors.

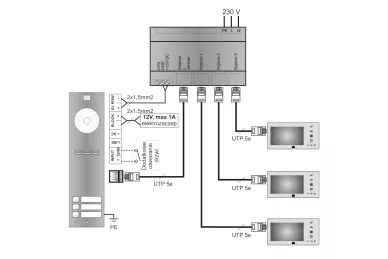

An exemplary installation diagram:

Wiring diagram for the system Familio PRO

Wiring diagram for the system Familio PRO


CONFIGURATION
The system is factory-configured and immediately after connection is ready for operation.
Using the Familio PRO application and connected via an optional CDN-USB cable, the installer can easily edit individual opening codes and load proximity cards. It is also possible to archive settings.

It is worth remembering that ACO is a Polish producer and designs and manufactures its products in Poland. For the installer this is important information that in the event of failure or service has access to parts, documentation and technical support. It is quite different with products from the Far East.

Specification
Dimensions: panel: 263,8x67,8mm <br>box: 266x70mm
Dimensions: panel: 263,8x67,8mm <br>box: 266x70mm
Max. no. of phones: 2
Max. no. of phones: 2
Installation method: surface mount
Installation method: surface mount
Camera: color, min. 600 lines<br>lens 2,8mm, adjustable<br>heated
Camera: color, min. 600 lines<br>lens 2,8mm, adjustable<br>heated
Combination lock: no
Combination lock: no
Installation type: Digital: twisted pair cable cat. 5e or 6
Installation type: Digital: twisted pair cable cat. 5e or 6
Line lenght: Max. 300m
Line lenght: Max. 300m
Stand-by power consumption: ~1,8W
Stand-by power consumption: ~1,8W
Inputs: 1x
Inputs: 1x
Outputs: 1x
Outputs: 1x
