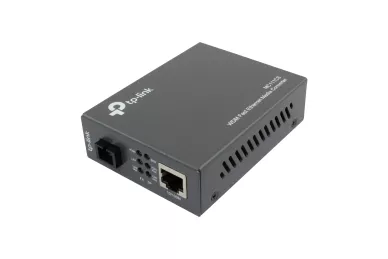

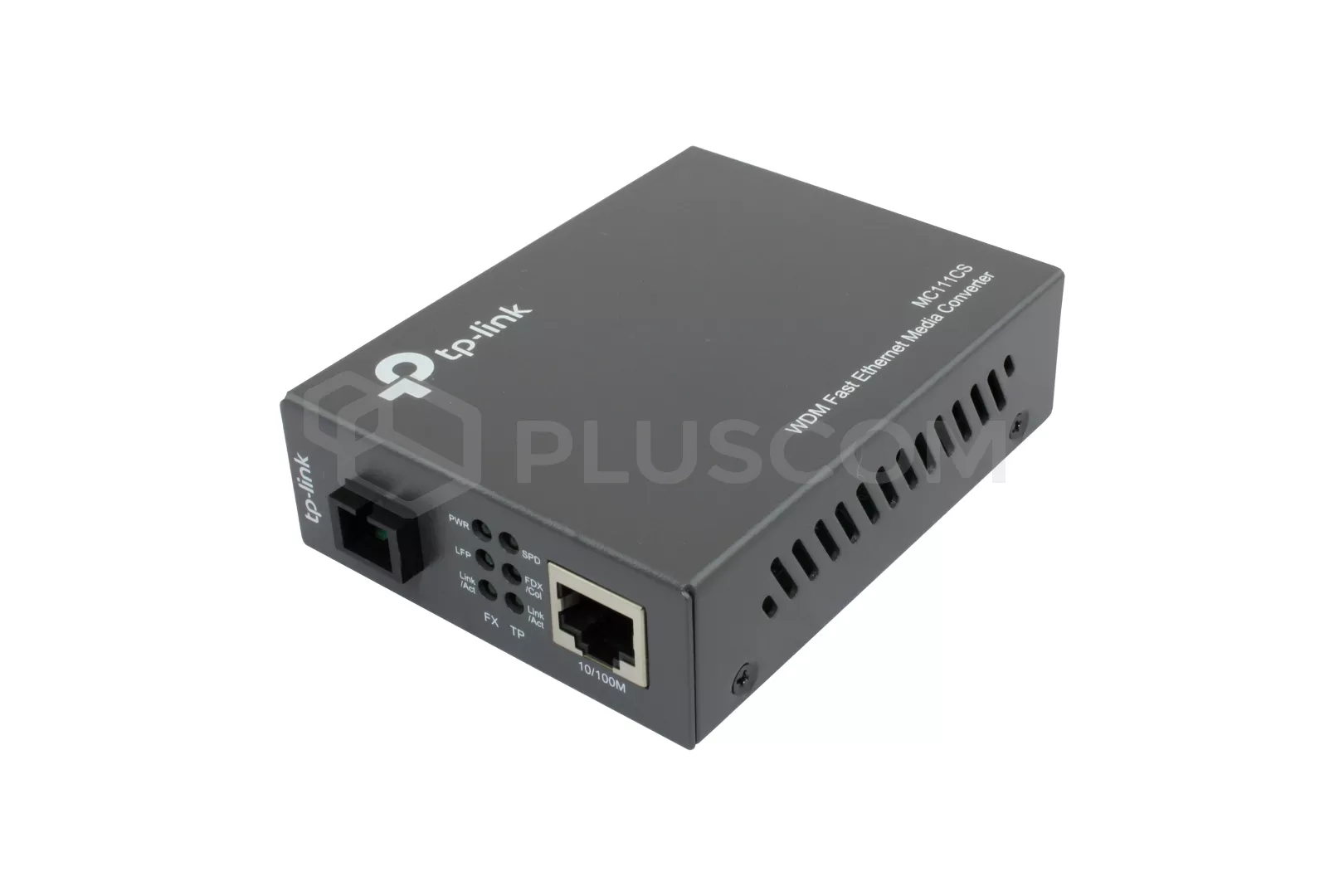

TP-Link TL-MC111CS WDM Media converter

Media converter TP-Link TL-MC111CS

TP-Link TL-MC111CS WDM Media converter

• Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
• Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extend fiber distance up to 20km(12.4 miles)
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply


• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Basic Function:
• • Adopts WDM technology
  • Half/Full-Duplex transfer mode for FX port
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extends fiber distance up to 20km
• Ports
• • 1x 100M SC/UPC port
  • 1x 100M RJ45 port (Auto MDI/MDIX)
• Wave Length     1550nm Tx/1310nm Rx
• • WDM TX     1550nm
  • WDM RX     1310nm
• Network Media 100BASE-T

• • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Network Media 100BASE-FX: Single-mode Fiber

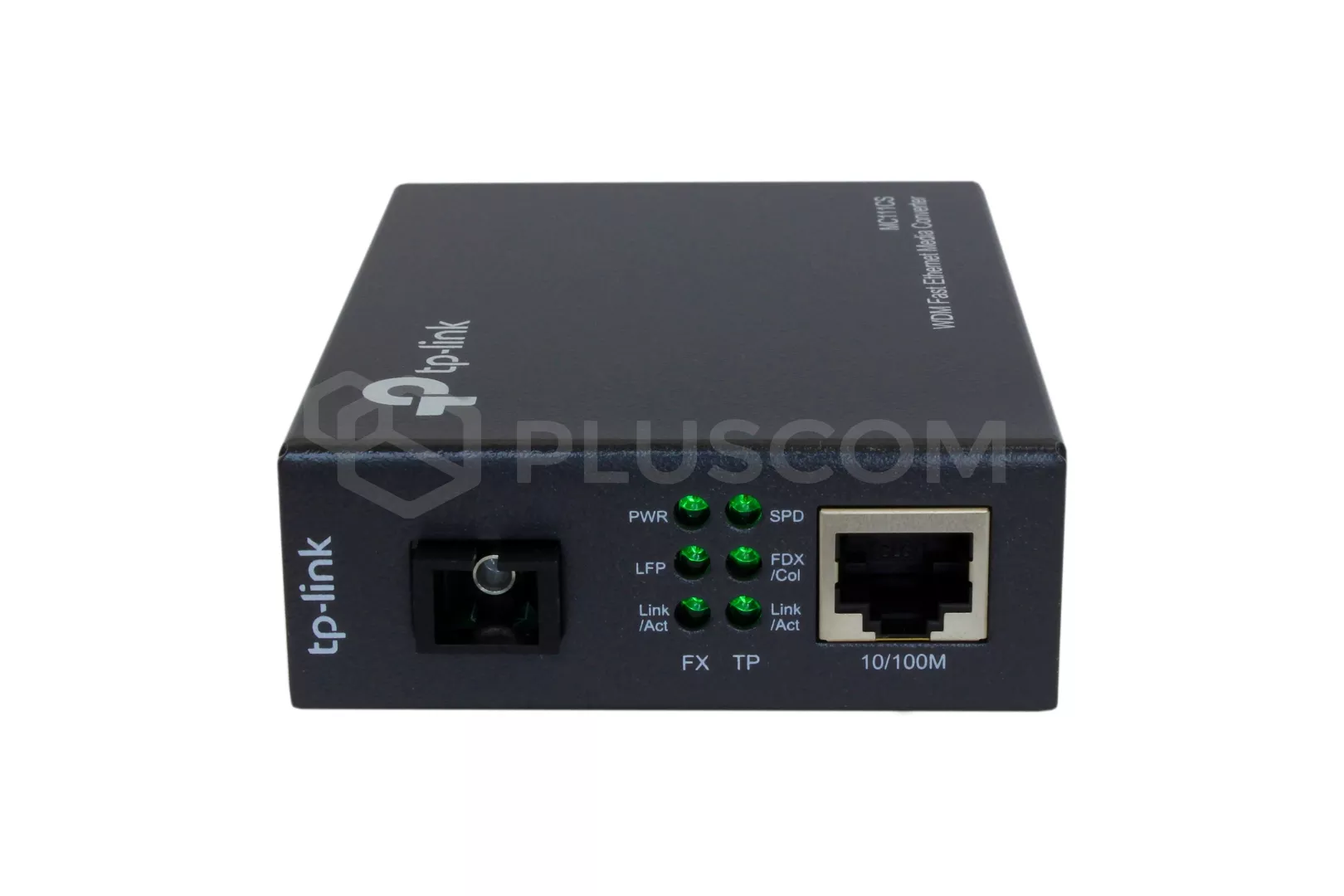

• LED Indicators     PWR, FDX/Col, Link/Act, SPD
• Dimensions (WxDxH)     3.7x2.9x1.1 in. (94.5x73.0x27.0mm)

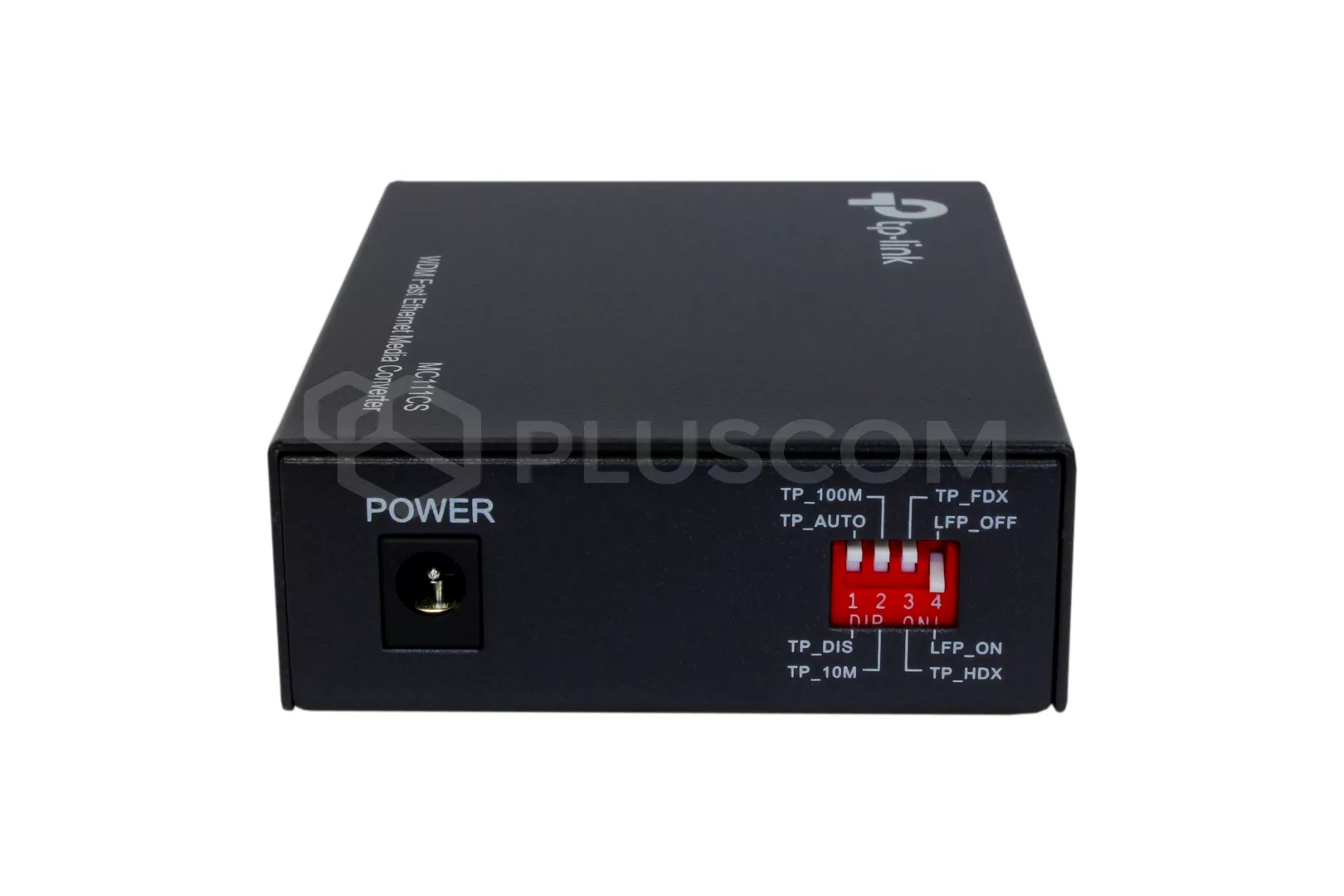

• Power Supply     External Power Adapter
• Max Power Consumption     2.49W
• Safety & Emission     FCC, CE, RoHS
• Environment
• • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
