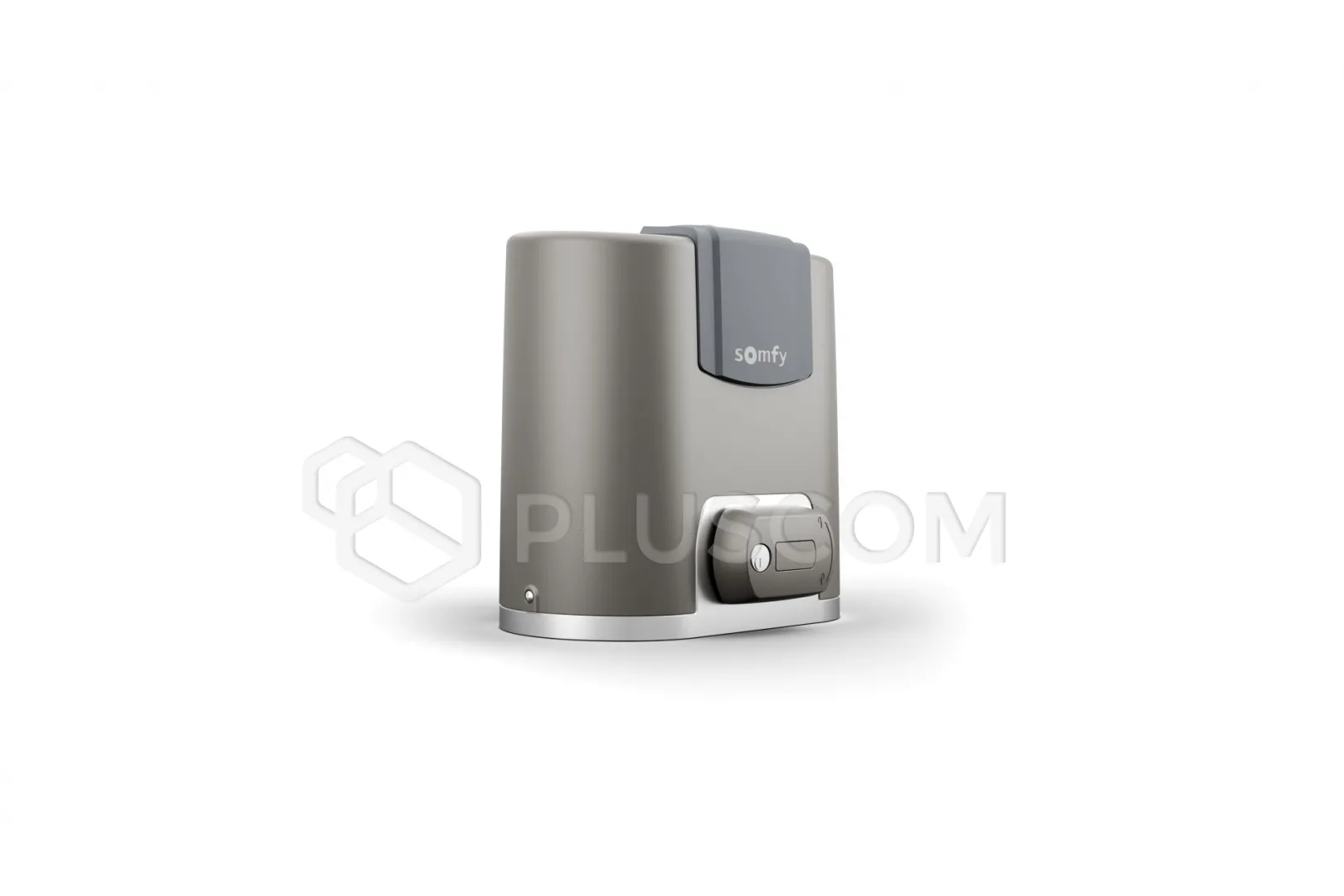

Somfy ELIXO 3S+ IO STANDARD PACK Gate kit for gates up to 600 kg

Somfy ELIXO 3S+ IO Standard Pack – Gate automation kit for gates up to 600 kg

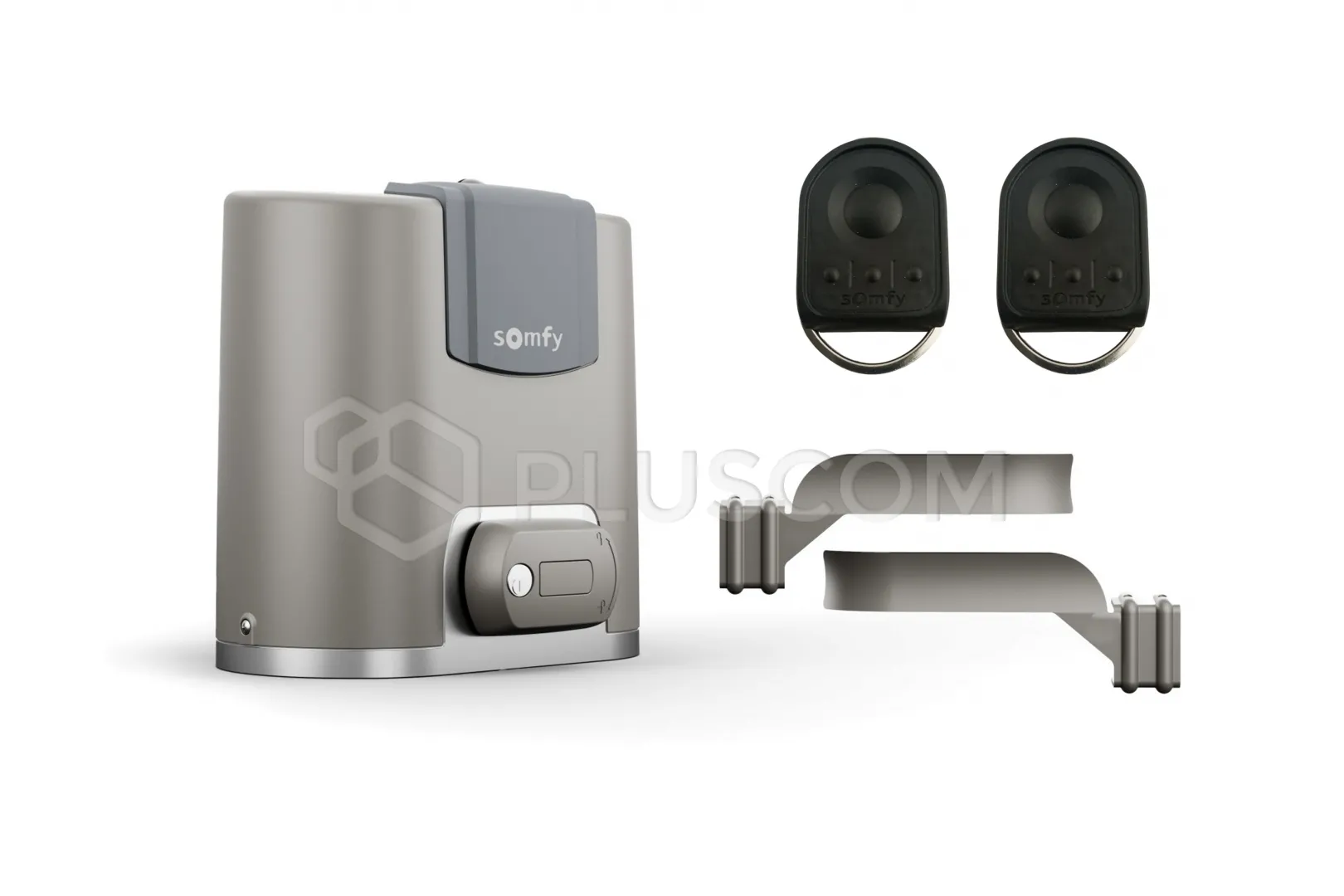

ZESTAW ZAWIERA: Drive unit with integrated 3S+ io control unit Keygo io remote controls (2 pcs) Mechanical limit switch kit Mounting accessory kit

Somfy ELIXO 3S IO STANDARD PACK Gate kit for gates up to 600 kg

The Somfy Elixo 3S+ IO Standard Pack is a professional, reliable, and highly durable automation kit designed for residential sliding gates weighing up to 600 kg with a leaf length of up to 8 meters. It combines a proven, robust mechanical design with advanced io-homecontrol® radio technology, enabling full integration with smart home systems and remote control of the gate's position.

FEATURES:

• Speed ​​and smooth operation: Opens a 3-meter-wide gate in just 15 seconds. The 24V DC motor ensures quiet, smooth operation and features soft-start and soft-stop functions, protecting the gate structure from wear
• io-homecontrol technology: Two-way radio communication allows you to check via a mobile app (e.g., TaHoma®) whether the gate is fully closed
• Rapid setup: The advanced Control Box 3S+ io control unit enables instant system startup and parameter auto-calibration in under 2 minutes
• High level of security: Features a built-in obstacle detection mechanism and an effective lock against forced manual opening by unauthorized persons
• Energy efficiency: Exceptionally low standby power consumption of just 0.42 W
• Reliability in all conditions: An IP44-rated housing ensures stable operation in temperatures ranging from -20°C to +60°C. The system has been factory-tested for 55,000 cycles

Elixo 3S+ is compatible with all Somfy digital tools (TaHoma® pro, Help Me, and Serv-e-go), enabling fast and reliable installation, commissioning, and remote diagnostics. Connecting to the TaHoma® switch system enables remote control and monitoring of the gate's current position.
Designed with the environment in mind, it is an eco-friendly solution with a reduced environmental impact, thanks to low standby power consumption (0.42 W).

TECHNICAL DATA:

• Power supply: 230V (-15% / +10%) - 50 Hz
• Motor power supply: 24V DC
• Power consumption (max.): 130W
• Lighting output: 500W max.
• Standby power consumption: 0.42W
• Accessory power supply voltage: 24V DC / 1200mA
• Drive force: 500N
• Max. gate weight: 600kg
• Opening time (up to 3 meters): 15 seconds
• Max. cycles per day: 30
• Radio frequency: IO 868-870 MHz
• Max. number of remote controls: 30 (open/close), 4 (lighting), 4 (external output)
• Protection rating: IP44
• Operating temperature: -20°C to +60°C
• Weight: 10.3kg
