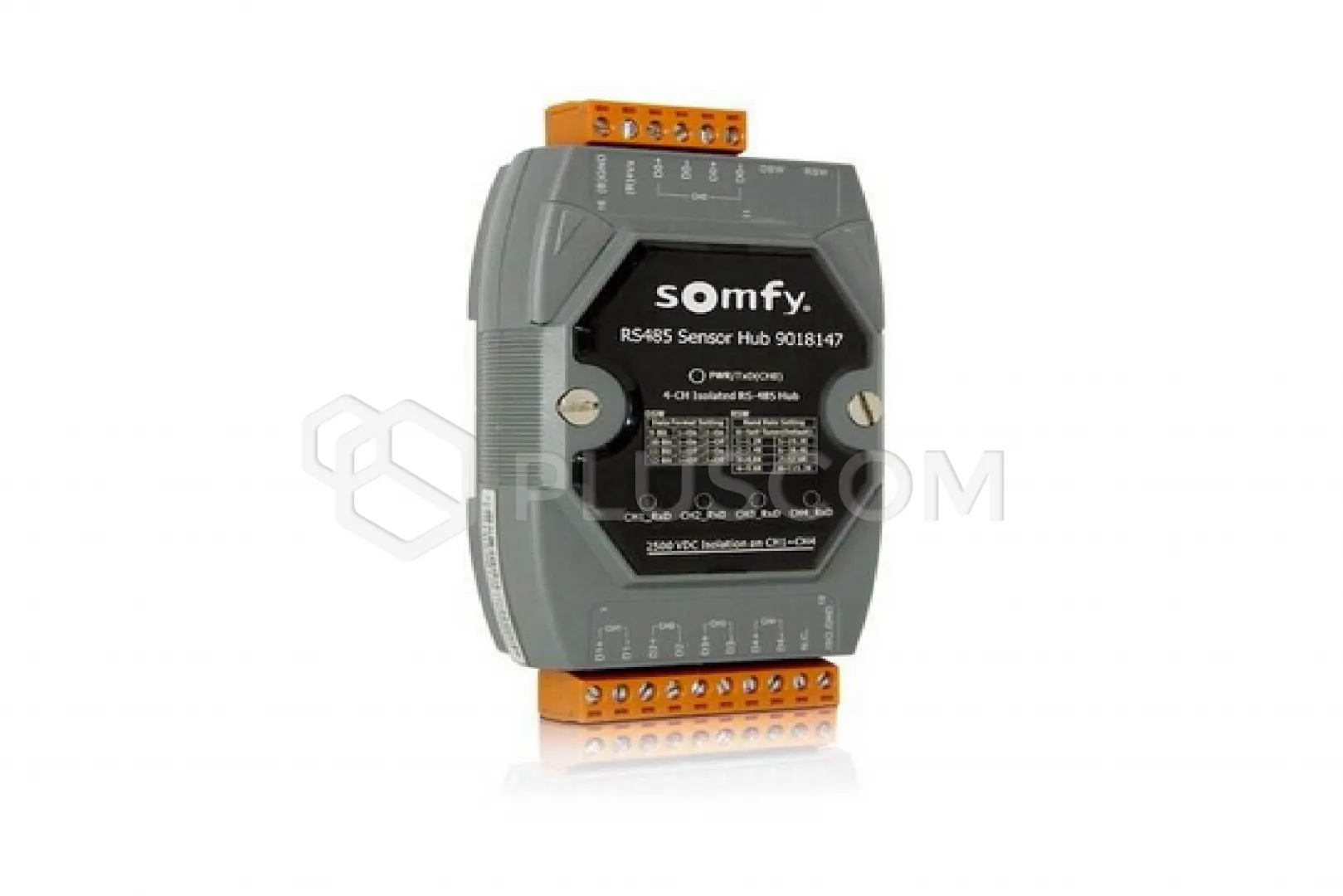

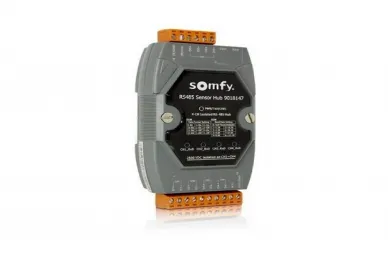

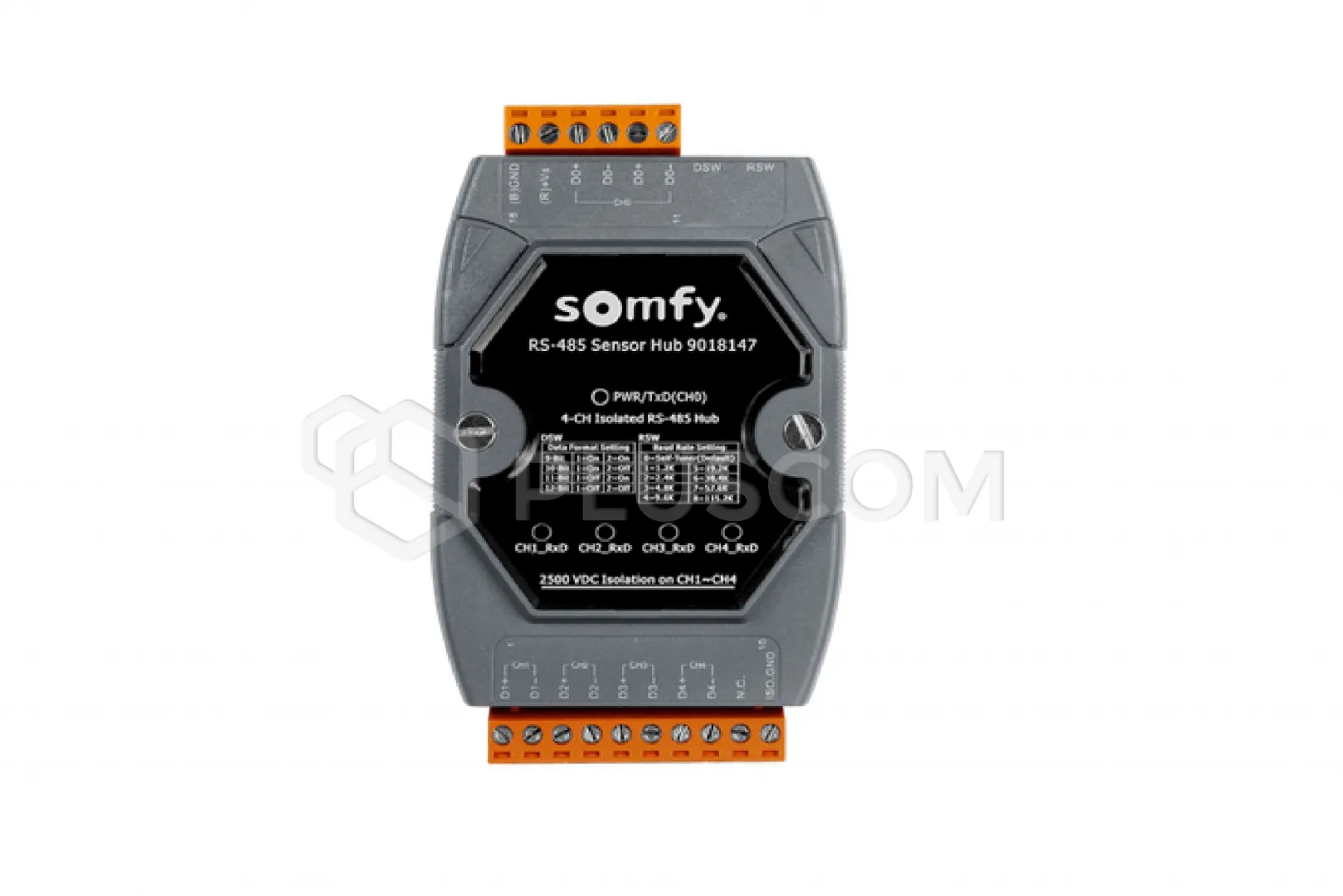

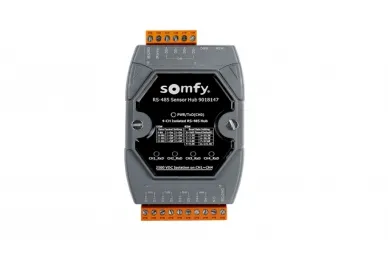

Somfy 9018147 Animeo ID+ Sensor hub

SOMFY 9018147 Animeo ID+ Sensor hub

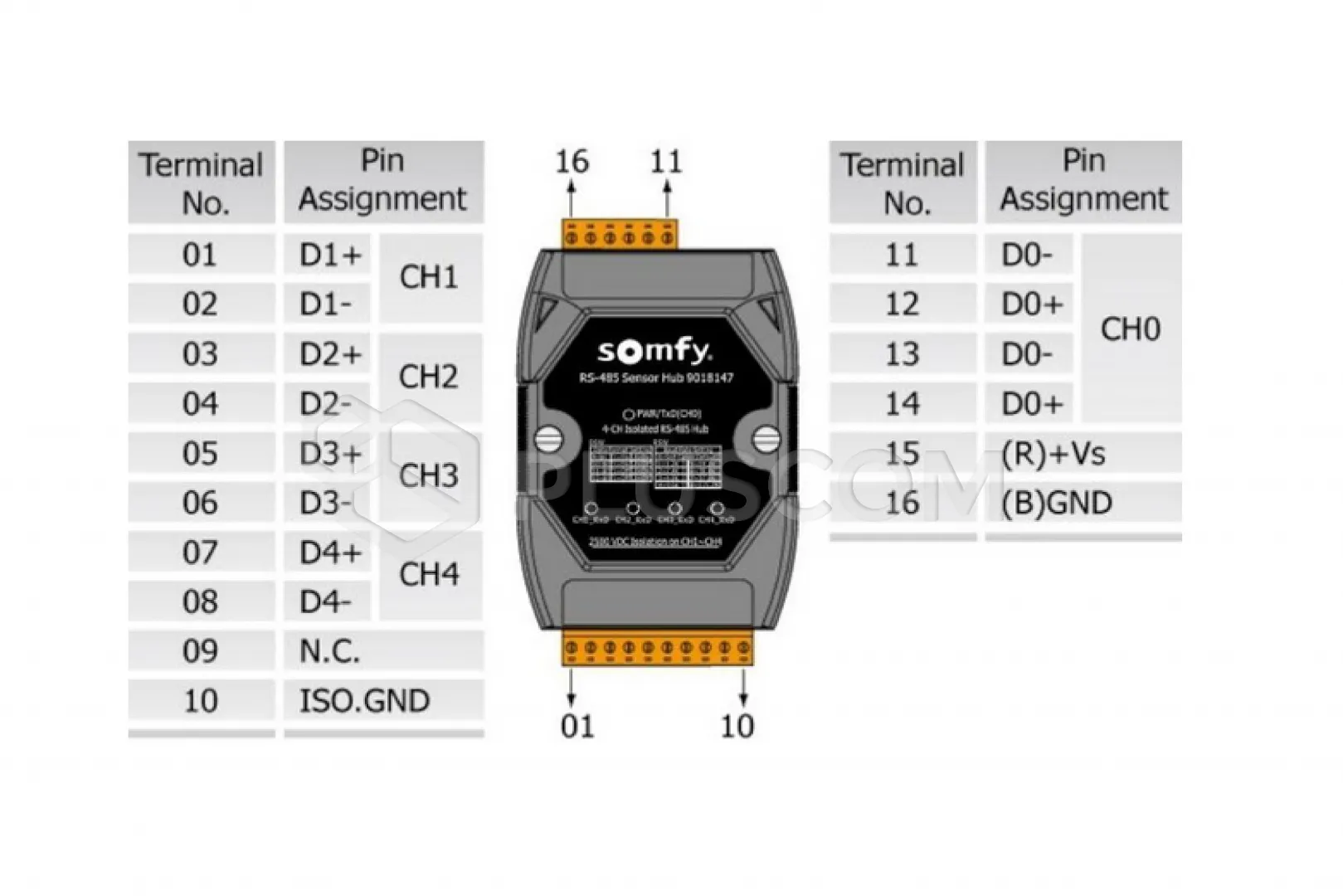

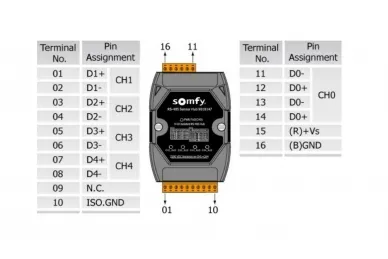

Somfy 9018147 Animeo ID+ Sensor hub is an advanced device used to manage the RS485 network in home and building automation systems. It is a central node that allows you to connect many different sensors and devices into one coherent network 4-channel RS485 hub: The device has 4 independent RS485 output channels, each equipped with a dedicated controller. Thanks to this, you can connect various devices to it, such as temperature, humidity, motion sensors, or gate and roller shutter actuators.

Channel isolation

Each channel is isolated, which ensures high operational stability and minimizes the risk of interference

One RS485 input channel

Additionally, the hub has one RS485 input channel, which allows connection to other devices in the network

Application

Designed primarily for cooperation with the Somfy Touchbuco system, but can also be used in other automation systems that use the RS485 protocol

Easy configuration

Thanks to the intuitive interface, configuration and management of the device is simple and does not require advanced technical knowledge

FEATURES:

• Short circuit protection automatically turns off the inactive channel to protect communication
• Data distribution includes a 120 Ω terminating resistor for each channel
• Possibility to select a jumper to prevent reflection of serial signals (by default, the jumper is off)
• Power and data flow indicator for troubleshooting
• Easy-to-use rotary switch for setting a fixed baud rate
• Six LEDs for power status and network traffic
