Somfy V500 video intercom kit with power supply (2401446)
The V500 set is an intuitive and modern intercom set. Makes it easy electric
lock control of the wicket and has a built-in 5-channel transmitter for control
of up to five devices or groups of devices, e.g. lighting, garage door or
shutters.

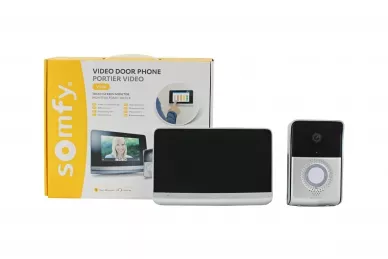

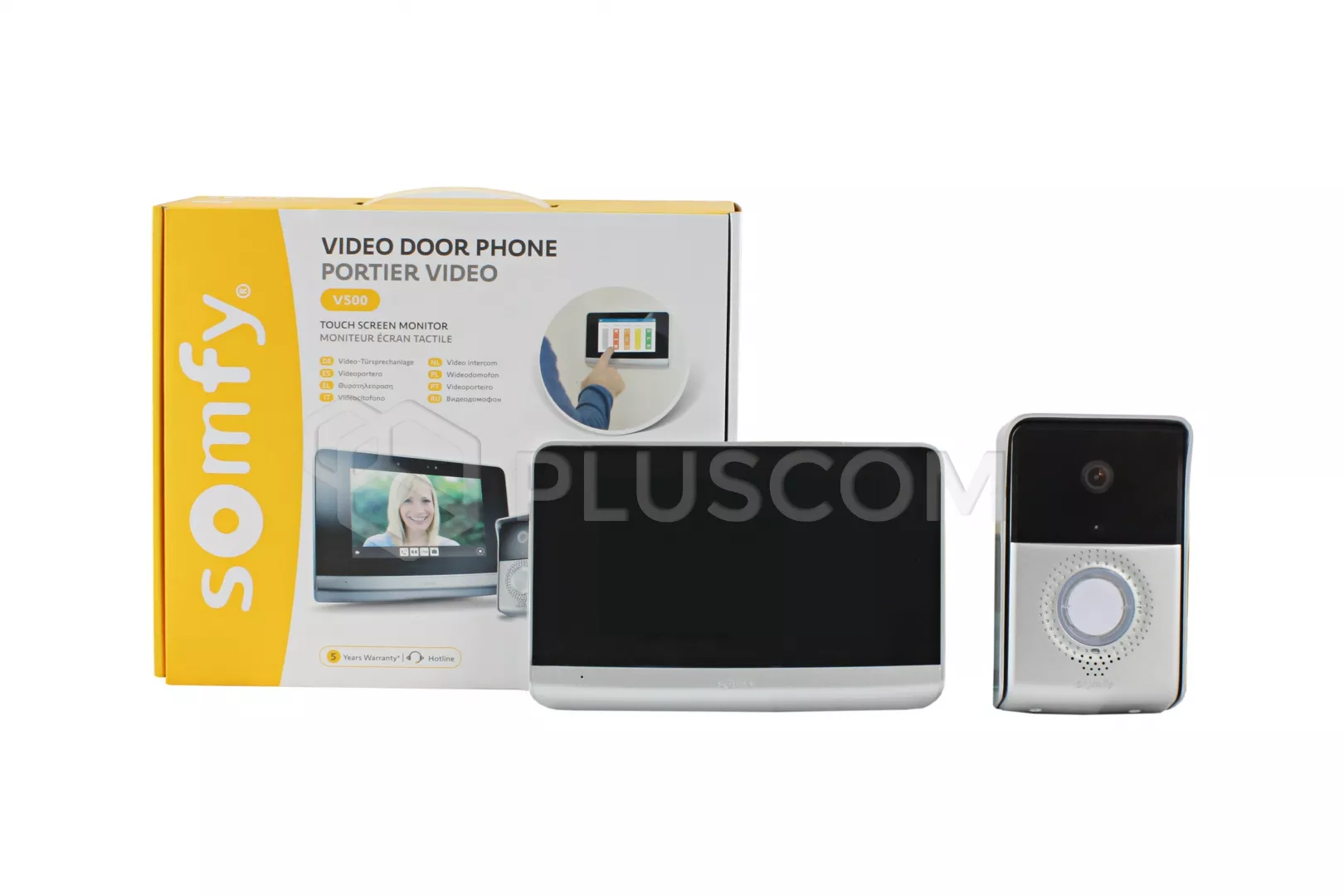

The team consists of:
- 7'' indoor monitor with built-in SD card
- outer panel with rain cover
- AC adapter
- microSD card adapter for PC / Mac
- mounting kit
- 2x Extra name tag
|
Somfy V500 Video intercom (2401446)
|
The monitor comes with 7 '' personalized screen tactile
. It has many interesting functions, such as allowing you to see a person
caller, control wired and wireless elements, see people who called while you
were away, make settings, etc. With with one click on the screen, we can
control multiple Somfy devices, if only use RTS technology.
The monitor interface can be adapted to each other - choose your favorite
background or sound ringing.

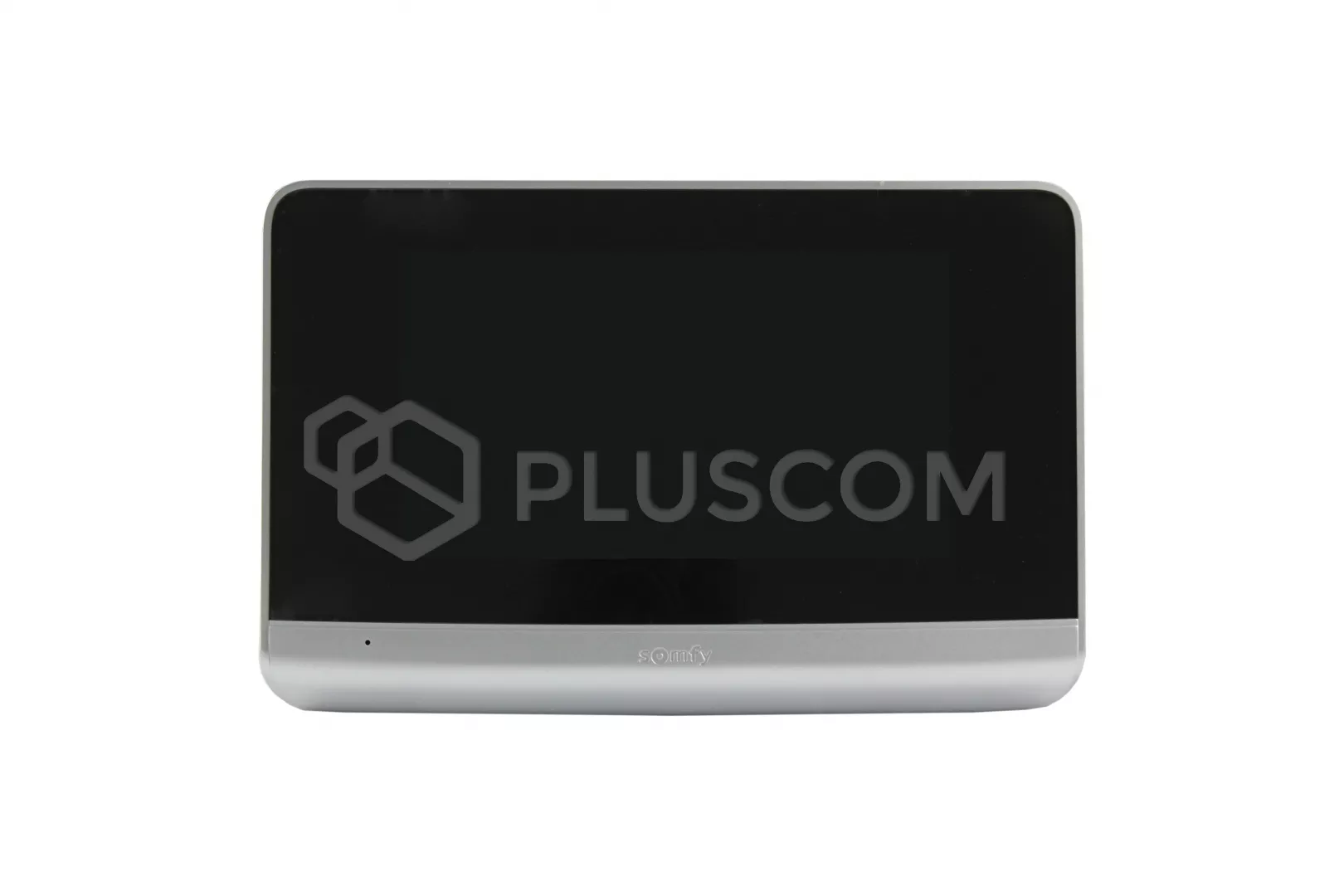

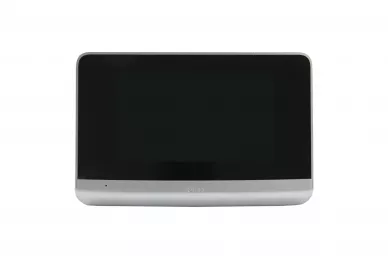

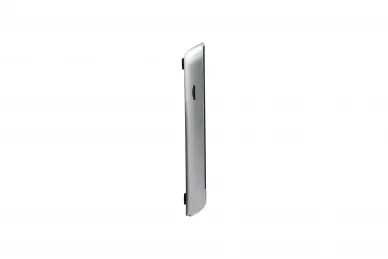

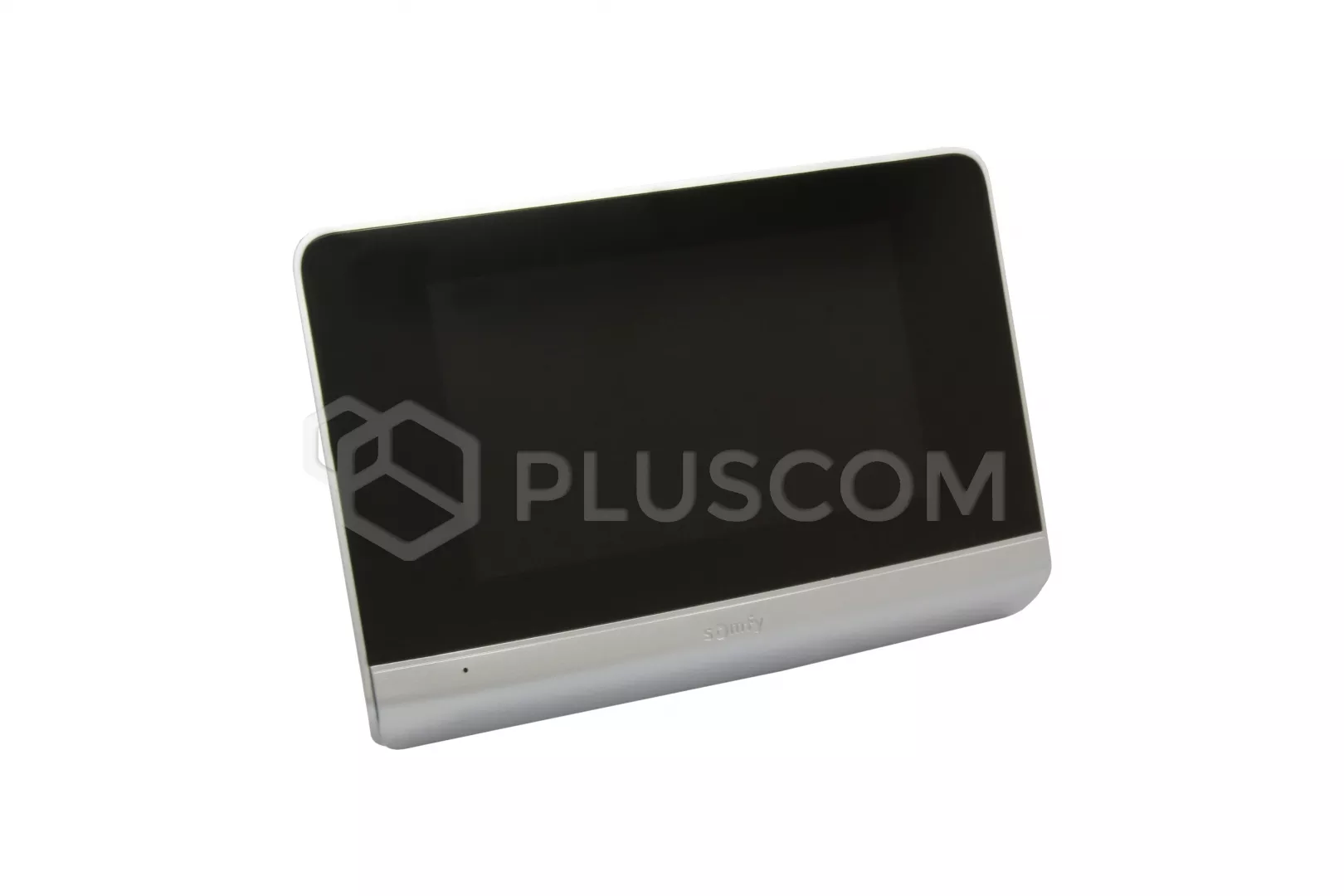

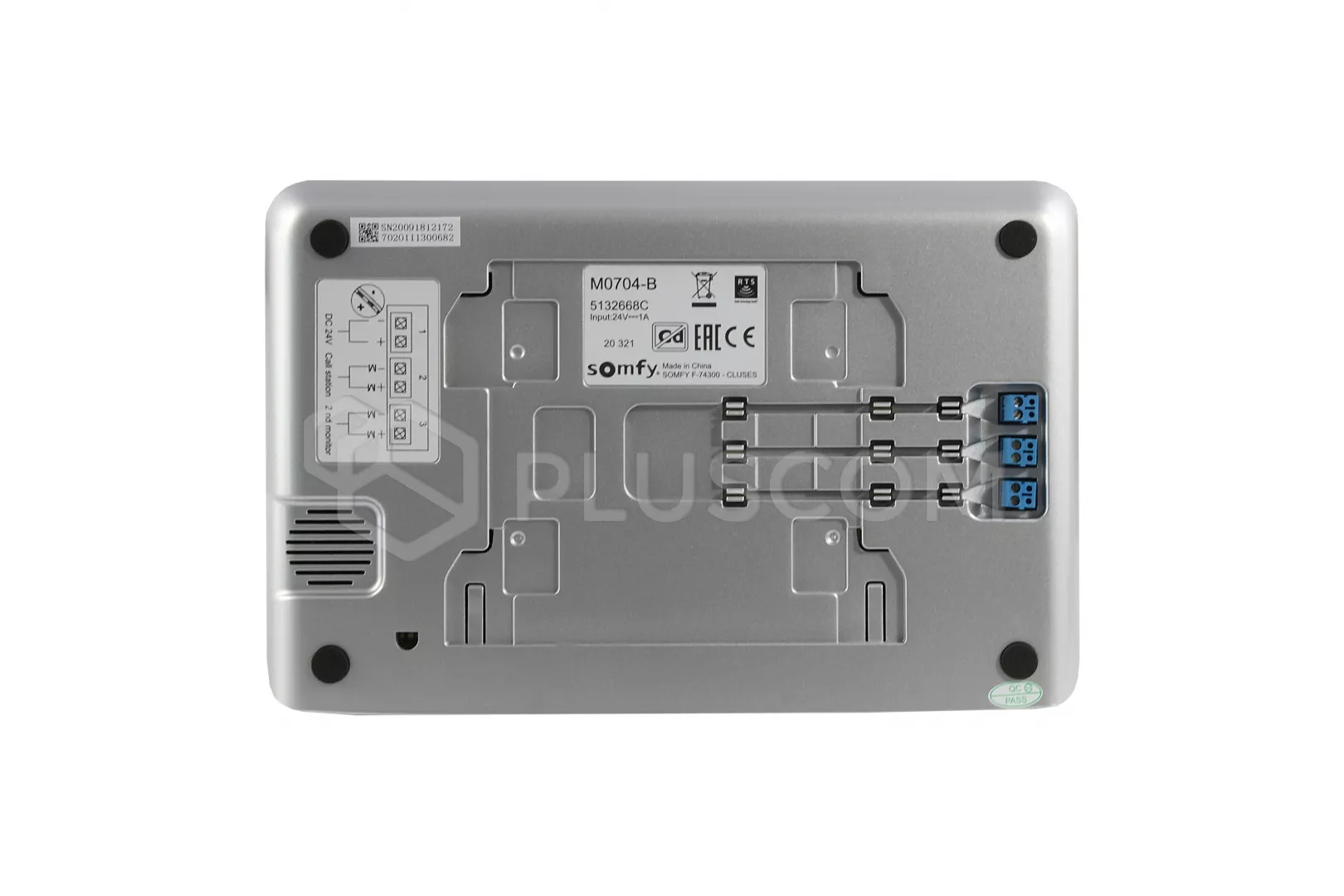

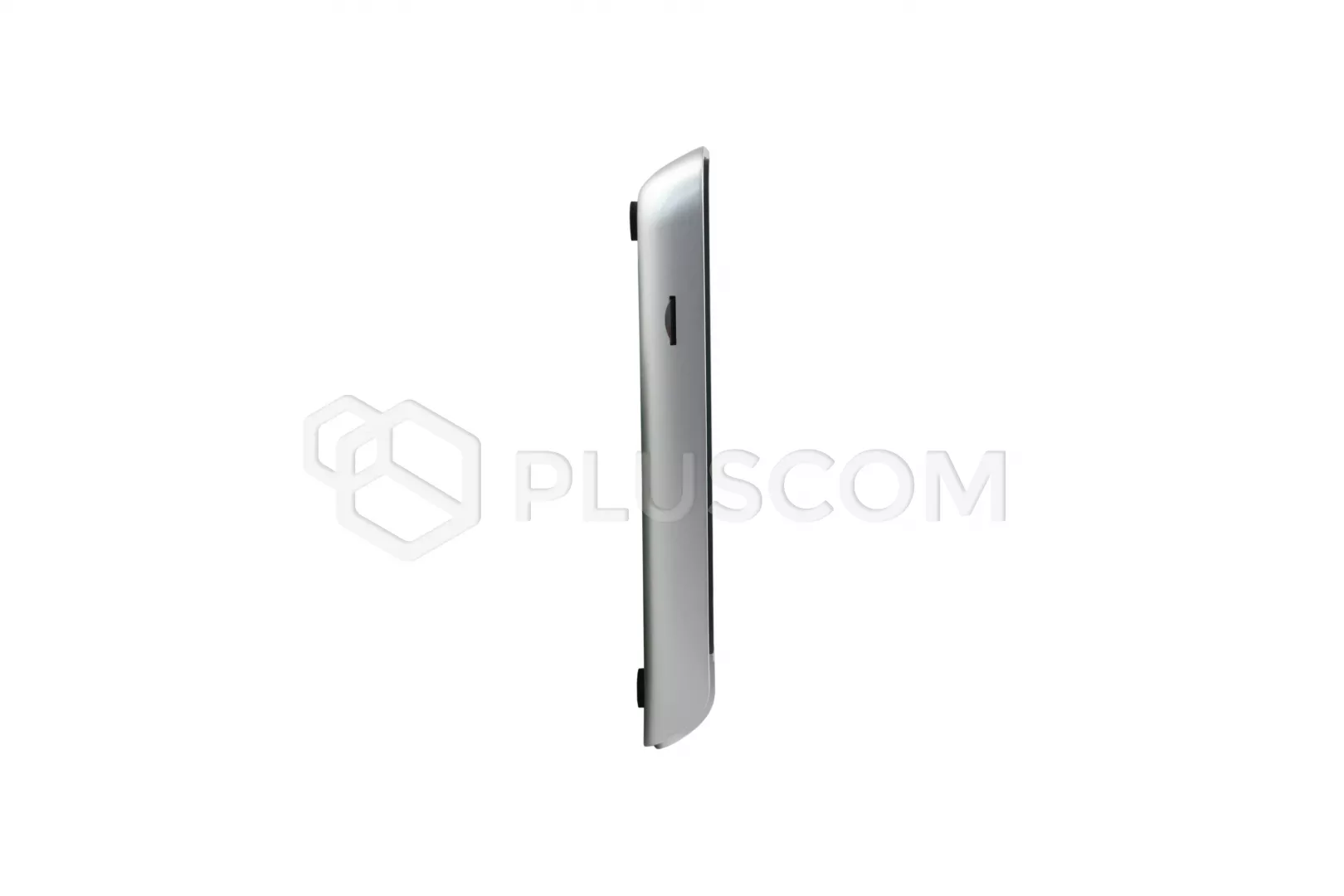

Indoor monitor
Features and Functions:
- saving photos on a micro SD card enabling the identification of persons
incoming while residents are away
- intuitive and clean interface
- built-in speaker and microphone
- indoor and outdoor temperature sensors
- built-in 5-channel transmitter to control devices in technology RTS
- intercom function between 2 indoor monitors
- personalization of the ringer melody with a micro SD card
- possibility of connecting an additional internal monitor in another
indoors
- remote opening of the gate and wicket
TECHNICAL DATA:
- Screen:
-
- touch
- dimensions: 7 ''
- resolution: 800x480 pixels
- maximum connection time 2 minutes
- power supply: 100-240 Vac, 50/60 Hz
- reverse polarity protection
- radio frequency: 433.42MHz
- radio wave reception range: 200 m in open area
- working temperature: -10 ° C to +55 ° C
- dimensions: 129.5 x 149.6 x 18.8mm

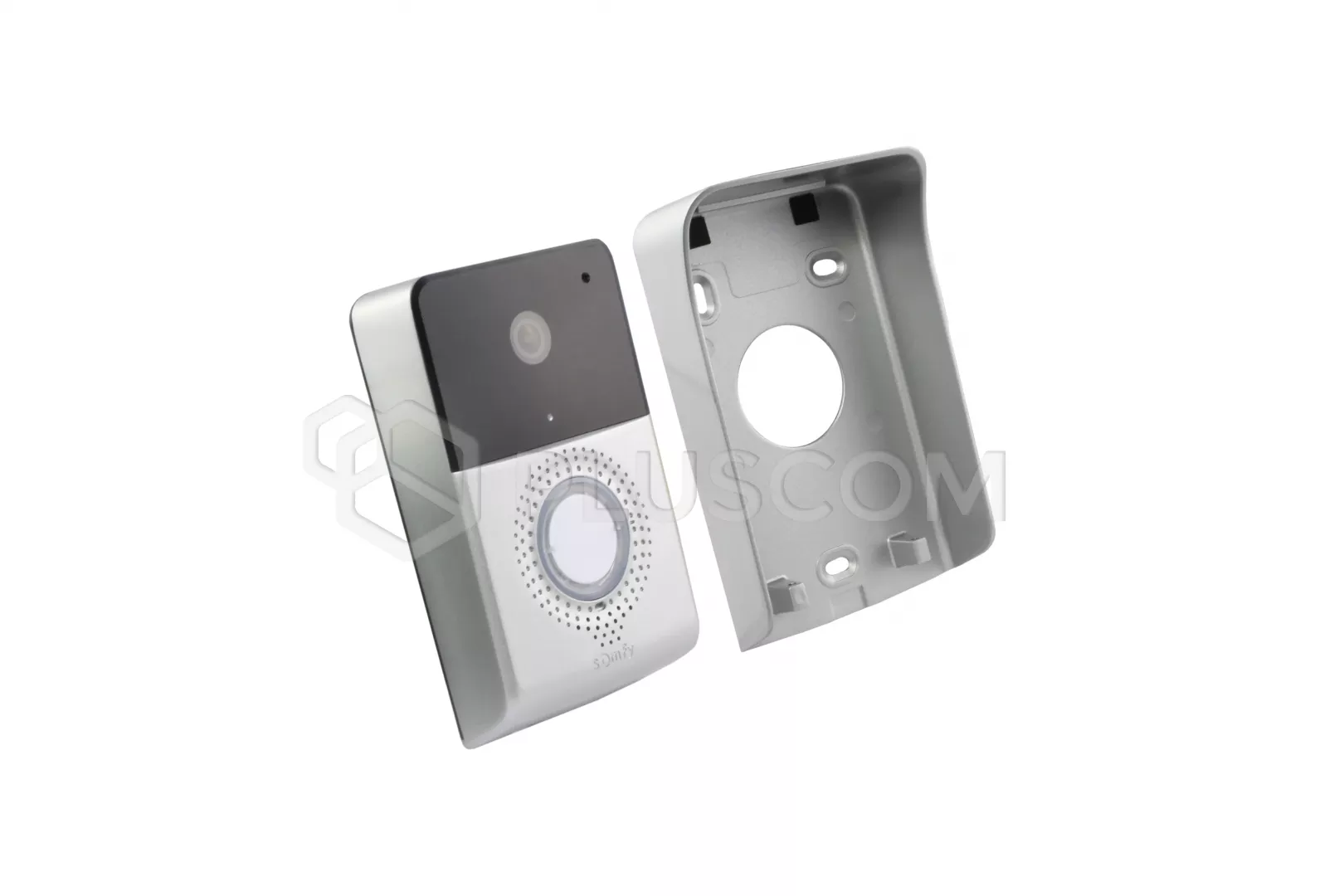

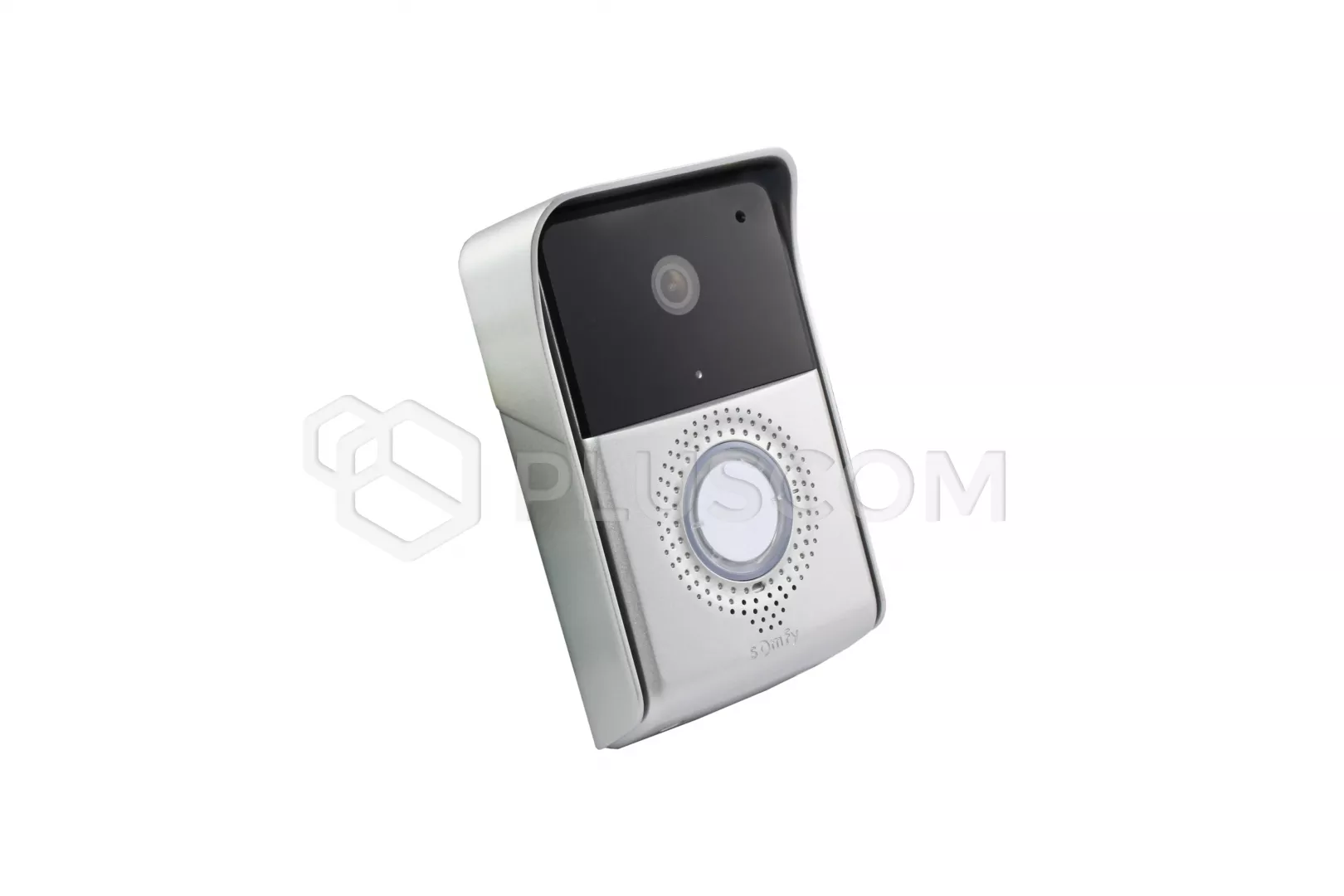

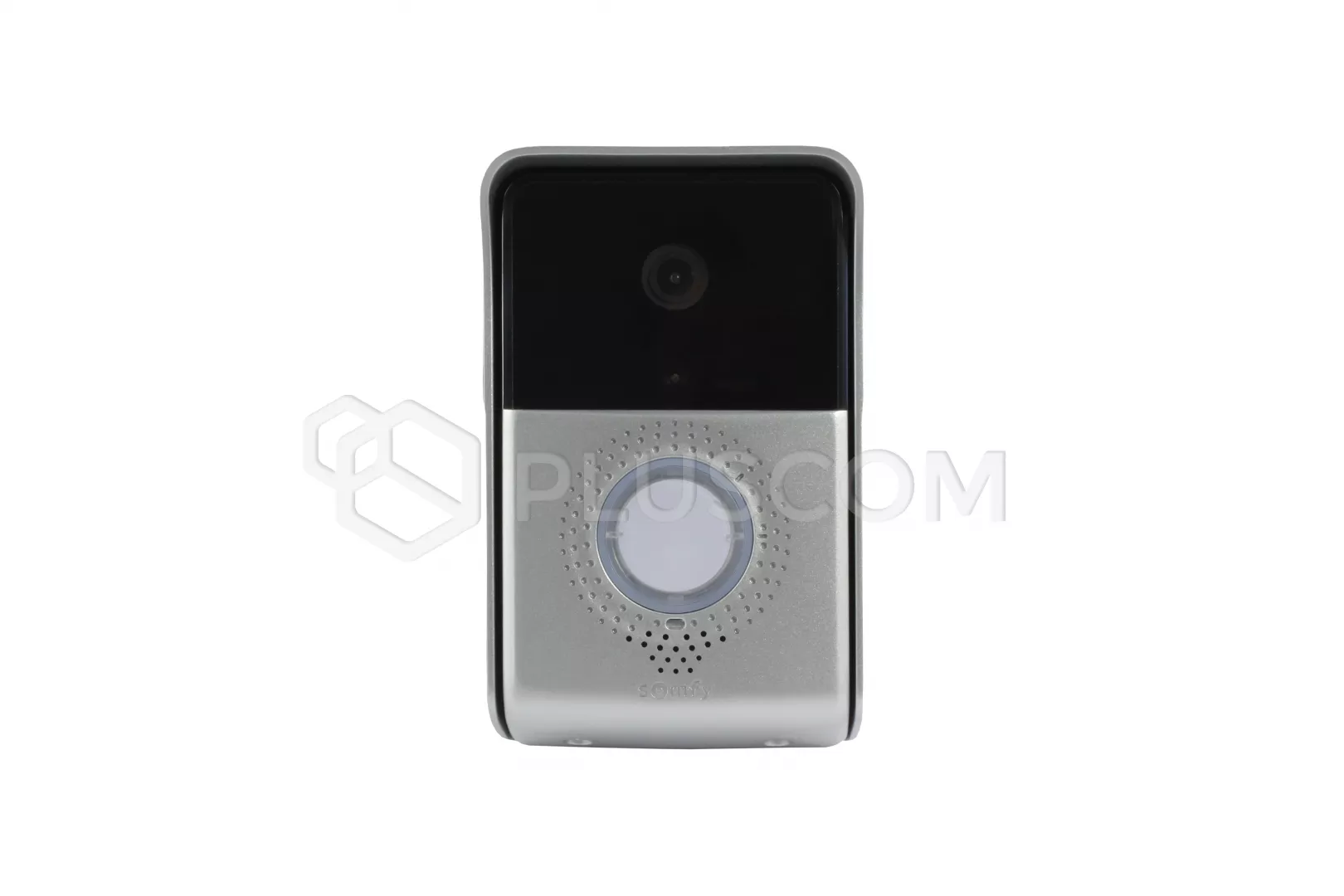

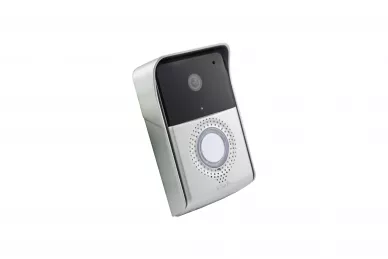

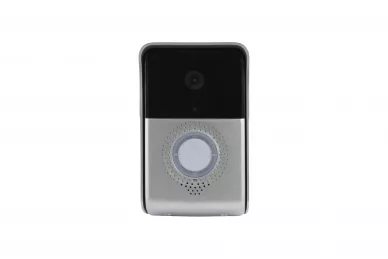

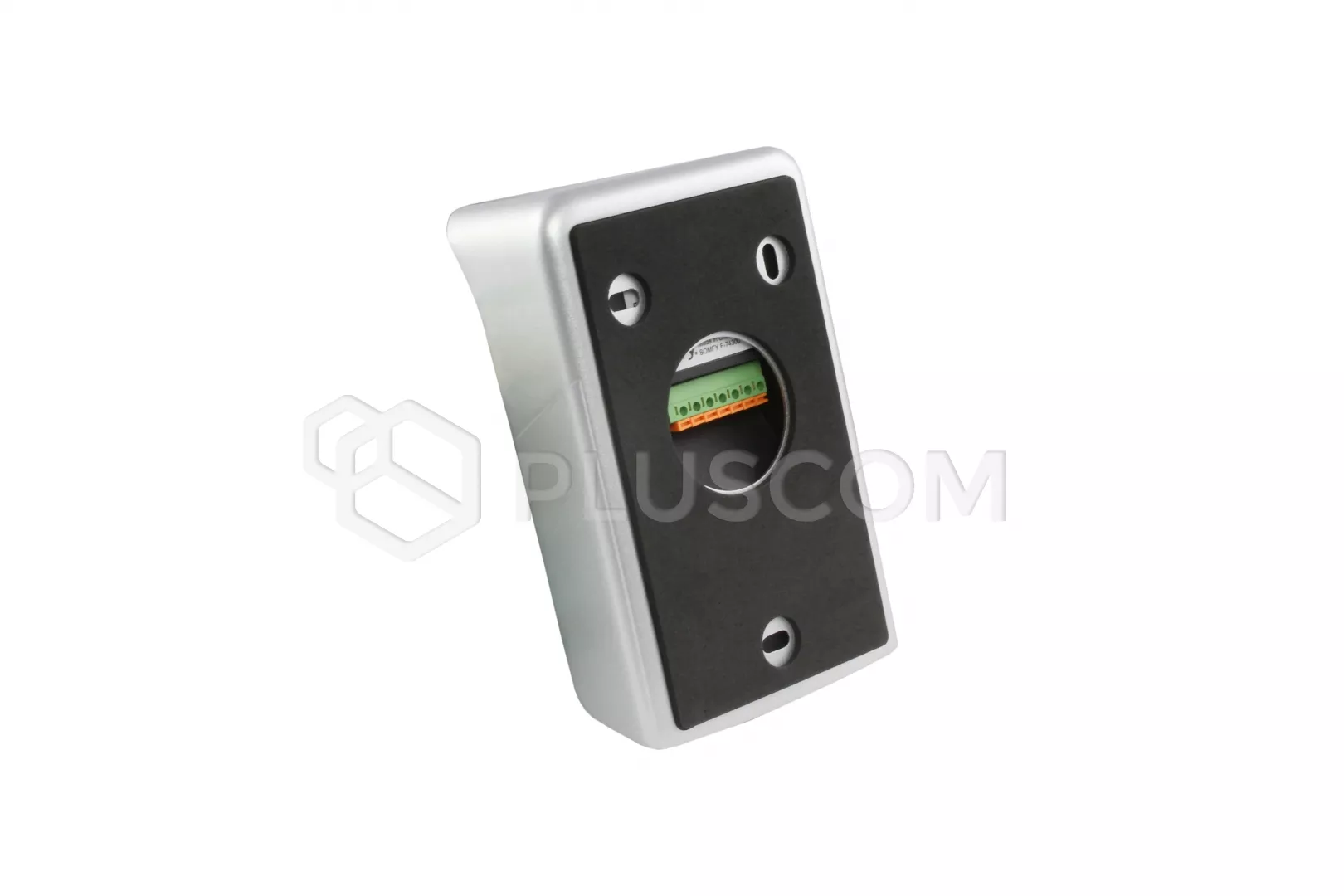

External panel
The outdoor panel is equipped with a wide-angle camera (H: 102 ° / V: 68
°), thanks to which we will make easy identification of callers.
The camera films the caller and sends the image to the monitor.
The rain cover protects the camera from rain. The doorphone has illuminated
doorbell button and illuminated name tag.
The light sensor under the camera turns the LEDs on automatically infrared when
it gets dark.
Doorphone with monitor can be distant up to 150m from yourself.
TECHNICAL DATA:
- viewing angle: H = 102 °, V = 68 °
- night visibility: Infrared LEDs
- exits:
-
- bolt: 12V, 800 mA
- dry contact
- electromagnetic lock output activation time: 2 seconds
- working temperature: -20 ° C to +55 ° C
- dimensions: 105 x 165 x 54 mm
