Somfy 1870996 Video intercom V350

SOMFY 1870996 Video intercom V350

The set includes: 7” Indoor monitor with wall mount Outdoor panel with rain cover Power supply Mounting kit Torx key

SOMFY 1870996 Video intercom V350

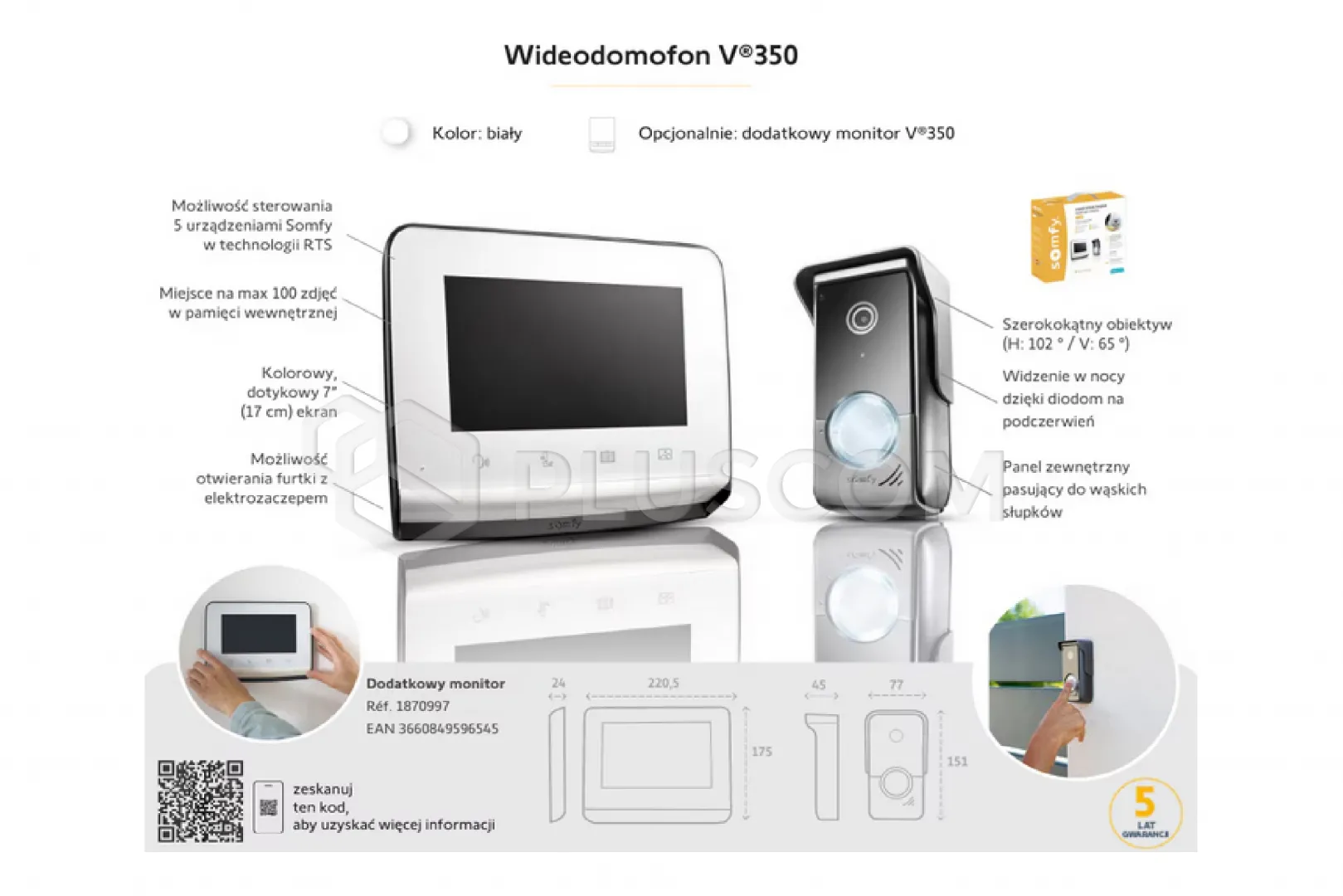

Video intercom V350 equipped with a color 7” indoor monitor, which enables easy management of the gate and electric wicket lock as well as Somfy devices in RTS technology without leaving home. You can mount the external panel on any post thanks to its narrow cassette and easily connect it to the internal monitor using a 2-wire cable. The device has many additional functionalities that guarantee complete control over access and comfort of using the system.

FEATURES:

• Open your gate and wicket without leaving your home
• The wide-angle camera guarantees reliable guest recognition, even at night, thanks to infrared LEDs
• The LED on the internal monitor informs you whether any people have appeared in your absence, and saving photos allows you to identify them (internal memory up to 100 photos)
• Use the built-in, 5-channel remote control to control up to 5 devices or a group of Somfy products in RTS technology from one place
• The large, 7-inch color monitor with touch buttons allows for trouble-free and intuitive access management
• Configure the display to your needs using many image settings parameters
• Choose your favorite doorbell from 7 available and adjust its volume
• You can connect a second internal monitor at any time for even greater convenience of use system

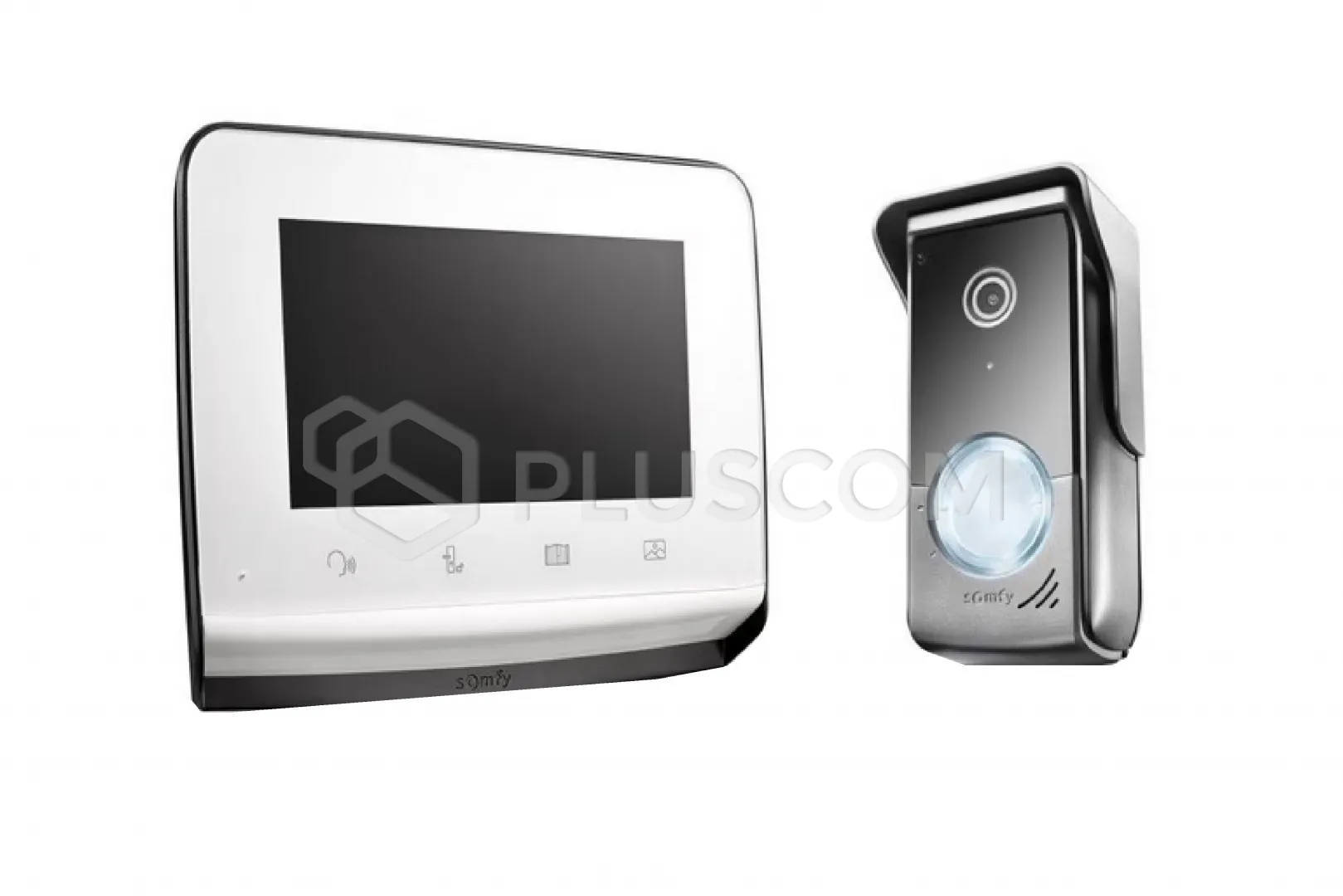

The video intercom consists of an internal monitor and an external panel. The internal monitor is connected to the external panel using 2 wires. The external panel can then be connected to the gate drive or a bolt / electromagnetic lock, 12 V AC or DC - max. 800 mA. The video intercom thus allows you to control the entrance gate or wicket.

The internal monitor is also equipped with an RTS radio transmitter (Somfy Radio Technology). This wireless control element allows you to control the garage door, lighting, roller shutters, as well as the entrance gate with a Somfy drive (if it is within range of the monitor).

The external panel can be connected to the drive of the entrance gate and to an electromagnetic bolt/lock (12 V AC/DC - maximum 800 mA).

Technical data:

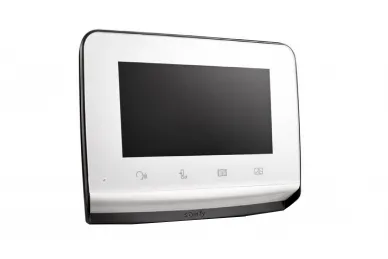

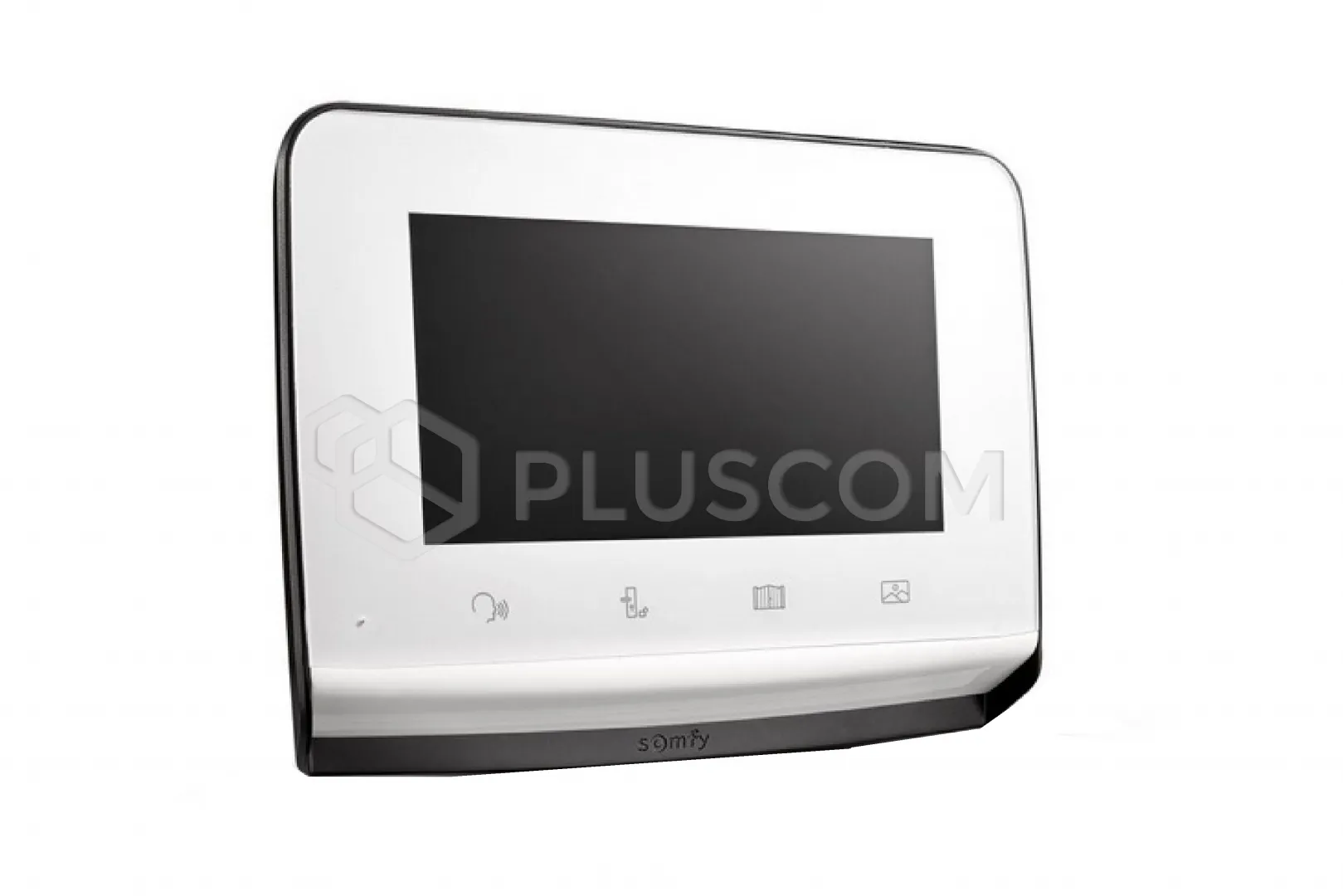

• Internal monitor
• Screen: 7" 17 cm color - resolution: 800 x 480
• Settings: ringer volume (7 saved melodies) and conversation, color setting, contrast, brightness
• Maximum communication time: 2 min
• Saving photos: up to 100 photos in internal memory
• Power supply: mains power supply: 100-240 V / 50-60 Hz 0.6 A - output: 24 V DC 1 A
• Mounting: wall bracket
• Dimensions: 225 x 155 x 22 mm
• Operating temperature: from -10 to 55°C
• 5-channel transmitter: radio range: up to 200 m - frequency: RTS - 433.42 MHz

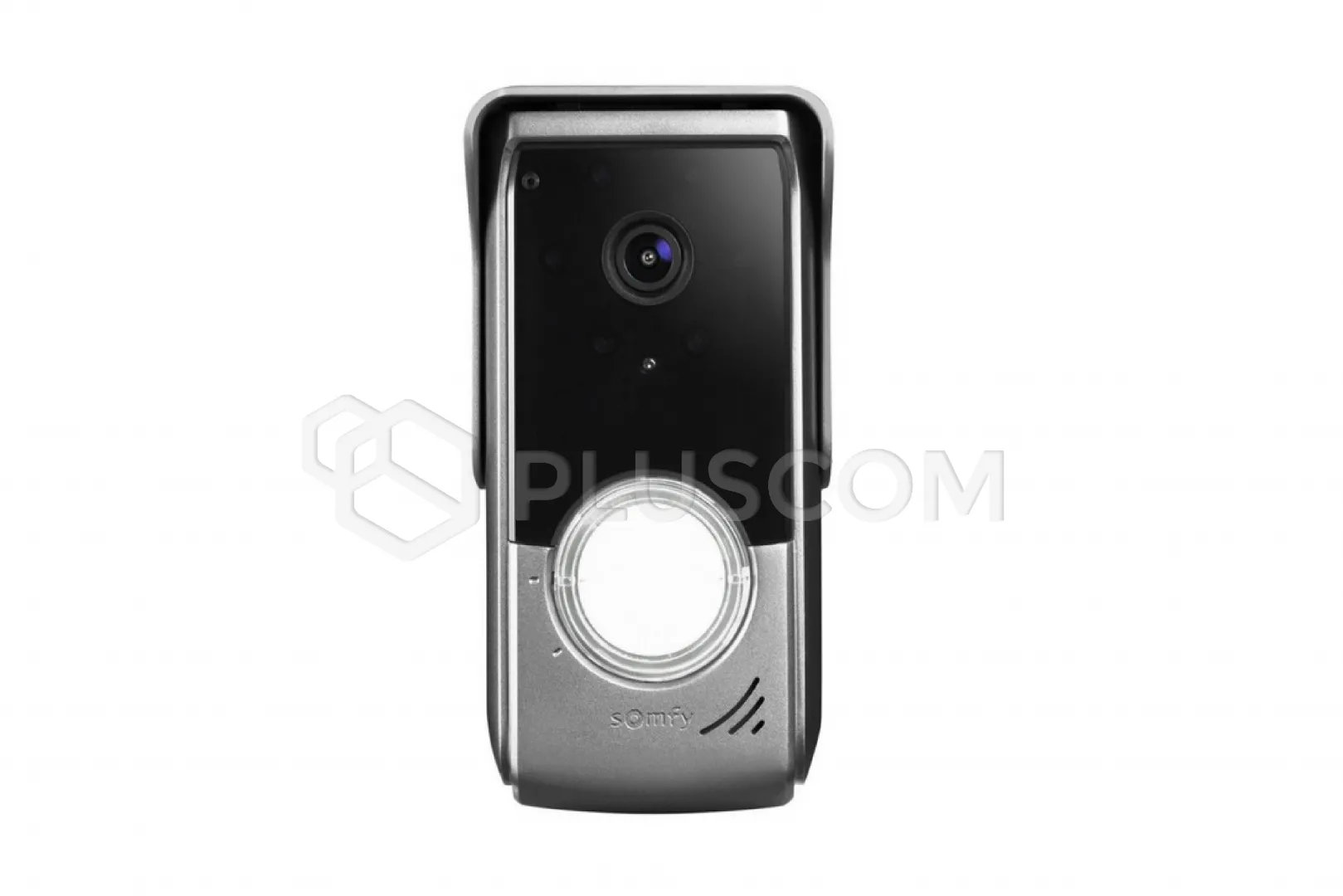

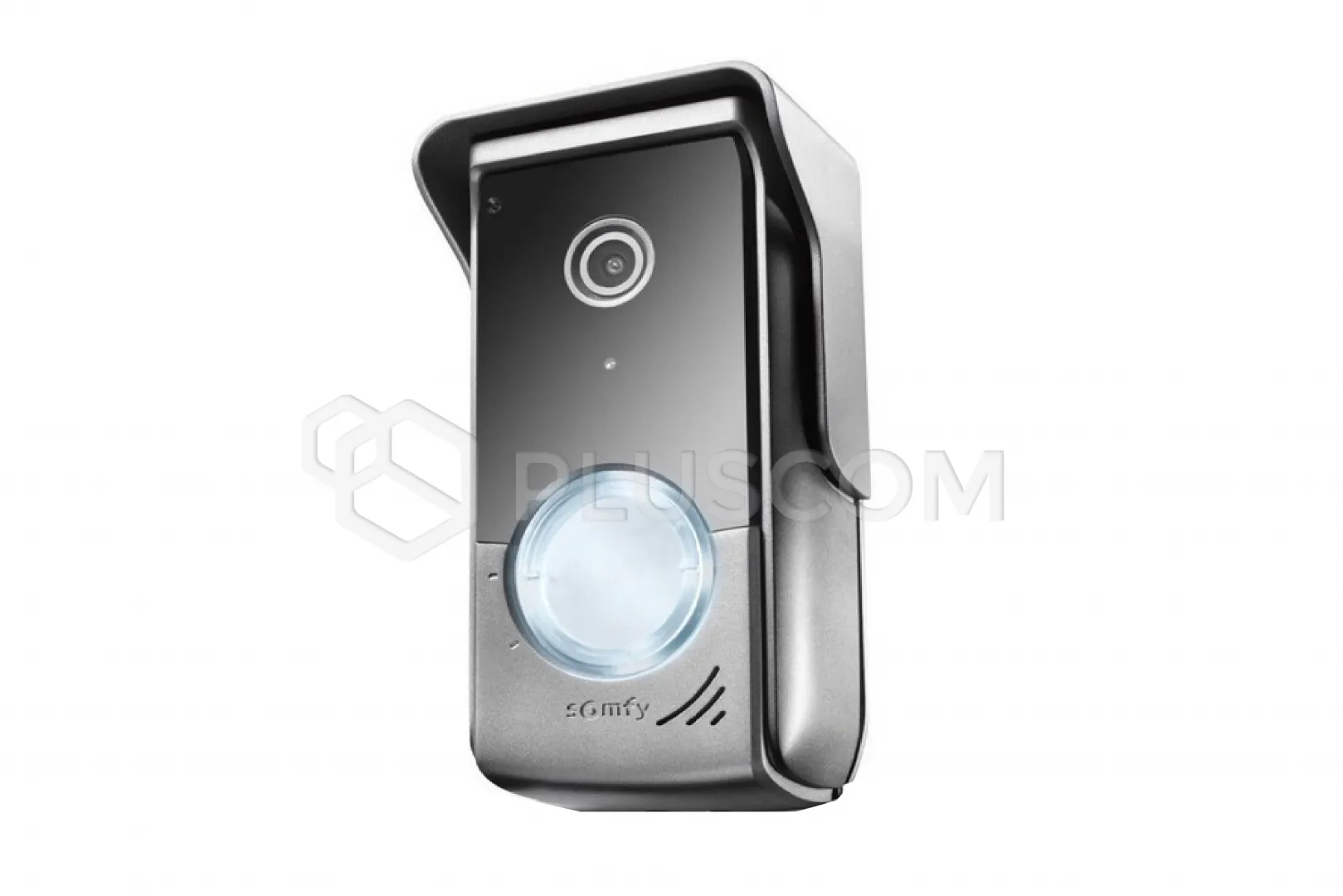

• External panel
• Camera: viewing angle: H 102° / V 65° - night vision: infrared LEDs
• Label and doorbell button: illuminated
• Material: aluminum and plastic
• Mounting: protruding surface mounting - has a rain cover
• Outputs / activation time: electric lock: 12 V, 800 mA / 2 seconds - dry contact / 1 second
• Dimensions: 77 x 151 x 45 mm
• Operating temperature: from -20 to 55°C
• Maximum number of monitors - 2
• Maximum distance between the farthest monitor and the camera panel - 150m
