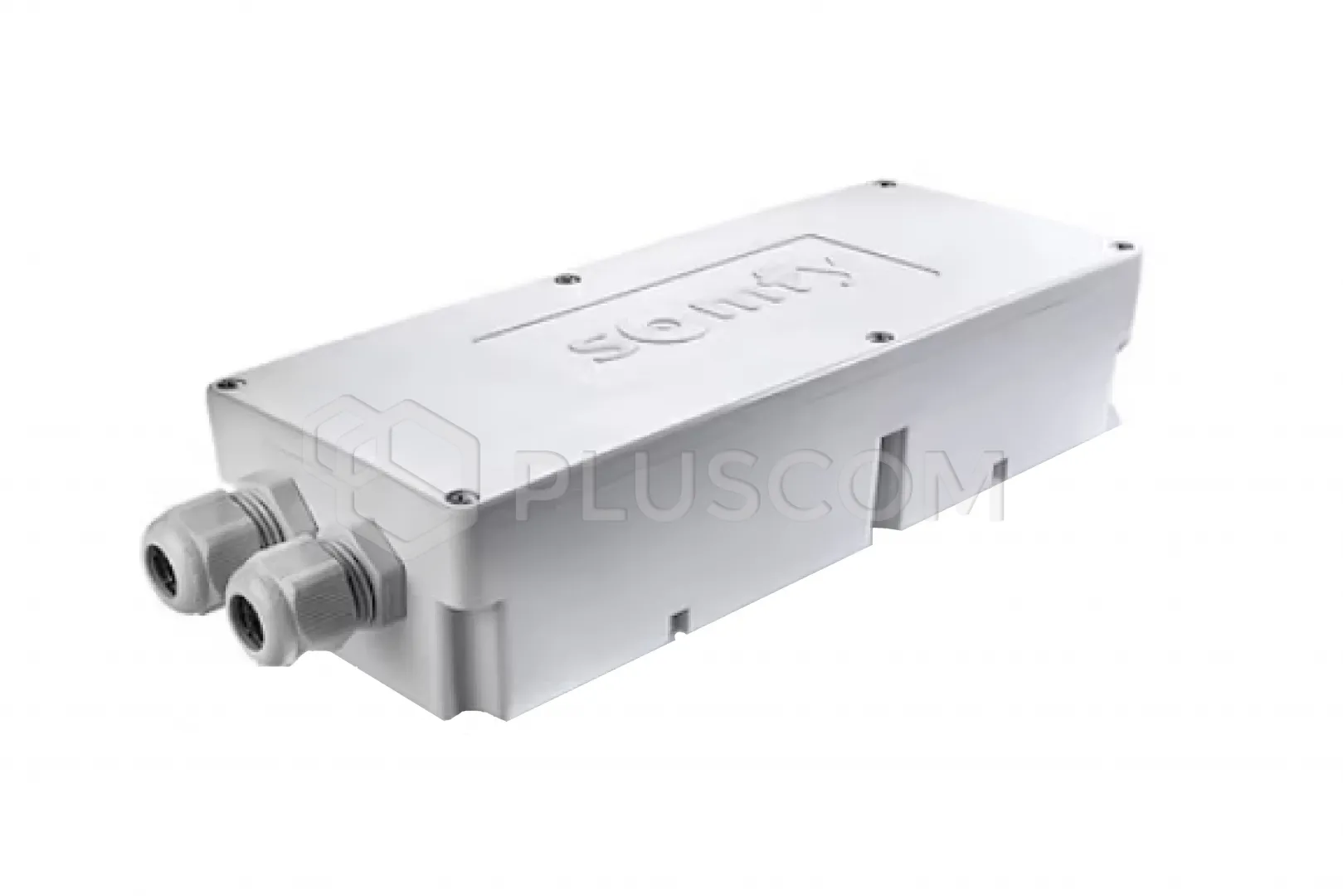

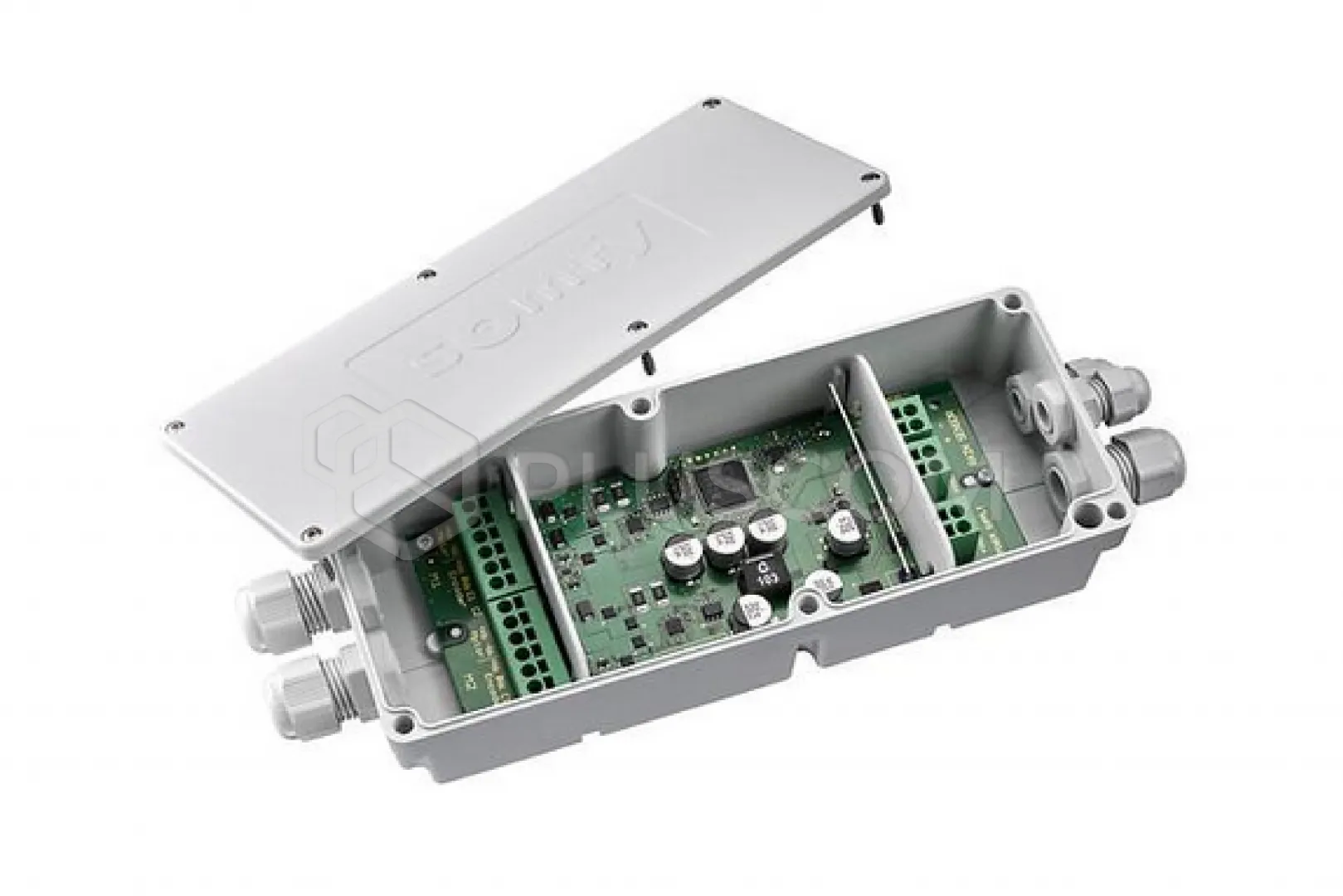

SOMFY 1870814 Pergola io Louver control unit
Pergola with adjustable slats allows you to enjoy your terrace all year round, while enhancing its exterior appearance.
- Simple and easy control
- Comfort and safety thanks to sensors. Easy-to-set slat positions linked to sensor values
- Create your own living scenarios with the Pergola io internet-controlled ecosystem
Provide a friendly and unique atmosphere with vertical screens, receivers for lighting, receivers for heating and music.
Better use of the terrace
- Additional space that can be adjusted to your preferences
- With just a few clicks, you can control the tilt of the pergola slats remotely from your smartphone
Smart protection
- Thanks to various sensors, the pergola can also operate independently: the slats close to protect the terrace from bad weather, then open to illuminate it again when the sun comes out from behind the clouds
Voice control
- Use your voice to control the pergola and many other devices. Tell your voice assistant to start the "Evening Scenario" and the slats and sunshades close, the lights turn on and music plays from the speakers. Creating the right atmosphere has never been easier
Thermal comfort
- When the pergola is connected to the Somfy ecosystem, it provides effective protection against the sun's rays and therefore maintains the right thermal comfort:
- In the summer, the slats close to keep the house cool and reduce the need for air conditioning
- In the winter months, the slats will adjust to allow sunlight into our house while heating the room
FEATURES:
Pergola io Louver control unit
- Linear drive
- Easy installation
- Easy configuration
End position management:
- Semi-automatic -> The open or closed position is set by the user
- Fully automatic -> Open and closed positions are set automatically
Smart drive selection:
- 1 connected drive: single selection
- 2 connected drives: synchronized or independent by remote selection
- Automatic encoder detection
Drive synchronization:
- Start/stop 2 drives at the same time in each case
- Automatic speed adjustment of each drive
Drive protection
- Maximum current detection
- Automatic adjustment during the season
End product protection
- Obstacle detection
- Adjustable level
List of compatible external sensors:
- Eolis io 230 V
- Soliris io 230 V
- Sunis WireFree II io
- Ondeis 24 V DC,
- Ondeis 230 V
The controller has a built-in internal temperature sensor.
The Eolis WireFree io sensor is not compatible with the Pergola io Louver controller.
The io installation start-up tool - Set and Go io and the latest version of its software - v4.4.2.0 is necessary to personalize the sensor settings and other parameters, e.g. the detection threshold
The Set and Go io tool in this software version recognizes the Soliris io 230 V sensor as Eolis. Functionally, the sensor works like Soliris
Technical data:
- Protection class IP55
- Radio frequency 868 Tri Band MHz
- Number of channels 2
- Power consumption during operation 24 W
- DC power supply - RGE 11 - 24V
