Somfy V500 PRO io video intercom kit with power supply (1870703)
The V500 PRO io kit is an intuitive and modern intercom kit that gives you
possibility of wired opening of the entrance gate and wicket. It is central
transmitter with the ability to control up to five devices or groups devices in
io technology.
It will find its application in single-family houses. It is simple to install,
durable and elegant in appearance. The outdoor panel is suitable for
installation on narrow pillars and there is an option to install it for the
indoor monitor an additional monitor through which you can communicate with the
main monitor on intercom principle.
In addition to the basic functions of the intercom, the V500 PRO io can be used
as wireless home furnishing control.

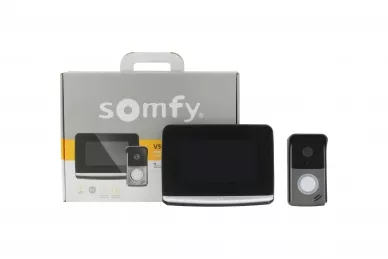

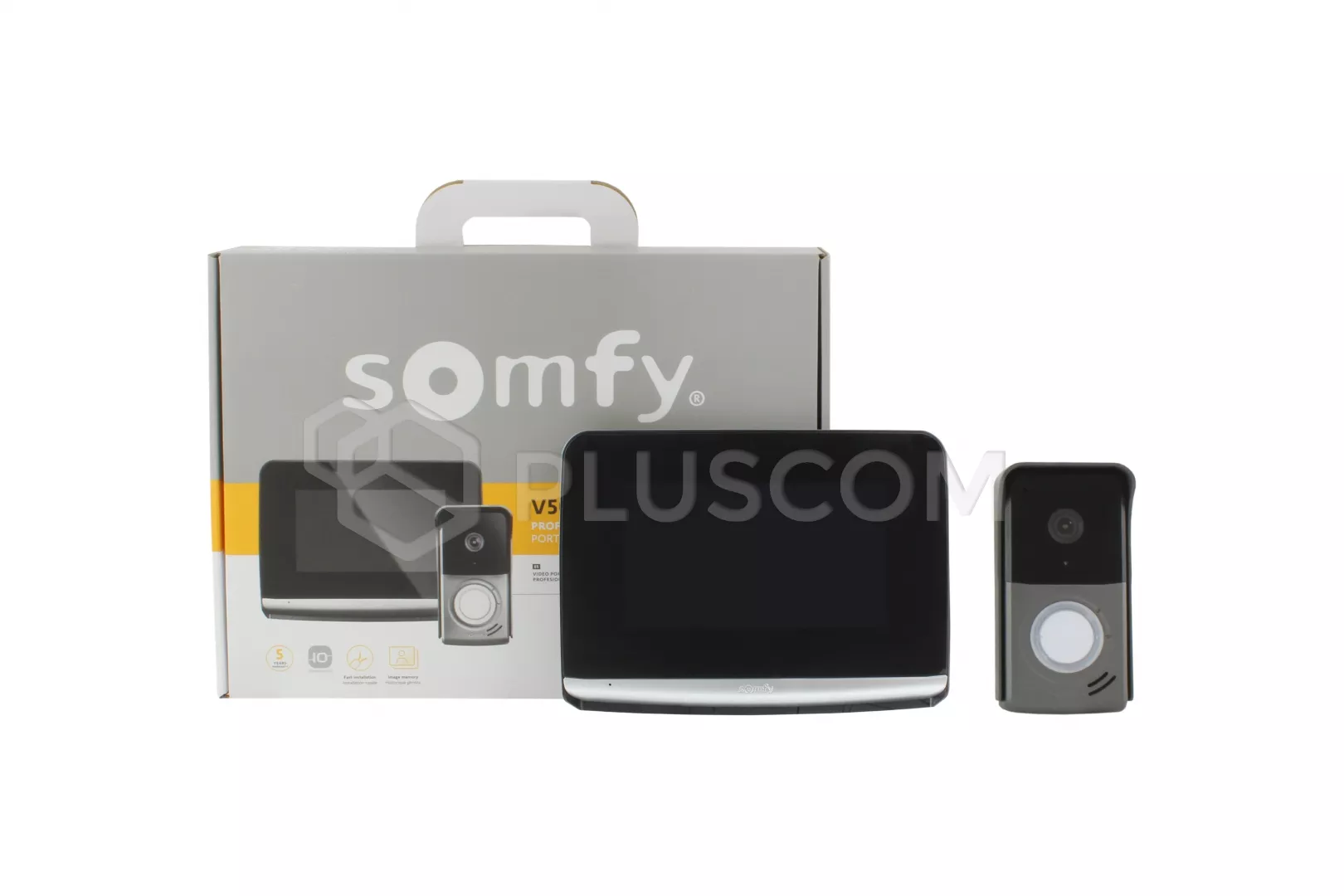

The set includes:
- 7'' indoor monitor with SD card installed
- outer panel with rain cover
- AC adapter
- 16GB micro SD card
- mounting kit
- 2x Extra name tag
|
Somfy Videofon V500 PRO io with mains adapter (1870703)
|
The monitor comes with 7 '' touch screen .
Thanks the possibility of choosing a ringtone, wallpaper, or the time of
opening the gate, we can monitor personalize to your needs. It has a motion and
presence sensor co allows the screen to turn on automatically when the monitor
detects a presence.
On the monitor, we can see the caller and the people who called during our
absence. The multitude of functions to be set up in the monitor only adds to it
attractiveness.

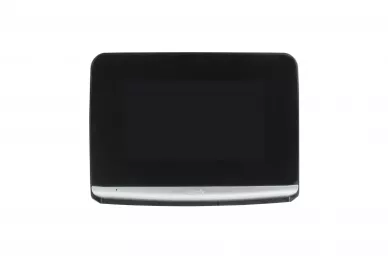

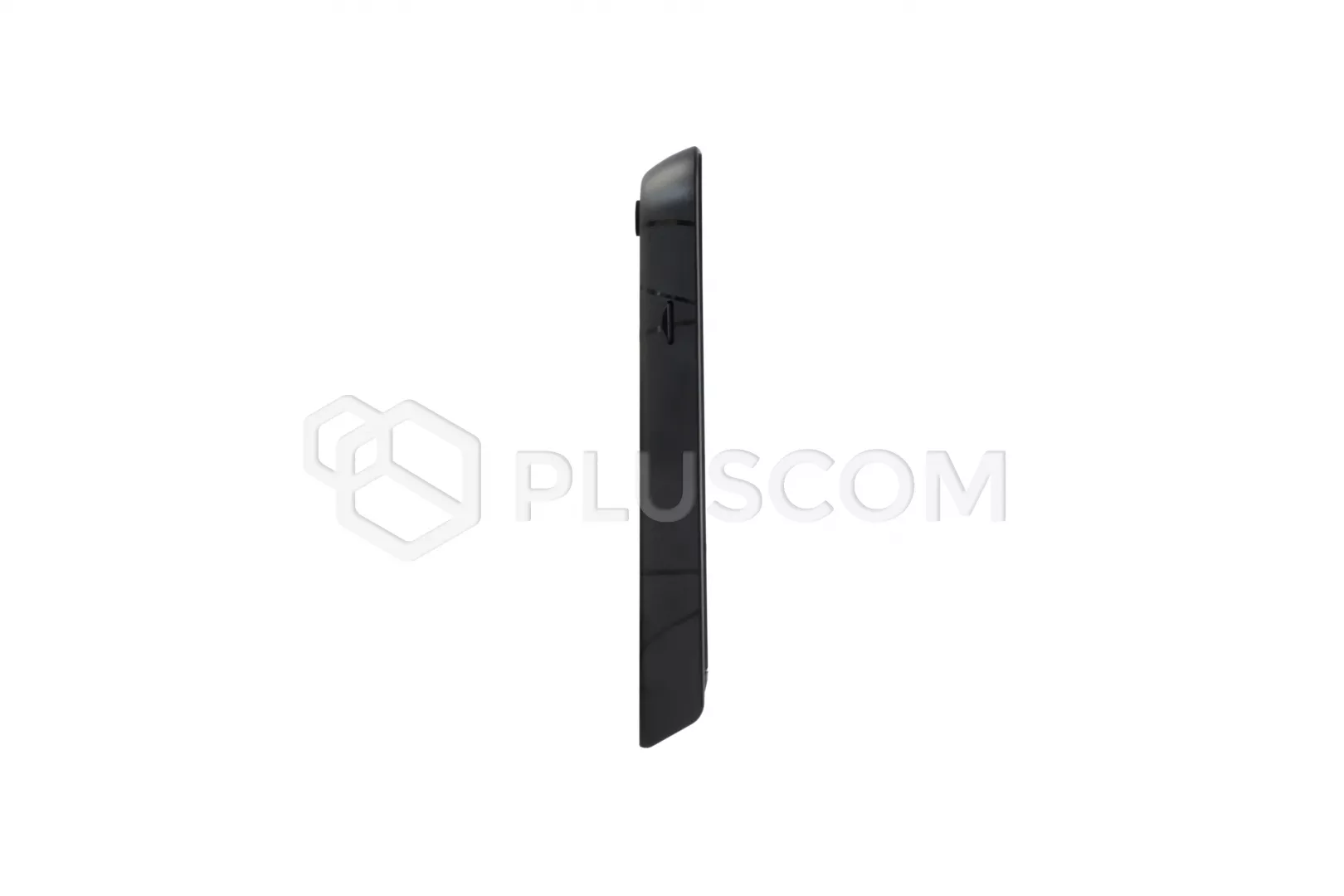

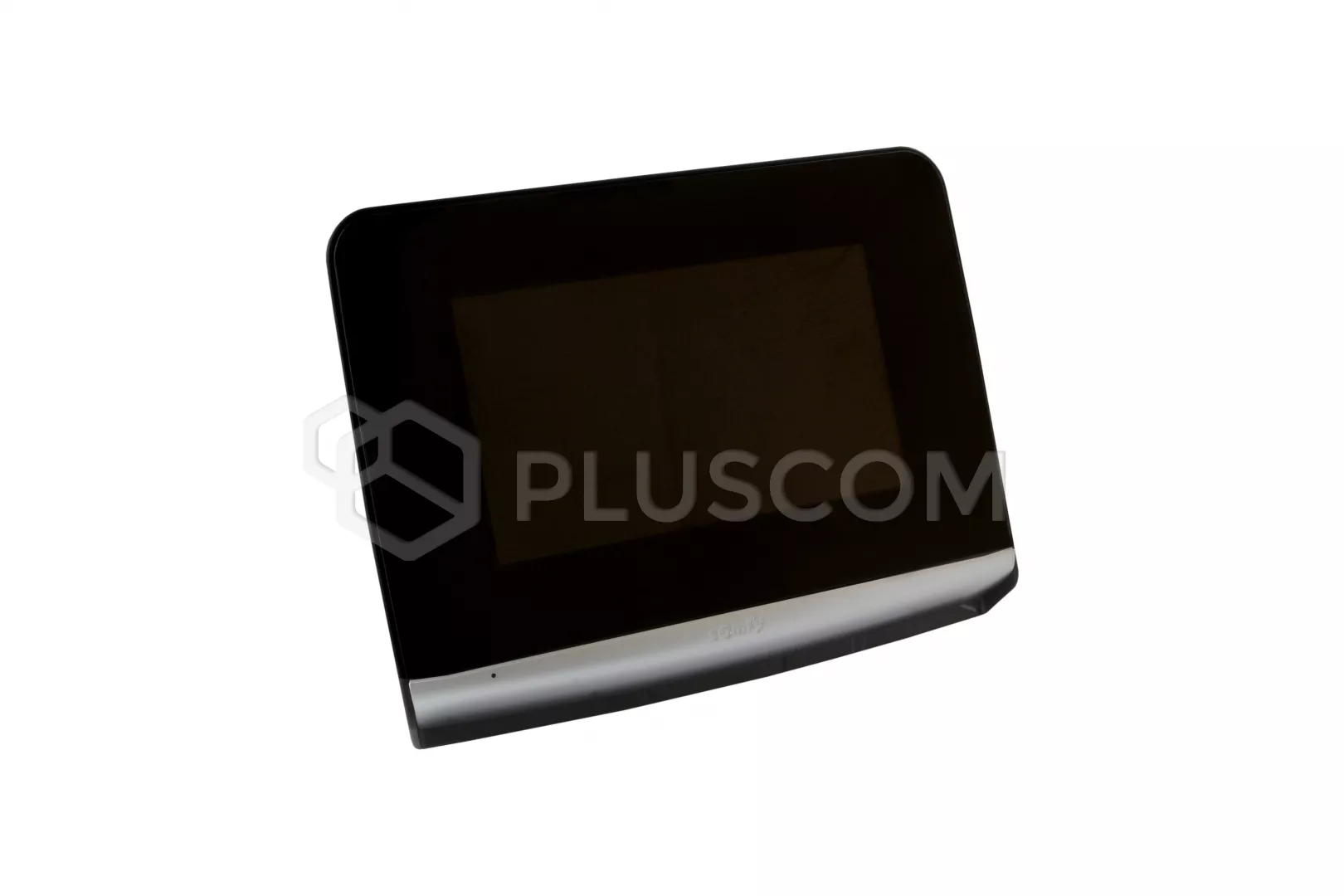

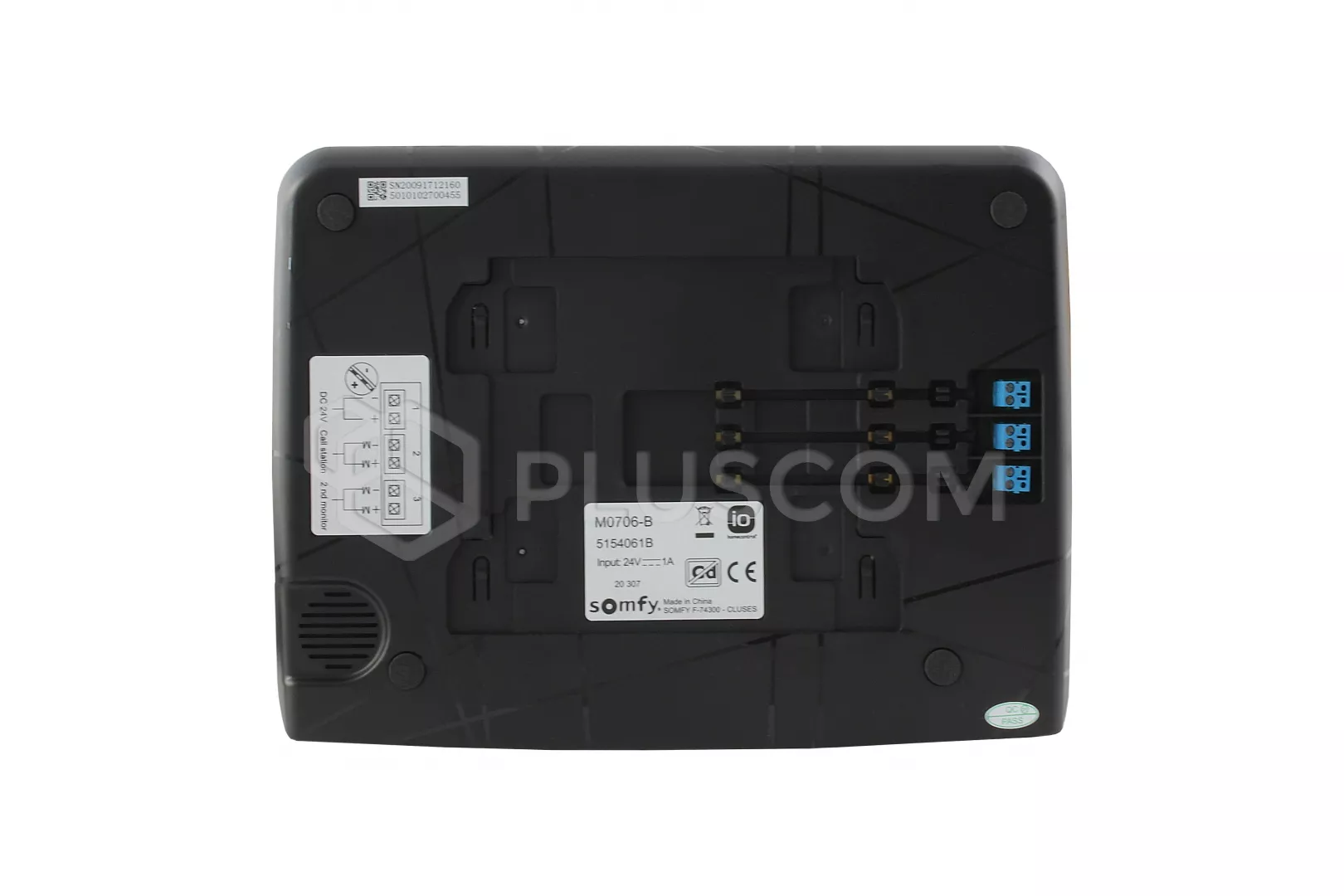

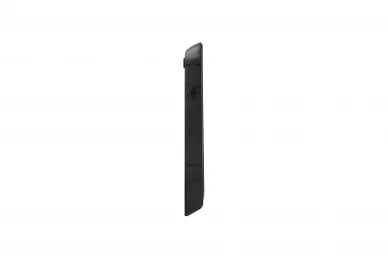

Indoor monitor
Features and Functions:
- saving photos on a micro SD card enabling the identification of persons
incoming while residents are away
- intuitive and clean interface
- built-in speaker and microphone
- motion / presence sensor
- indoor and outdoor temperature sensors
- built-in 5-channel transmitter to control devices in technology io
- intercom function between 2 indoor monitors
- personalization of the ringer melody with a micro SD card
- possibility of connecting an additional internal monitor in another
room
- remote opening of the gate and wicket
TECHNICAL DATA:
- Screen:
-
- touch
- dimensions: 7 ''
- resolution: 800x480 pixels
- maximum connection time 2 minutes
- power supply: 100-240 Vac, 50/60 Hz
- reverse polarity protection
- radio frequency: 868.7MHz - 869.2MHz
- radio wave reception range: 200 m in open area
- working temperature: -10 ° C to +55 ° C
- dimensions: 230 x 172 x 78mm

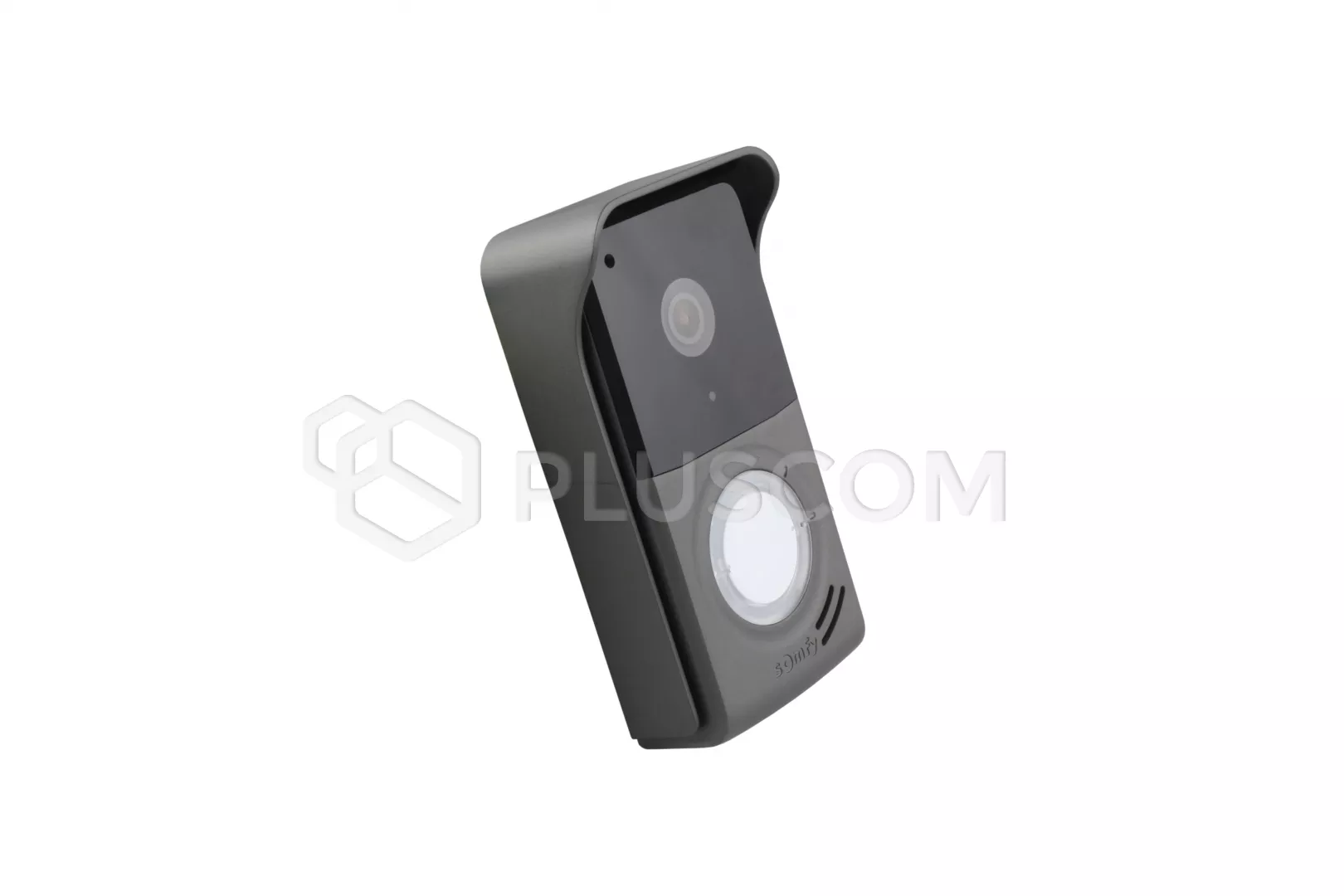

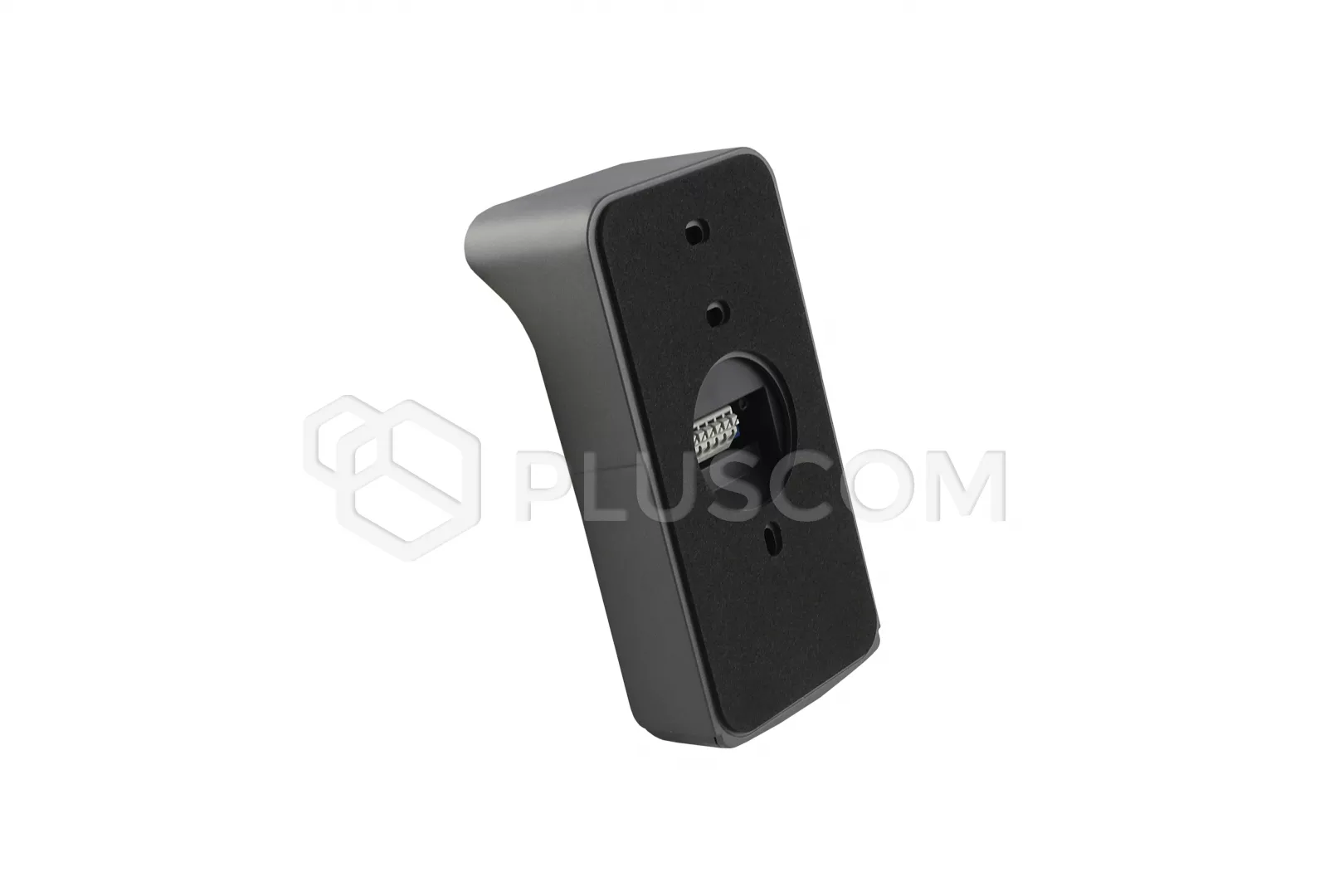

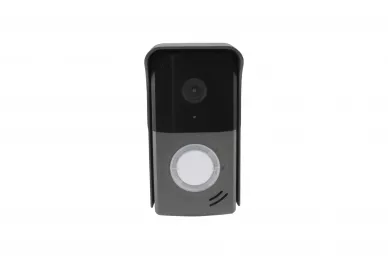

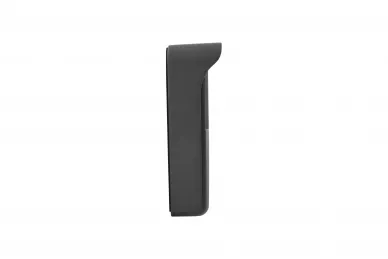

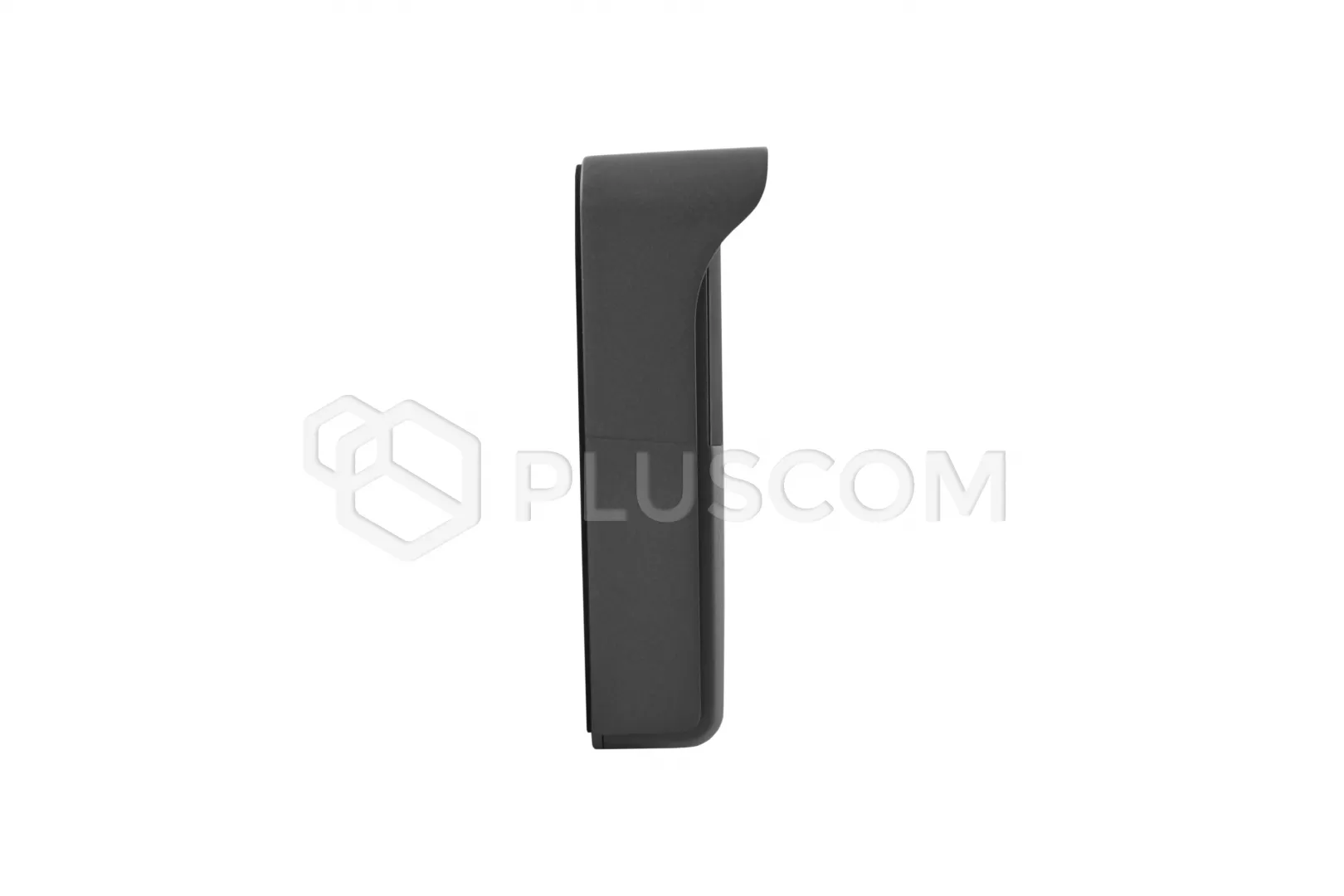

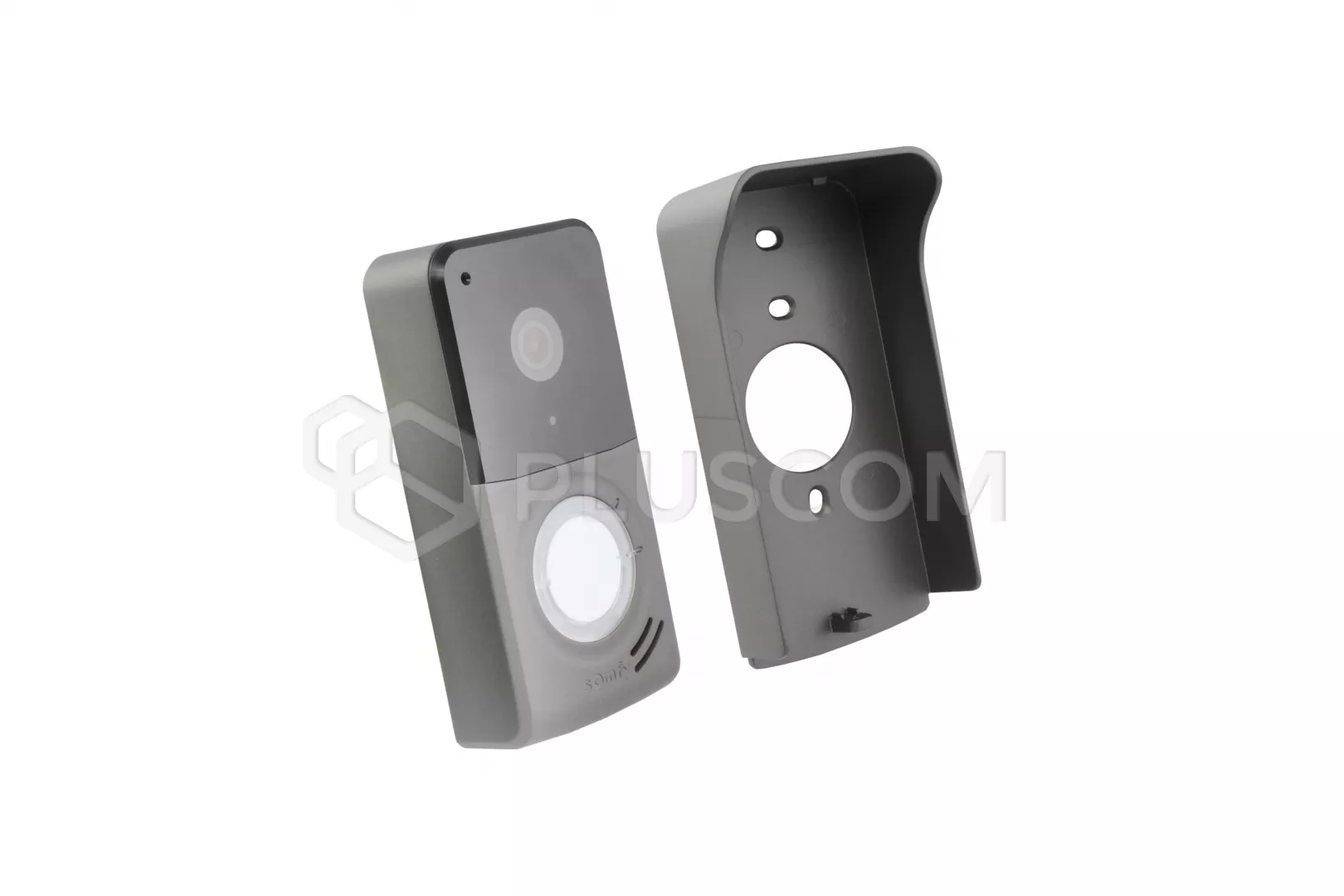

External panel
The outdoor panel is equipped with a wide-angle camera (H: 102
° / V: 68 °), thanks to which we will make easy identification of callers.
The camera films the caller and sends the image to the monitor.
The rain cover protects the camera from rain. The doorphone has illuminated
doorbell button and illuminated name tag.
The light sensor under the camera turns the LEDs on automatically infrared when
it gets dark.
Doorphone with monitor can be distant up to 150m from
yourself.
TECHNICAL DATA:
- viewing angle: H = 102 °, V = 68 °
- night visibility: Infrared LEDs
- exits:
-
- bolt: 12V, 800 mA (from 2.5 to 10s)
- exit gate: 1s
- electromagnetic lock output activation time: 2 seconds
- working temperature: -20 ° C to +55 ° C
- dimensions: 78 x 146 x 46mm
