SOMFY 1870702 Videophone V500 PRO io with power supply on a DIN rail

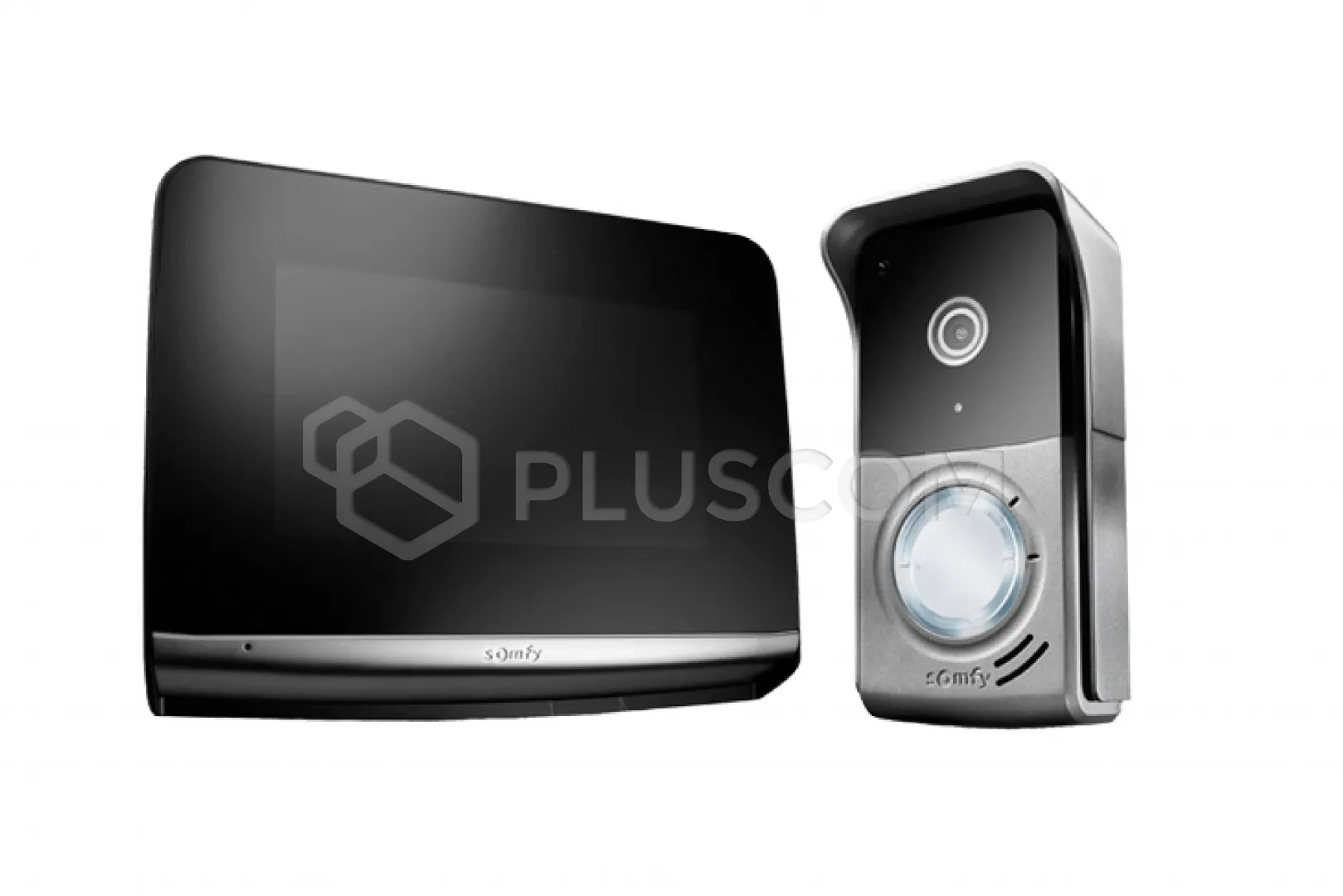

The set includes:
- 7'' indoor monitor with installed SD card
- external panel with rain cover
- mains adapter
- 16GB micro SD card
- mounting kit
- 2x Additional name tag
The V500 PRO io set is an intuitive and modern intercom set that gives
the possibility of wired opening of the entrance gate and wicket. It is a central
transmitter with the ability to control up to five devices or groups
of devices in io technology.
It will find its application in single-family homes. It is easy to install,
durable and elegant in appearance. The external panel is suitable for installation on
narrow posts and there is an option to install an
additional monitor to the internal monitor, through which you can communicate with the main monitor
on the principle of an intercom.
In addition to the basic functions of the intercom, the V500 PRO io can be used as
a wireless control element for home equipment.

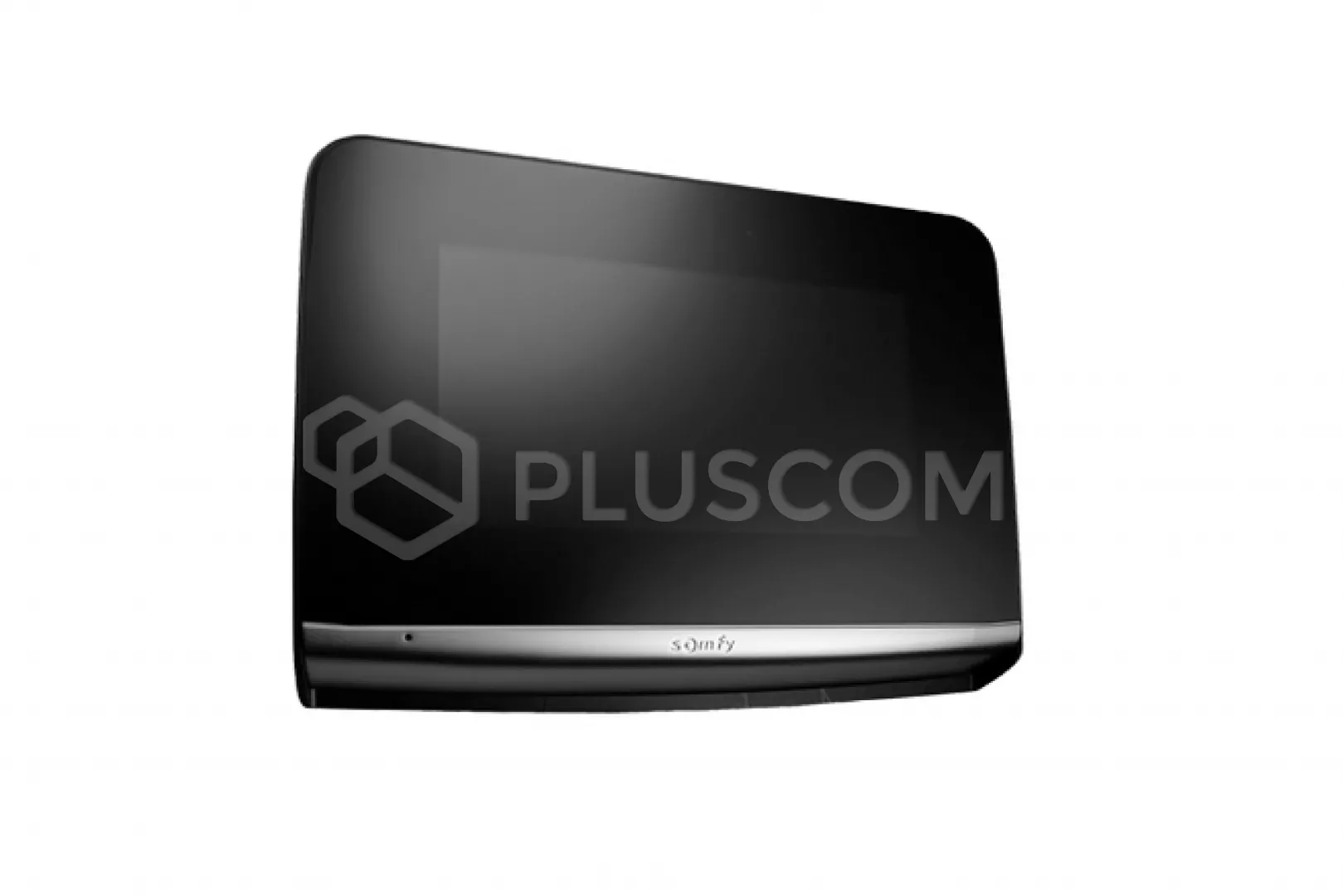

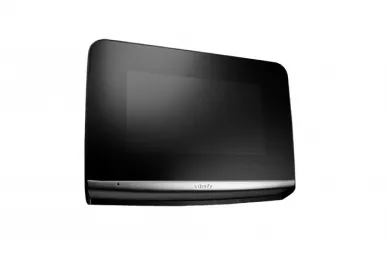

The monitor is equipped with a 7" touch screen.
Thanks to the ability to choose a ringtone, wallpaper, or gate opening time, the monitor
can be personalized to your own needs.
It has a motion and presence sensor
which allows the screen to automatically turn on when the monitor detects any presence.
On the monitor, we can see the caller and the people who called during
our absence. The multitude of functions to set in the monitor only adds to its
attractiveness.
FEATURES:
- saving photos on a micro SD card allowing identification of people
coming during the absence of residents
- intuitive and clear interface
- built-in speaker and microphone
- motion/presence sensor
- internal and external temperature sensors
- built-in 5-channel transmitter for control of devices in io technology
- intercom function between 2 internal monitors
- personalization of the doorbell melody thanks to the micro SD card
- possibility of connecting an additional internal monitor in another
room
- remote opening of the gate and wicket door
Technical data:
Screen:
- Touchscreen
- Dimensions: 7''
- Resolution: 800x480 pixels
- Maximum connection time 2 minutes
- Power supply: 100-240 Vac, 50/60 Hz
- Polarity reversal protection
- Radio frequency: 868.7MHz - 869.2MHz
- Radio wave reception range: 200 m in open terrain
- Operating temperature: -10 °C to +55 °C
- Dimensions: 230 x 172 x 78mm

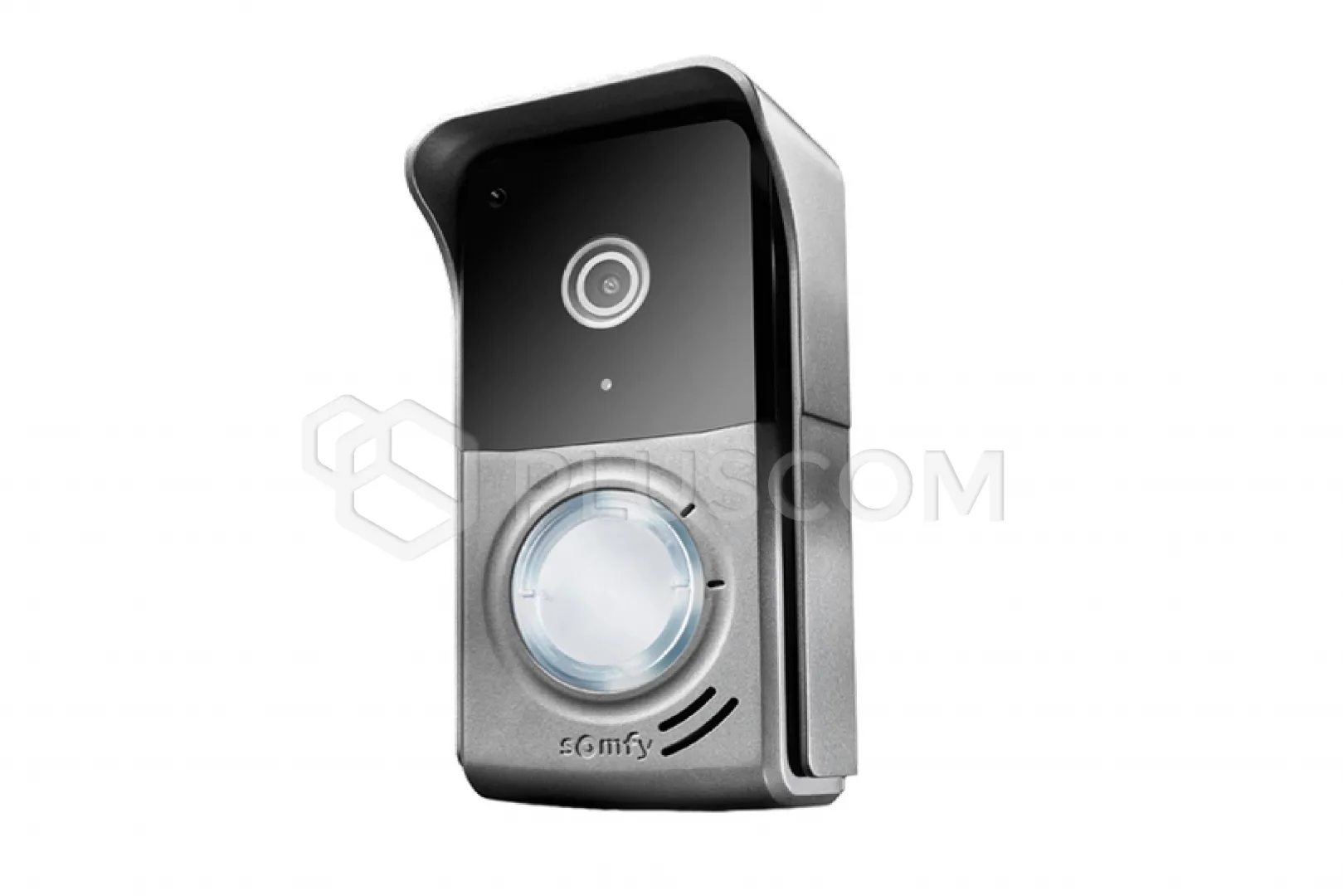

External panel
Equipped with a wide-angle camera (H:102°
/ V:68°), thanks to which we can easily identify callers.
The camera films the caller and sends the image to the monitor.
The rain cover protects the camera from rain. The doorphone has an illuminated bell button and an illuminated name tag.
A light sensor under the camera automatically turns on the infrared LEDs when it gets dark.
The door station with the monitor can be placed at a maximum distance of 150m from each other.
Technical data:
- Viewing angle: H = 102°, V = 68°
- Night visibility: Infrared LEDs
- Outputs:
-
-
Lock: 12V, 800 mA (from 2.5 to 10s)
- Gate output: 1s
- Electromagnetic lock output activation time: 2 seconds
- Operating temperature: -20 °C to +55 °C
- Dimensions: 78 x 146x 46mm
