Somfy V100 + RTS video intercom kit with power supply (1870535)
The V100 + set is a comfortable solution for people who value convenience and
security. It will find its application in single-family houses. There is simple
to install, durable and elegant in appearance.

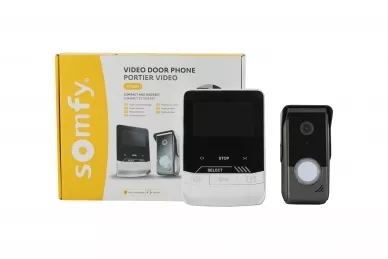

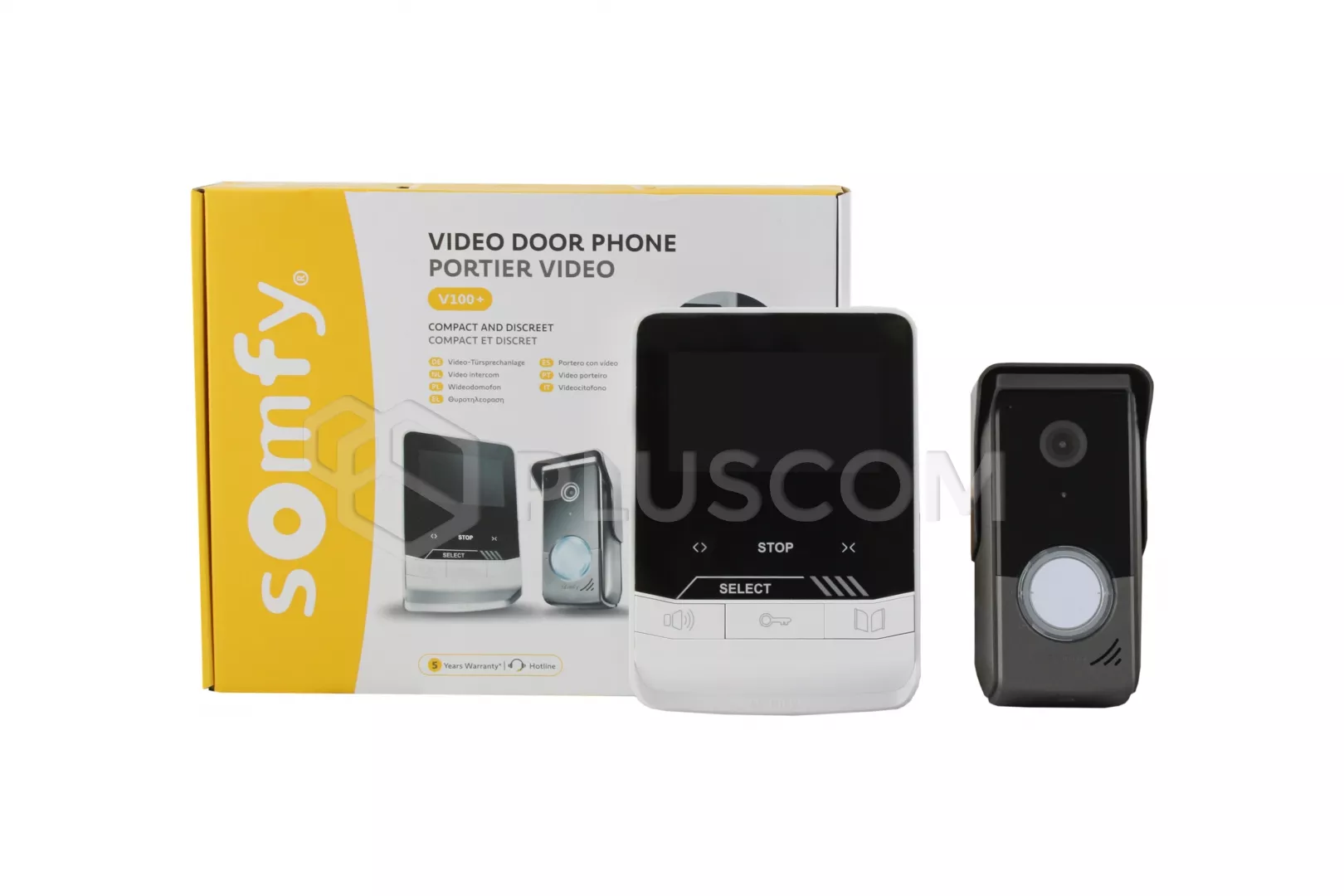

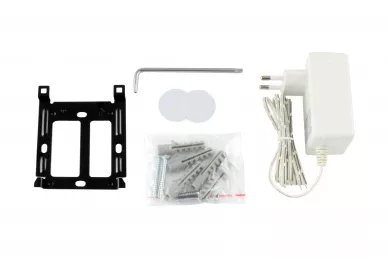

The set includes:
- 4.3'' indoor monitor with wall mount
- outer panel with rain cover
- AC adapter
- mounting kit
- 2x Extra name tag
|
Somfy V100 Video intercom (1870535)
|
The video intercom consists of an internal monitor and an external
panel. The slim design will easily fit into narrow walls and pillars.
The monitor is equipped with a Somfy Radio Technology (RTS)
transmitter thanks why we can wirelessly control, for example, an
entrance gate / garage / wicket, roller shutters or a lighting receiver.
Controls up to 5 devices or groups devices.
This function is provided by a system of radio channels marked with indicator
lamps.
For better comfort and convenience of use, we can connect a second monitor,
e.g. to the second room.

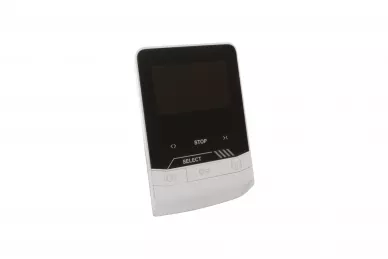

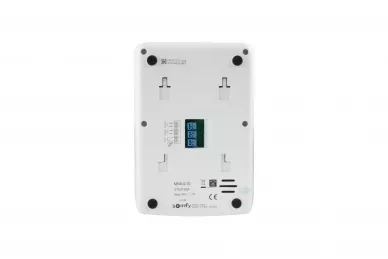

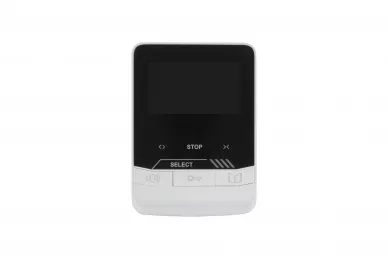

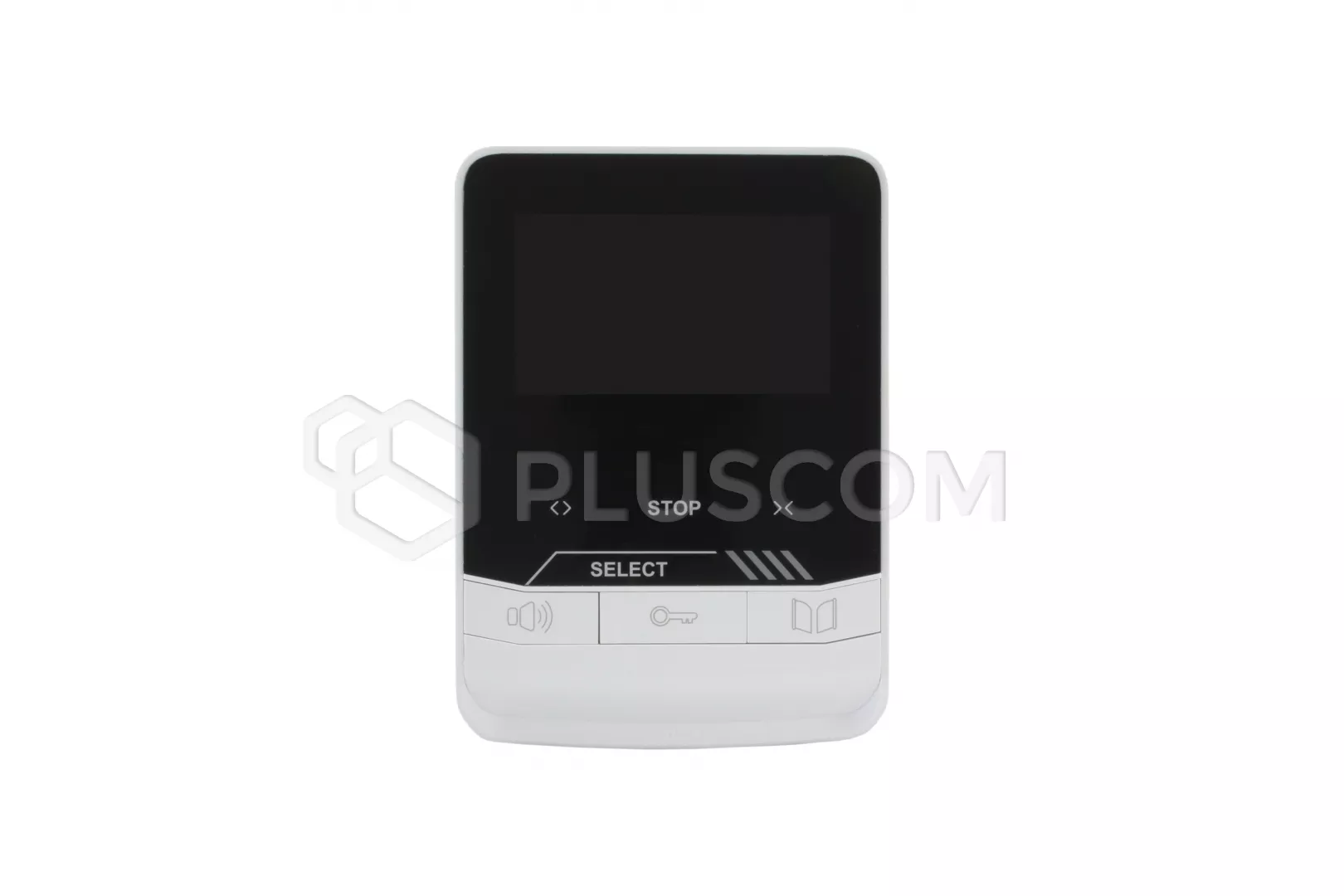

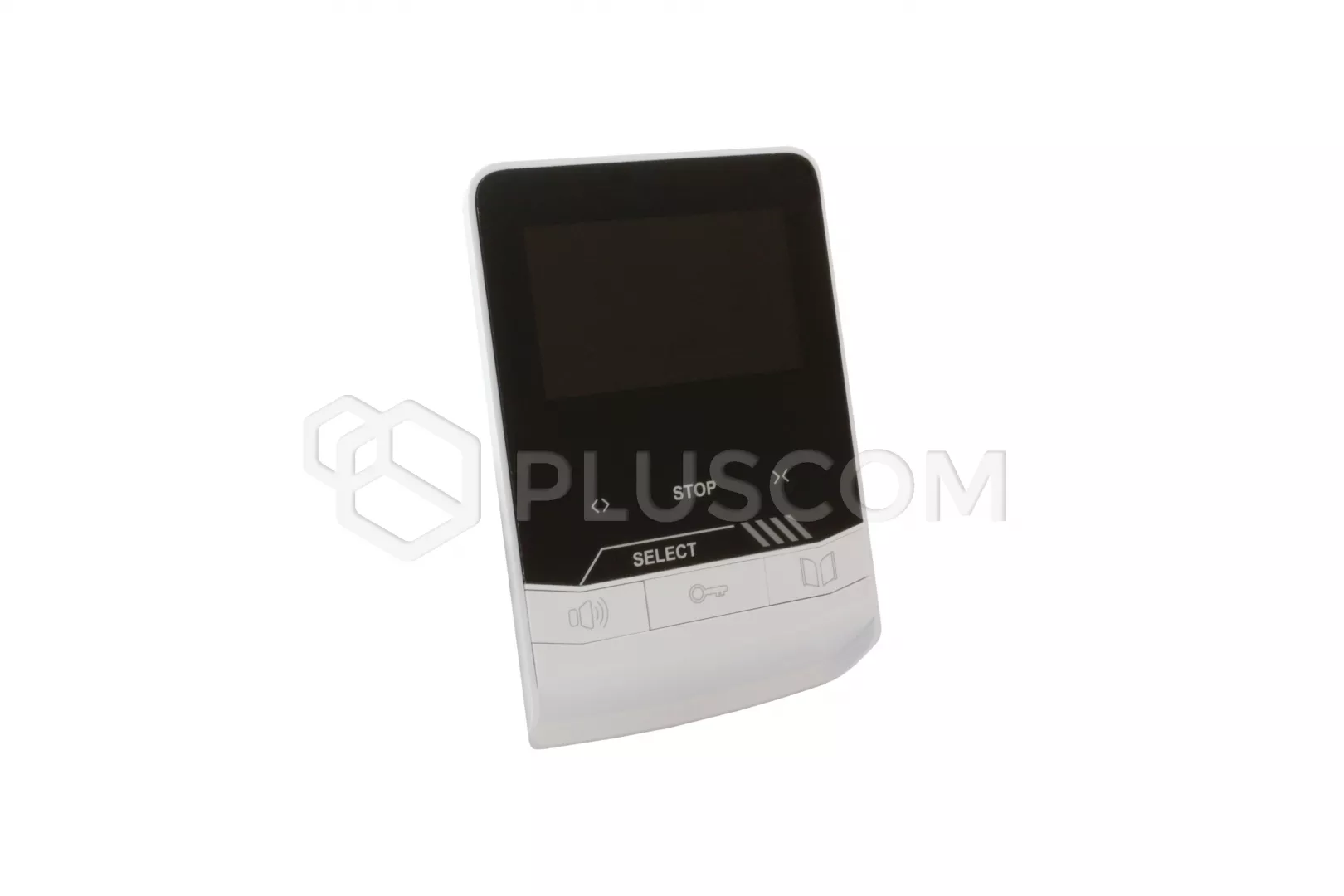

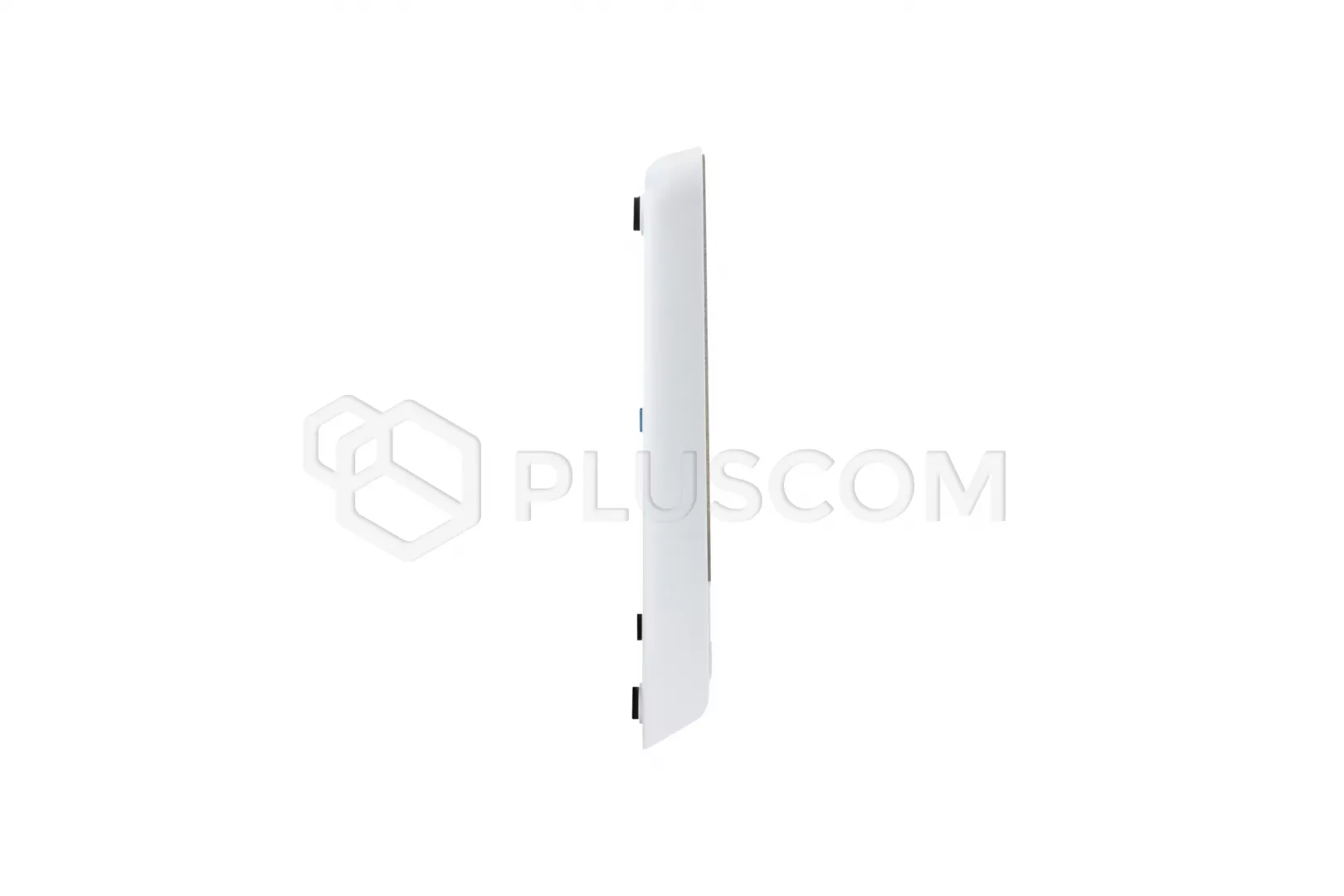

Indoor monitor
Features and Functions:
- 4.3 '' color display and resolution 480x272
- intuitive and clean interface
- built-in speaker and microphone
- night vision function and built-in infrared LEDs
- built-in 5-channel transmitter to control devices in technology RTS
- 6 ringer melodies to choose from
- hands-free function
- possibility of connecting an additional internal monitor in another
room
- possibility to adjust video intercom settings according to individual
needs preferences
- remote opening of the gate and wicket
TECHNICAL DATA:
- Screen:
-
- colorful
- dimensions: 4.3 "ie 10.9 cm
- resolution: 480 x 272 pixels
- number of ringer melodies: 6
- settings: selection of the ringer melody, volume of the ringer melody,
loudspeaker volume, colors, illumination intensity, contrast, bolt opening
time
- maximum connection time 2 minutes
- power:
-
- mains supply unit: 100-240 Vac, 50/60 Hz, max. 0.6 A
- output: 24VDC, 1A
- reverse polarity protection
- radio frequency: 433.42MHz
- radio wave reception range: 200 m in open area
- working temperature: -10 ° C to +55 ° C
- dimensions: 130 x 185 x 22mm

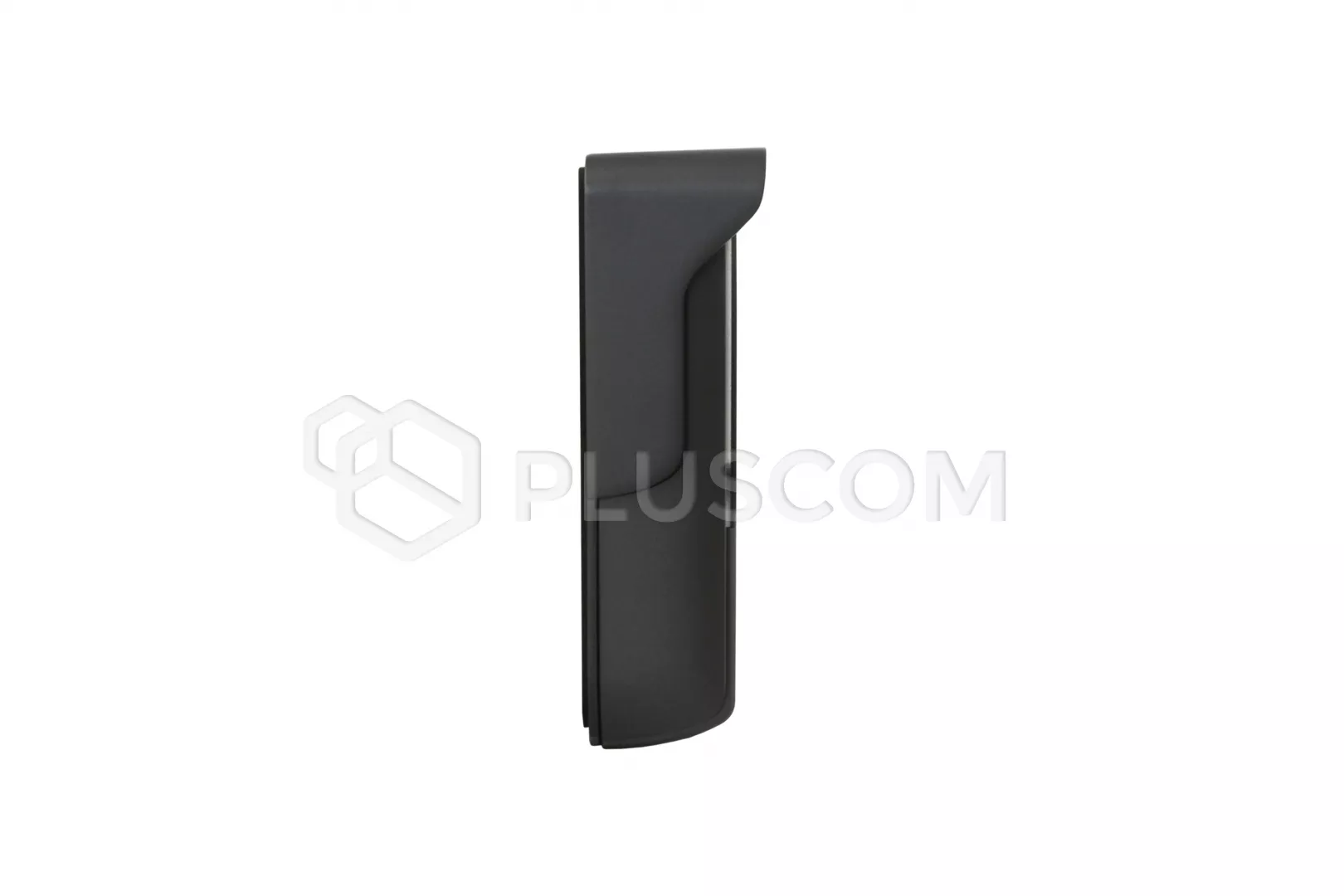

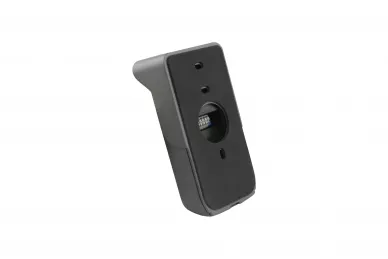

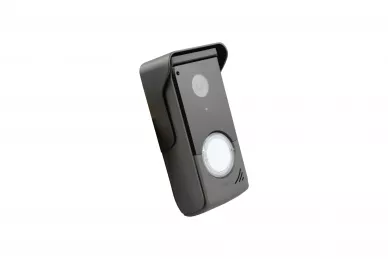

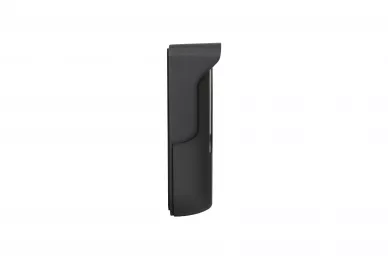

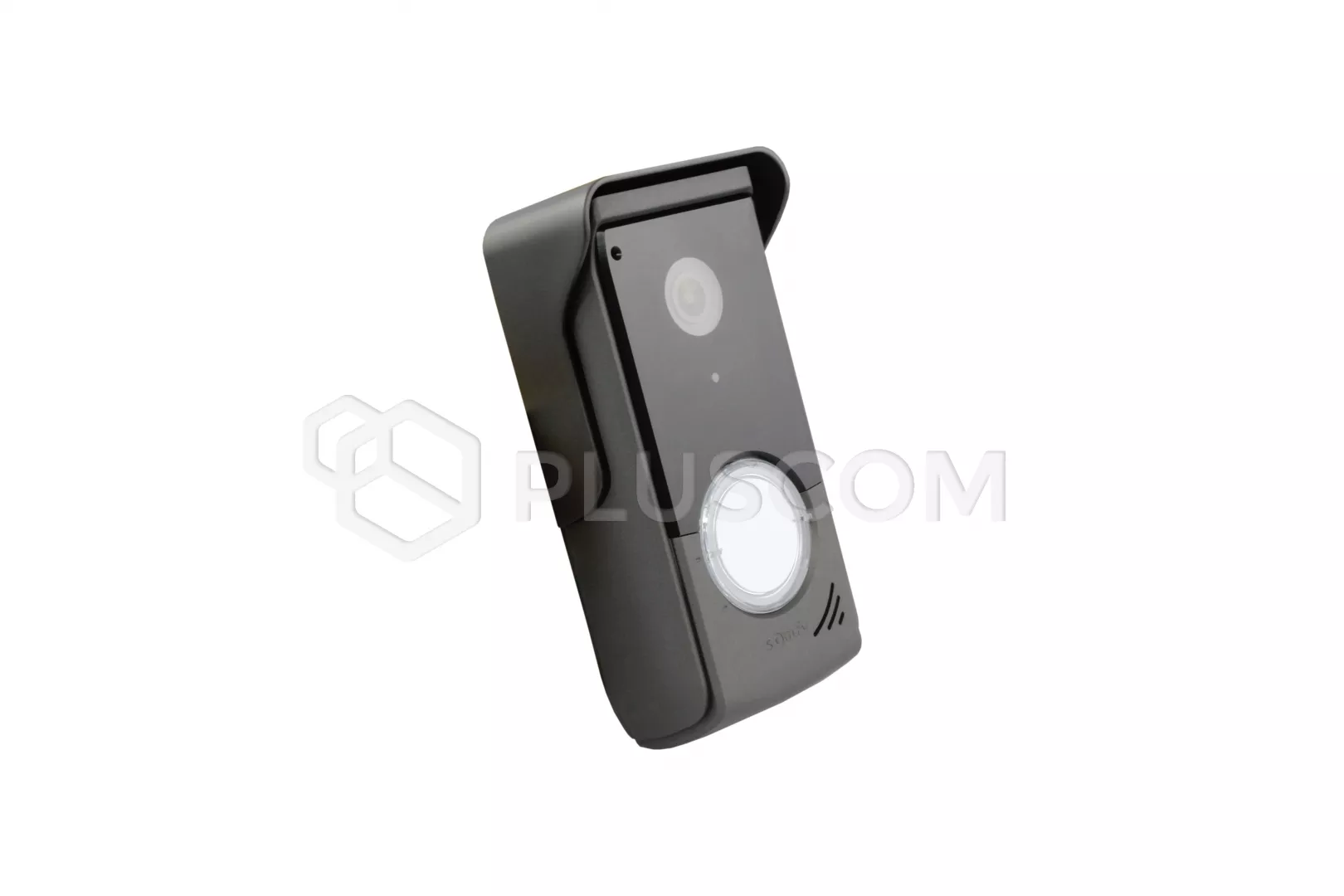

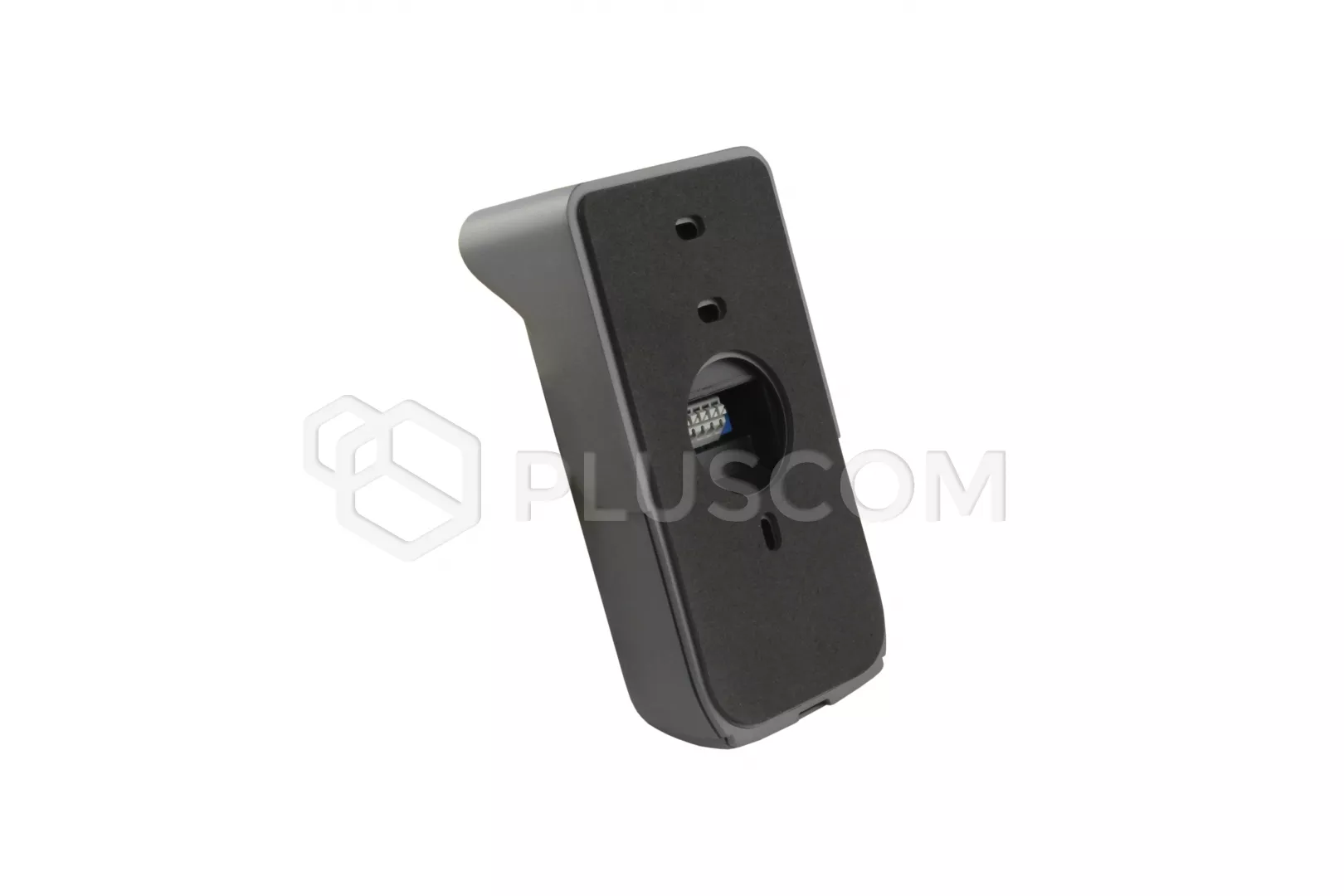

External panel
The outdoor panel is equipped with a wide-angle camera (H: 102
° / V: 65 °), thanks to which we can easy identification of callers even at
night thanks to the functional external panel with built-in infrared LEDs.

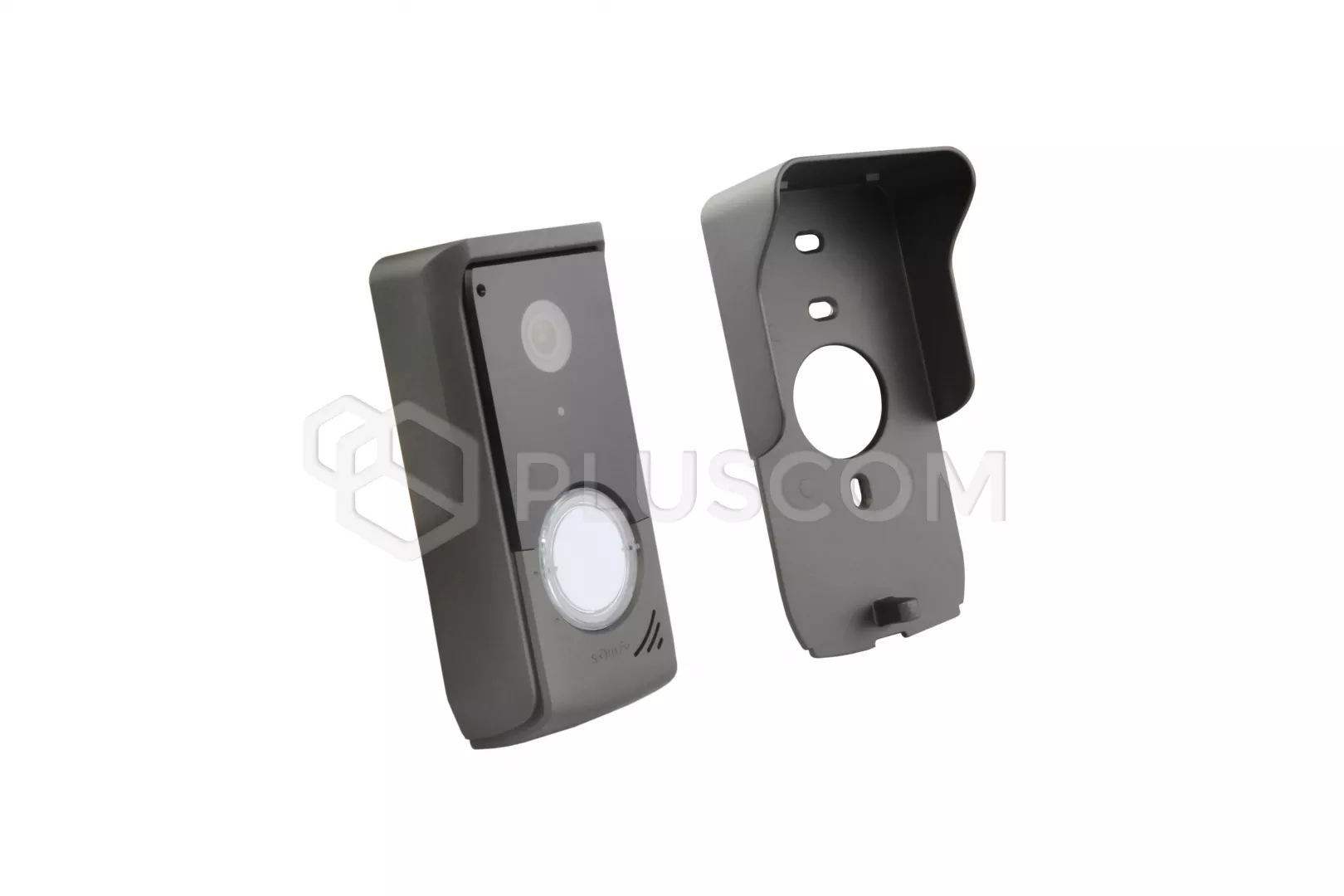

The rain cover protects the camera from rain. The doorphone has an illuminated
bell button and a backlit name tag.
The light sensor under the camera automatically turns on the infrared LEDs when
it gets dark.
Doorphone with monitor can be distant up to 150m from
yourself.
TECHNICAL DATA:
- viewing angle: H = 102 °, V = 65 °
- night visibility: Infrared LEDs
- exits:
-
- bolt: 12V, 800 mA
- potential-free contact
- electromagnetic lock output activation time: 2, 5 or 10 seconds
- activation time of the potential-free contact: 1 second
- label / bell button: highlighted
- materials: aluminum and plastic
- settings: speaker volume
- working temperature: -20 ° C to +55 ° C
- protection class: IPX4
- dimensions: 77 x 151 x 45 mm

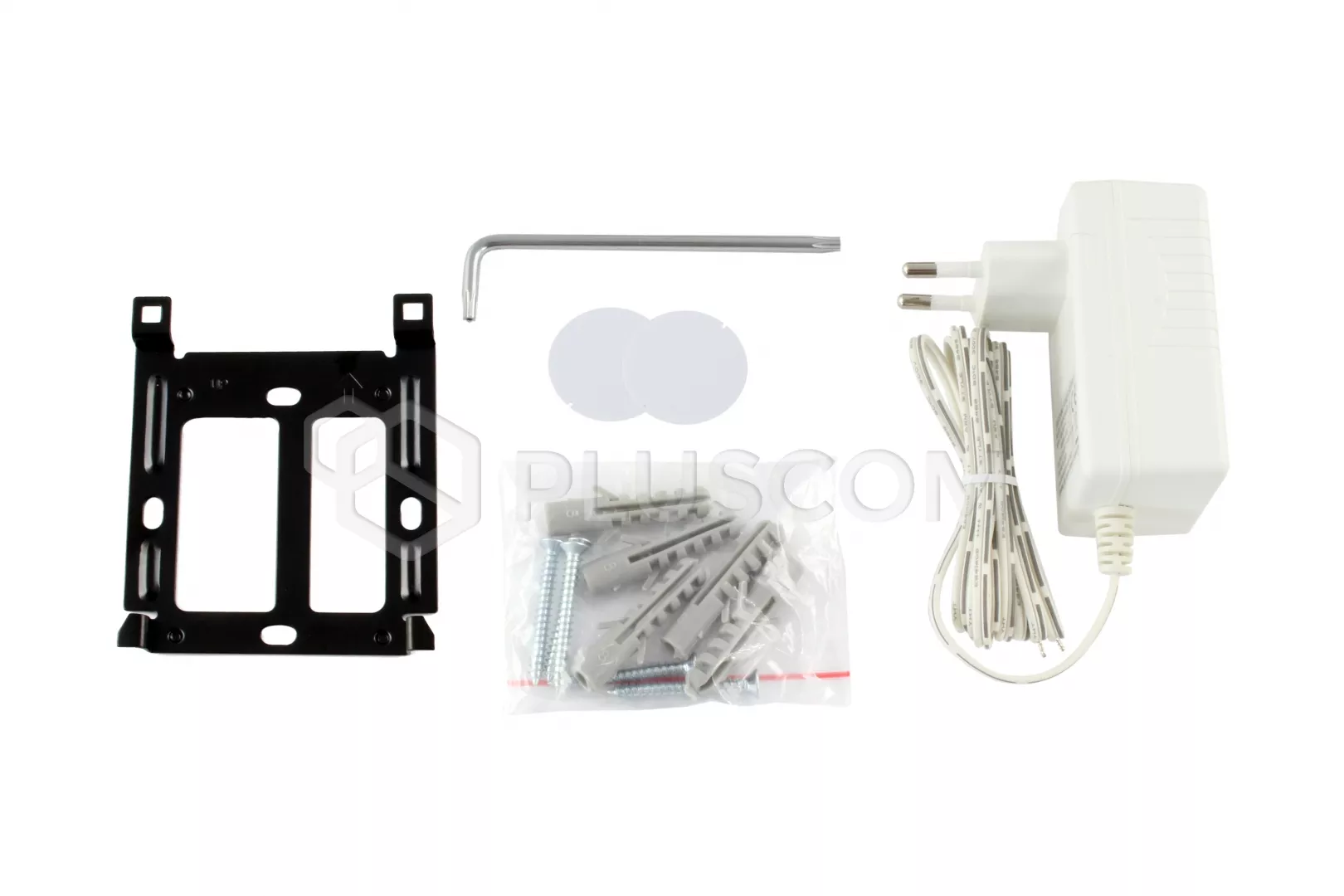

Accessories
