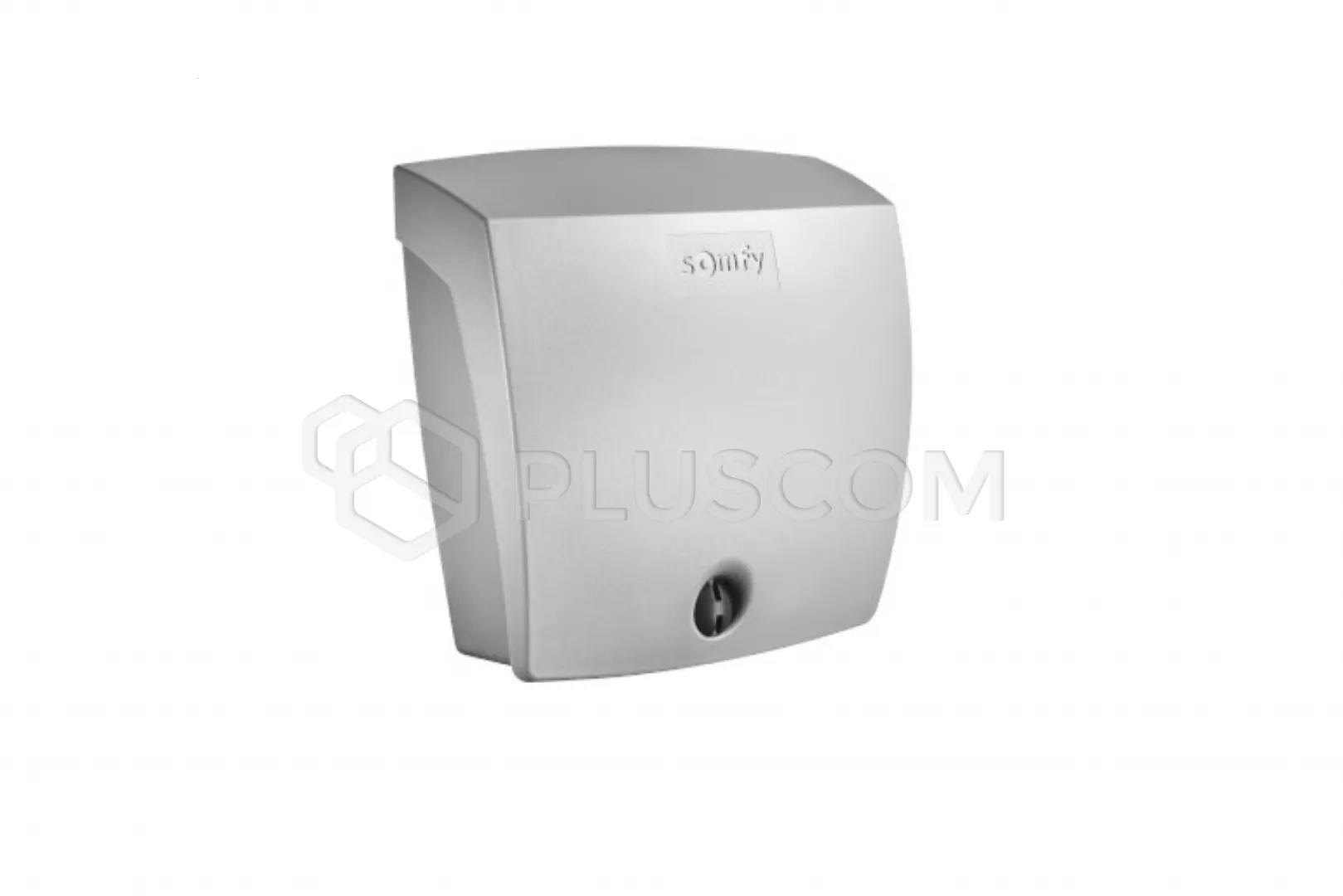

Somfy 1870506 Rollixo Smart io - with cable

309,77 EUR including 22.00% VAT
Product code: #31358
Manufacturer: Somfy
  • Power supply: 230V DC
  • Dimensions[cm]: 20.8 x 18.7 x 7.2
  • Radio frequency: 868 MHz
  • Degree of protection: IP 44
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

SOMFY 1870506 Rollixo Smart io - with cable

The set includes:

  • Receiver
  • Cable
The Rollixo Optimo RTS receiver is designed to control the roller garage door drive - Somfy RDO CSI in residential buildings.
It is recommended to use this receiver with a drive for gates with maximum external dimensions: width 6 m, height 4 m. In order to ensure compliance with applicable standards, the roller gate must be equipped with a lower safety strip (optical or resistive - 8.2 kΩ or 1.2 kΩ) and a safety brake against the fall of the curtain.

In the event of connecting a key switch to terminals 20-21 and a failure of safety devices (lower safety strip, emergency brake, set of photocells) it is possible to manually control the gate in Dead-man mode after 3 minutes from the failure.

FEATURES:

  • Easy programming
  • 1100 W output power - one receiver for the entire range of single-phase drives

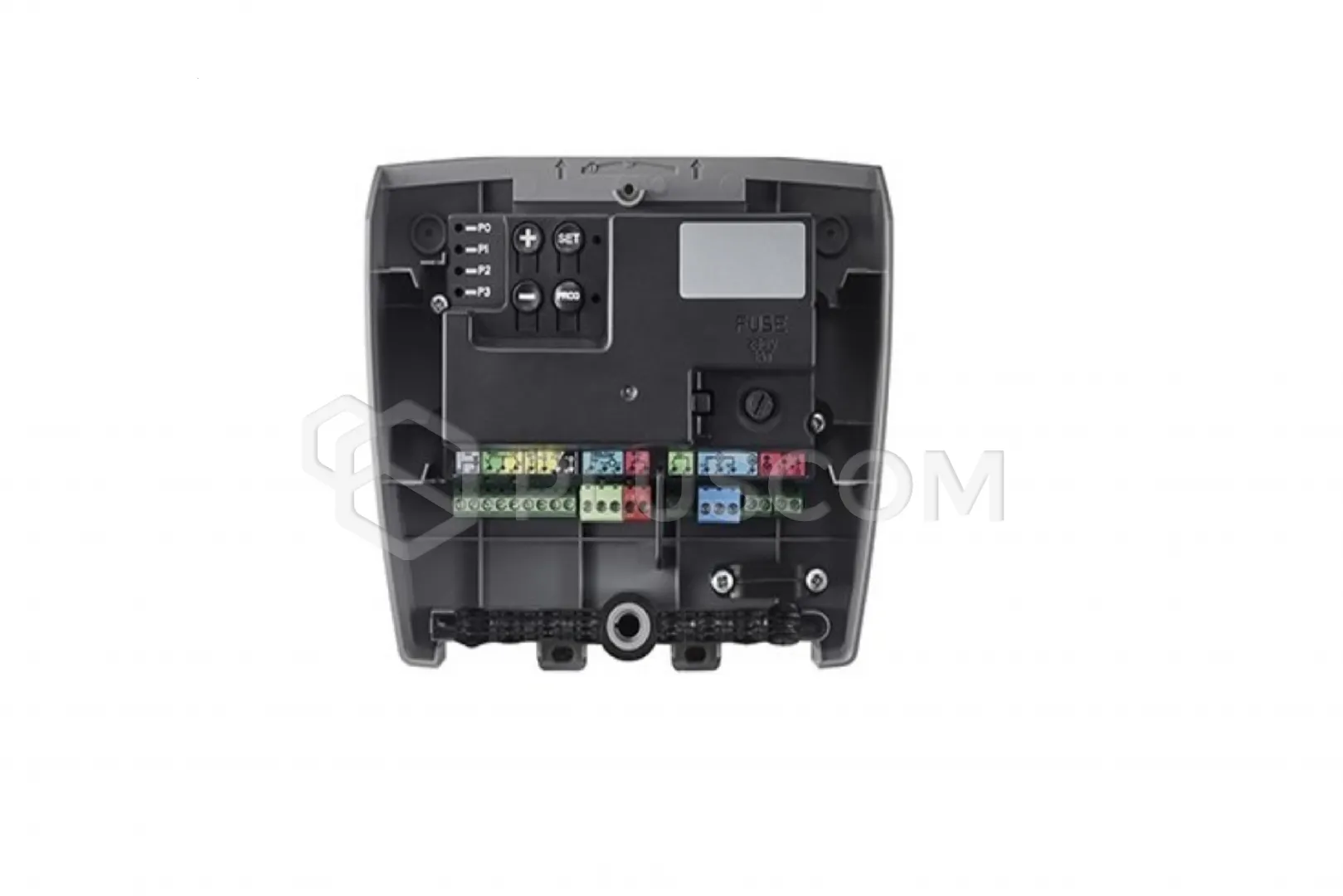

  • Detachable, multi-colored terminal blocks for the drive, lower safety edge and safety brake,
  • Only 4 parameters to set: operating mode, auxiliary output (warning light), input for wired lower safety edge and input for a set of photocells,
  • LEDs informing about the operating status of the receiver and cooperating devices
  • Easy and quick installation
  • Possibility of manual control of the gate in Dead-man mode
  • Mandatory lower safety edge and safety brake
  • Remote control using a smartphone
