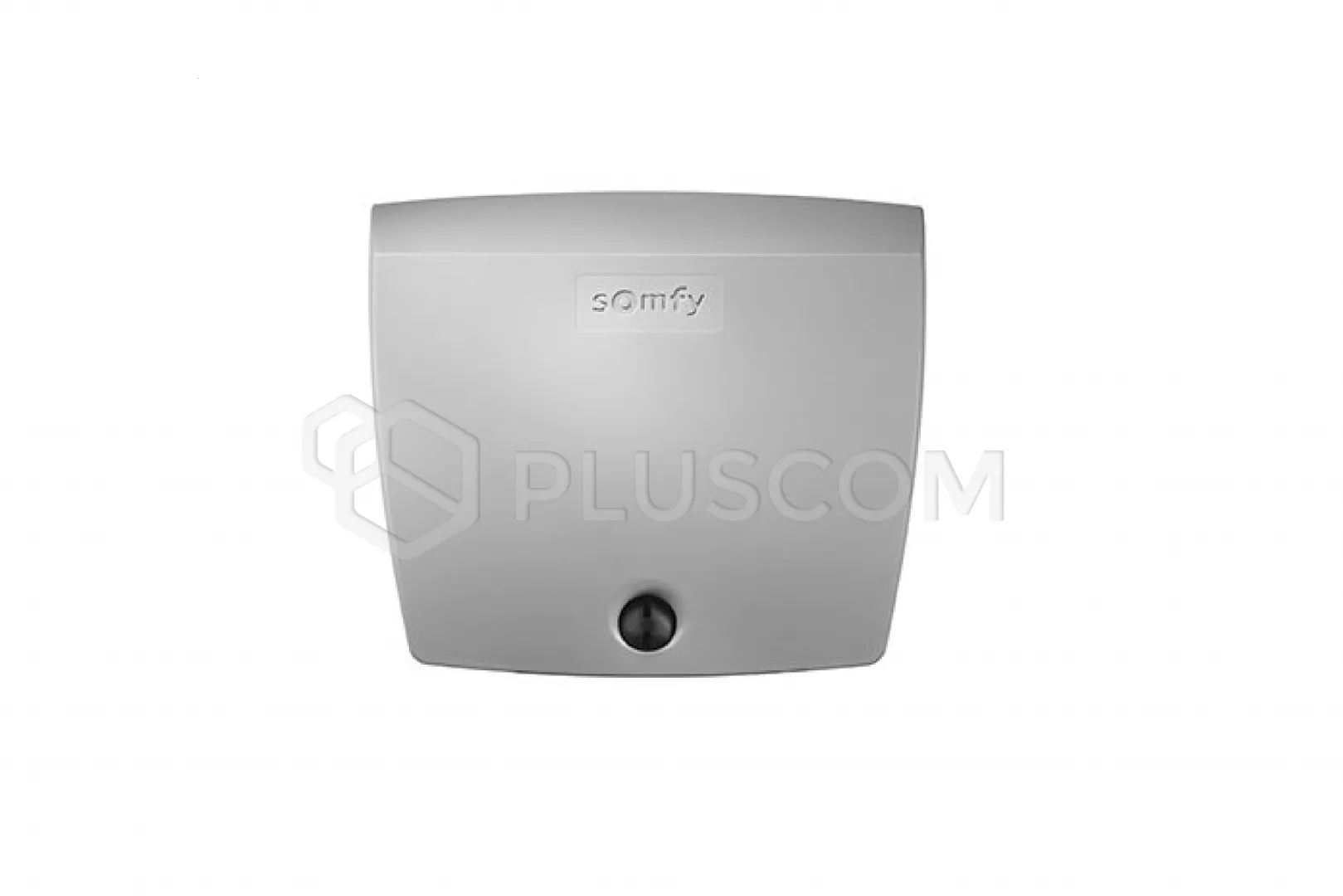

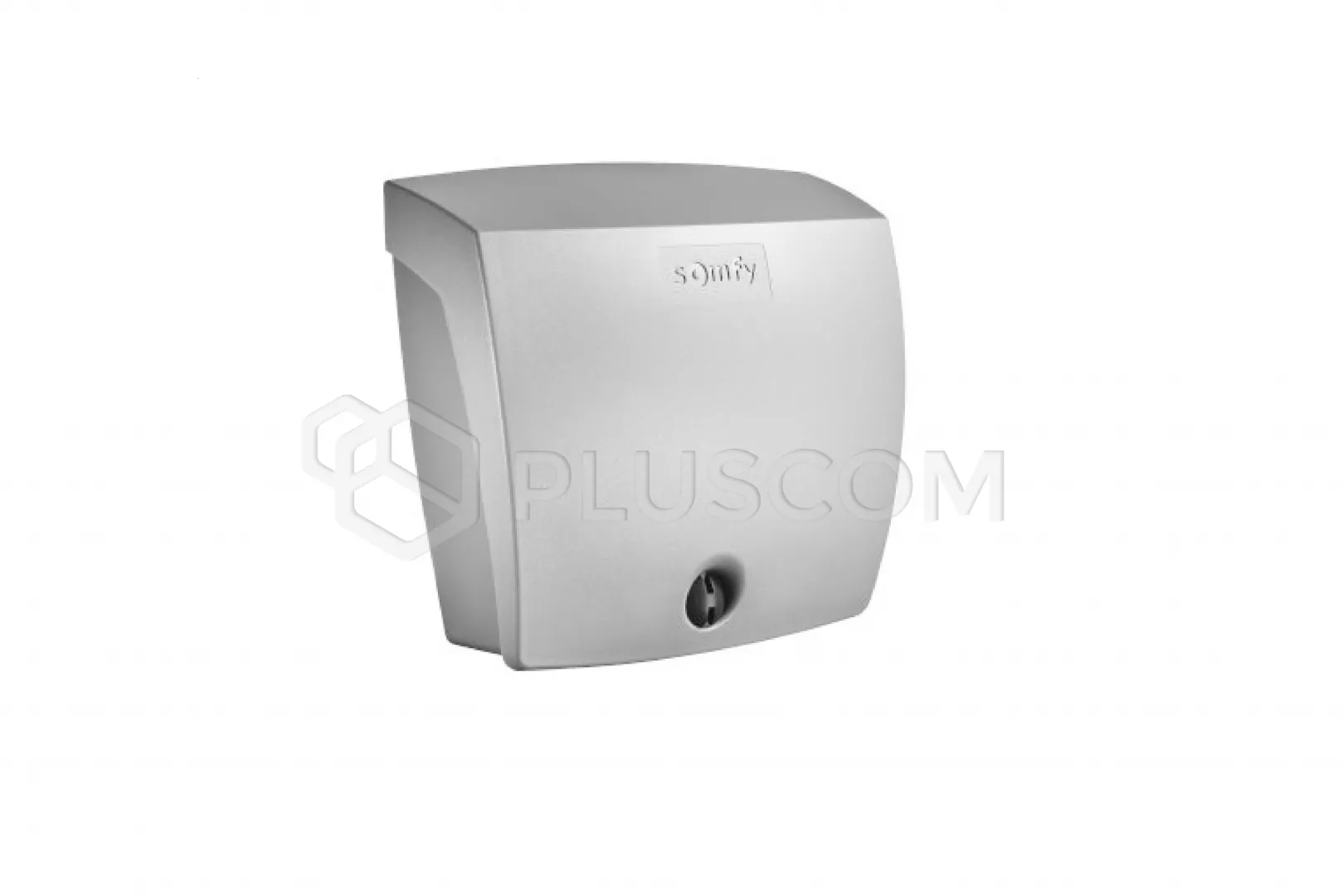

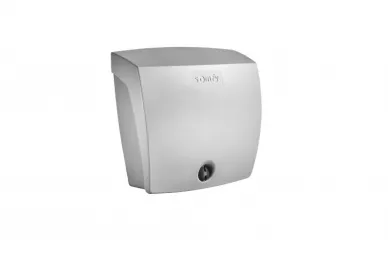

Somfy 1870503 Rollixo Optimo RTS receiver with cable

222,63 EUR including 23.00% VAT
Product code: #31357
Manufacturer: Somfy
  • Radio frequency: 433.42 MHz
  • Number of channels: 4

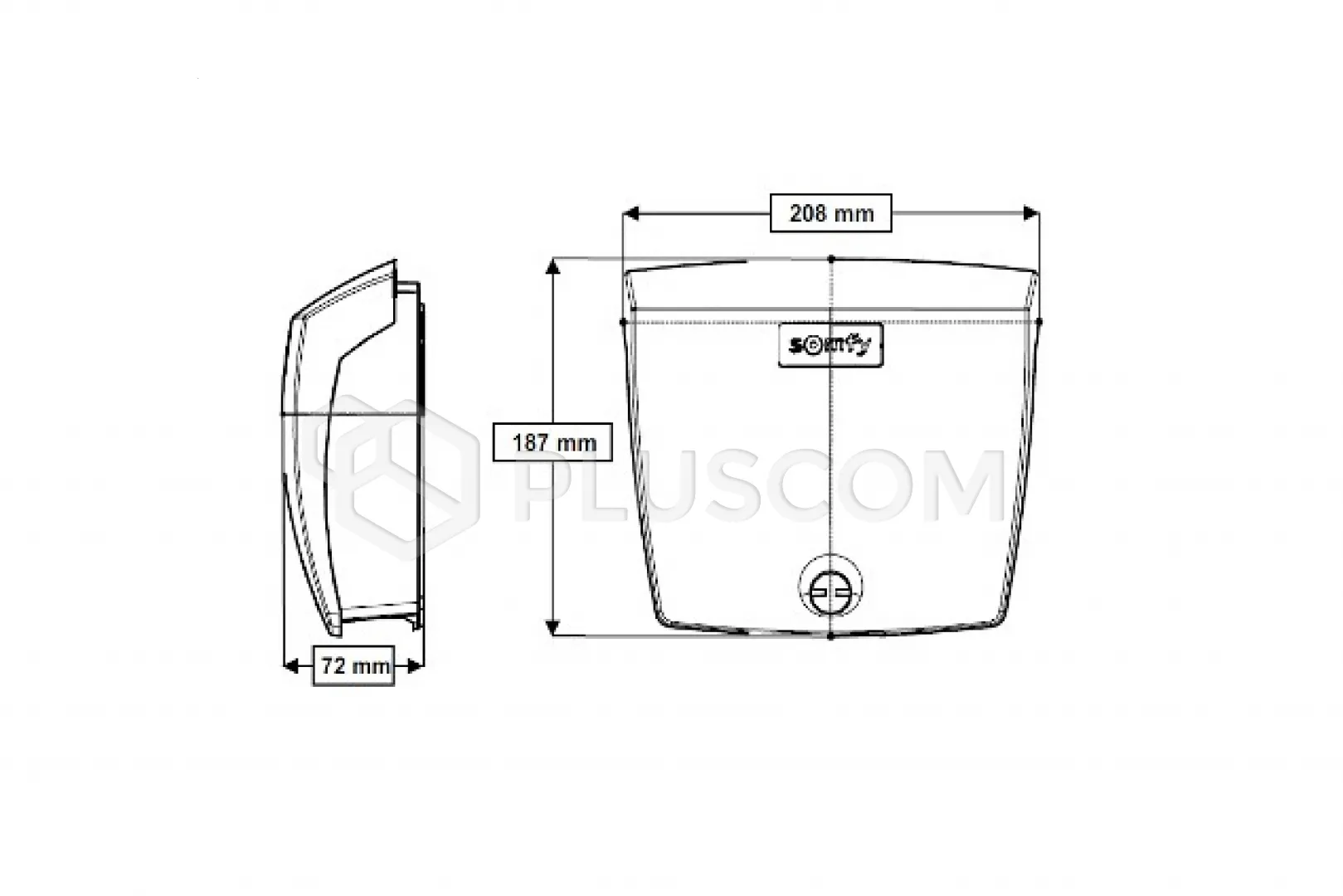

  • Dimensions[cm]: 18.7 x 20.8 x 7.2
  • Voltage: 230V
  • Degree of protection: IP 44

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

SOMFY 1870503 Rollixo Optimo RTS receiver with cable


The Rollixo Optimo RTS receiver is designed to control the roller garage door drive - Somfy RDO CSI in residential buildings.
It is recommended to use this receiver with a drive for gates with maximum external dimensions: width 6 m, height 4 m. In order to ensure compliance with applicable standards, the roller gate must be equipped with a lower safety strip (optical or resistive - 8.2 kΩ or 1.2 kΩ) and a safety brake against the fall of the curtain.

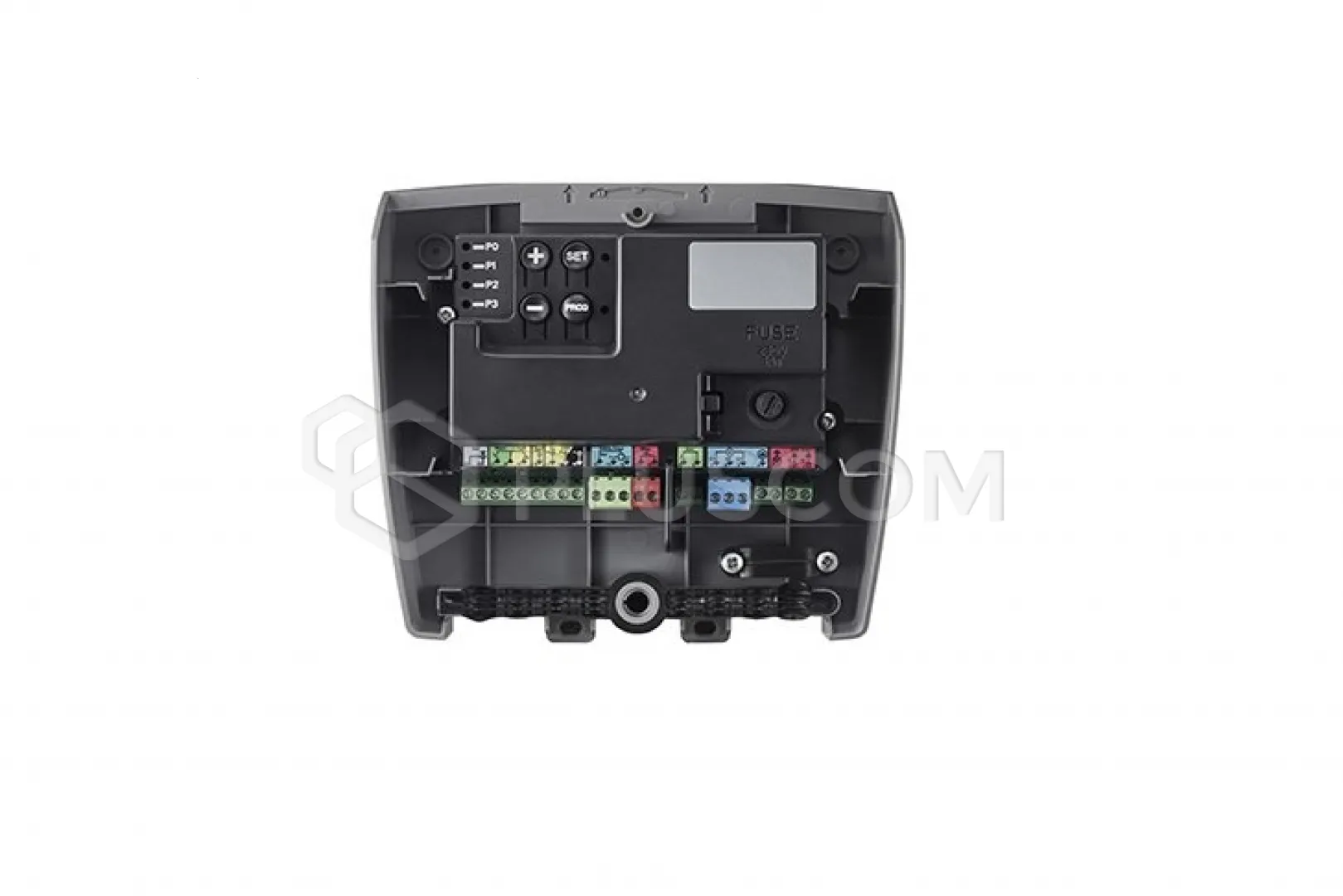

The receiver is characterized by simple and quick installation: mounting bracket included, multi-colored marking of wired input section terminals, separated zones of 230 V and 24 V voltage areas, easy programming, only 4 parameters to set.
In the event of connecting a key switch to terminals 20-21 and in the event of a failure of safety devices (lower safety strip, safety brake, set of photocells), it is possible to manually control the gate in Dead-man mode after 3 minutes from the failure.

Download
User Guide 1.22 MB
