Somfy 1841216 Master Pro 180 Photocell Kit

99,02 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #31316
Manufacturer: Somfy
  • Range: 30m
  • NO contact and self-test function
  • 180° adjustment
  • IP45 protection class
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

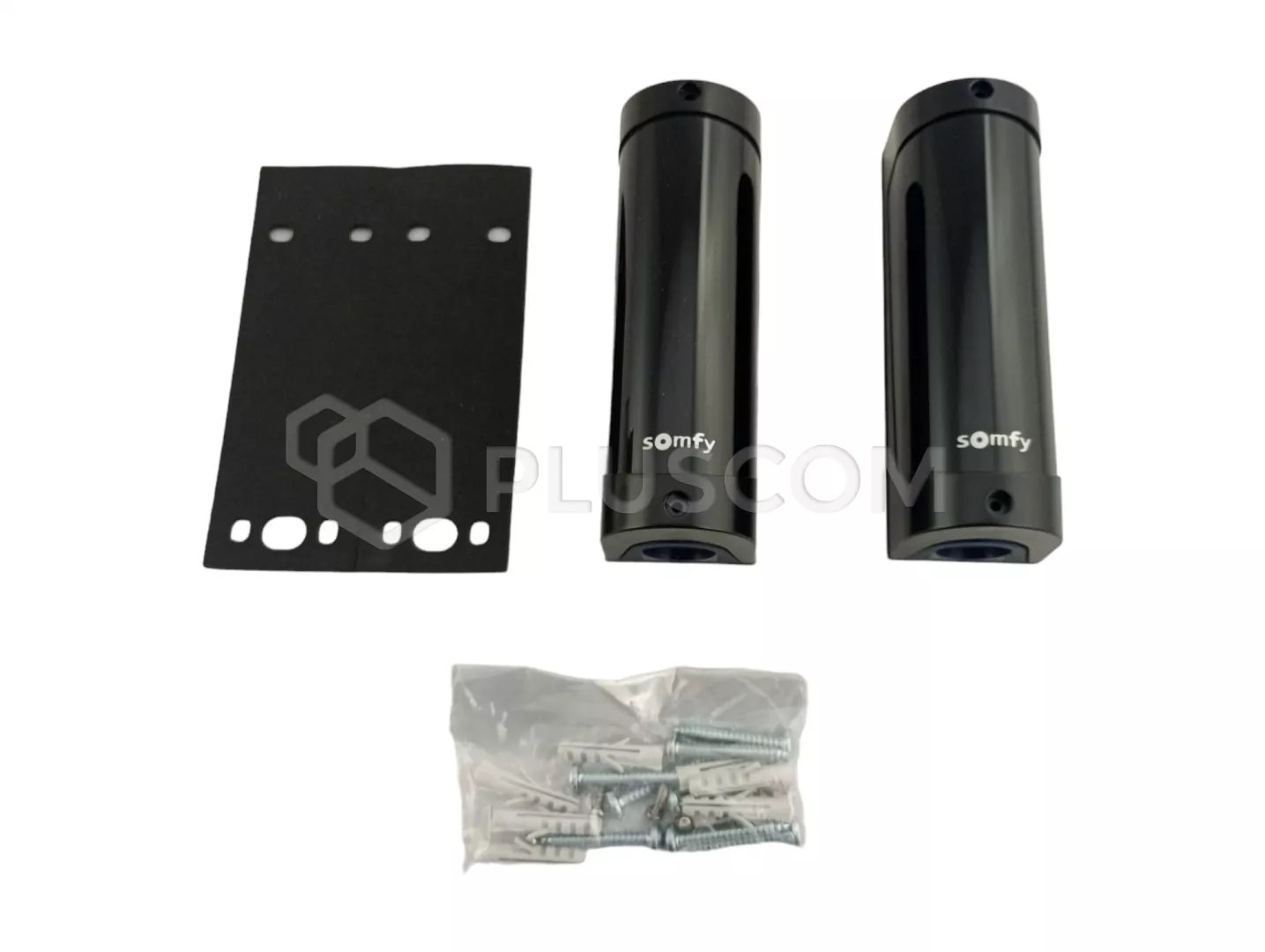

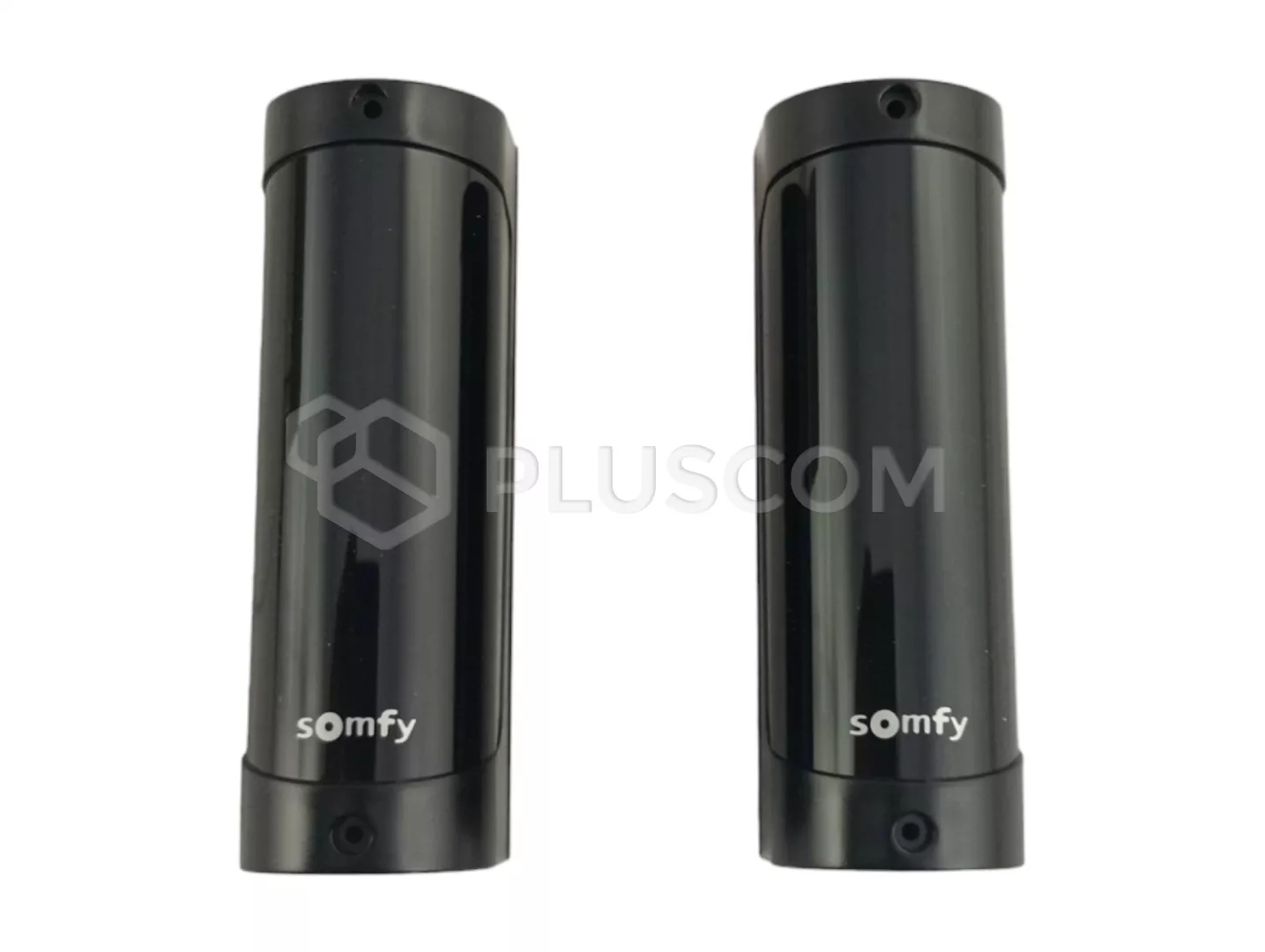

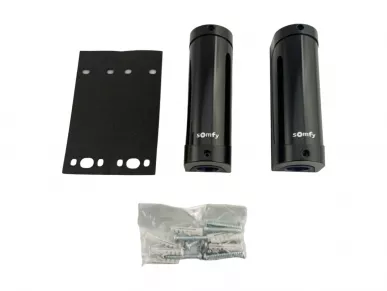

Somfy 1841216 Master Pro 180 Photocell Set

A photocell is a mandatory element of an automated gate that ensures the safety of users and protects against damage to vehicles.
According to PN-EN 12453, PN-EN 12445, each sliding gate must be protected by 2 lines of photocells active during closing.

The photocell can be adjusted within 180°, which can be easily done using tools to set in the axis of the photocells.
Standard wiring 4 wires + 2 wires. NO contact and autotest function.

TECHNICAL DATA:

  • Power supply: 24 V AC/DC
  • Current consumption: transmitter - 12 mA, receiver - 10 mA quiescent, 15 mA max.
  • Contact parameters: 30 V 1 A
  • Range: 30 m (reduced in case of fog or rain)
  • Contacts: Dry contact NO
  • Self-testing input: yes
  • Electrical insulation class: class III - very low safe voltage
  • Operating conditions: from -20°C to +55°C
  • Protection class: IP 45
  • Dimensions: 130 x 45 x 43mm
