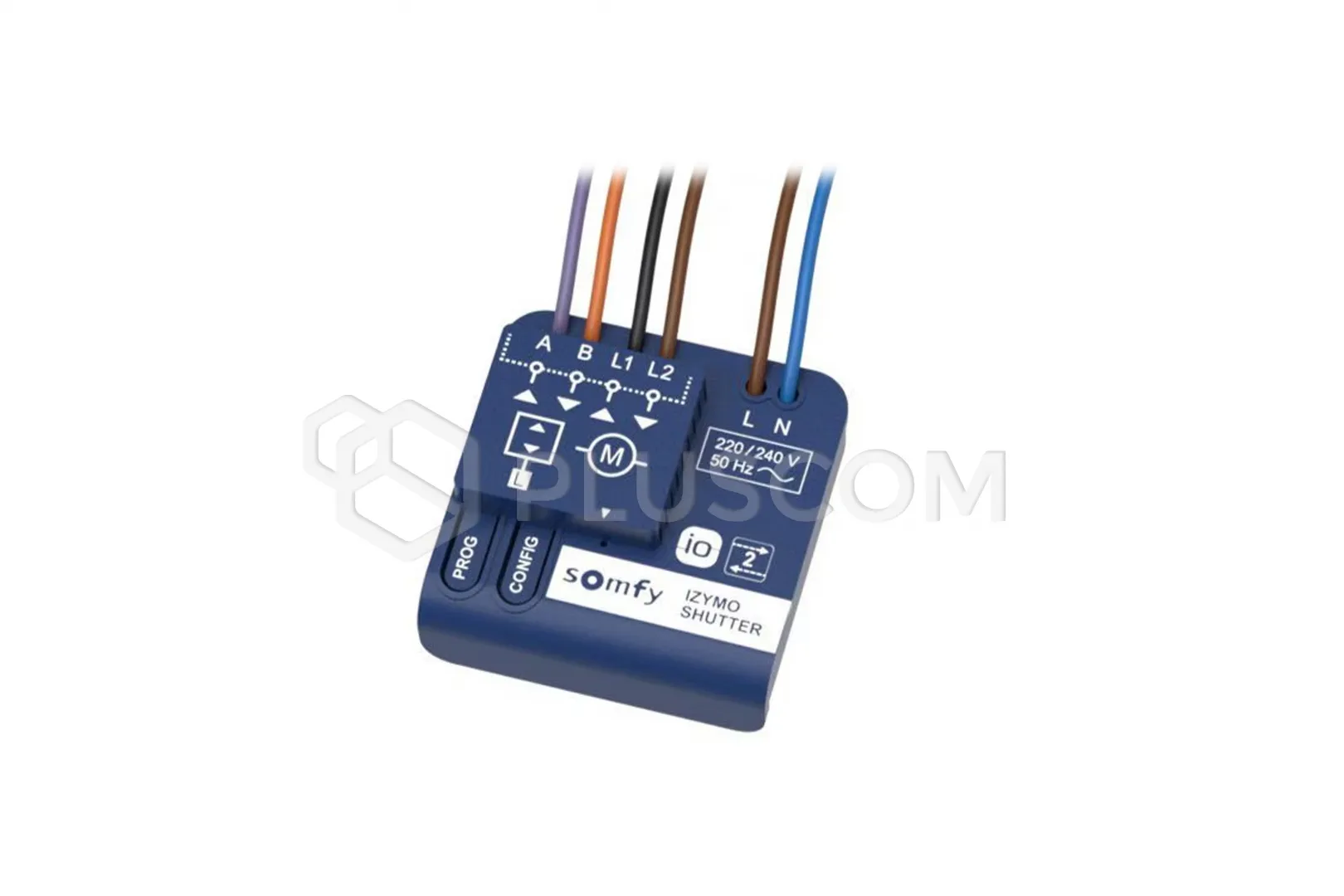

Somfy 1822660 IZYMO io - Micro receiver for blinds

Somfy IZYMO io - Micro shutter receiver (1822660)

The micro-modular IZYMO SHUTTER RECEIVER io is a radio receiver that allows control of a wired shutter drive. It is controlled using iohomecontrol radio transmitters and/or a shutter switch.
By adding it to your TaHoma system, you can manage it remotely via the Internet from anywhere in the world.

The bidirectional io-homecontrol technology allows you to check at any time whether the shutter is open or closed. In the mobile application, you can easily create personalized scenarios, schedules and take over full control of its operation.

Additional features and benefits:
The receiver is compatible with 60 mm deep flush-mounted boxes (or 50 mm deep flush-mounted boxes with socket mounting) Receiver protection in case of incorrect wiring connection No need to replace the current switch Compatible with wired UP/STOP/DOWN wall switches Installing the device without the need to lay additional cables.

Easy installation:
You can easily mount the IZYMO receiver in a flush-mounted box behind an existing electrical switch or in a branch box. Installation takes place without the need to cut walls or replace previously installed switches. Thanks to the step-by-step instructions, you will quickly and independently program the wireless wall transmitter or remote controls.

TECHNICAL DATA:

• Power supply:
• • Input: 220-240 VAC (neutral + live)
  • Output: 2A
• Max. power: Motor up to 80 Nm
• Frequency: 868 MHz
• Protocol: io-homecontrol
• Range in open space: 200 m
• Range between two reinforced concrete walls: 20 m
• Cross-section of the power supply cable: Min.: 0.75 mm2, Max.: 1.5 mm2
• Protection class: Double insulation without grounding
• Number of io-homecontrol control points:
• • One-way: 10 remote controls
  • Two-way: Unlimited
• Protection class: IP20
• Operating temperature: 0°C to +55°C
• Dimensions: 43x43x18mm
