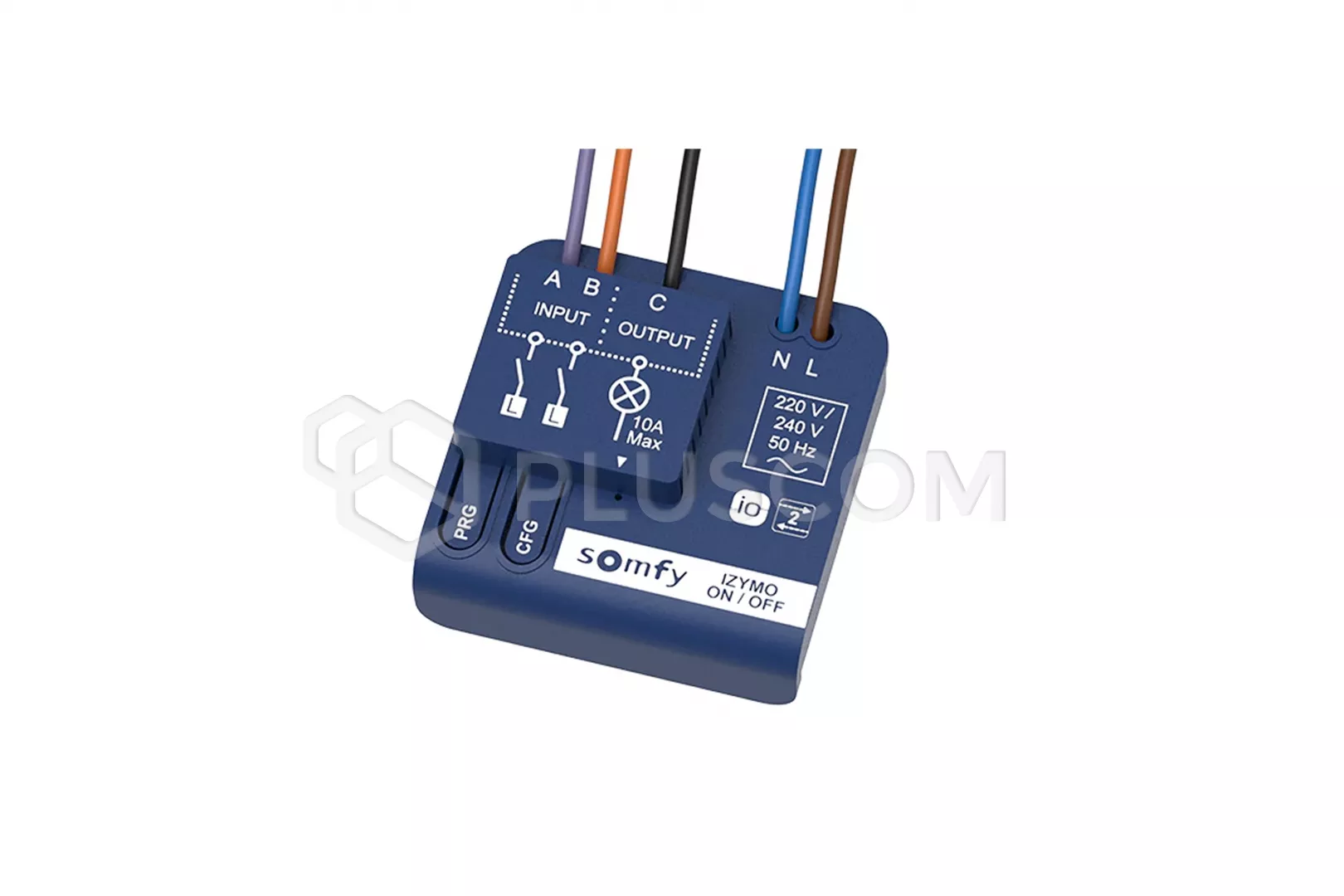

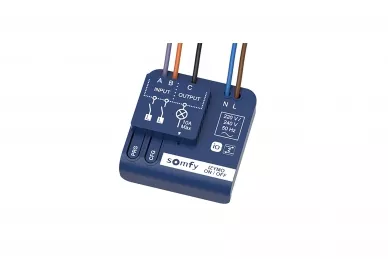

Somfy 1822649 IZYMO io Micromodular receiver on/off

h1> Somfy IZYMO io Micromodular radio receiver on / off (1822649)
IZYMO io Micromodular radio on / off receiver allows you to control anyone type of lighting or load in on / off mode and controls it remotely by using the remote control and / or smartphone.
By adding the receiver to the io-homecontrol protocol (Tahoma or Connexoon) you can create scenarios, schedules, simulate your presence while you are on vacation etc.
Io-homecontrol radio technology provides status feedback devices.

The micromodule features a "State Memory" that will restore the state operation of the device if the mains power has been turned off, however the built-in timer allows the device to be automatically turned off after expiry set time (from 30 seconds to 30 minutes).

The main advantages of the product:

• bidirectional io-homecontrol technology
• device status feedback
• you can decide if after a power outage, the device will return to state before a power outage or it will be turned off
• no need to replace the installed switch kept consistent design of all switches
• compatible with wired switches (push-button and cradle)
• compatible with devices up to 2000 W
• compatible with 50 mm deep (or deep flush-mounted boxes 40 mm deep with socket mounting)
• protect receiver in case of wrong wiring polarity

The device, thanks to its small dimensions of 43x43x18 mm, is designed for installation in flush-mounted boxes behind the light switch or socket electric j (mini. 50 mm deep or with a pocket for a micromodule).

TECHNICAL DATA:

• power supply: 220/240 V, 50 Hz, max. 10 A
• cross-section of the power cord: min: 0.75 mm², max: 1.5 mm²
• frequency band and effective radiation power: 868,000 MHz - 868,600 MHz ERP & lt; 25 mW, 868.700 MHz - 869.200 MHz ERP & lt; 25 mW, 869.700 MHz - 870,000 MHz ERP & lt; 25 mW
• range in open field: 200 m
• range between two reinforced concrete walls: 20 m
• number of io-homecontrol control points: unidirectional - 10 remotes remote control, two-way - unlimited
• protection class: IP 20
• working temperature: from 0 ° C to + 55 ° C
• protection class: Double insulation without grounding
• dimensions: 43 x 43 x 18 mm
