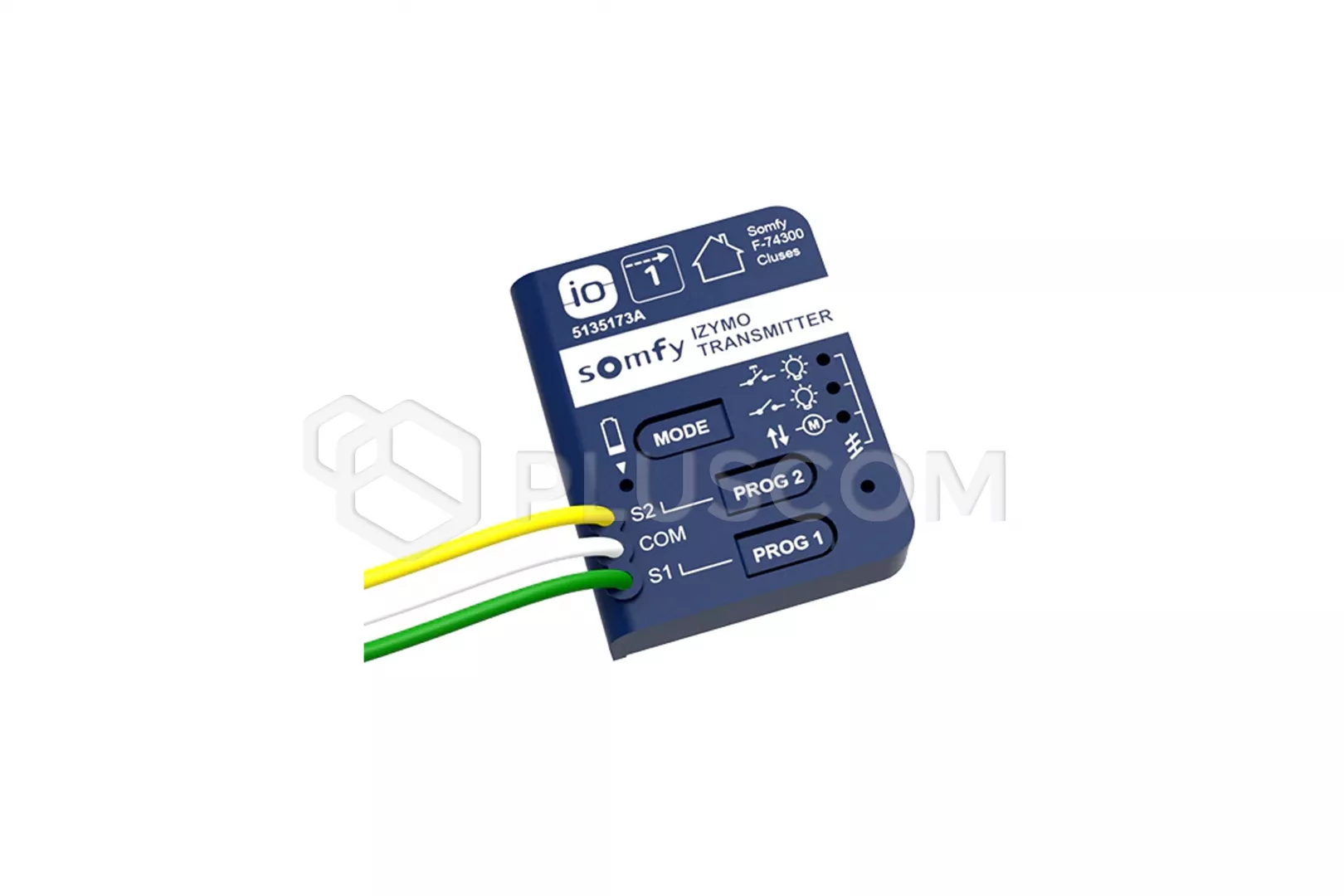

Somfy 1822609 IZYMO io Micromodular transmitter for lighting

Somfy IZYMO io Micromodular radio transmitter for lighting 1822609

The micromodular transmitter allows you to turn a switch or button into a transmitter io-homecontrol (lighting or roller shutter). It also allows you to run programmed action scenario on the TaHoma interface with any button.
The device, thanks to its small dimensions of 43x35x8 mm, is intended for assembly behind the light switch e.g. at the front door to make it convenient run scenarios "leaving the house" and "return home".

Main advantages of IZYMO

• bidirectional io-homecontrol technology
• compatible with lighting, roller shutters and facade blinds
• compatible with 70 mm deep (or deep flush-mounted boxes 50 mm deep with mounting on slots)
• TaHoma headquarters scenarios trigger
• no need to replace batteries up to seven years in two steps per day
• low battery indicator on the product and in the app TaHoma
• no need to replace the installed switch kept consistent switch design
• compatible with 50 mm deep (or deep flush-mounted boxes 40 mm deep with socket mounting)

When the transmitter battery level drops below the critical threshold, the transmitter only sends one command by radio every second time you press button / switch. In addition, the orange LED «low battery» lights up each time you press it. When associated with TaHoma, where low battery, a message appears next to the icon receiver.
The battery life is from 4 years (20 shares / day) to 7 years (2 shares / day).

TECHNICAL DATA

• power supply: CR2430, 3V battery
• battery life: 4-7 years
• radio frequency: 868.70MHz - 869.20MHz
• radio transmitter power: ERP & lt; 25mW
• range in free space: 200 m
• range through two concrete walls: 20 m
• working temperature: from 0 ° C to + 55 ° C
• protection class: IP 20
• dimensions: 35 x 43 x 8 mm
