Somfy 1811066 Smoove Origin io with Pure frame

Out of stock. Archived Product.

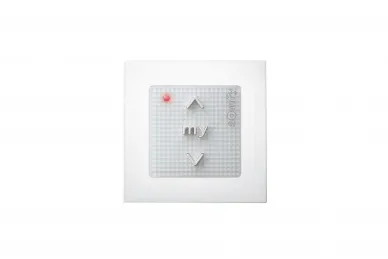

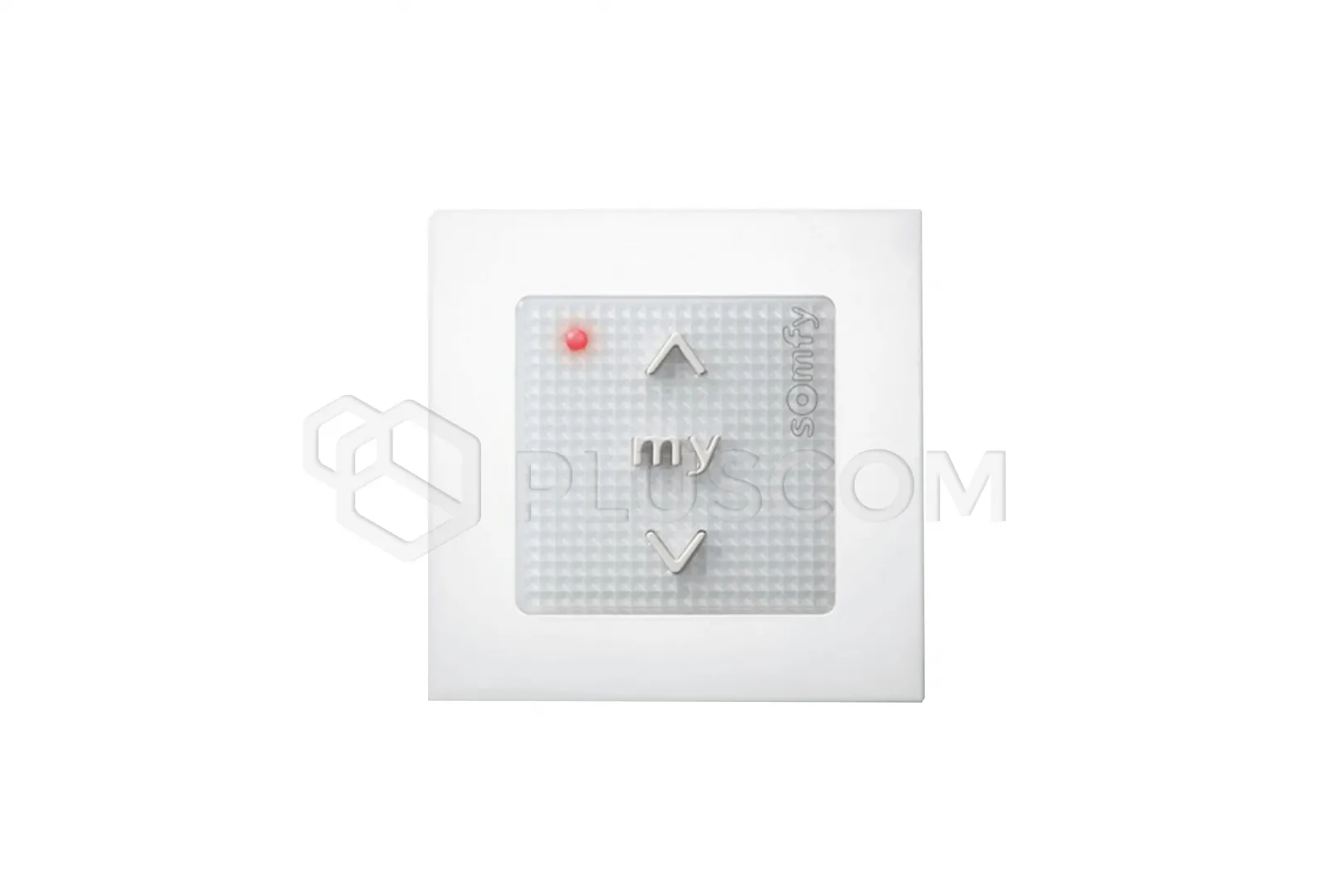

SOMFY 1811066 Smoove Origin io with Pure frame


Product replaced by Somfy 1871058 Amy 1 io wall transmitter with frame



Smoove Origin io is a radio transmitter for controlling one or more motors. Individual, group and central control are also possible.

Product advantages:

  • Operation via push buttons
  • Single device, group of devices or central control possible
  • Compatible with Somfy 50 x 50 frames
  • UP button raises the blinds and rolls up the awnings or switches on the lighting
  • MY button stops the blinds or calls up an individually set comfort position
  • DOWN button lowers the blinds and rolls up the awnings or switches off the lighting
  • The programming button is located on the back of the module
  • The mounting plate allows for simple and quick wall mounting, the UP plug socket is no longer required
  • The LED indicates the transmitted commands
  • Wireless - battery-powered, and therefore minimal installation costs
  • For combining groups (Telis Composio) or scenarios (Impresario Chronic io)

Technical data:

  • Power supply: 3 V (CR 2430 battery)
  • Operating temperature: 0° C to +60° C
  • Ambient conditions: dry rooms
  • Protection class: IP 30
  • Radio band: 868.95 MHz
Download
User manual 91.14 MB
