Somfy 1245502 Roller shutter actuator ILMO 50 WT 15/17 VVF 3M BAR

279,92 EUR including 23.00% VAT
Product code: #40647
Manufacturer: Somfy
  • 15NM/17r.pm.
  • Power supply 230 V
  • 4-core cable, 3m long
  • Pipe Ø47 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

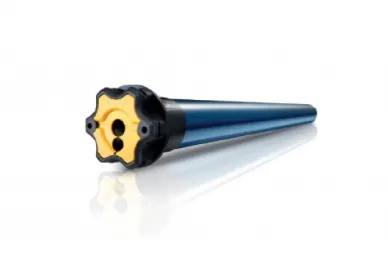

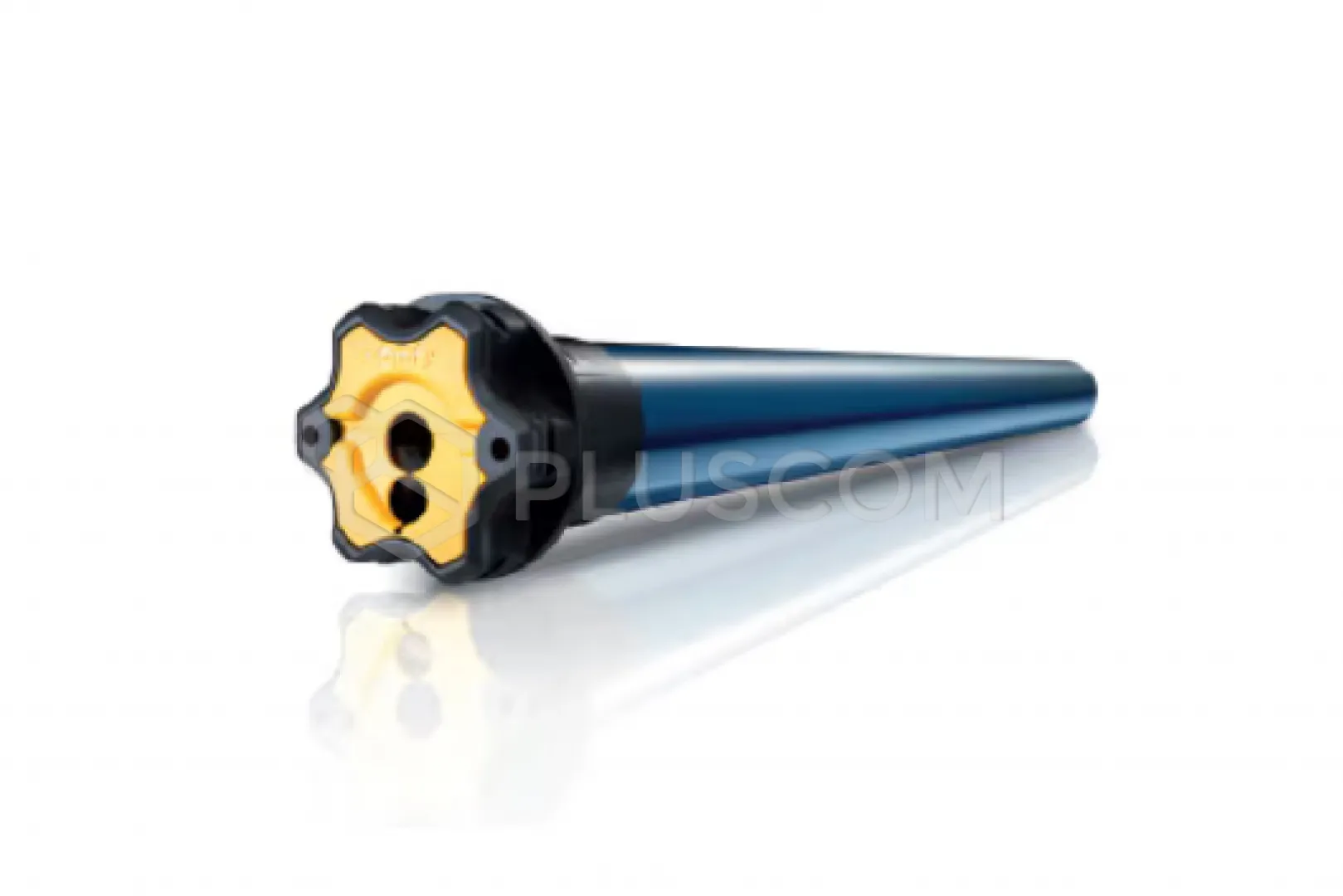

Somfy 1245502 ILMO 50 WT 15/17 VVF 3M BAR roller shutter actuator


Tubular motor 230 V/50 Hz. Plug and play, no adjustment required thanks to rigid connections. Automatic shutdown when resistance is detected. Fits a tube with a minimum internal diameter of 47 mm. Opening time limited to 4 minutes.

Supplied as standard with a 3 m white 4-core cable (VVF). Frost protection only works when the slats are closed. If the roller shutter with open slats (ventilation) freezes, the motor will not detect this. This version can no longer be connected in parallel.

FEATURES:

  • Plug and Play adjustment: no maintenance required. The direction of rotation is changed by swapping the cables
  • Automatic adjustment of the upper end point: quick adjustment. Maximum opening of the blind at all times
  • Automatic adjustment of the lower end point: quick adjustment. Always perfectly closed blind
  • In this version of the ILMO 50 WT motor, parallel connection of motors is no longer permitted
  • No need to access the motor head to adjust or set the end points: the blind box does not have to be opened
  • Using the Help me app: free app with all adjustments, easily explained and available offline
