Somfy Ixengo JL 230V RTS ECO Comfort Pack, set for swing gates o 300 kg
weight per gate leaf (1240550)

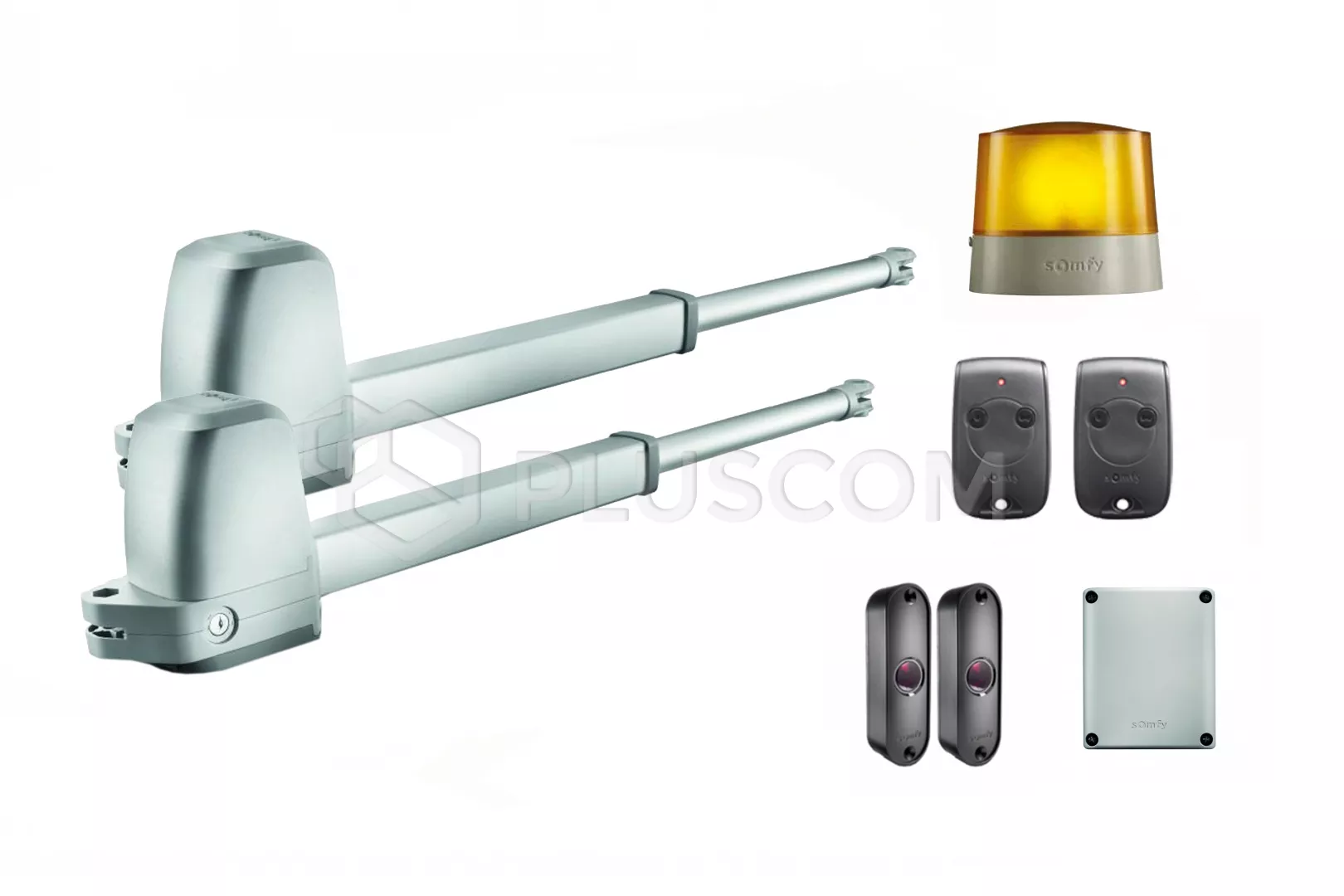

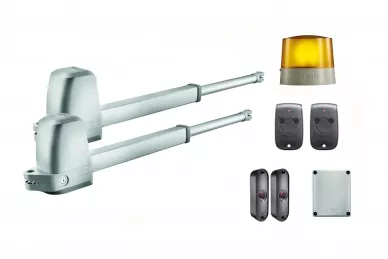

PACKAGE CONTAINS
- actuator Ixengo JL 230V - 2pcs
- switch CB 230 RTS
- Keytis RTS 2-channel remote control - 2 pcs
- lamp ECO Pro 230V
- set of Master Pro photocells - Bitech
|
Somfy Ixengo JL 230V RTS ECO Comfort Pack
|
Ixengo JL 230V RTS ECO Comfort Pack is a ready set for Automation of a
large gate with a leaf weight of up to 250 kg or a length of 3m(350kg/3m lub
450kg/2.5m). Users praise it for durability, efficiency and safety.
- quick install
- Special application for installation: Fix & Go
- possibility to set operating parameters
- intuitive operation
- non-retractable mechanism ensures very high resistance to heavy pressure
wind and attempted forcible opening
- easy and safe disengagement with individual key
- adjustable torque value.

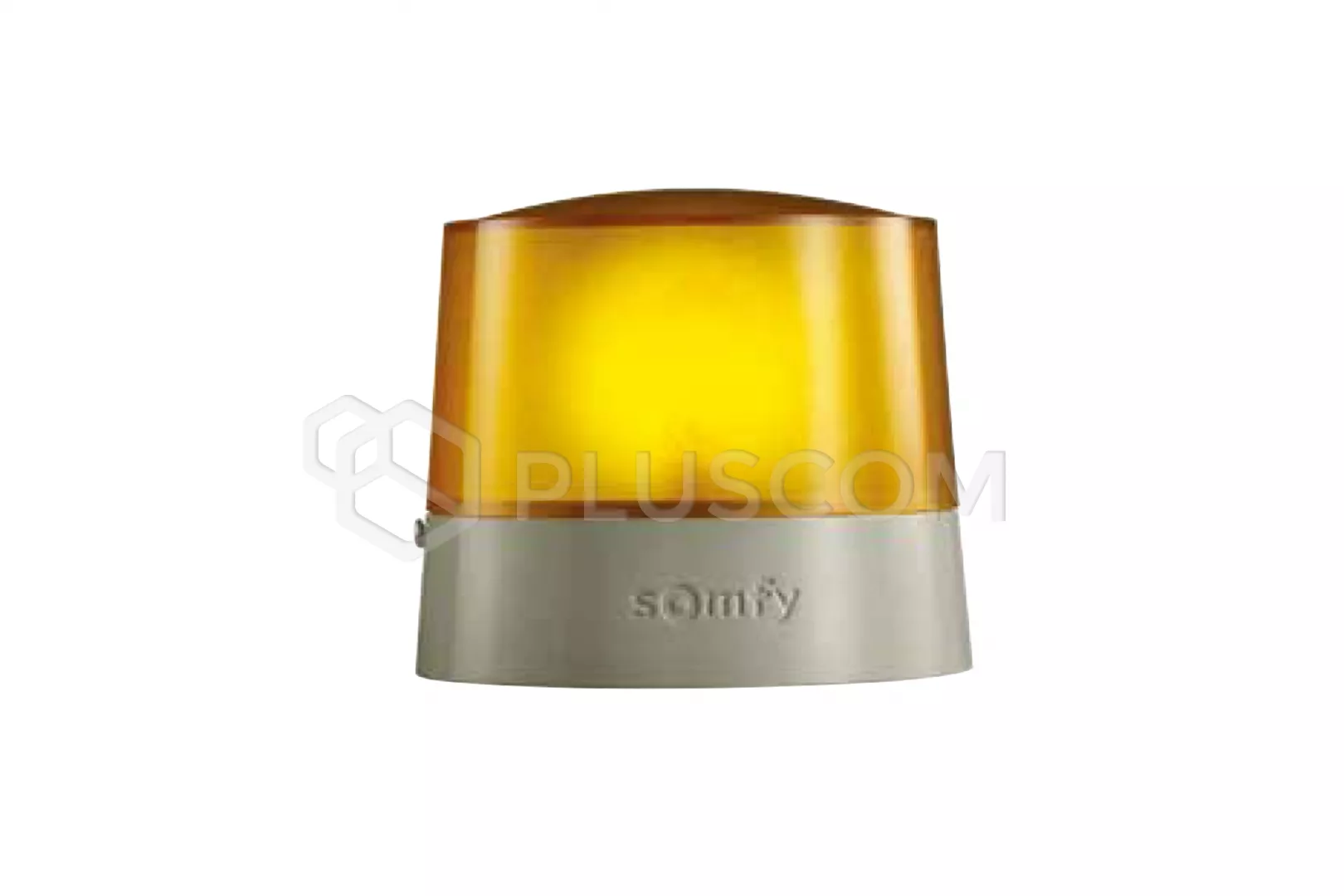

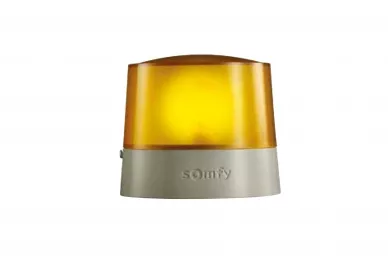

Orange Eco Pro lamp , signals the movement of the entrance gate. It
has a bright orange light, class II insulation.
Specification:
- power: 25 W
- power supply: 230V
- flashing management: lamp breaker
- electrical insulation class: class I I
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
ECO Pro 230V lamp
|

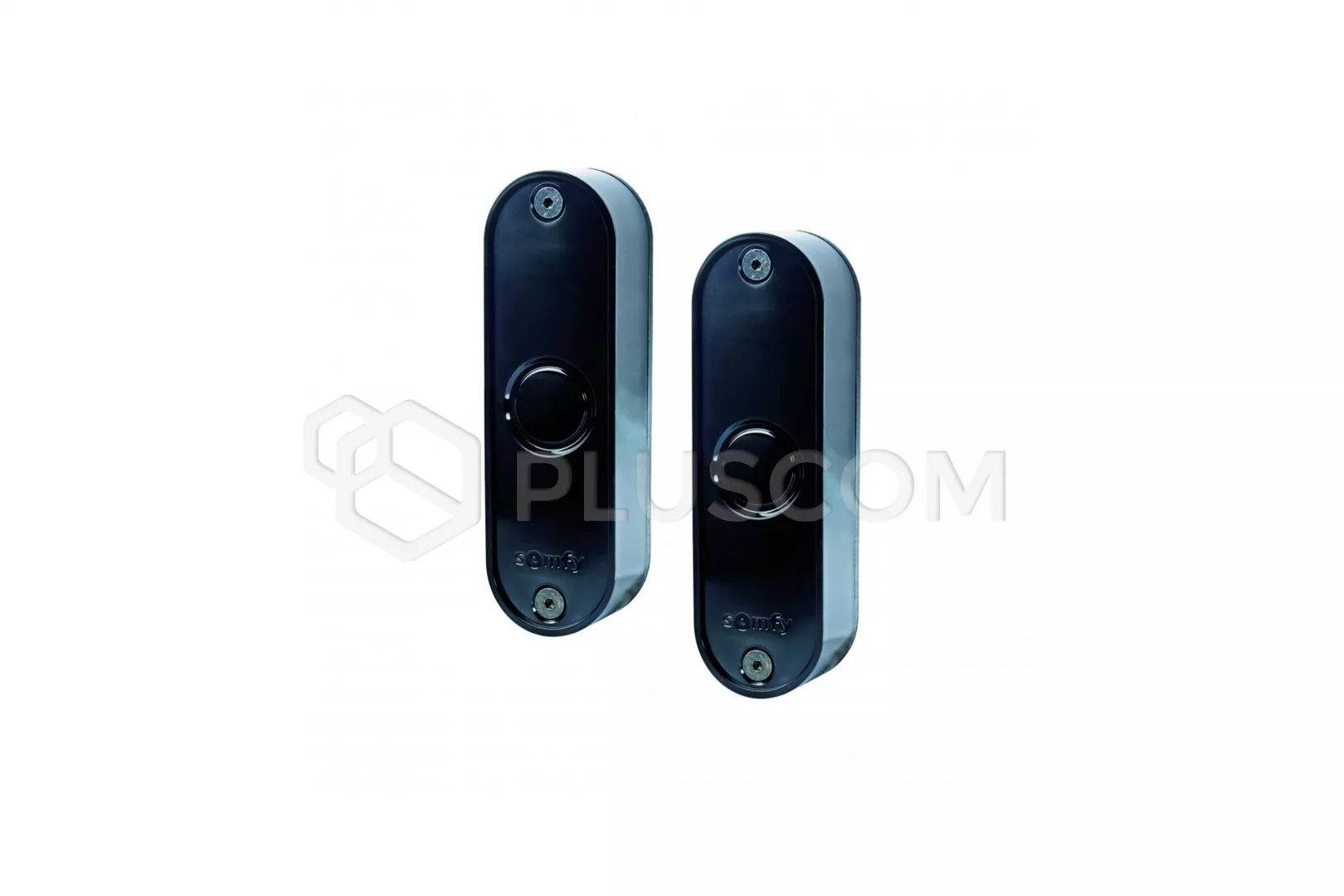

Master Pro - Bitech photocells are discrete devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- switching current
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Photocells Master Pro - Bitech
|

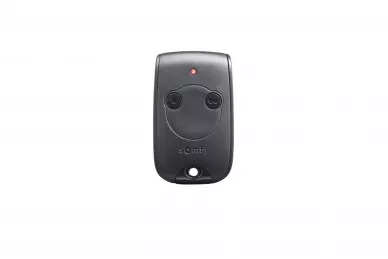

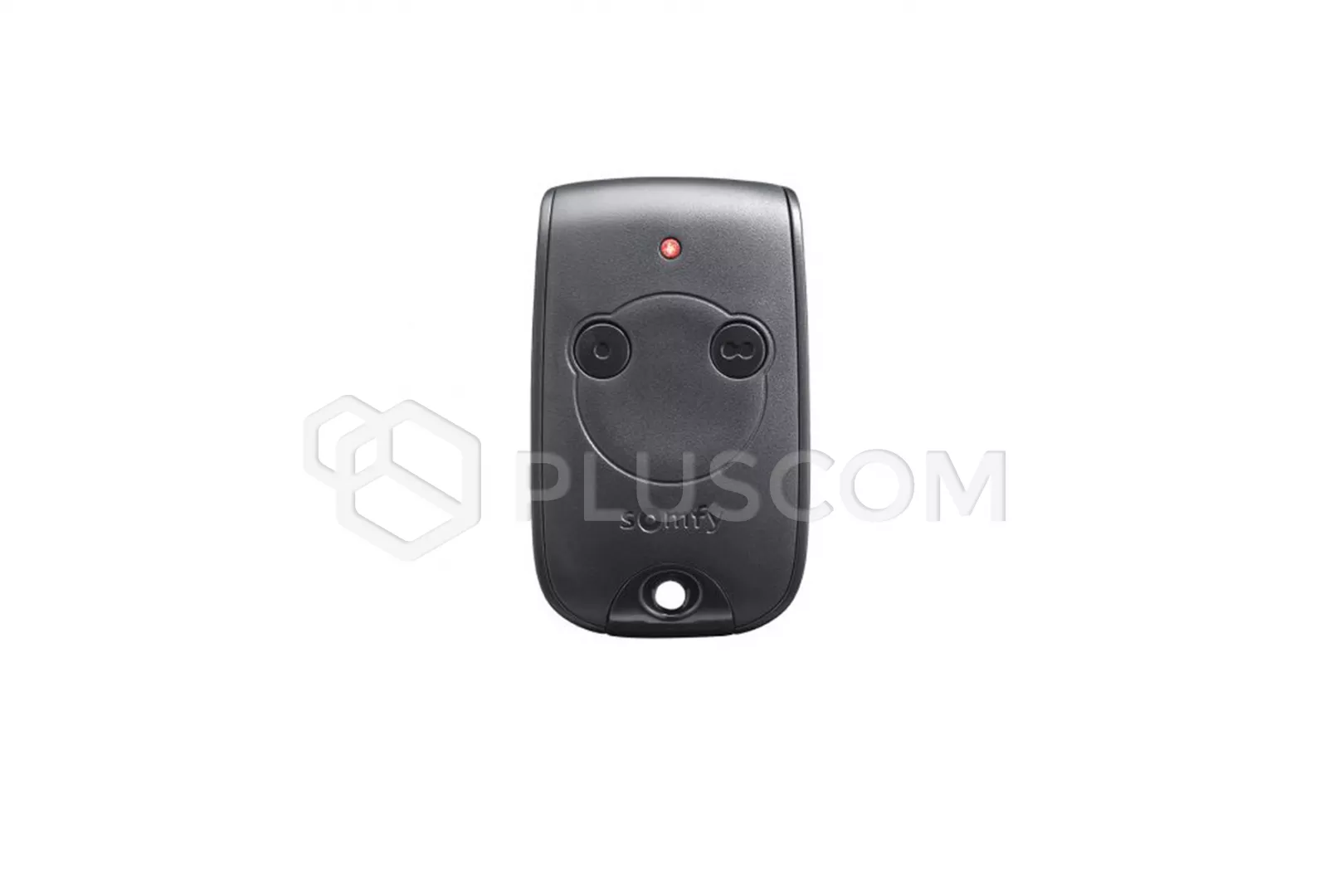

The kit includes two Keytis RTS 2-channel remote controls. Each pan is
used for control from 1 to 2 devices in the RTS system.
Remote specification
- number of channels: 2
- frequency: 433.4MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 70 x 41 x 15 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP31
|
Keytis RTS 2-channel remote control
|

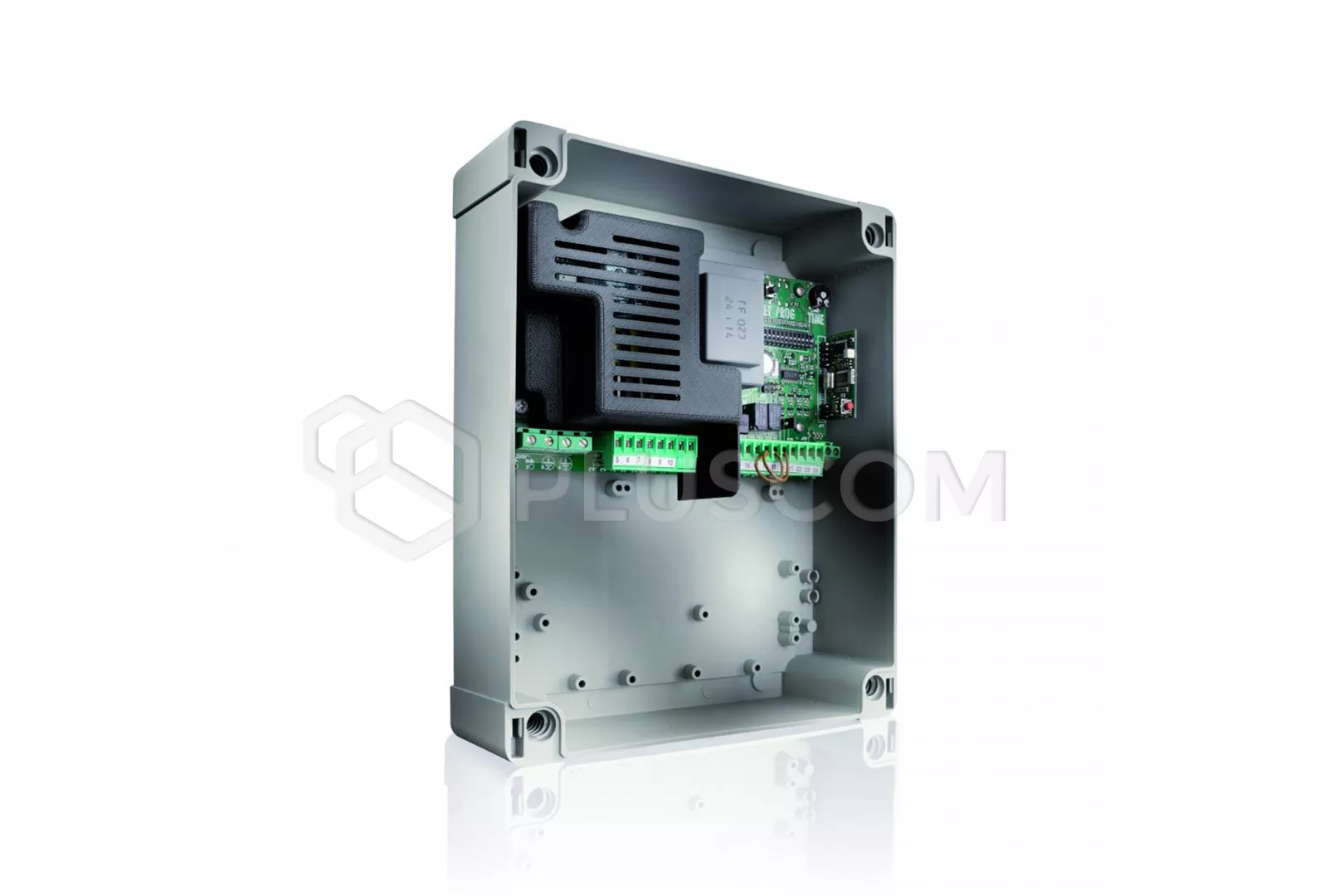

The drive is controlled by the CB 230 RTS switch, which can
control it both with one and two actuators.
It has one button for the gate self-learning. We have programming in CB 230RTS
one-button remote controls and 12 DIP switches for advanced settings.
The operating status of the drive, error codes and drive malfunctions are
displayed in real time.
PANEL SPECIFICATION
- Mains power: 220 - 230 V - 50 Hz
- Maximum power consumption: 210W
- Programming interface: 2 buttons, 12 DIP switches, trimmer, 7 LEDs
- TRS radio frequency: 433.42MHz
- Number of storable remote control devices: max. 128 channels
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V
- motor power supply: 230 VDC
- power supply for external lighting: 230V-60W
- accessory power supply: 24 V DC / 350 mA
- drive force: 3000N
- opening time to 90 ° without slowing area and maximum speed: 7 to 22
seconds
- Number of storable remote control devices: max. 128 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 54
