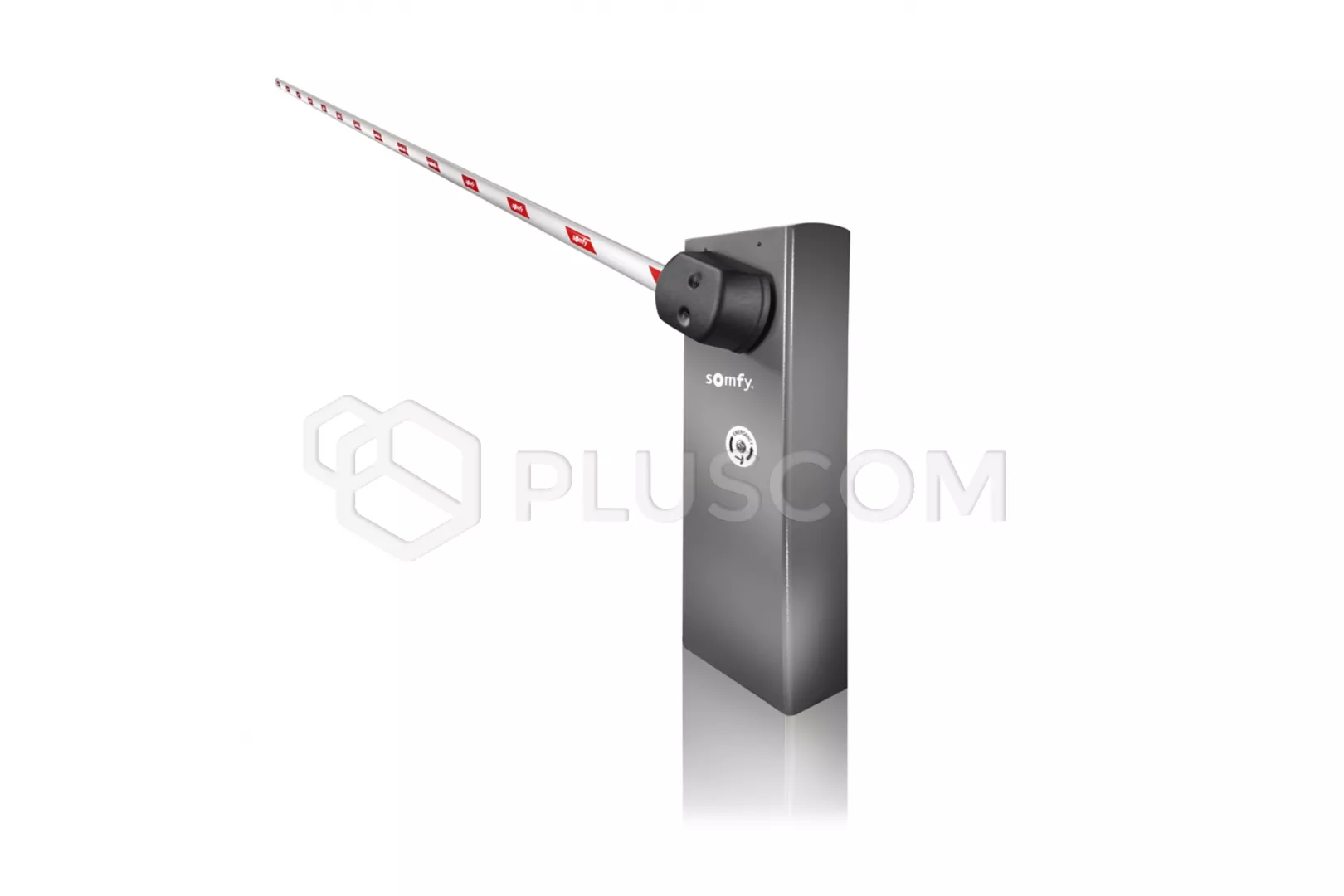

SOMFY BARRIER Levixo 50 230V RTS UNIT CENTRAL FOR ARM UP TO 5m
(1216605)
As an access control element, the electromechanical barrier works perfectly
well any guarded car parks, at universities, offices, communities residential
and other industrial facilities.
The design of the barrier makes it suitable for semi-intensive work and
guarantees 600 cycles a day.
Levixo 50 has been adapted to passes with a width of 5 meters.
It is factory set for left-hand mounting (when viewed from the inside).
It is recommended to install a barrier arm support (optional) to ensure longer
period of its operation.
The Levixo 50 central unit allows you to install an arm with a maximum 5m
long. A 230V motor with a power of 300W has a torque of 250Nm. In order
connecting the drive to the power supply, use an omnipolar cable o a minimum
cross section of 3 x 1.5 mm² (according to the type defined in the standards).
The barrier is equipped with adjustable electric limit contacts and a
mechanical switch. Between an electric position contact the limit switch and
the mechanical switch, the rotation margin must be kept of about 1 °.
The top surface of the actuator is slightly sloped to prevent build-up
rainwater.
TECHNICAL DATA
- Power supply: 230 V ~ 50 Hz
- Power input: 300 W
- Capacitor: 8 μF 450 V
- Current consumption (with accessories): 1.4 A
- Max. torque: 250 Nm
- Opening time: 8s
- Number of starts per day: 600
- Power supply for accessories: 24 V (consumption max. 180 mA)
- Auto close time: 0 to 90 seconds
- Working time: 0 to 120 seconds
- Pause for change of movement direction: about 1 second
- Connection of the orange flashing automatic light: 230V max. 15 W
- Fuses: 250 V T 0.62 A and T 1 A
- Built-in radio wave receiver: RTS
- Number of programmable remote controls: 36
- RTS remote control frequency: 433.42Mhz
- Antenna impedance: 50 Ω
- Isolation class: H
- Tripping temperature of the circuit breaker: 150 ° C (winding)
- Operating temperature: -10 ° C + 55 ° C
- Protection class: IP24
- Weight (without the arm): 35.6 kg
