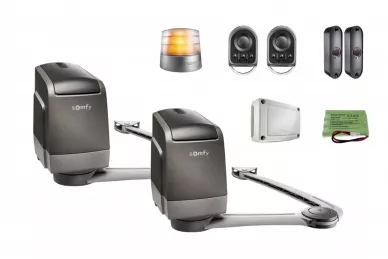

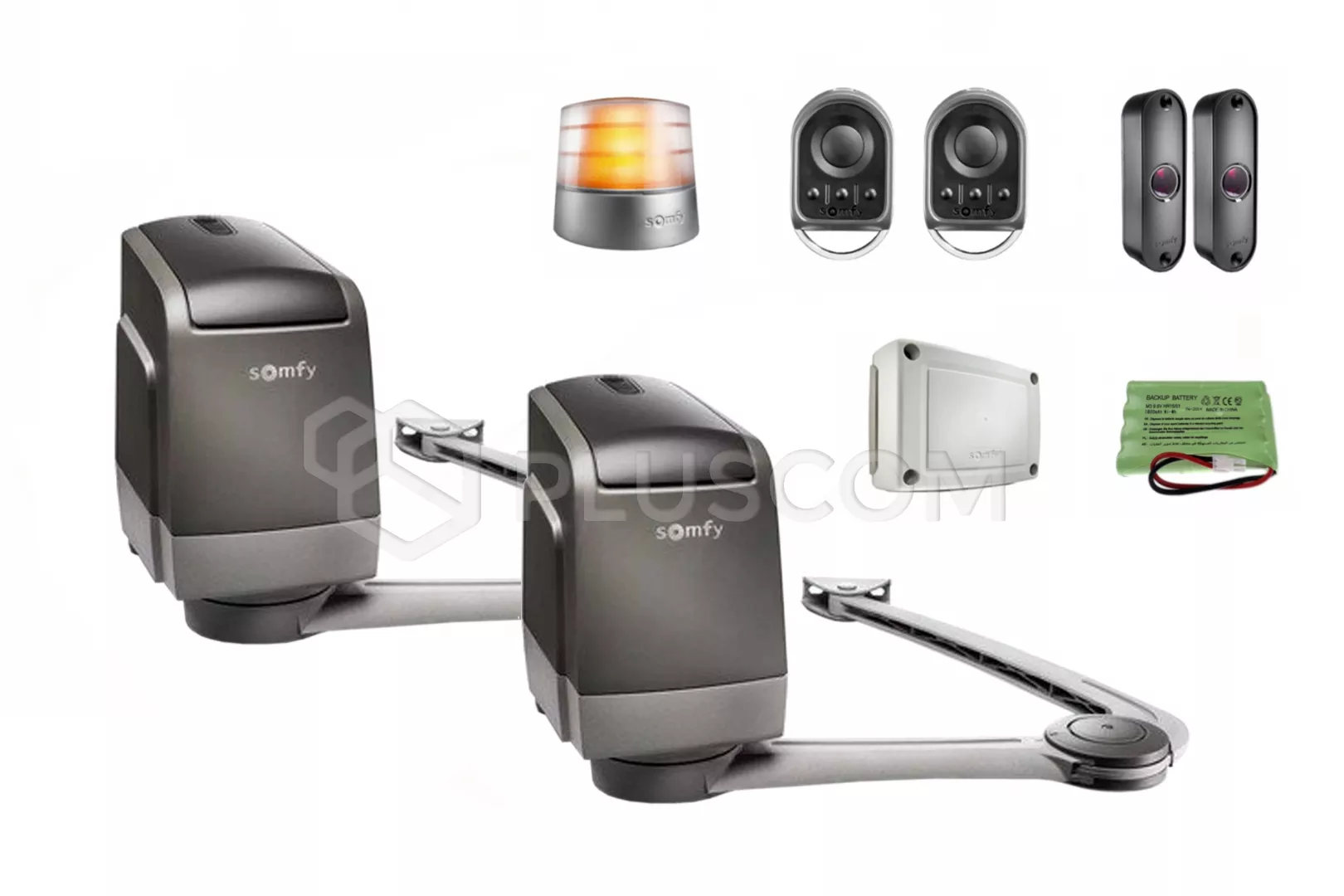

Somfy Axovia 3S io Pack comfort, set for swing gates weighing 200 kg per
gate leaf (1216596)
PACK INCLUDES
- Axovia 3S io actuator - 2pcs
- Keygo 4 io 4-channel remote - 2pcs
- 3S Axovia io switch
- 24V Master Pro lamp with built-in io antenna
- set of Master Pro photocells - Bitech
- buffer battery
|
Somfy Axovia 3S io Pack comfort
|
Crooked arm actuators for swing gates with a leaf length up to 2m and
weight up to 200kg. The Axovia 3S io is a drive with two-way communication
io-homecontrol radio.
The drive can be controlled remotely via the Internet using the smart control
panel home TaHoma or Connexoon with geolocation function.
You can remotely check the gateway with the Connexoon Access app the entrance
gate is properly closed. A feature is helpful on the way home geolocation to
automatically open the gate and turn on the driveway lights.
You can create
your own scenarios in the application.
The most important features of the drive include:
- short opening time: 90 ° in 10 sec.
- soft start and stop
- various accessories to expand the set
- possibility of connecting additional lighting
- safe decoupling with an individual key
- limit switches built into the arms
- auto shutdown mode
- integrated obstacle detection
- intuitive Fix & Go application for easy and correct mounting of the
drive, ensuring optimized operating parameters
- large dedicated space for cabling
- wicket function
- more than 40 parameters defining the operation of the gate
- Internet remote control after adding the drive to TaHom or Connexoon
Orange Master Pro lamp signals the movement of the entrance gate.
It has bright orange light, class III insulation.
Specification:
- power: 15 W
- power supply: 24V
- flashing management: controlled from the drive control panel
- integrated antenna: RTS 433.42MHz
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|

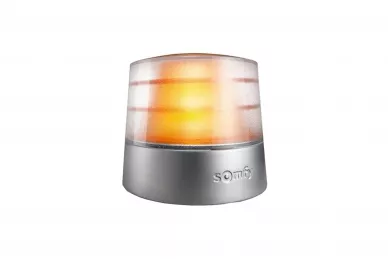

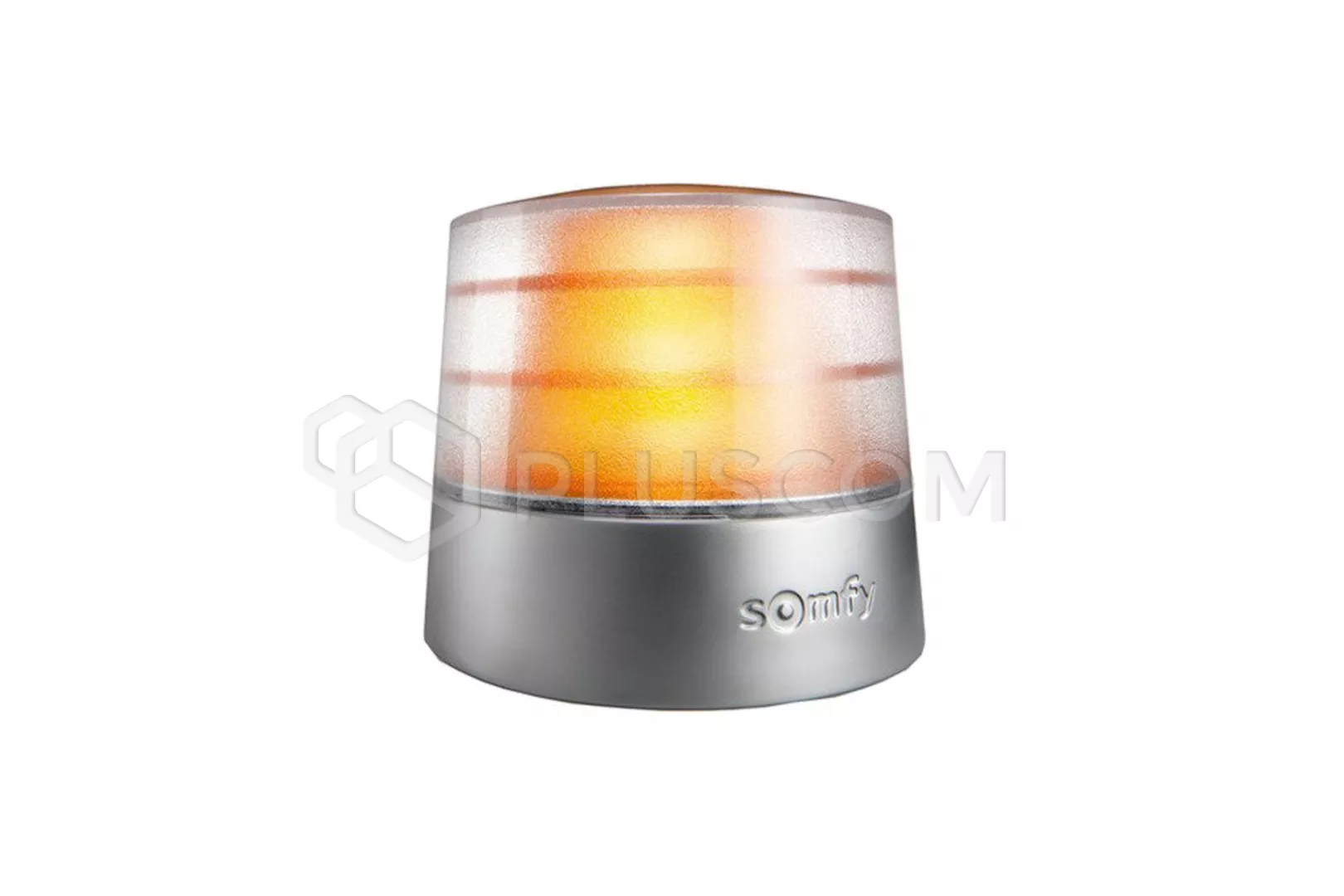

24V Master Pro lamp with built-in io antenna
|
Master Pro - Bitech photocells are discrete devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10 m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|

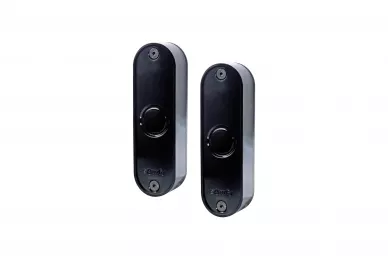

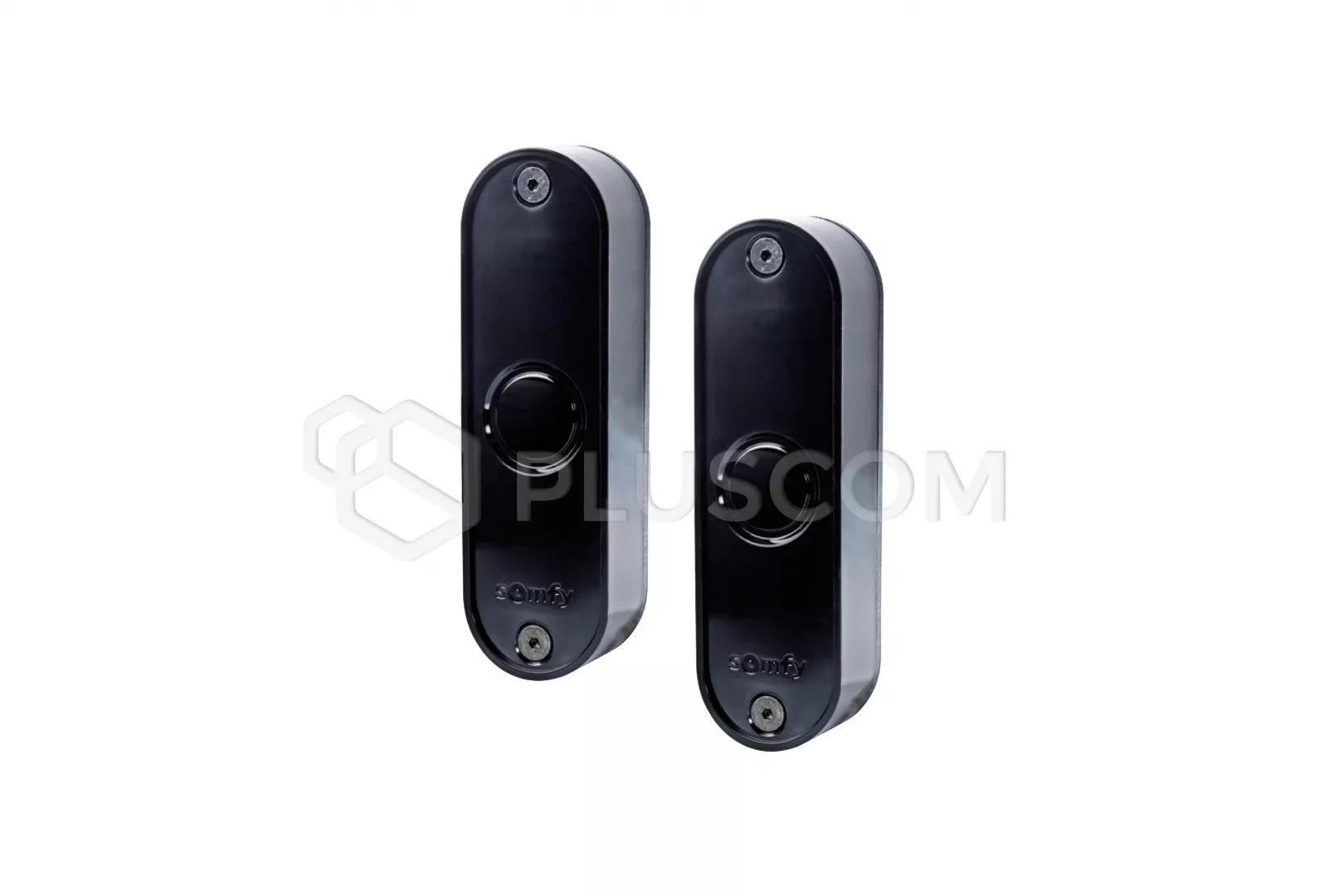

Set of Master Pro photocells - Bitech
|
The kit includes
two 4-channel Keygo io remotes. It's
resistant to moisture and damage to the device, which we can control up to 4
devices. Big central button easy to press without having to look at the remote
control.
Remote specification
- number of channels: 4
- frequency: 868.95MHz unidirectional
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
|

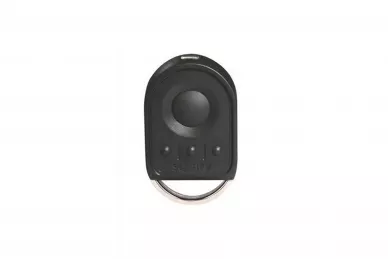

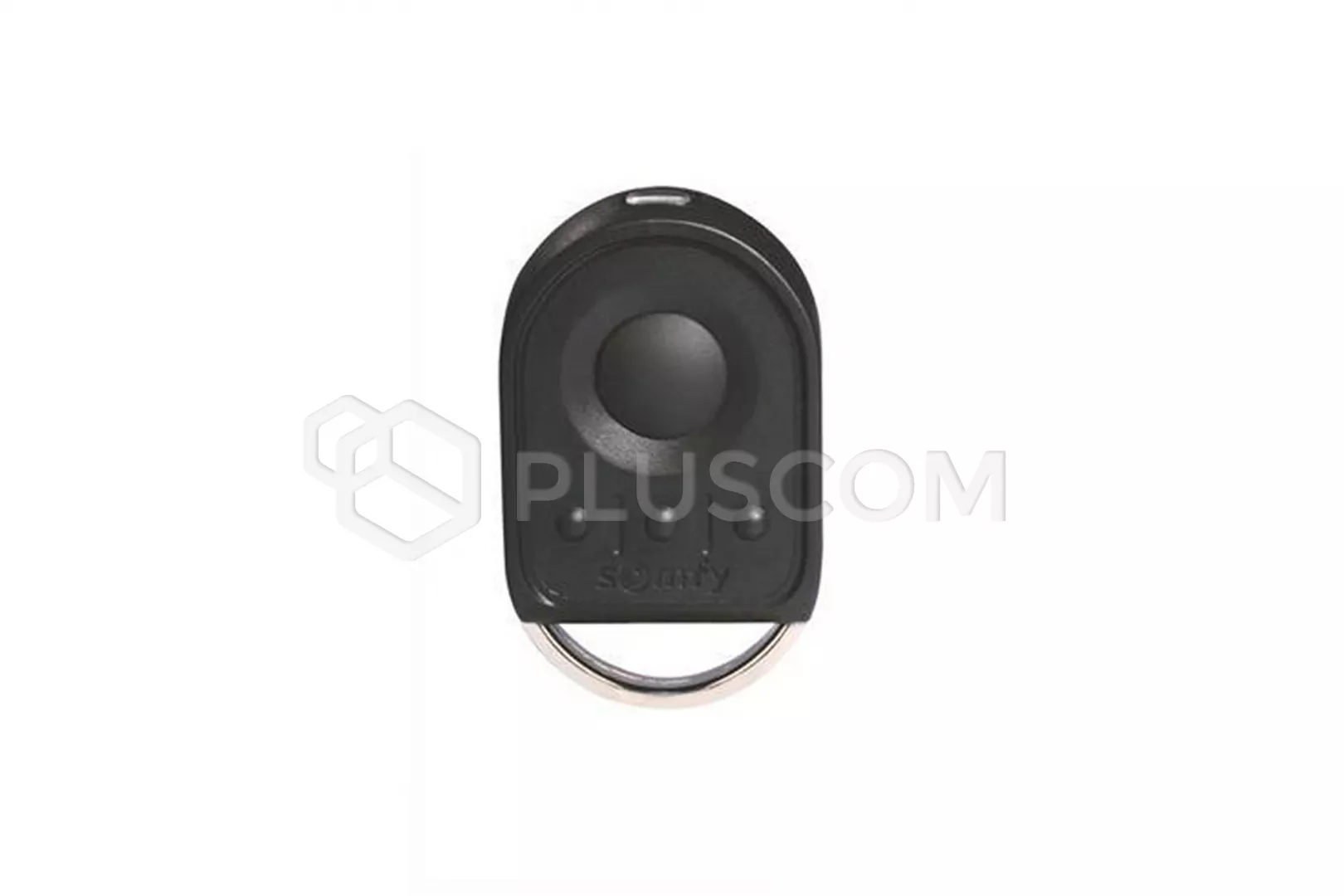

Keygo 4 io 4-channel remote control
|
The drive is controlled by the 3S Ixengo control unit, which can
control it both with one and two actuators. The control panel is ready for
operation in 2 minutes and all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones wires, eliminating errors in connection and the programming system,
prevents making mistakes.
The drive operating status, error codes and drive malfunctions are displayed in
real time. It also displays the number of work cycles, reports, etc.
The control panel is compatible with all Somfy io devices. With TaHoma®
Premium, the device is remotely controlled and information is sent to two-way
remote controls feedback.
PANEL SPECIFICATION
- Mains power: 220-230 V - 50-60 Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- Radio frequency io: 868 - 870 MHz
- Number of storable remote control devices:
-
- One-way (Keygo 4 io, ...):
-
- Gate control: max 30 channels
- Lighting control: max. 4 channels
- Auxiliary device control: max. 4 channels
- Bidirectional: Unlimited
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50-60 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24V DC / 1200mA
- maximum power consumption: 130 W
- minimum space behind the leaf: 416 to 490 mm for a 90 ° opening angle
(depending on hinge offset)
- maximum hinge offset: -20 to 250mm
- lighting output: Dry contact (230V compatible), lighting halogen Maximum
500 W
- opening time to 90 ° 10 seconds
- number of storable remote control devices:
-
- unidirectional: max. 38 channels
- bidirectional: unlimited
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
