Somfy Ixengo L 24V RTS Comfort Pack, set for weight swing gates 400 kg per
gate leaf (1216555)
PACK INCLUDES
- actuator Ixengo L 24V - 2pcs
- 3S Ixengo RTS switch
- Keygo RTS 4-channel remote control - 2 pcs
- Master Pro 24V lamp with built-in antenna
- set of Master Pro photocells - Bitech
- buffer battery
|
Somfy Ixengo L 24V RTS Comfort Pack
|
The Ixengo L 24V RTS Standard Pack is a ready-made kit for large-scale
automation metal gate with a leaf weight of up to 400 kg or a length of 4m.
Users praise it for durability, efficiency and safety.
The actuator is optimized for most installations. Mounting the actuators is
fast and requires no welding or special tools. The drive stayed designed for
use with narrow posts (width at least 80 mm). In addition, the non-retracting
mechanism provides a very high resistance to strong wind pressure and attempts
to force the opening.
The most important features of the drive include:
- quick install
- possibility to set operating parameters
- intuitive operation
- solar panel compatible
- adjustable handle brackets
- non-retractable mechanism ensures very high resistance to heavy pressure
wind and attempted forcing opening
- easy and safe disengagement with individual key
- soft closing of the gate
- adjustable torque value
- adapted to the small space behind the wing
- electronic limit switches
Orange Master Pro lamp signals the movement of the entrance gate.
It has a bright orange light, class III insulation.
Specification:
- power: 15 W
- power supply: 24V
- flashing management: controlled from the drive control panel
- integrated antenna: RTS 433.42MHz
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|

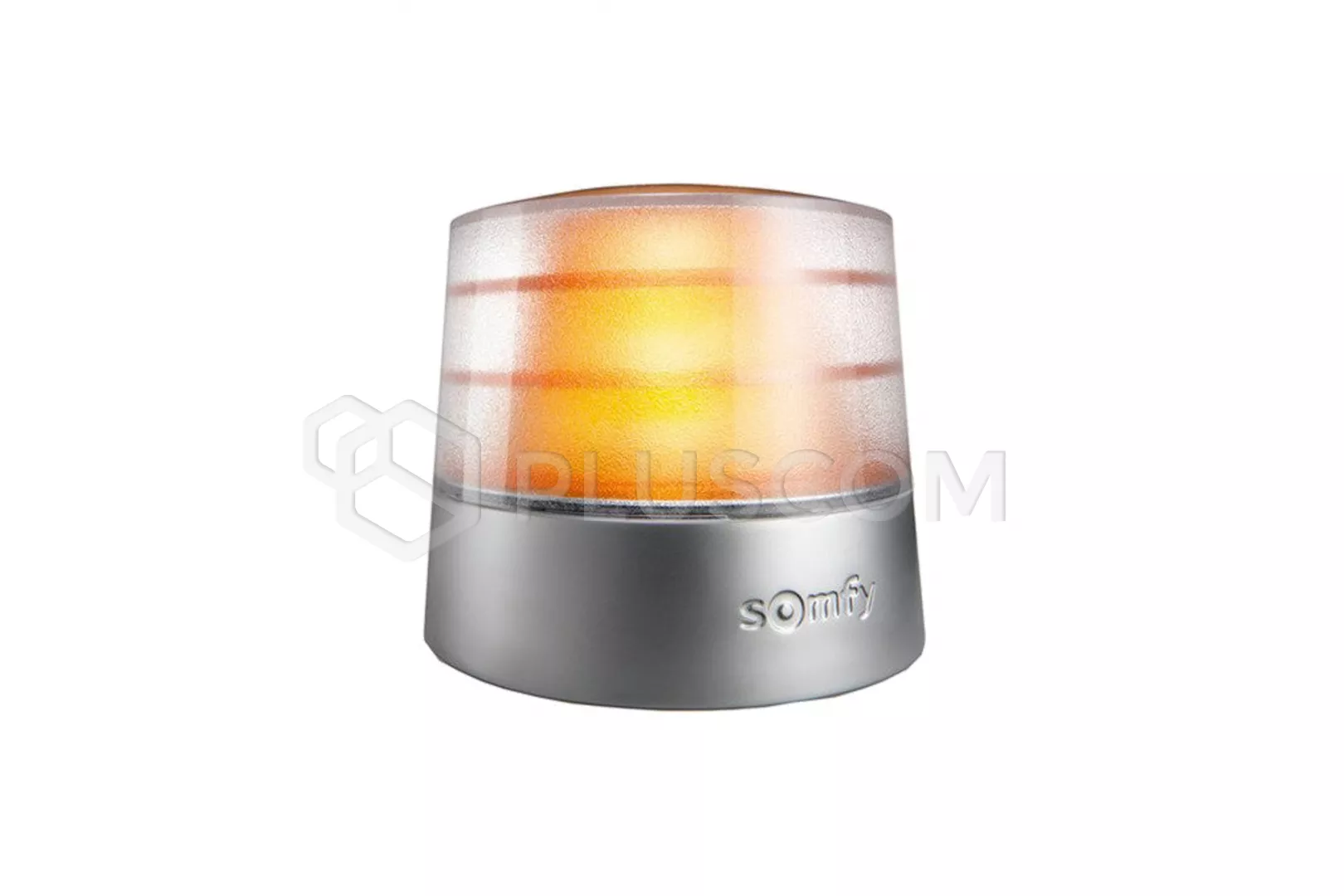

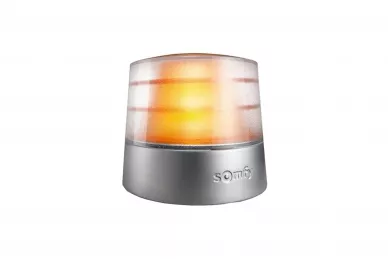

Master Pro 24V lamp
|
Master Pro photocells - Bitech are discreet devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|

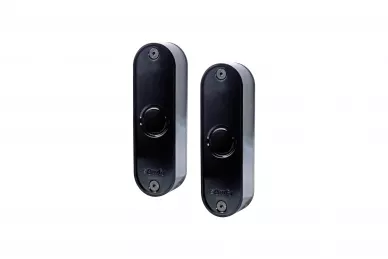

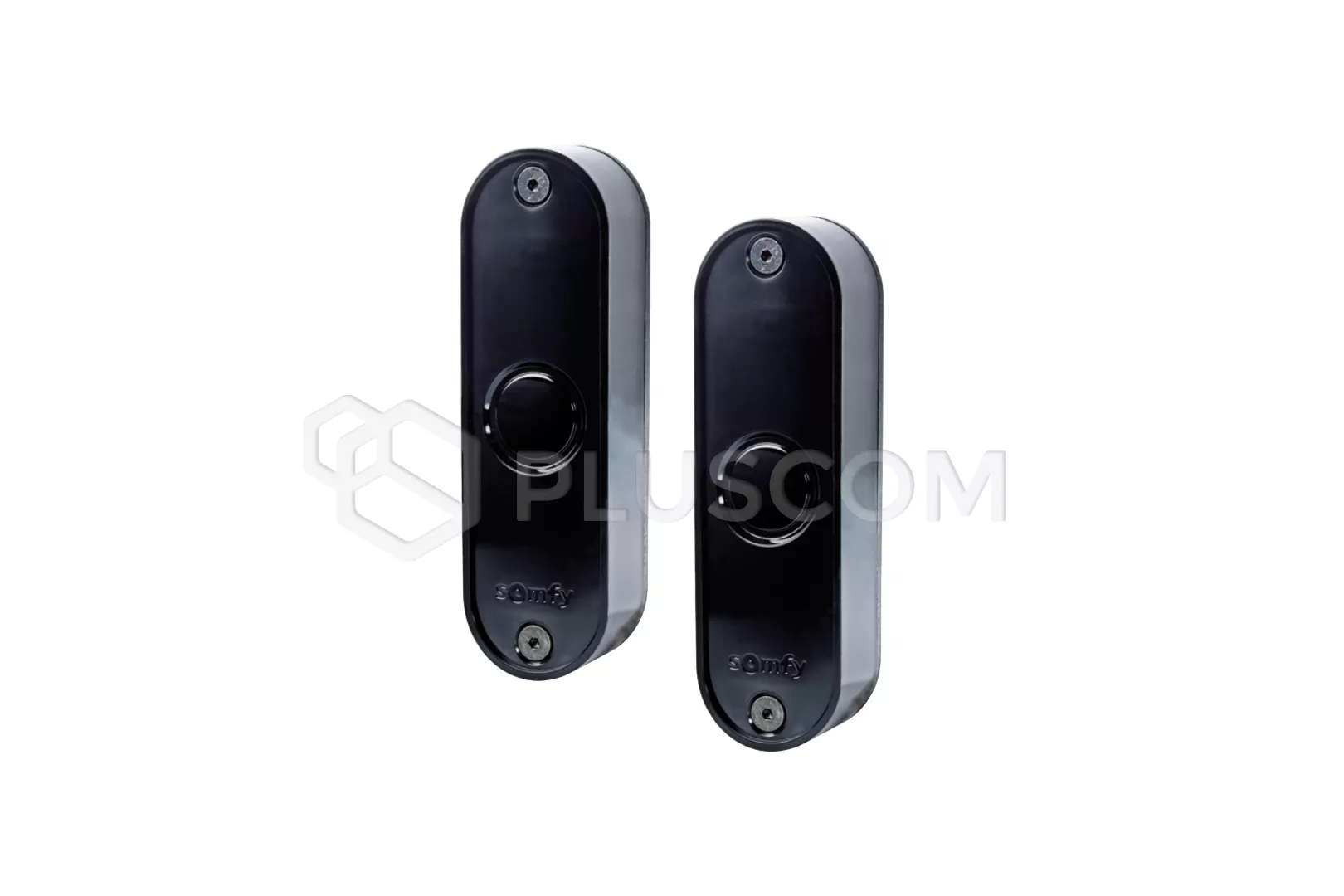

Master Pro photocells - Bitech
|
The kit includes
two 4-channel Keygo RTS remote controls .
It's immune to moisture and damage to the device, which we can control up
to 4 devices. Big central button easy to press without having to look at the
remote control.
Remote specification
- number of channels: 4
- frequency: 433.4MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP30
|

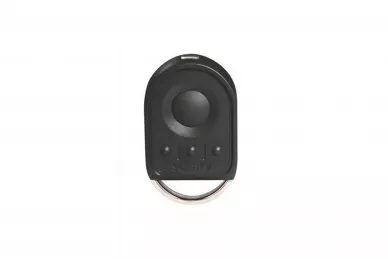

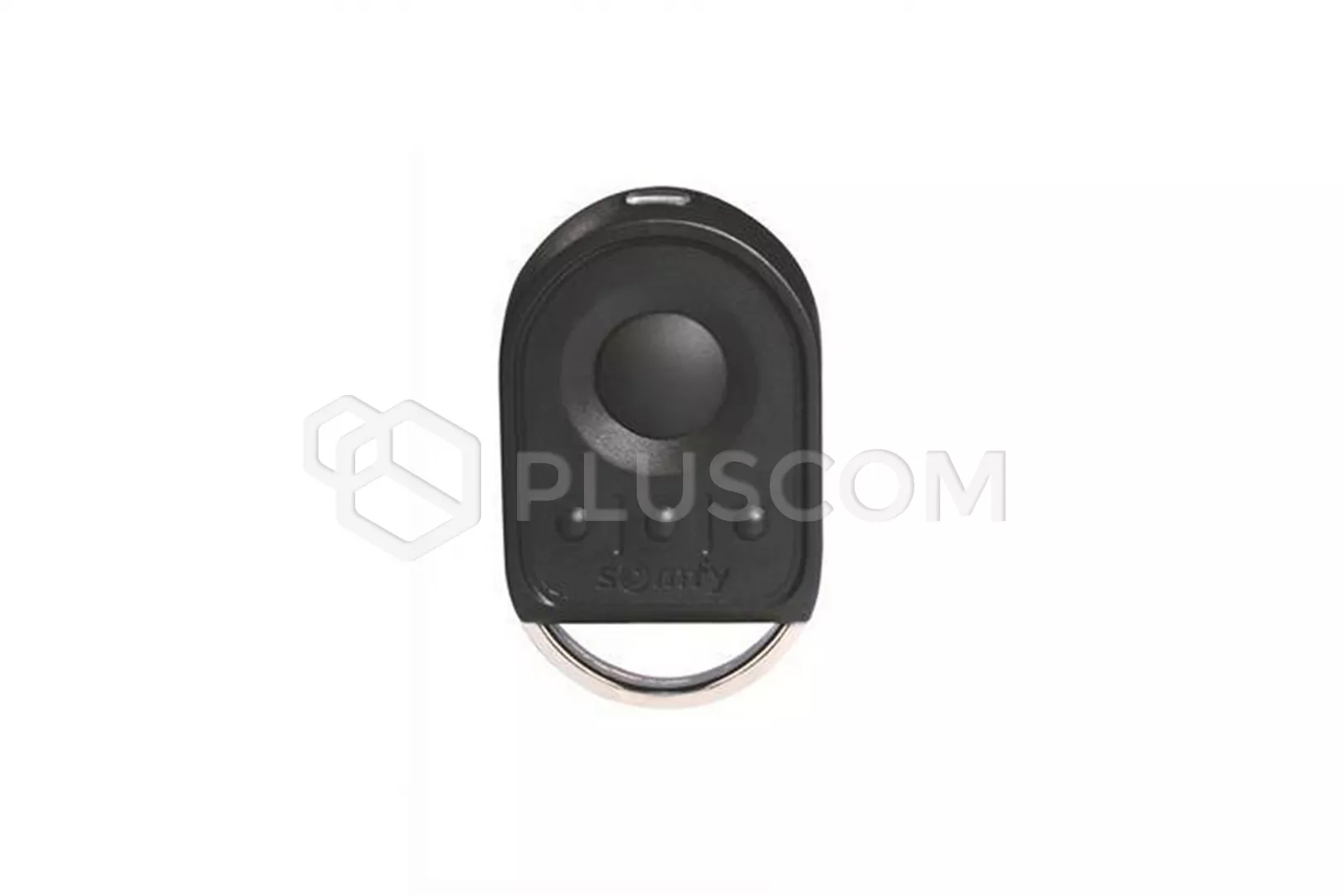

Keygo RTS 4-channel remote control
|
The drive is controlled by the 3S Ixengo RTS control unit ,
which can both with one and two actuators. The control panel is ready for
operation in 2 minutes and all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones wires to eliminate errors in connection and the programming system
prevents making mistakes.
The operating status of the drive, error and malfunction codes are displayed in
real time. The number of work cycles and fishing reports are also displayed
e.t.c.
PANEL SPECIFICATION
- Mains power: 230V - 50Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- TRS radio frequency: 433.42MHz
- Number of storable remote control devices: max. 40 channels
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C

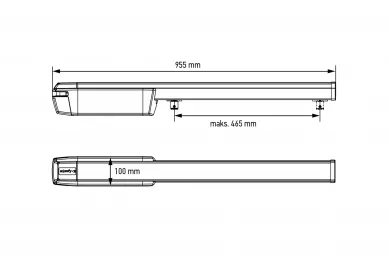

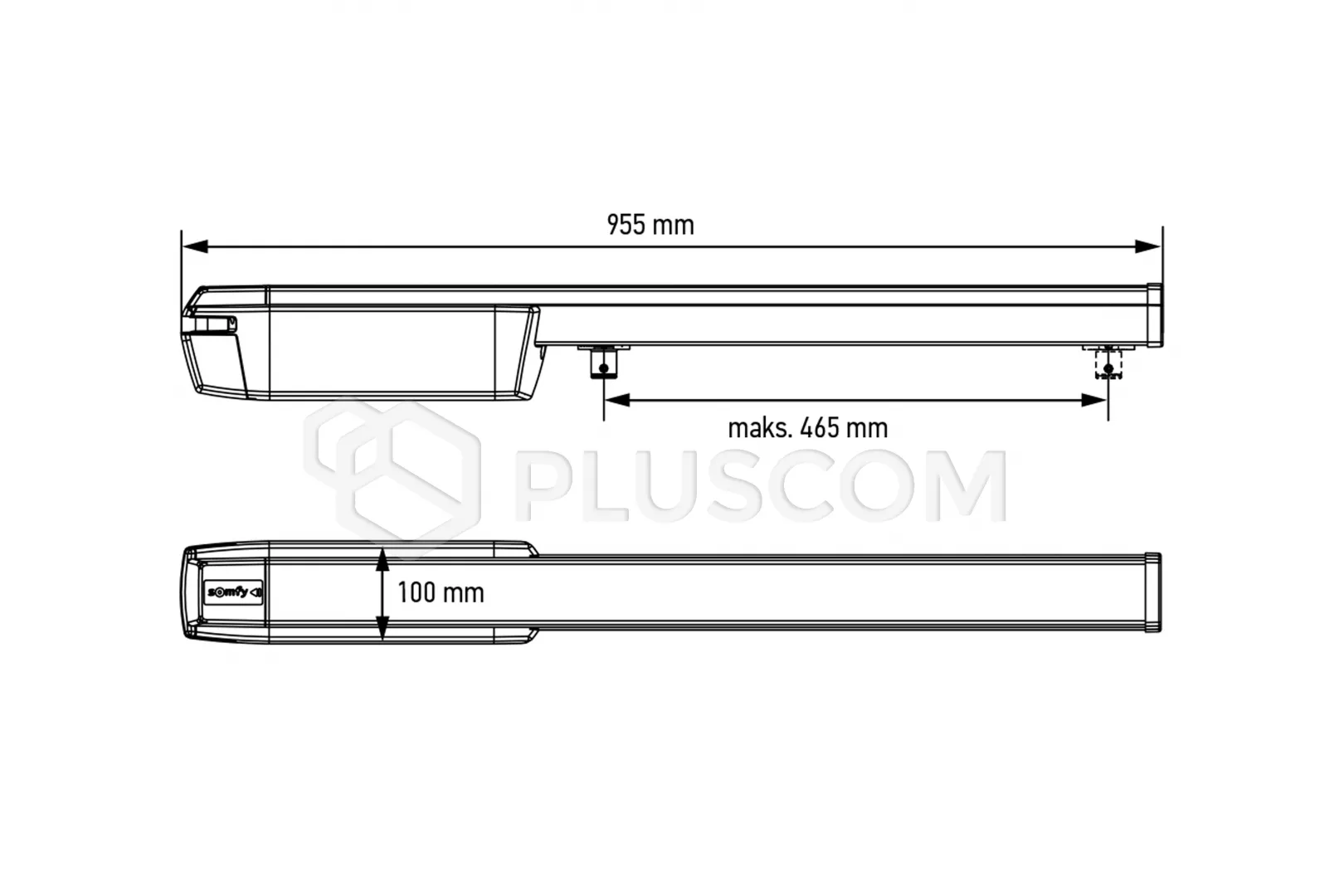

Dimensions:
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24 V DC / 1200 mA
- maximum power consumption: 40 W
- minimum distance behind the wing: 160 mm
- maximum hinge offset: 183mm
- power supply for external lighting: 500 W max. halogen
- drive force: 2000 N
- working range: 465 mm
- open time to 90 °: 10 to 34 seconds (depending on installation)
- Number of storable remote control devices: max. 40 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
